User Manual for NVT FLEX Extender Kit with Flex Link, Base Adapter & Power Supply Click to enlarge the picture
Contents of the user manual for the NVT FLEX Extender Kit with Flex
- Product category: Networking Accessories NVT
- Brand: NVT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NVT Networking Accessories
 |
User manual for the NVT FLEX Extender Kit with Flex contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NVT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NVT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NVT product will considerably shorten its lifespan!
|

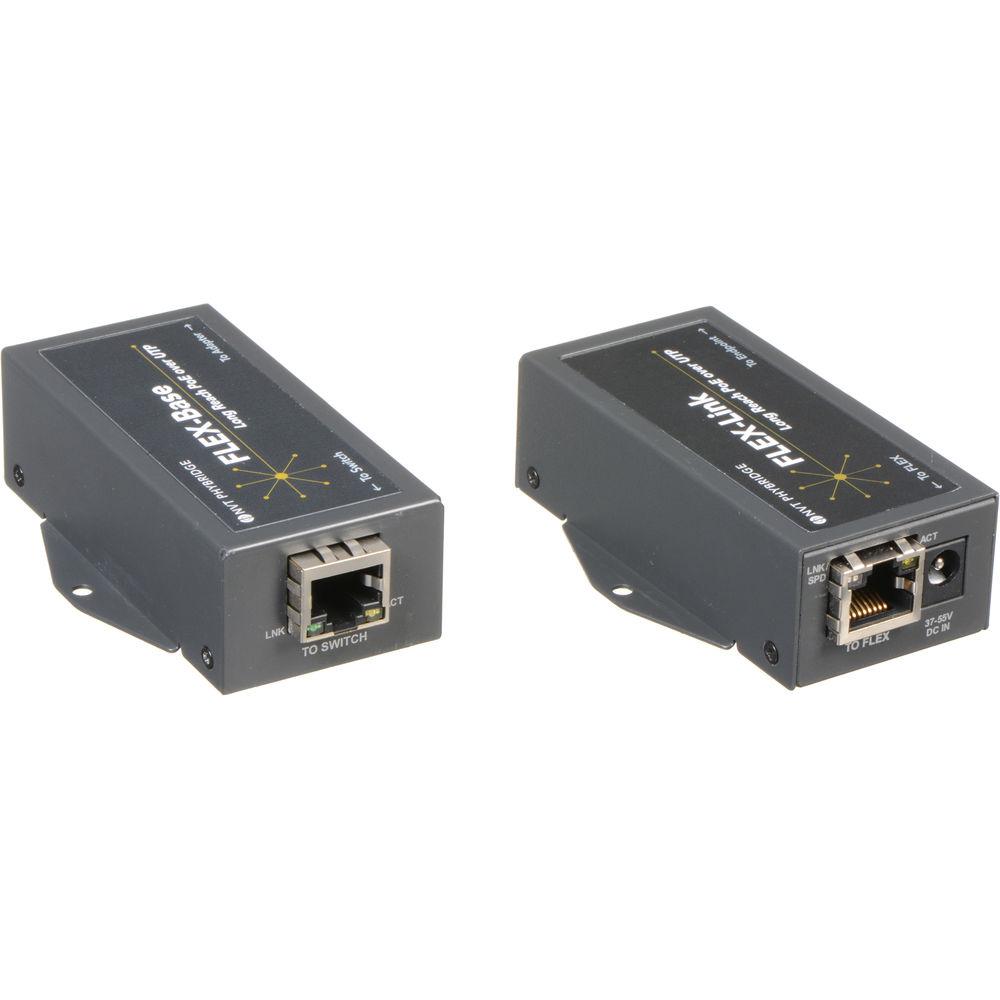

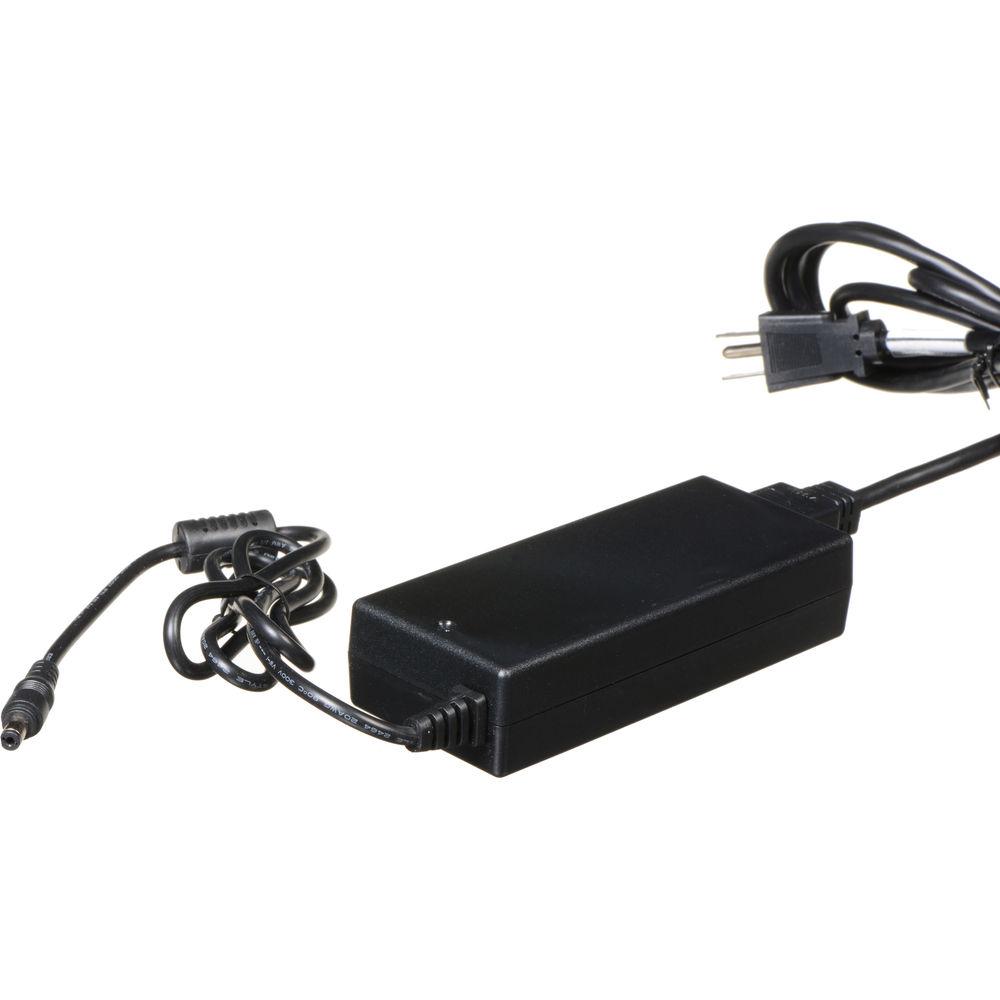

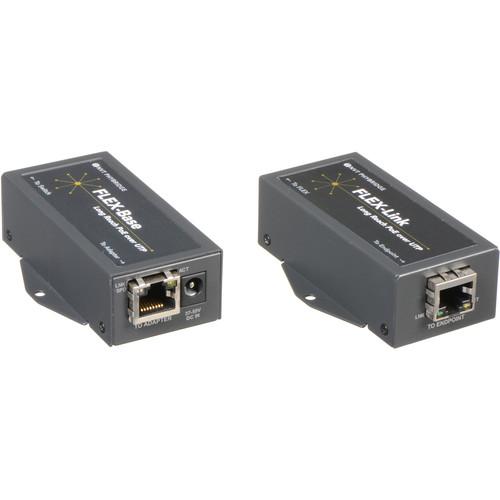

Product description With the FLEX Extender Kit with Flex Link, Base Adapter & Power Supply from NVT Phybridge it is easy to extend the reach of a PoE signal to distances of up to 2000'. This kit includes the FLEX-Base unit, the FLEX-Link adapter, and a dedicated power supply offering up to 60W of power giving you the tools needed to power a variety of PoE-compatible devices. -
- 10/100BASE-T(X) Ethernet with PoE++ (up to 50W)
- 10/10024 Mbps, full duplex data rate
- Power Injection or Pass-through PoE++ over standard UTP or STP cable
- Up to 2,000' at 100 Mbps over 4-pair, or at 10 Mbps over 1- (need local power) or 2-pair
- Supports Multicast and Unicast
- Auto detect data rate for maximum bandwidth and transmission distance utilization
- Compliant with all major IEEE standards and RFC network protocols for UDP, TCP/IP, HTTP/HTTPs EN 50121-4 Certification for Railway/ Subway environments (FLEX-Base and FLEX-Link)
- LED indicators for operating status
- FLEX-Link and FLEX-Base can be locally powered
UPC: 735890500285 In the Box NVT FLEX Extender Kit with Flex Link, Base Adapter & Power Supply Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NVT FLEX Extender Kit with Flex Link, Base Adapter & Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNVT NV-FLXLK-XKIT Specs | Data Rate | Up to 100 Mbps | | Power | Up to 50 W | | Distance | Up to 2000' / 610 m | | Interface | FLEX-Base
Network Infrastructure Side (FLEX side):
1 x RJ-45 Port: UTP/STP cable (2-pair or 4-pair)
For IP End Device (IEEE Side):
1 x RJ-45 Port: Supports negotiation with IEEE 802.3 af/at switches (for general/PoE switch)
FLEX-Link
Network Infrastructure Side (FLEX side):
1 x RJ-45 Port: UTP/STP cable (2-pair or 4-pair)
For IP End Device (IEEE Side):
1 RJ45 port: Endpoint device must be IEEE 802.3 af/at compliant | | Power Supply | FLEX-Base
PoE from the FLEX24 switch, PoE switch, or external power supply; maximum 50 W (over 4-pairs) or 30 W (over 2-pairs)
FLEX-Link
PoE from the FLEX24 switch, PoE switch, or external power supply; maximum 50 W (over 4-pairs) or 30 W (over 2-pairs) | | DC In | FLEX-Base
Optional (sold separately) 48 V - 56 VDC via an external AC/DC power adapter (IEC Class II isolated only)
Note: Local power supply must have its output isolated from Earth potential
FLEX-Link
Optional (sold separately) 48 V - 56 VDC via an external AC/DC Power Adapter (IEC Class II isolated only) Note 1: Local power supply used must have its output isolated from Earth potential.
Note 2: If voltage of local power supply is lower than the voltage provided from the PoE switch, then power on the PoE switch should be turned off | | Power Consumption | FLEX-Base
1.5 W
FLEX-Link
1.5 W | | Temperature & Humidity | FLEX-Base Temperature
-40 to 158°F / -40 to 70°C
(Tests conducted against international safety standard at maximum ambient temperatures of 140°F / 60°C at 30 W and 122°F / 50°C at 50 W)
FLEX-Link Temperature
-40 to 158°F / -40 to 70°C
(Tests conducted against international safety standard at maximum ambient temperatures of 140°F / 60°C at 30 W and 122°F / 50°C at 50 W)
FLEX-Base Humidity
10 to 95% (non-condensing) at 95°F / 35°C
FLEX-Link Humidity
10 to 95% (non-condensing) at 95°F / 35°C | | Dimensions | FLEX-Base
3.46 x 2.16 x 0.98" / 8.8 x 5.5 x 2.5 cm
FLEX-Link
3.46 x 2.16 x 0.98" / 8.8 x 5.5 x 2.5 cm | | Weight | FLEX-Base
4 oz / 114 g
FLEX-Link
4 oz / 114 g | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 11.6 x 7.9 x 2.6" |
