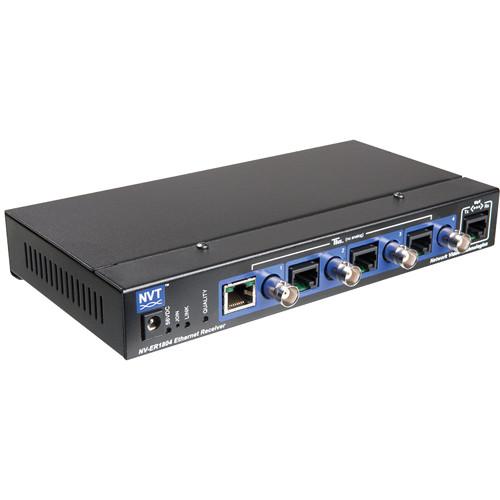

Product description Supporting data transfer rates of up to 150 Mbps, the NV-ER1804 TBus Ethernet over Coax/UTP Receiver from NVT Phybridge allows you to send and receive data over coax cabling. This receiver comes equipped with four Gigabit Ethernet ports and four coax ports as well as a single uplink port. Once installed, users benefit from both industrial transient protection and thermistor current protection. Additionally, this receiver is designed to transmit as far as 328' using Cat 5 Ethernet cable or better. The TBus interface supports coax cabling and features an impedance of 25 to 100 Ohms with a 3 ms latency, and an operating distance of up to 8000' or 1.5 miles.
Please note receiver must be paired with transmitter to function; compatible transmitters NV-ET1801 and NV-ET1804 -
- Transmit 10/100BaseT Ethernet up to 8000' over RG-59/U, 2000' over 2-Wire/UTP, or 1300' over shielded twisted pair
- The TBus architecture allows multipoint operation in any star or daisy-chained topology, with any combination of wire types and up to 16 remote transmitters/IP cameras
- Transparently supports all networking protocols (UDP, TCP/IP, HTTP, Multicast, etc.) using advanced 128-bit AES encryption
- 10/100/1000 uplink Ethernet connectivity
- Easy configuration, no PC required
- The NV-ER1804 supports 56 VDC power over the TBus to all connected equipment, allowing you to connect PoE, PoE+, or high power PoE cameras (or other PoE devices) up to 50 watts
- Built-in transient protection; industrial temperature range
- Limited lifetime warranty
UPC: 735890018056 In the Box NVT NV-ER1804 TBus Ethernet over Coax/UTP Receiver Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NVT NV-ER1804 TBus Ethernet over Coax UTP Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNVT NV-ER1804 Specs | Interfaces | RJ45 Ethernet Interfaces (4 each)
Connectivity
- 10/100/1000BaseT IEEE 802.3ab
- Auto-negotiation, auto MDI / MDX crossover
Protection
- Industrial transient protection
- Thermistor current protection
Wire Type
- Cat 5 or better
Distance
- Up to 328 feet (100 m)
TBus Link Interface
Connectivity
- BNC or RJ45
Wire Type
- Coax, single- or multi-pair UTP, 18/2, or STP wire
Impedance
- 25 to 100 Ohms
Topology
- Bus architecture supports star, daisy-chain, or an combination. One control-room Receiver may support multiple remote TBus Transmitters
Data Throughput
- 150 Mbps total network bandwidth with dynamic bandwidth allocation
Latency
- 3 ms
Transmission Technology
- IEEE 1901
Distance
- Up to 8000 feet, 1.5 miles (2.5 km)
Encryption
- 128-bit AES, through one-button joining | | Temperature & Humidity | Operating / Storage Temperature
-40 to 185°F (-40 to 85°C)
Operating / Storage Humidity
20 to 85% RH non-condensing | | Power Consumption | ≤3 W | | Generated Heat | 10 BTU/hour | | Transient Immunity | 5 x 20 μS 3000 A, 6000 V
ESD 20 kV, 200 pF | | Regulatory | UL Listed to IEC/UL 60950-1
Complies with FCC part 15 A limits | | Dimensions | 8.43 x 1.39 x 4.4" (214 x 35 x 112 mm) | | Weight | 1.64 lb (0.74 kg) | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 9.3 x 5.3 x 1.7" |
Rating100% users recommend this product to others. And what about you?
