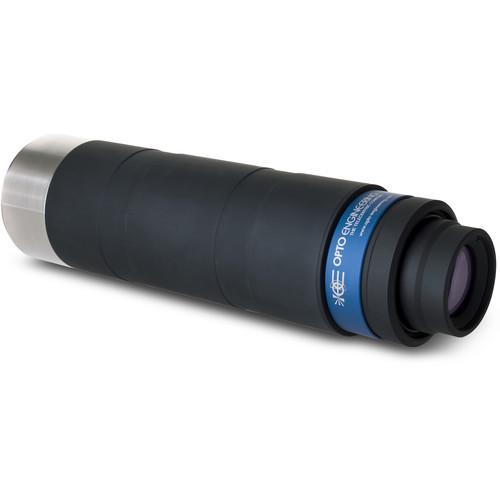

Product description The MC12K Series F-Mount 2.0x Macro Lens from Opto Engineering is specifically optimized to work with high-resolution 12k and 16k pixel line scan cameras, with sensor sizes up to 62.4mm. Its macro design enables uniform optical performance at short working distances. The MC12K series lens is suitable for industrial applications where maximum image resolution is required, such as solar cells and printed sheets inspection, web inspection, or high-speed product sorting. - Compatibility
-
- CMHO series clamping mechanics for MC12K 100-200 lenses
- LTBC series continuous LED backlights, 54x54 illumination area
- LTLAIC series continuous LED 60° low angle diffused ringlights, inner diameter 43mm
- LTLADC series continuous LED 75° low angle direct ringlights, inner diameter 94mm
- LTRNDC series continuous LED direct ringlights, inner diameter 35mm, 45°
- LTBFC series continuous flat side-emitting, one side edge to edge type LED backlights, 36x25 illumination area
- LTBRDC continuous LED bar lights, 40x26.3 illumination area
- LTCXC series continuous LED coaxial lights, 48x48 active area
- Features
-
- Macro design and low distortion
- Perform measurement tasks with a high degree of accuracy and reliability
- Large image circle ensures wide compatibility with line scan sensors up to 62.4mm
- Can distinguish fine tonal gradations
- Suitable for demanding applications where color consistency is required
- Precise manual focusing mechanism to achieve the best possible image sharpness
- Fixed aperture and dedicated clamping mechanics ensure robustness and ease of use
Table of Contents
|
Upload User Manual
Have you got an user manual for the Opto Engineering MC12K Series F-Mount 2.0x Macro Lens for Line Scan Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOpto Engineering MC12K200X-F Specs | Magnification | Near: 2.017x
Nominal: 2x
Far: 1.983x | | Field of View | 35 mm detector 36 x 24 mm: Near: 0.7 x 0.47" (17.8 x 11.9 mm); Nominal: 0.71 x 0.47" (18 x 12 mm); Far: 0.72 x 0.48" (18.2 x 12.1 mm) | | Working Distance | Near: 3.69" (93.6 mm)
Nominal: 3.7" (94 mm)
Far: 3.72" (94.4 mm) | | F-Number (f) | f/6
Working: f/18 | | Distortion | Typical: <0.01% Maximum: 0.02% | | Depth | Field Depth: 0.15 mm
Note: At the borders of the field depth the image can stiil be used for measurement; but to get a very sharp image only half of the nominal field depth should be taken into account. | | CTF@ 50 lp/mm | >30% | | Numerical Aperture | Image Side: 0.028
Object Side: 0.056 | | Mount Type | F-Mount | | Dimensions | 9.5 x 3.0" (242.2 x 76.0 mm) | | Weight | 50.4 oz (1,430 g) |
