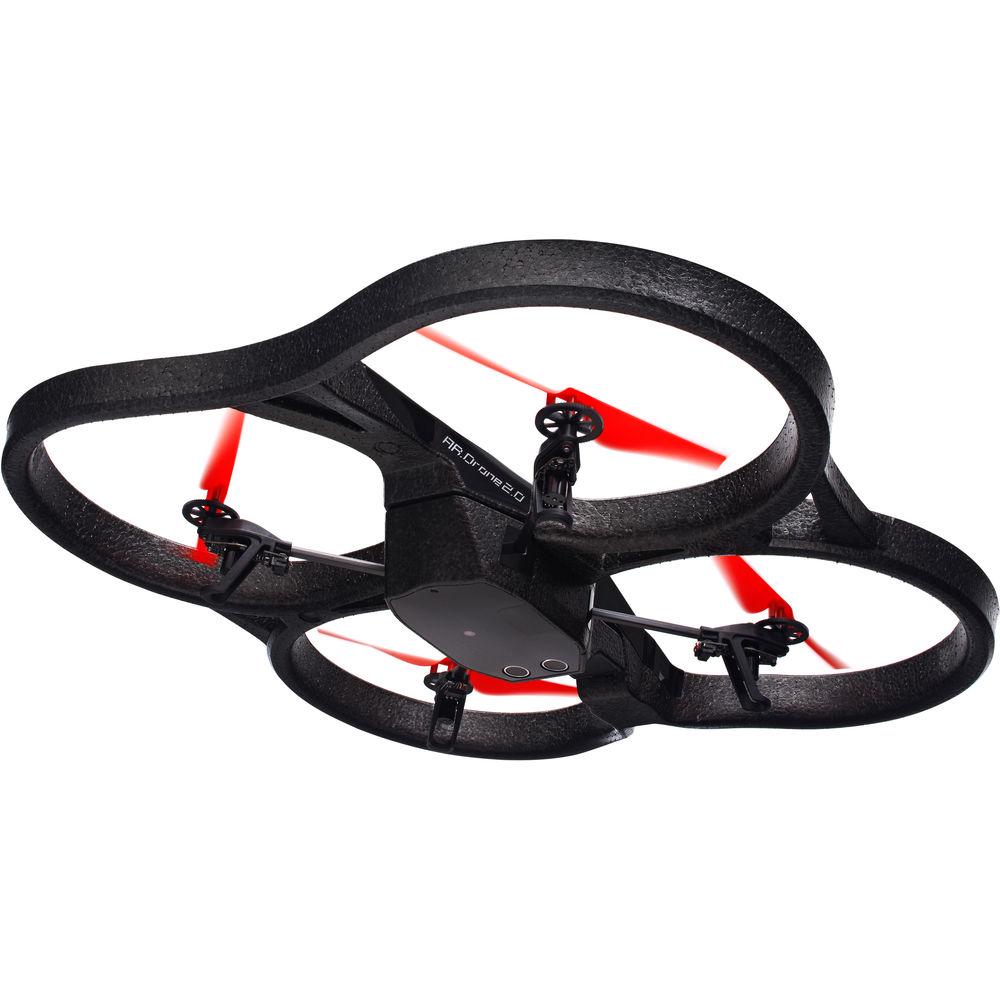

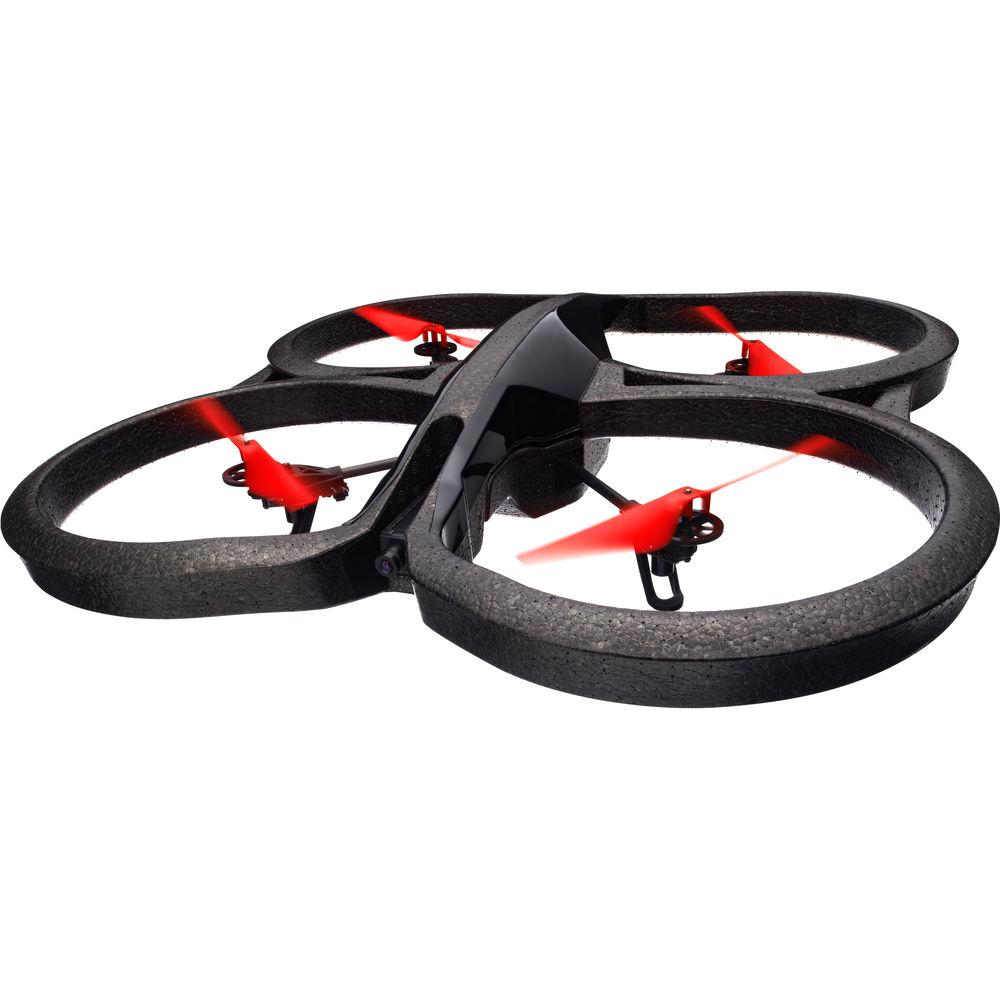

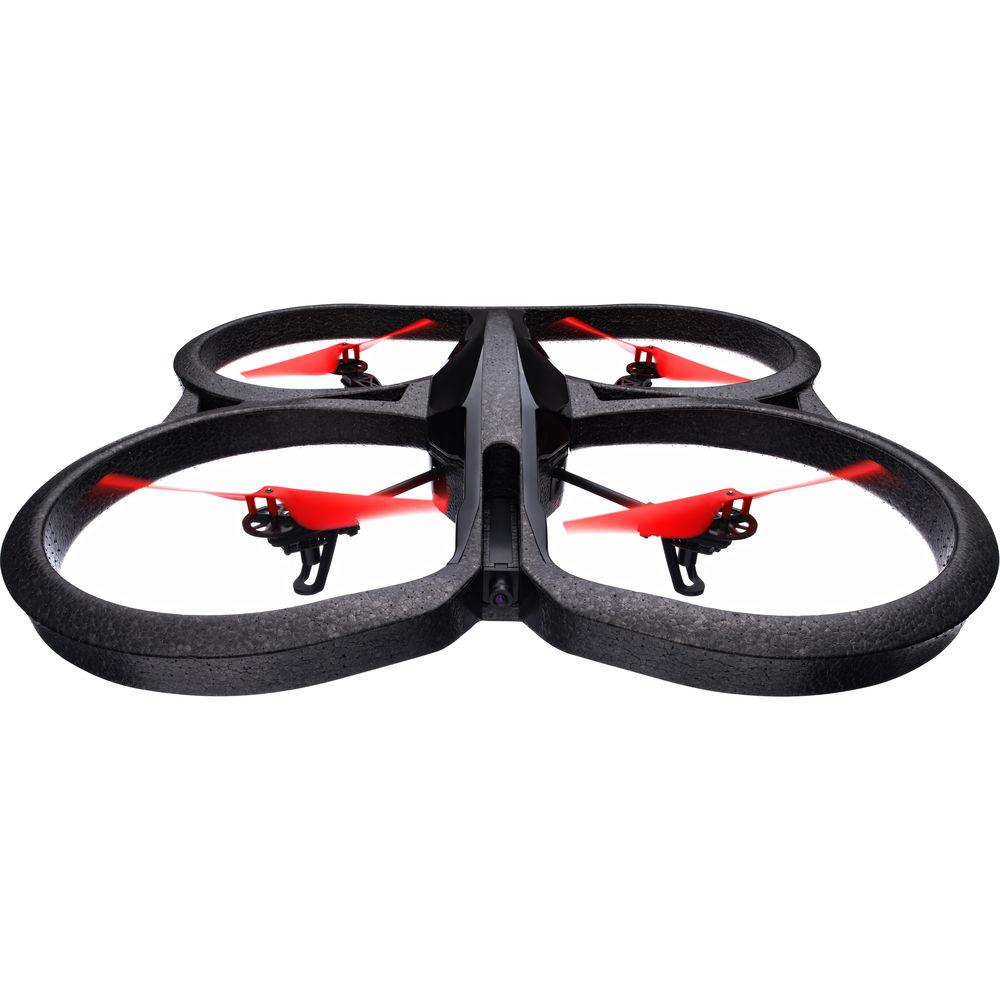

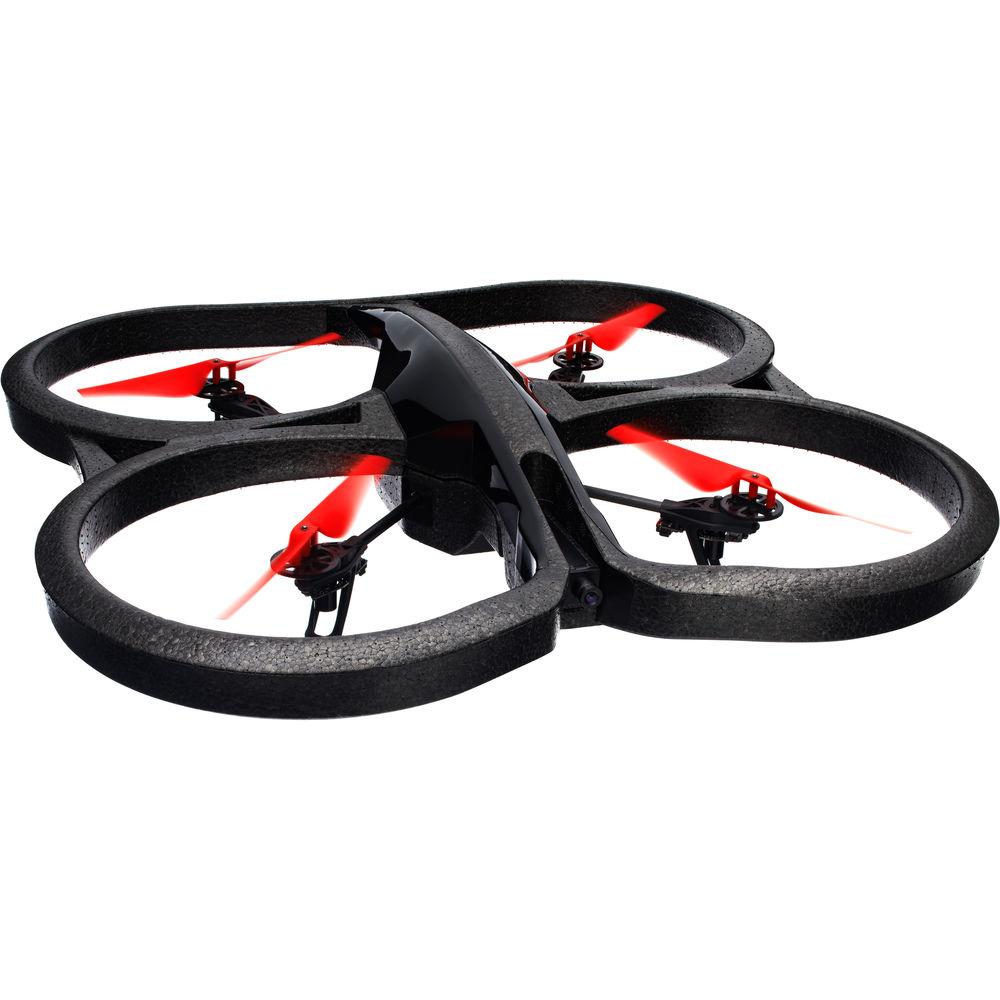

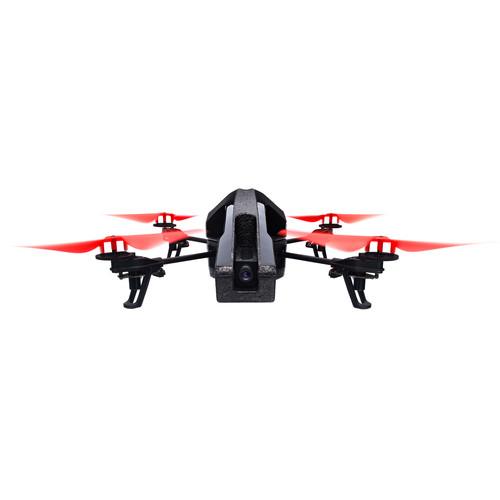

User Manual for Parrot AR.Drone 2.0 Quadcopter Power Edition Click to enlarge the picture
Contents of the user manual for the Parrot AR.Drone 2.0 Quadcopter Power Edition
- Product category: See All Drones Parrot
- Brand: Parrot
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Parrot See All Drones
 |
User manual for the Parrot AR.Drone 2.0 Quadcopter Power Edition contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Parrot product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Parrot user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Parrot product will considerably shorten its lifespan!
|
Product description Aerial Photography and Drone Glossary Read More wvdbbtxraxsffyszxbduvsxqzxddsaavcyru The red Parrot AR.Drone 2.0 Quadcopter Power Edition is a remote controlled, four-propeller quadcopter with an integrated HD 1280 x 720p camera that supports video and still image capture while in flight. The AR.Drone 2.0 Elite Edition includes a lighter outdoor hull for optimal performance as well as an indoor hull that features prop guards. The AR.FreeFlight Control App allows you to use your iOS or Android mobile device to operate the aircraft from the ground as well as capture video and still photos. The device has built-in Wi-Fi to facilitate connection to your smartphone or mobile device, which provides a wireless range of up to 165' depending on conditions. You can use a joystick on your mobile device touchscreen or you can simply tilt and turn your mobile device to control the quadcopter. The camera footage can be streamed directly to your mobile device using Wi-Fi for low resolution recording, can be recorded in full quality by inserting a USB flash drive or the Parrot Flight Recorder directly into the AR.Drone for onboard, in-flight recording. The AR.Drone 2.0's other notable features include an autopilot system, access to the AR.Drone Academy, multiple sensors for smooth flying and stability in the air, an onboard 1 GHz ARM Cortex A8 CPU running Linux, and support for acrobatic maneuvers including flips and barrel rolls. The AR.Drone 2.0 is also compatible with other apps including Director Mode, AR.Race 2, AR.Rescue 2 and Astro Drone.
Note: Please address all technical issues directly to Parrot. Contact technical support by phone at 877-9Parrot (877-972-7768). Mobile Device Operated - Controller Modes
- The AR.Freeflight App features the following controller modes:
- Joypad Mode (ON): Mobile device touchscreen joystick for control
- Joypad Mode (OFF): Tilt mobile device for control
- Absolute Control Mode: Lets you activate absolute reference control mode
- Supported Apps
- AR.Freeflight is the main app used in lieu of a transmitter to operate the AR.Drone from the ground. Additional apps that are supported include: AR.Drone Director Mode App, AR.Race 2 App, AR.Rescue 2 App, and Astro Drone App. In addition, an SDK is available for developers, allowing custom solutions to be created
Integrated Flight Camera - HD recording to USB thumb drive or Flight Recorder
- Captures 720p video at 30 fps in H.264
- Captures still photos in JPEG
- 92° diagonal wide angle lens
- Low-latency streaming to mobile device
Body Shell and Airframe Construction - Foam to isolate the inertial center from the engines' vibrations
- Expanded Polypropylene (EPP) hulls
- Carbon fiber tubes: total weight 13.4 oz with outdoor hull, 14.8 oz with indoor hull
- Features 30% fiber charged nylon plastic parts
- Liquid repellent nano-coating on ultrasound sensors
- Fully reparable: all parts are designed to be replaced
Motors - Four brushless inrunner motors
- Powered by 3 element, 1000 mAh lithium-polymer battery
- Specific high propelled drag desinged to provide high maneuverability
- 8 MIPS AVR CPU per motor controller
- 14.5 watt and 28 500 rpm when hovering
- Self-lubricating bronze bearings
- Tempered steel propeller shafts and micro ball bearings
- Low noise Nylatron gears for 8.625 propeller reductor
- Emergency stop controlled by software
- Fully reprogrammable motor controller
- Water resistant electronic controllers
Onboard Electronics - Built-in ARM CPU
-
- 1 GHz, 32-bit ARM Cortex A8 processor with 800 MHz video DSP (TMS320DMC64x)
- 1 Gb DDR2 RAM at 200MHz
- Wi-Fi with b/g/n support
- Operating System
- Linux 2.6.32
- Flight Data Sensors
-
- 3-axis accelerometer with +/- 50mg precision
- 3-axis gyroscope with 2000°/second precision
- Pressure sensor with +/- 10 Pa precision (2.6' at sea level)
- 60 fps vertical QVGA camera for ground speed measurement
- 3 axis magnetometer with 6° precision
- Ultrasound sensors for ground altitude measurement
- USB Interface
- For connecting Flight Recorder, a thumb drive, and software updates
In the Box Parrot AR.Drone 2.0 Quadcopter Power Edition (Red) - Indoor Hull (with Guard Rings)
- Outdoor Hull (without Guard Rings)
- Charger
- LiPo Battery for AR.Drone 2.0 Quadcopter (11.1 V, 1000 mAh)
- Limited 1-Year Warranty Honored by Parrot; Please Address all Technical Issues Directly to Parrot
Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 User Manual PDF 4.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Parrot AR.Drone 2.0 Quadcopter Power Edition in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersParrot PF721005 Specs | | | Lens | 92° (diagonal) wide angle | | Supported Resolution | HD 1280 x 720p (30 fps) | | Recording | Via Wi-Fi to mobile device
USB thumb drive or Flight Recorder | | Video Format | H.264 | | Photo Format | JPEG | | Streaming Capability | Low latency streaming via Wi-Fi to mobile device | | | | CPU | Processor: ARM Cortex A8 (32-bit)
Clock Speed: 1 GHz
GPU: 800MHz DSP (TMS320DMC64x)
RAM: 1 Gb DDR2 RAM
Memory Clock: 200 MHz | | Operating System | Linux 2.6.32 | | Wireless Platform | Wi-Fi b/g/n | | Sensors | 3-axis accelerometer (± 50 mg precision)
3-axis gyroscope (2000°/second precision)
Pressure sensor (± 10 Pa precision / 31.5" (80 cm) at sea level)
3-axis magnetometer (6° precision)
Ultrasound ground altitude measurement sensors (effective up to 19.7' (6 m) above the ground)
Dynamic wind estimation sensor
3D compass | | Ground Speed Measurement | 60 fps vertical QVGA camera | | I/O Interface | USB 2.0 -- for Flight Recorder, USB thumb drive, and software updates | | | | Motor Type | 4 x Brushless inrunner motors | | Power Consumption | 14.5 W at 28,500 rpm (nominal when hovering) | | | | Control Method | Android or iOS App
Supported Apps Include: AR.Freeflight (primary), AR.Race 2 App, AR.Rescue 2, and Astro Drone App
SDK available for custom solutions | | System Requirements (App) | Apple iPhone
Apple iPod touch
Apple iPad
Android smartphone or tablet (requires Android 2.2 and above) | | | | Wireless Range | Up to 165' (50.3 m) | | Battery Type | 3-element lithium polymer rechargeable battery | | Battery Capacity | 1000 mAh | | Battery Life | Up to 12 minutes | | Dimensions (L x W) | With Outdoor Hull: 17.76 x 17.76" (451 x 451 mm)
With Indoor Hull: 20.35 x 20.35" (517 x 517 mm) | | Weight | With Outdoor Hull: 13.4 oz (380 g)
With Indoor Hull: 14.82 oz (420 g) | | | | Package Weight | 5.55 lb | | Box Dimensions (LxWxH) | 22.5 x 22.5 x 5.5" |
