Sennheiser SpeechLine Digital Wireless Microphone Set

Search your instruction manual in PDF to download

User Manual for Sennheiser SpeechLine Digital Wireless Microphone Set with 133-S GN Stand, MEG 14-40 B Microphone, and DW Receiver

Click to enlarge the picture
Sennheiser SpeechLine Digital Wireless Microphone Set with 133-S GN Stand, MEG 14-40 B Microphone, and DW Receiver Contents of the user manual for the Sennheiser SpeechLine Digital Wireless Microphone Set
  • Product category: Audio Conferencing Sennheiser
  • Brand: Sennheiser
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Sennheiser Audio Conferencing

Sennheiser SpeechLine Digital Wireless Microphone Set with 133-S GN Stand, MEG 14-40 B Microphone, and DW Receiver Sennheiser SpeechLine Digital Wireless Microphone Set with 133-S GN Stand, MEG 14-40 B Microphone, and DW Receiver
User manual for the Sennheiser SpeechLine Digital Wireless Microphone Set contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Sennheiser product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!



Product description

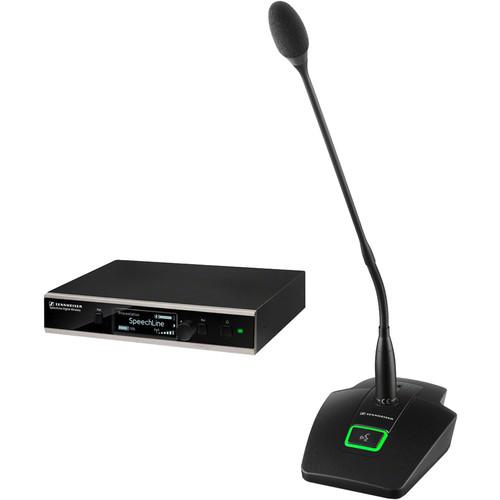

The SpeechLine Digital Wireless Microphone Set from Sennheiser includes an SL Table Stand 133-S DW, a MEG 14-40 B gooseneck microphone, an SL Rack Receiver DW with power supply, a BA 40 rechargeable battery, and a rackmount kit. Optimized for speech transmission, this flexible wireless set offers speech intelligibility and ease of use for meeting participants, in conference rooms, offices, and huddle rooms.

The table stand features a 3-pin XLR port for connecting to the gooseneck microphone; it connects wirelessly to the receiver and can be charged wirelessly or via included USB cable. The rechargeable battery allows up to 11 hours of operation and an LED provides battery life status. The receiver features a clear visible OLED display for easy setup and operation. The automatic frequency and interference management allows convenient and reliable operation. The microphone set can be controlled and monitored remotely via the Sennheiser Control Cockpit software (available separately). UPC: 615104264113 In the Box Sennheiser SpeechLine Digital Wireless Microphone Set with 133-S GN Stand, MEG 14-40 B Microphone, and DW Receiver (US)
  • SL Table Stand 133-S DW
  • MEG 14-40 B Gooseneck Microphone
  • BA 40 Accupack
  • SL Rack Receiver DW
  • Power Supply
  • GA 4 Rackmount Kit
  • USB Cable
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Sennheiser SpeechLine Digital Wireless Microphone Set with 133-S GN Stand, MEG 14-40 B Microphone, and DW Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Sennheiser SL TS 133 GN SET DW-4 US Specs

    AF Frequency Response 20 Hz to 20 kHz
    Dynamic Range > 120 dB
    THD 0.1% at 1 kHz
    Audio Sampling 24-bit / 48 kHz
    Signal to Noise Rate > 90 dB
    Encryption AES 256
    RF Frequency Range US: 1920 to 1930 MHz
    Modulation GFSK with back channel
    Transmission Method TDMA, space diversity
    Latency 19 ms
    Relative Humidity 95% maximum
    Operating Temperature 14 to 131°F / -10 to 55 °C
    Storage Temperature -4 to 158°F / -20 to 70°C
    RF Sensitivity < -90 dBm
    RF Output Channels Adaptive, up to 250 mW (country-specific)
    Audio Output Level XLR Balanced: Maximum +18 dBu
    RCA Unbalanced: Maximum +6 dBu
    Audio Effects Low Cut: -3 dB at 120 Hz
    Equalizer: 7-band graphic equalizer with sound presets
    Sound Profiles: Female voice, male voice, and media
    Display OLED
    Network Protocol Media Control Protocol, TCP/IP IPv4 (DHCP, manual)/IPv6
    Power Supply 12 VDC
    Current Consumption 350 mA
    Connectors 1 x XLR
    2 x RCA
    2 x reverse SMA
    1 x RJ45
    1 x power
    Dimensions 8.4 x 1.7 x 6.6" / 21.2 x 4.3 x 16.8 cm
    Weight 29 oz / 828 g
    Nominal Input Voltage 100 to 240 VAC
    Power Frequency 50 or 60 Hz
    Input Current Maximum 120 mA
    Power Consumption Standby: ≤ 0.3 W
    Operating Temperature 14 to 131°F / -10 to 55°C
    Storage Temperature -4 to 158°F / -20 to 70°C
    Relative Humidity 95%
    Dimensions Not specified by manufacturer
    Weight Approx. 3.5 oz / 100 g
    AF Frequency Response 75 Hz to 20 kHz
    Max Input 1.7 V RMS
    Input Impedance 30 kOhms
    Power Supply BA 40 accupack
    Operating Time Up to 11 hours
    Microphone Connector 3-pin XLR
    Operating Temperature 50 to 113°F / 10 to 45°C
    Relative Humidity 95%
    Dimensions 6.6 x 4.7 x 1.9" / 16.7 x 12.0 x 4.8 cm
    Weight 23 oz / 660 g without battery
    Model BA 40
    Capacity 2200 mAh
    Output Voltage 3.6 V
    Pick Up Pattern Cardioid
    Frequency Response 50 Hz to 20 kHz
    Acoustic Principle Gooseneck microphone (condenser)
    Output Impedance < 100 Ohms at 1 kHz
    Sensitivity 15 mV/Pa
    Maximum Sound Pressure Level (SPL) 130 dB at 1 kHz < 3%
    Equivalent Noise Level 37 dB (CCIR)
    26 dB (A)
    Power Supply Microphone: 12 to 48 V phantom power
    Current Consumption 3 mA
    Connector 3-pin XLR
    Operating Temperature 32 to 104°F / 0 to 40°C
    Storage Temperature -13 to 158°F / -25 to 70°C
    Length 17.7" / 45.0 cm
    Package Weight 7.65 lb
    Box Dimensions (LxWxH) 16.0 x 13.7 x 3.0"
