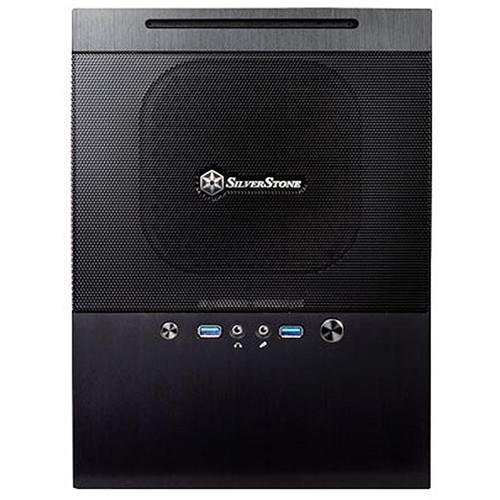

User Manual for SilverStone Sugo Series SG10 Mini-Tower Case Click to enlarge the picture
Contents of the user manual for the SilverStone Sugo Series SG10 Mini-Tower Case
- Product category: Desktop Computer Cases SilverStone
- Brand: SilverStone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SilverStone Desktop Computer Cases
 |
User manual for the SilverStone Sugo Series SG10 Mini-Tower Case contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SilverStone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SilverStone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SilverStone product will considerably shorten its lifespan!
|

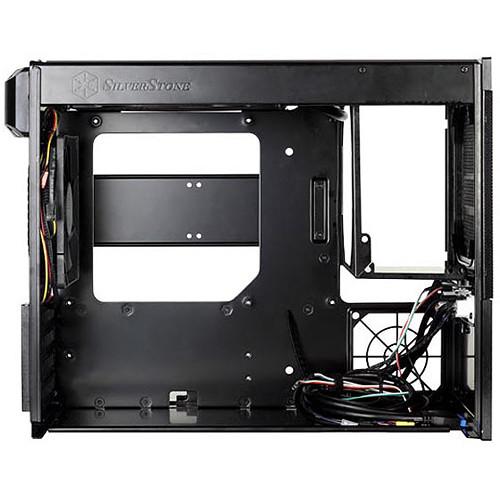

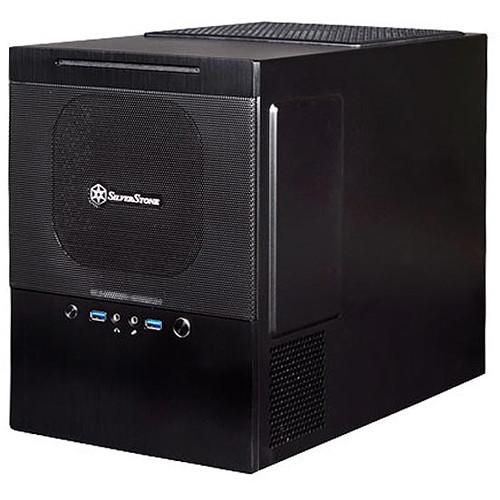

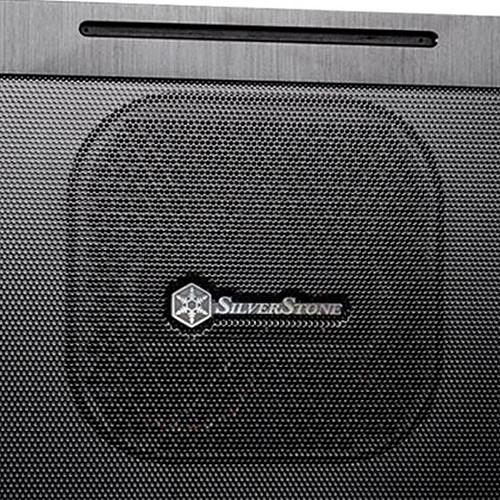

Product description Designed with a 23L capacity and constructed with an aluminum front panel and a steel body, the black Sugo Series SG10 Mini-Tower Case from SilverStone is a follow-up to the Sugo SG09. It has had its storage capacity reduced via relocation to motherboard backside mounting, allowing it to accommodate two 13.3" long graphics cards. Additionally, the power supply has been moved away from the area designated for the CPU, allowing the CPU cooler's height to be increased.

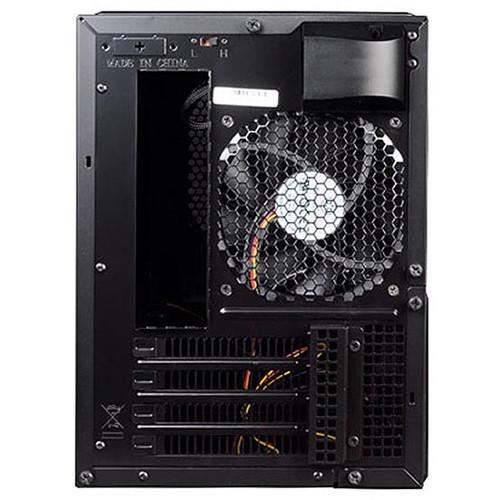

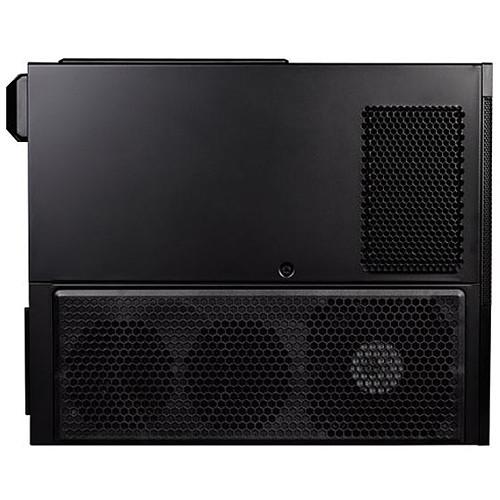

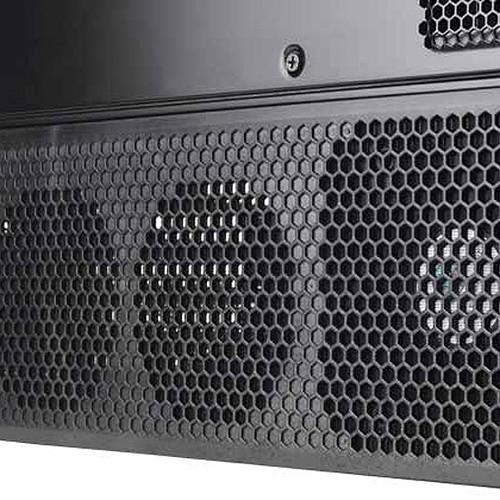

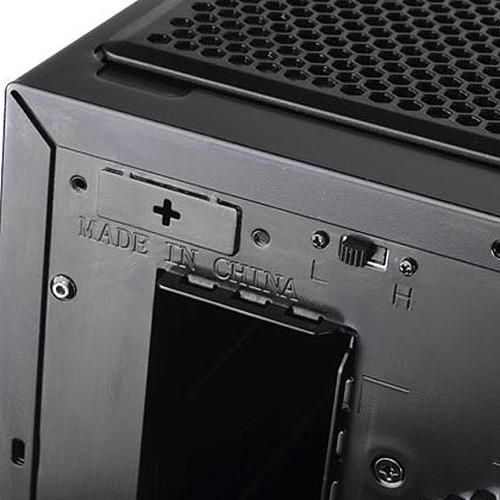

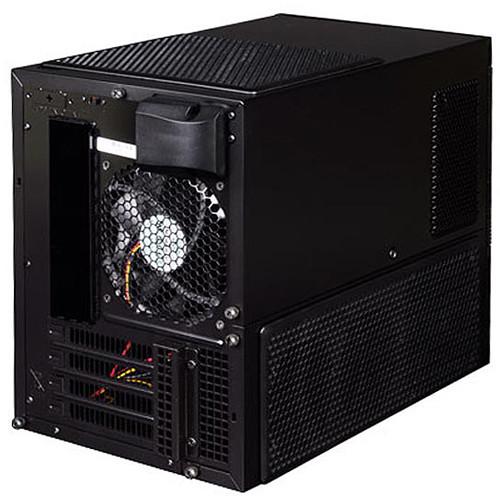

The SG10 Case supports Micro-ATX, Mini-DTX, and Mini-ITX motherboards. It has one 12.7/9.5mm slim optical drive bay, two 3.5" internal drive bays, and four 2.5" internal drive bays. It is cooled using one rear 120mm fan, with a rotational speed of 1200 rpm and a noise level of 22 dBA; one left-mounted 120mm fan, with a rotational speed of 1200 rpm and a noise level of 22 dBA; and a top-mounted 180mm Air Penetrator, with selectable rpm speeds of 600, 900, and 1200 and noise levels of 17, 25, or 34 dBA. The top fan slot is backwards compatible with 140mm fans, and there are also dual left-mounted 80/92mm fan slots and one right-mounted 80mm fan slot for additional cooling.

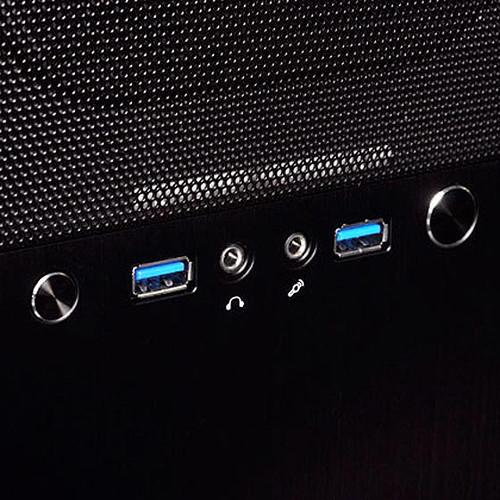

This case is equipped with two USB 3.0 ports (backwards compatible with USB 2.0), one audio port, and one mic port, all of which are front mounted. It also has four expansion slots and operates using a standard PS2 (ATX) power supply, not included. For security purposes, it has two Kensington lock slots and is protected by a limited 1-year warranty.
Please note that if you intend to use all the hard drive slots, you must remove all unused power supply cables, as they may cause problems with drive installation. Also, SSDs are recommended in place of hard drives. Additionally, while the maximum length for PSUs is 7.1" / 180mm, SilverStone recommends using PSUs no longer than 6.3" / 160mm. - Supports graphics cards of any length
- Supports full-tower CPU coolers
- Supports Strider Plus PSUs up to 1000W
- Mandatory cable routing design
- Ample fan slots to help achieve maximum airflow
- Cleanly styled aluminum front panel
UPC: 844761010249 In the Box SilverStone Sugo Series SG10 Mini-Tower Case Limited 1-Year Warranty Guides & Manuals fecqacqxevrswc Table of Contents
|
Upload User Manual
Have you got an user manual for the SilverStone Sugo Series SG10 Mini-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the SilverStone Sugo Series SG10 Mini-Tower Case can be downloaded in PDF format at the link stated below.
Technical parametersSilverStone SG10B Specs | | | Motherboard Support | Micro-ATX, Mini-ITX, Mini-DTX | | External Drive Bays | 1 x Slim Optical Drive | | Internal Drive Bays | 7 x 2.5" | | Maximum GPU Length | 13.3" / 33.8 cm | | CPU Cooler Height | 6.5" / 16.5 cm | | Supported PSU Size | ATX | | Maximum PSU Length | 7.1" / 18 cm | | | | Fan Mounting (Side) | 1 x 80 mm
| | Fans Included (Rear) | 1 x 120 mm (1200 rpm) | | Fans Included (Side) | 1 x 120 mm (1200 rpm) | | Fans Included (Top) | 1 x 180 mm (Variable rpm) | | Noise Level | 17 to 34 dBA | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Aluminum, Steel | | Security | Kensington Lock Slot | | Cable Management Space | None | | Dimensions (W x H x D) | 8.7 x 11.6 x 13.9" / 220.0 x 295.0 x 354.0 mm | | Weight | 12.8 lb / 5.8 kg | | | | Package Weight | 16.5 lb | | Box Dimensions (LxWxH) | 18.0 x 15.0 x 11.5" |
