User Manual for SilverStone TJ08-E Temjin Mini-Tower Case Click to enlarge the picture
Contents of the user manual for the SilverStone TJ08-E Temjin Mini-Tower Case
- Product category: Desktop Computer Cases SilverStone
- Brand: SilverStone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SilverStone Desktop Computer Cases
 |
User manual for the SilverStone TJ08-E Temjin Mini-Tower Case contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SilverStone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SilverStone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SilverStone product will considerably shorten its lifespan!
|

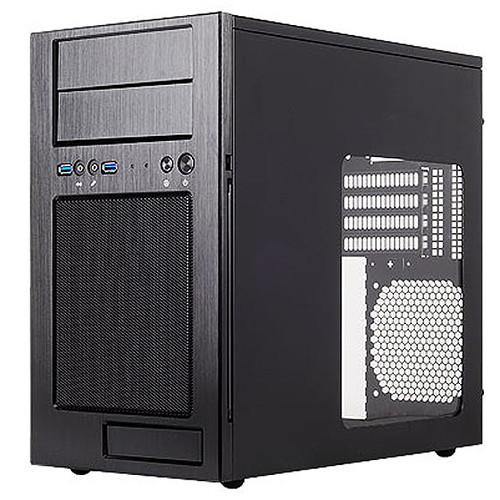

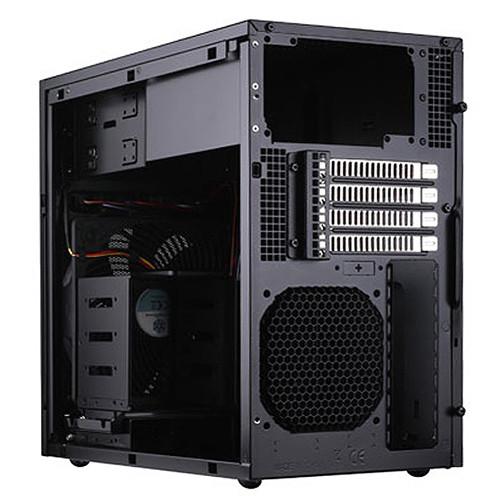

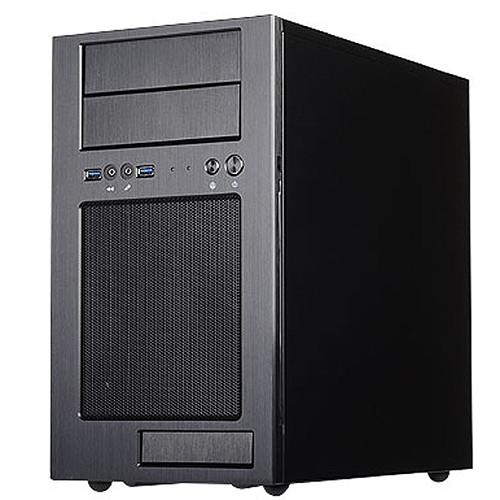

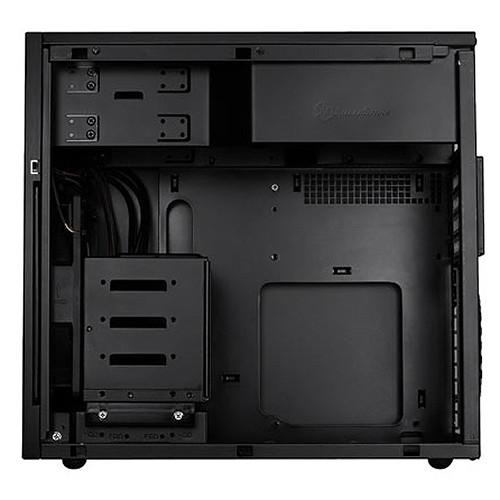

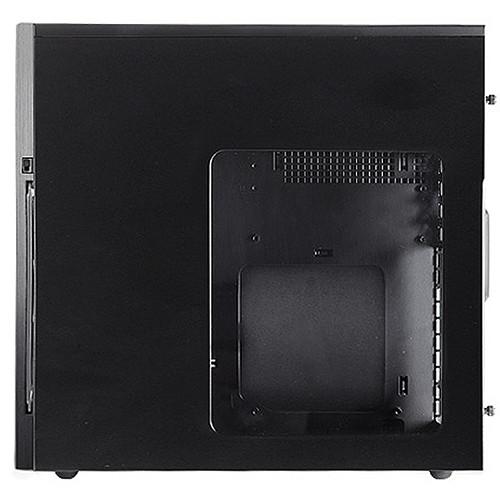

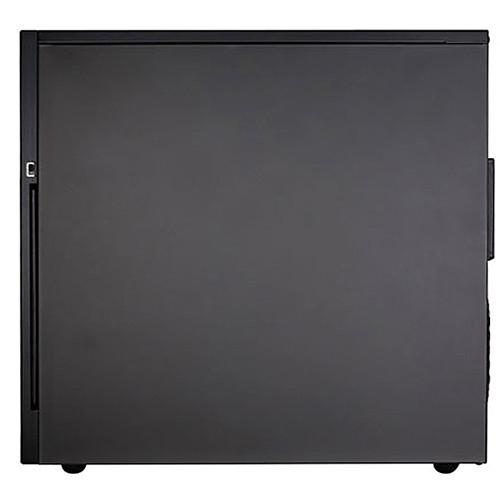

Product description The black TJ08-E Temjin Mini-Tower Case from SilverStone is a compact mini tower that can hold your large high-end components. It's compatible with ATX PS/2 power supplies and graphics cards up to 13.25" long as well as micro-ATX, mini-DTX, and mini-ITX motherboards. It offers enough space to support CPU coolers up to 6.5" high and provides an adjustable holder for heavy coolers. In addition, it has a removable motherboard tray so you can easily install your components.
The Temjin comes with two 5.25" external drive bays that are designed for up to two optical drives. For storage drives, a removable cage is included to support up to four 3.5" hard drives as well as a single 2.5" drive. Moreover, it has a single 3.5" external bay, so you can install a fifth 3.5" hard drive or a floppy drive.

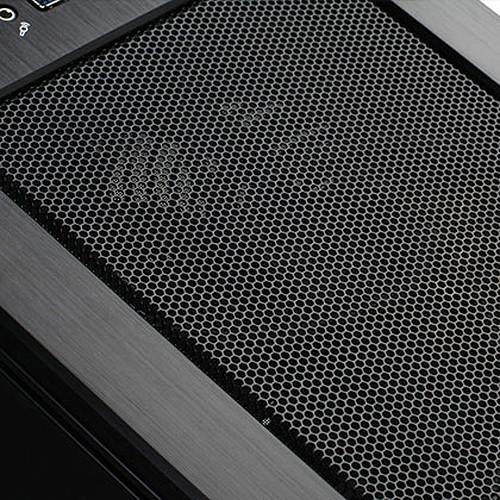

The included cooling system is a 180mm Air Penetrator fan, which has a variable spin speed between 700 to 1200 rpm. This fan is mounted in the front of the case and is designed to create a positive air pressure. To help prevent dust from entering inside the case, SilverStone includes two removable air filters. Furthermore, extra space, cable routing pathways, and wire ties are offered so you can manage your cables and help improve airflow.

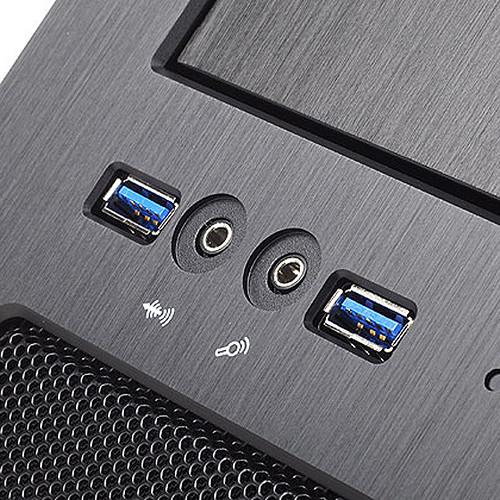

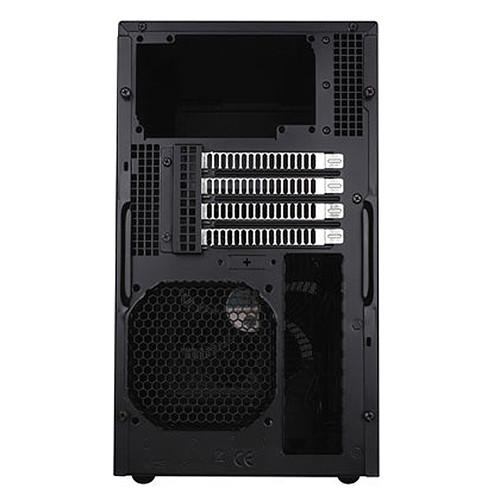

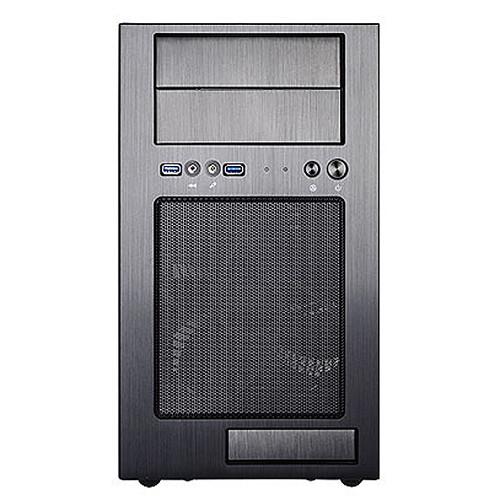

The front panel of the Temjin computer case features two USB 3.0 ports along with a headphone jack and a microphone jack. It comes with a removable top panel as well as four expansion slots. Additionally, it is compatible with up to two Kensington locks, which help prevent theft. UPC: 844761007973 In the Box SilverStone TJ08-E Temjin Mini-Tower Case Screw Kit Wire Tie Kit Logo Plate Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the SilverStone TJ08-E Temjin Mini-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the SilverStone TJ08-E Temjin Mini-Tower Case can be downloaded in PDF format at the link stated below.
Technical parametersSilverStone TJ08B-E Specs | | | Motherboard Support | Micro-ATX, Mini-ITX, Mini-DTX | | External Drive Bays | 2 x 5.25"
1 x 3.5" | | Internal Drive Bays | 4 x 3.5"
1 x 2.5" | | Maximum GPU Length | 13.3" / 33.8 cm | | CPU Cooler Height | 6.5" / 16.5 cm | | Supported PSU Size | ATX | | Maximum PSU Length | 7.1" / 18 cm | | | | Fan Mounting (Rear) | 1 x 120 mm
| | Fans Included (Front) | 1 x 180 mm (Variable rpm) | | Noise Level | 18 to 34 dBA | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Aluminum, Steel | | Security | Kensington Lock Slot | | Cable Management Space | None | | Dimensions (W x H x D) | 8.3 x 14.7 x 15.2" / 210.0 x 374.0 x 385.0 mm | | Weight | 11.7 lb / 5.3 kg | | | | Package Weight | 16.45 lb | | Box Dimensions (LxWxH) | 19.9 x 18.1 x 12.0" |
