Spektrum AR6600T 6-Channel Air Integrated Telemetry

Search your instruction manual in PDF to download

User Manual for Spektrum AR6600T 6-Channel Air Integrated Telemetry Receiver

Click to enlarge the picture

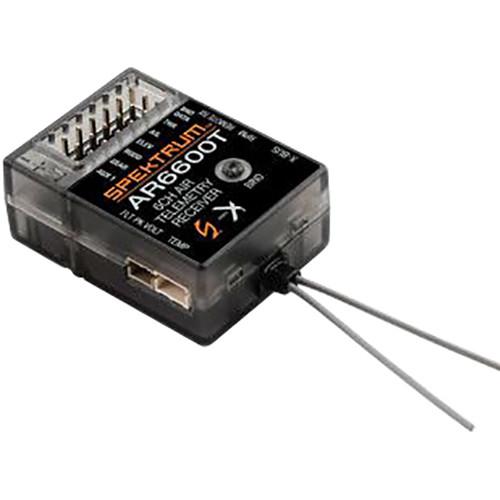

Spektrum AR6600T 6-Channel Air Integrated Telemetry Receiver Contents of the user manual for the Spektrum AR6600T 6-Channel Air Integrated Telemetry
  • Product category: Remote Control Components Spektrum
  • Brand: Spektrum
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Spektrum Remote Control Components

User manual for the Spektrum AR6600T 6-Channel Air Integrated Telemetry contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Spektrum product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Spektrum user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Spektrum product will considerably shorten its lifespan!



Product description

The AR6600T 6-Channel Air Integrated DSMX Receiver from Spektrum is a 6-channel receiver with integrated, full-range telemetry. Compatible with all Spektrum DSMX receivers, the AR6600T receiver features integrated ports for RPM, flight-pack voltage, and temperature sensors. An XBus expansion port enables you to connect additional telemetry options. With the ability to process 11 ms frame rates with like transmitters, the AR6600T will provide speedy input-to-output responses, suiting it for use with 3D model helicopters and airplanes. A remote receiver is included with the Spektrum AR6600T, enabling the optional use of Spektrum Multilink to minimize 2.4GHz-system signal fading, and antenna blind spots.
    Features
    • Compatible with all Spektrum DSMX transmitters
    • Capable of 11 ms frame rates for speedy input-to-output responses
    • Integrated telemetry with built-in ports for RPM, flight pack voltage, and temperature sensors
    • XBus expansion port for additional telemetry options
    • Receiver pack voltage, and flight log data are available without the need for additional sensors
    • Dual antennas for optimal RF performance
UPC: 605482629253 In the Box Spektrum AR6600T 6-Channel Air Integrated Telemetry Receiver
  • Remote Receiver
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Spektrum AR6600T 6-Channel Air Integrated Telemetry Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Spektrum SPMAR6600T Specs

    Compatibility All Spektrum DSMX receivers
    Model Type 6-channel air telemetry receiver
    Number of Channels 6
    Band 2.4 GHz
    Modulation DSM2 / DSMX
    Telemetry Yes
    Input Voltage Range 3.5 to 9.6 V
    Dimensions Unit: 1.5 x 1.1 x 0.6" (37.5 x 27.7 x 15.8 mm)
    Antenna Lengths: 2" (50.8 mm), 5" (127 mm)
    Exposed Antenna: 1.2" (31 mm)
    Weight 0.44 oz (12.5 g)
    Box Dimensions (LxWxH) 8.1 x 4.1 x 0.95"

    Rating

    90% users recommend this product to others. And what about you?
    Rating: 4.5 of 5

    This product has already been rated by 56 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to Spektrum AR6600T 6-Channel Air Integrated Telemetry Receiver

    Subject: how to use AS3X on it New post
    Date: 14.05.2022 18:59:21Name: Isaak
    what need to be done to implement as3x stabilization with AR6600T receiver?
