User Manual for StarTech 1-Port Low-Profile Native PCI Express Serial Card Click to enlarge the picture
Contents of the user manual for the StarTech 1-Port Low-Profile Native PCI Express
- Product category: Serial RS-422/RS-232 Cards StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Serial RS-422/RS-232 Cards
 |
User manual for the StarTech 1-Port Low-Profile Native PCI Express contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

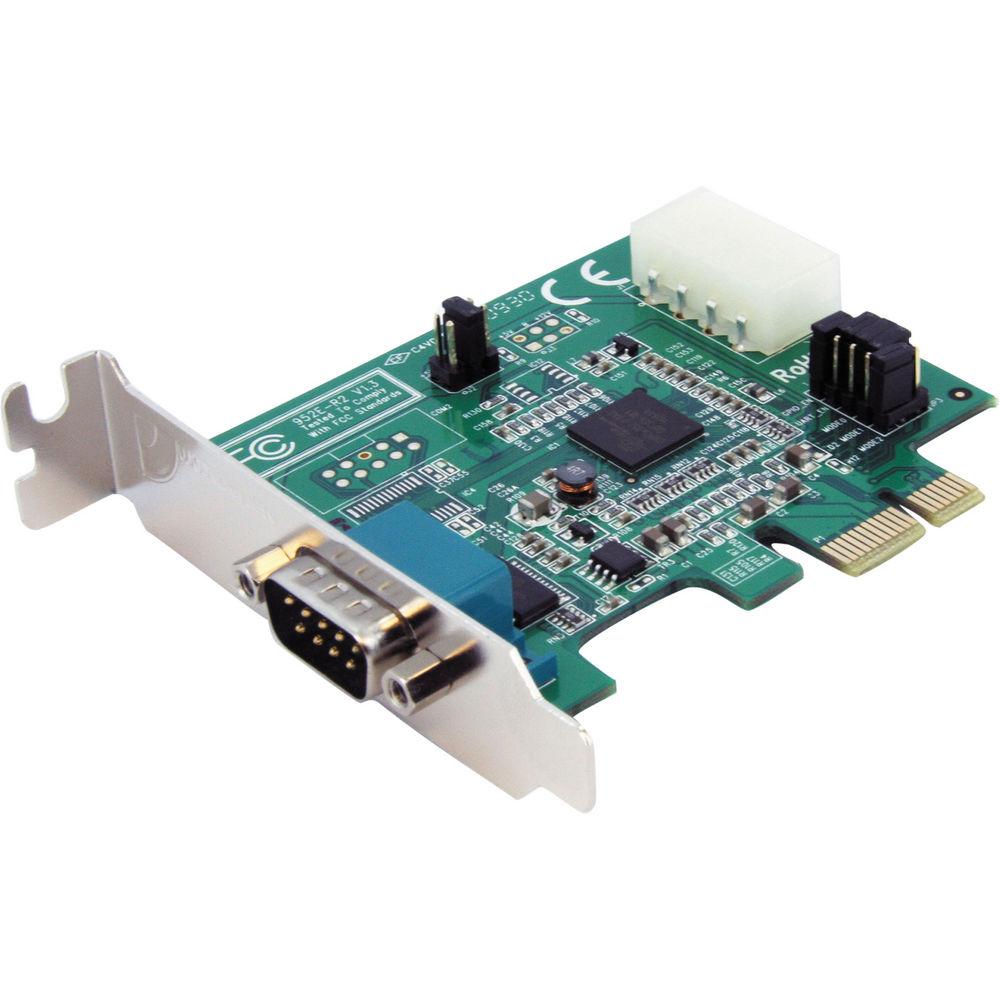

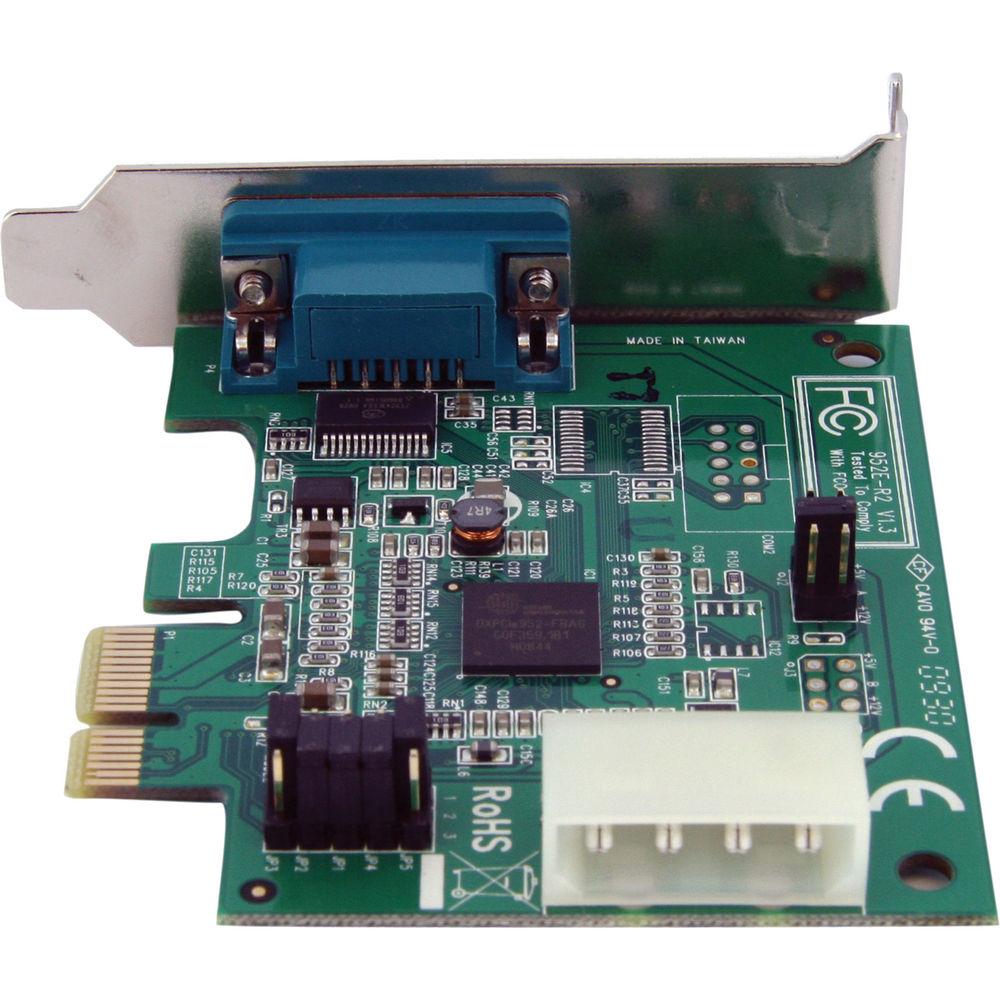

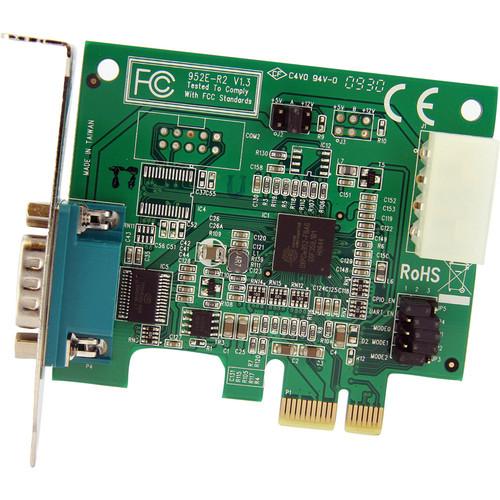

Product description The 1-Port Low-Profile Native PCI Express Serial Card from StarTech with 16950 UART adds an RS-232 (DB-9) serial port with data rates up to 460 Kbps to a computer through an available low-profile PCIe slot. It relies on a native, single-chip design (Oxford OXPCIe952) that harnesses the capability of true PCI Express, ensuring maximum performance and reliability and reducing the load applied to the CPU by as much as 48% over conventional (bridge chip) serial cards. The RS-232 serial card features a half-height PCIe mounting bracket that is designed specifically for low-profile/small form factor computer cases, and includes an optional standard height bracket as well. It is compatible with a broad range of operating systems including Windows and Linux for easy integration into mixed environments. - Low-profile bracket for installation into small form factor systems
- 460 Kbps data rates offer efficient serial device performance
- Ships with a low-profile/half-height bracket, includes an optional standard profile bracket
- Selectable power output on pin 9 for the serial port
- High-performance Single Channel Oxford 950 UART
- 128-byte deep FIFO per transmitter and receiver
- Automated in-band software flow control using programmable Xon / Xoff in both directions
- Automated out-of-band hardware flow control using Tx/Rx/RTS/CTS/DSR/DTR/DCD/RI/GND
- Compliant with PCIe base specifications revision 1.0a
- Applications: Bank teller workstations in either full profile or low-profile versions to control serial devices such as cash drawers, card readers / card swipes, printers, keypads / PINpads, pen pads and more PoS retail applications in grocery stores and any other retail store to control keyboards, cash drawers, receipt printers, card readers / card swipes, scales and elevated displays on poles Self-service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers and label printers Standard ATMs (automated teller machines) to control keypads, receipt printer, card readers / card swipes, touchscreen LCDs, camera control and more. Used to control multiple surveillance / security cameras in a parking structure, office building and more

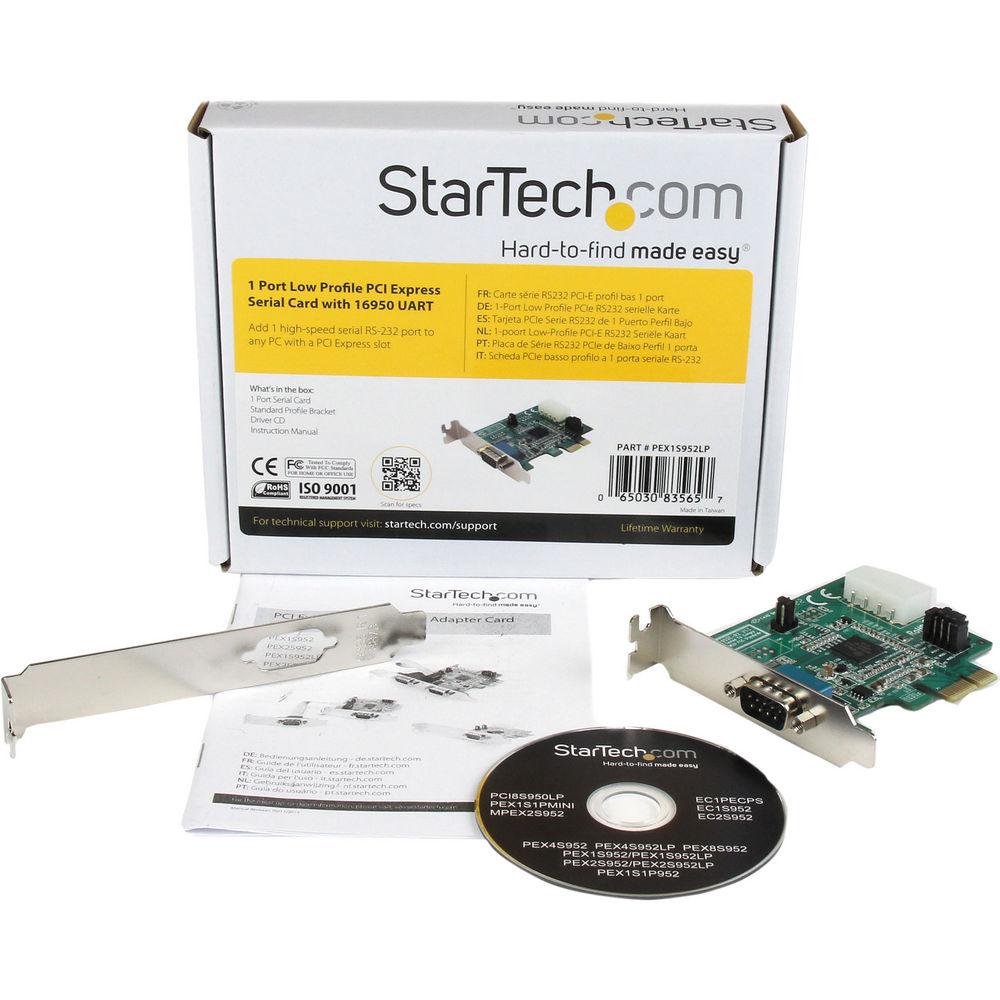

UPC: 065030835657 In the Box StarTech 1-Port Low-Profile Native PCI Express Serial Card Standard Profile Bracket Driver CD Lifetime Warranty Guides & Manuals More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 1-Port Low-Profile Native PCI Express Serial Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the StarTech 1-Port Low-Profile Native PCI Express Serial Card can be downloaded in PDF format at the link stated below.
Technical parametersStarTech PEX1S952LP Specs | | | Card Type | Low profile (SP bracket incl.) | | Interface | Serial | | Port | 1 | | Bus Type | PCI Express | | Port Style | Integrated on Card | | Chipset ID | PLX/Oxford - OXPCIe952 | | | | Connector Type | 1 x PCI Express x1 Male | | External Ports | 1 x DB-9 (9-pin; D-Sub) Male | | | | Max Baud Rate | 460.8 Kbps | | Serial Protocol | RS-232 | | Data Bits | 4, 5, 6, 7, 8 | | FIFO Buffer | 128 Bytes | | Stop Bits | 1, 1.5, 2 | | | | OS Compatibility | Windows 8 (32/64bit), 7 (32/64),Vista(32/64),
XP(32/64), XP Embedded, CE 6.0/5.0, 2000
Linux | | Microsoft WHQL Certified | Yes | | | | Humidity | 5 - 85% RH | | Operating Temperature | 14 to 76°F (-10 to 80°C) | | Storage Temperature | -4 to 212°F (-20 to 100°C) | | Dimensions (L x W x H) | 3.5 x 2.6 x 0.8" (88.9 x 66 x 20.3 mm) | | Weight | 1.7 oz (48.19 g) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 6.7 x 5.7 x 1.1" |
