User Manual for StarTech Gigabit Multi-Mode Fiber Ethernet Media Converter Click to enlarge the picture
Contents of the user manual for the StarTech Gigabit Multi-Mode Fiber Ethernet Media
- Product category: Network Transceivers StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Network Transceivers
 |
User manual for the StarTech Gigabit Multi-Mode Fiber Ethernet Media contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description With the StarTech Gigabit Multi-Mode Fiber Ethernet Media Converter it is possible to convert Gigabit Ethernet signals to optical signals to extend a network connection over a fiber backbone. The converter is compatible with multi-mode fiber cables that feature a wavelength of 850nm and have SC plugs. With a multi-mode fiber cable connected, it provides a connection distance of up to 1804.46 feet (550 meters). This simple solution joins Gigabit Ethernet networks in different locations together while ensuring reliable network performance and scalability. Furthermore, StarTech has designed the converter to operate in half- or full-duplex mode and auto select between MDI and MDI-X. - Auto detects half / full duplex transfer mode from the TX port
- Auto negotiation MDI / MDI-X (crossover for TX port)
- Compact design ensures portability and simplifies mounted installations
- LED indicators for simple Ethernet / Fiber network link monitoring
- Supports forced full duplex or auto-negotiation modes on the fiber link
- Supports 802.3ab 1000Base-TX, and 1000Base-SX industry standards
- Supports a maximum Multi-Mode fiber optic cable distance of 1804.46 feet (550 meters)
- Supports IEEE 802.1q Tag VLAN pass through
- Supports transparent Q-in-Q double tagged frames
- Easily installed into any scenario with little to no configurations needed
Applications - Extending an Ethernet connection by up to 1804.46 feet (550 meters) using a fiber backbone
- Creates an Ethernet-fiber / copper-fiber link for connecting remote sub-networks to larger fiber optic networks / backbones
- Converts Ethernet to fiber, fiber to copper / Ethernet, ensuring optimum network scalability for connecting 2 or more Ethernet network nodes (e.g. connecting 2 buildings on the same campus)
- Designed to provide high-speed bandwidth for demanding large scale work groups that require expansion of Gigabit Ethernet network
Advantages - Provides increased bandwidth and high data throughput by eliminating network bottlenecks and congestion

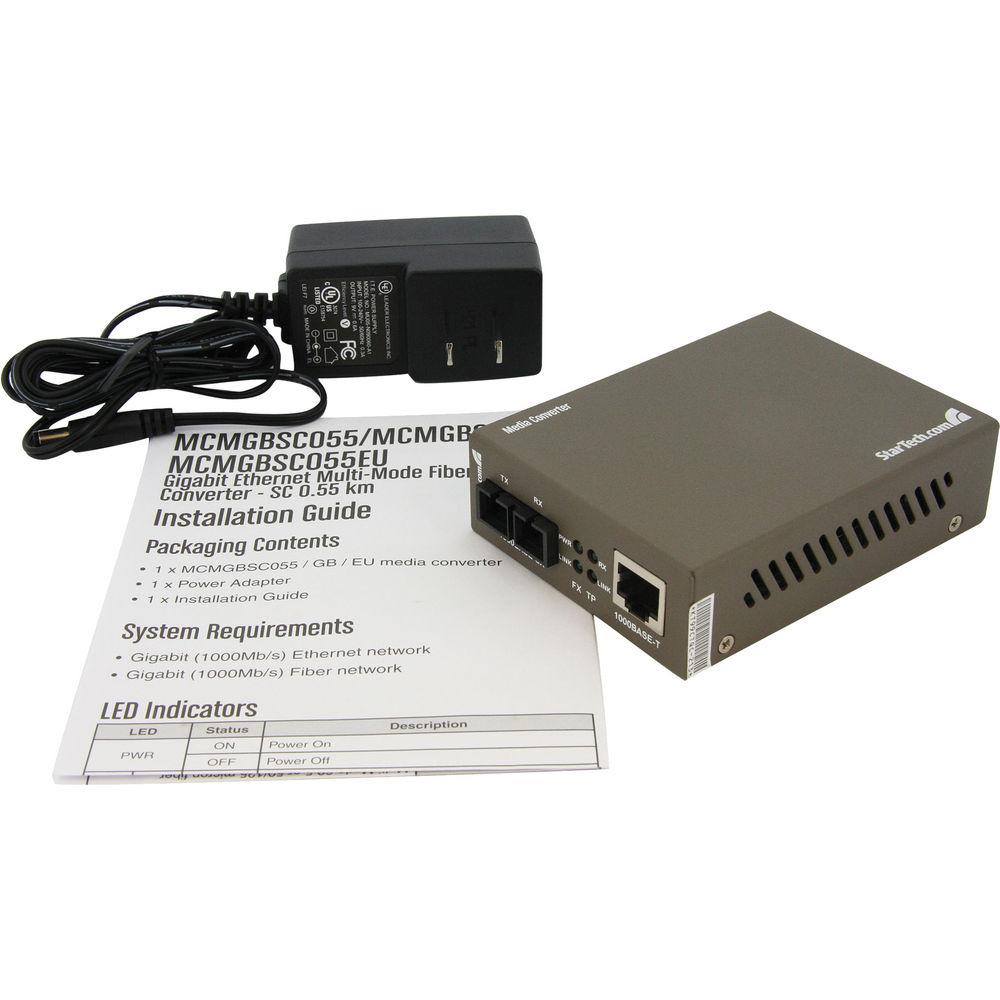

UPC: 065030836289 In the Box StarTech Gigabit Multi-Mode Fiber Ethernet Media Converter (550 meters) Power Adapter Limited 2-Year Warranty Guides & Manuals More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech Gigabit Multi-Mode Fiber Ethernet Media Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the StarTech Gigabit Multi-Mode Fiber Ethernet Media Converter can be downloaded in PDF format at the link stated below.
Technical parametersStarTech MCMGBSC055 Specs | Ethernet Standards | IEEE 802.3z | | Ports | 1 x SC
1 x RJ45 | | Networking Technology | 1000BASE-SX | | Wavelength | 850 nm | | Maximum Networking Distance | 1804' / 550 m | | Maximum Data Rate | 1 Gbps | | Mode | Multi-Mode | | Operating Mode | Half Duplex, Full Duplex | | Plug Type | M | | AC Input Power | 115 VAC, 60 Hz at 0.3 A | | Center Tip Polarity | Positive | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 90% | | Storage Temperature | 14 to 158°F / -10 to 70°C | | Dimensions (L x W x H) | 3.9 x 2.9 x 1.1" / 99.1 x 73.7 x 27.9 mm | | Weight | 15.9 oz / 450.8 g | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 8.1 x 6.8 x 2.6" |
