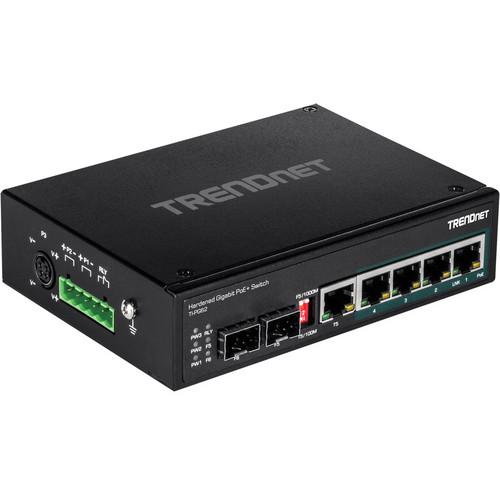

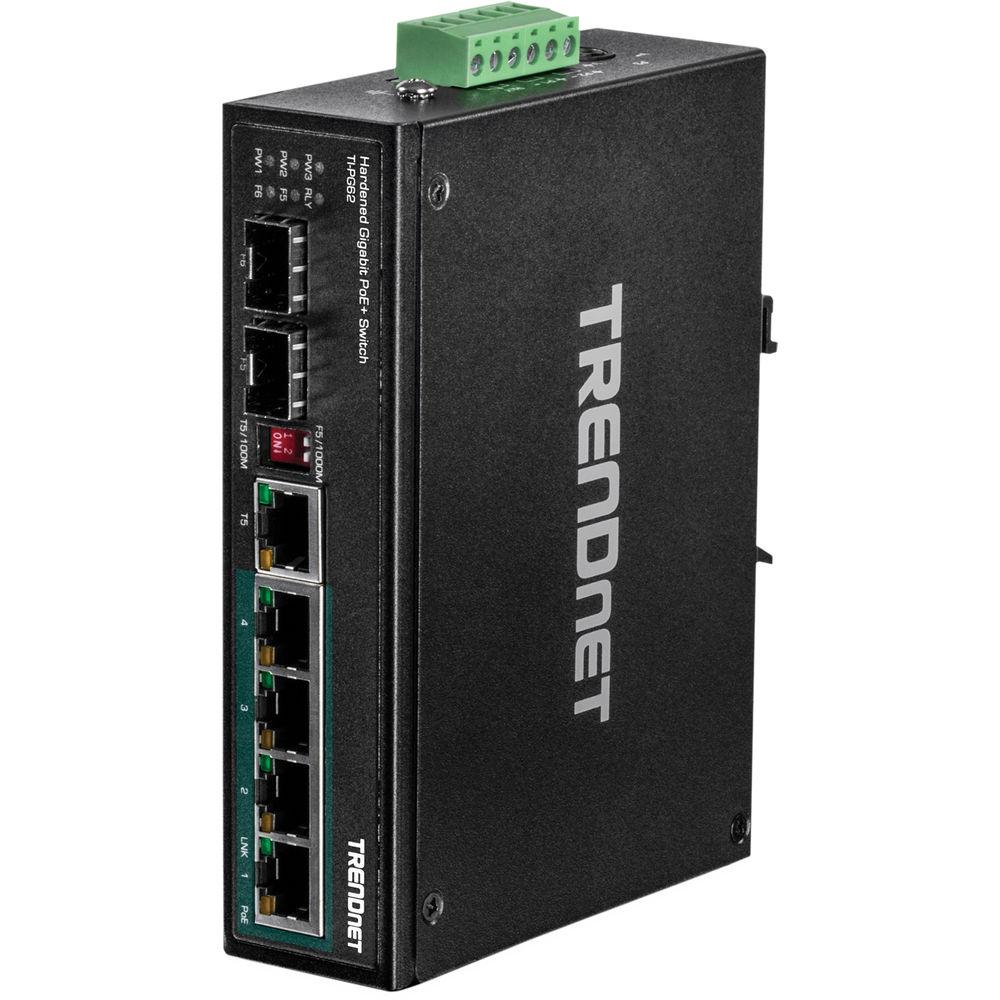

Product description With the TI-PG62 6-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch from TRENDnet users can take advantage of four Gigabit Ethernet PoE+ ports, one shared Gigabit Ethernet SFP port, and one dedicated SFP slot for enhanced network connectivity. In addition to enhanced connectivity, users benefit from a 12 Gbps switching capacity and a 120-watt power budget for fast, efficient network connectivity and the ability to power PoE compatible network devices.

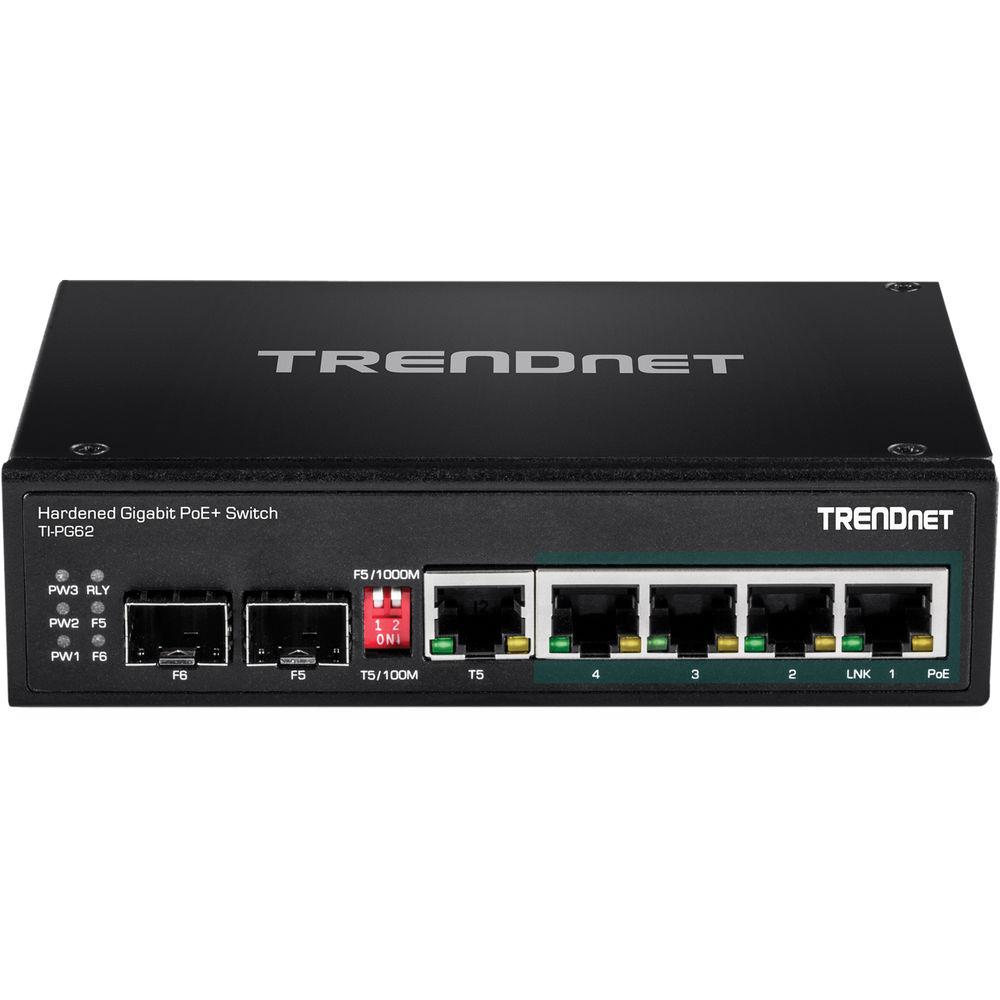

This TRENDnet switch also features an IP30 rated hardened enclosure and supports temperatures ranging from -40 to 167°F, allowing it to operate in harsh environmental conditions. Configuration is simple thanks to dual redundant power inputs (power adapter sold separately) to ensure uninterrupted up time when one power supply fails. - 4 x Gigabit PoE+ ports, 1 x shared Gigabit port (RJ-45 / SFP) and 1 x dedicated SFP slot

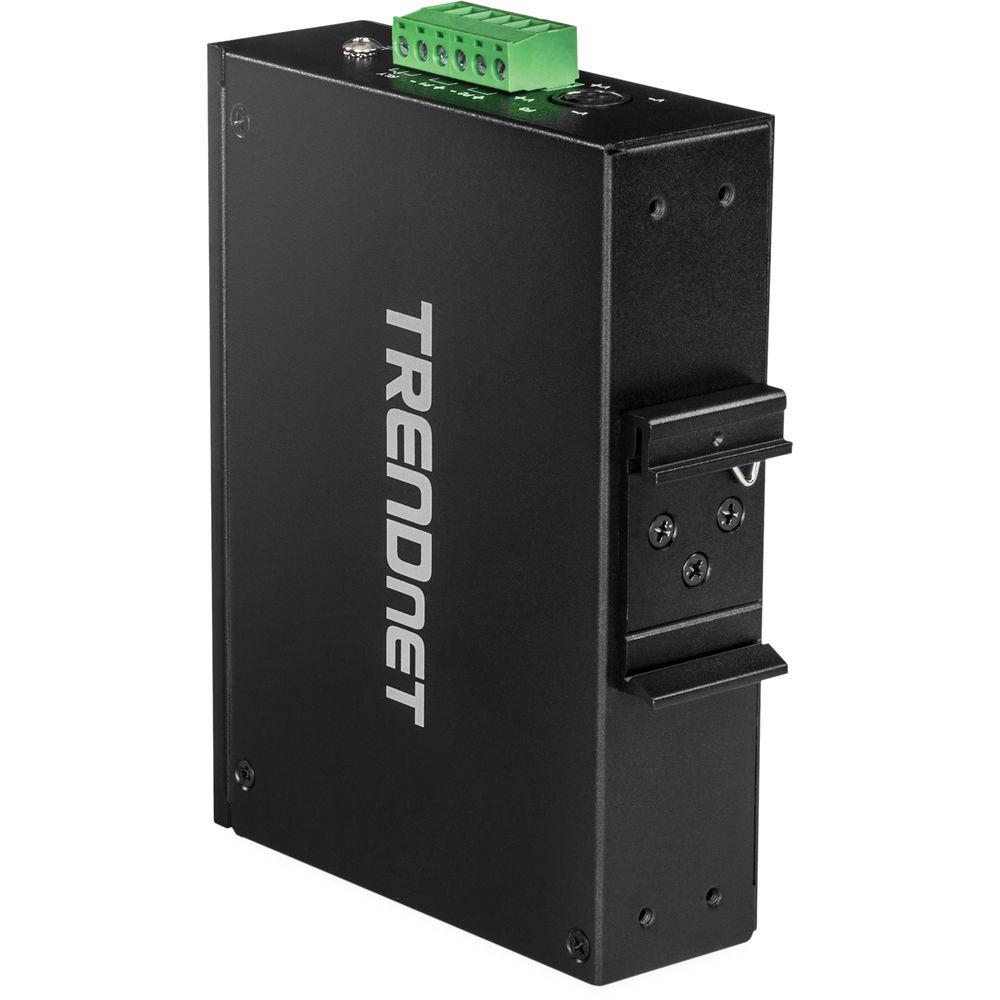

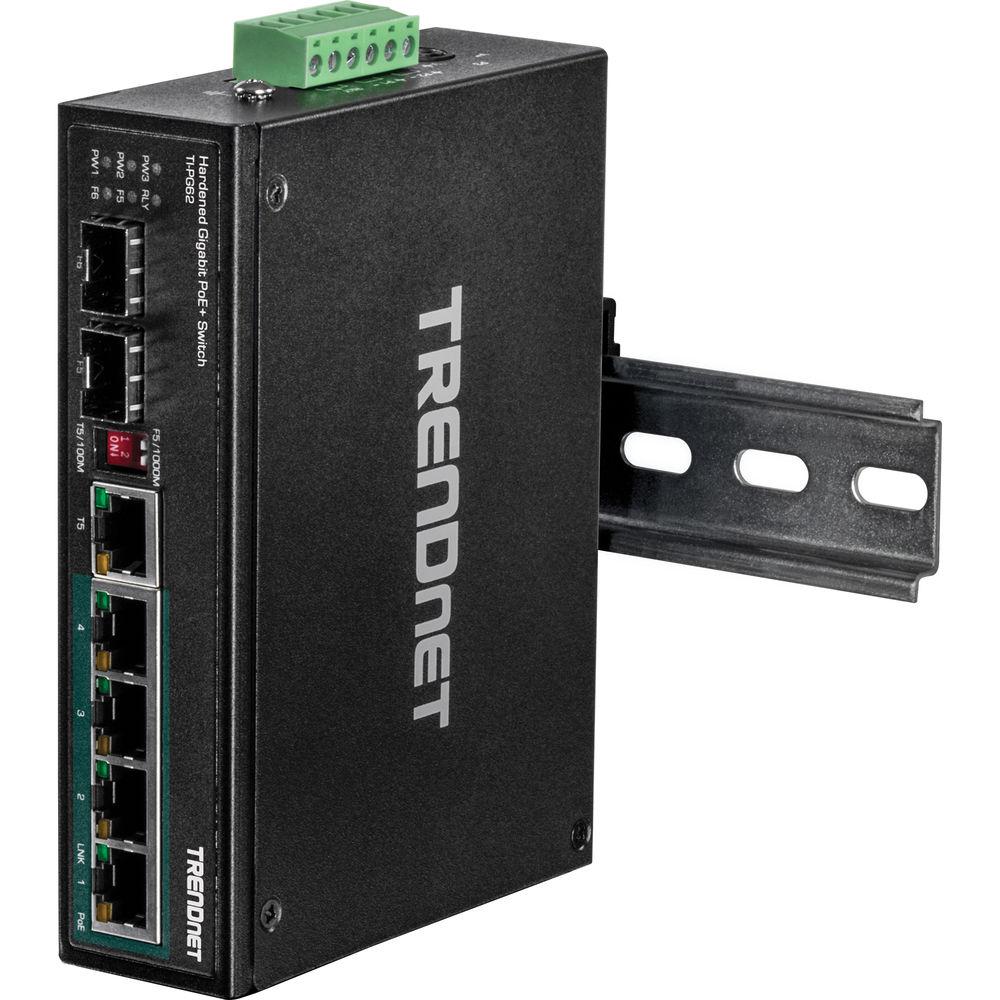

- IP30 rated metal enclosure with included DIN-rail and wall mount hardware
- 12 Gbps switching capacity

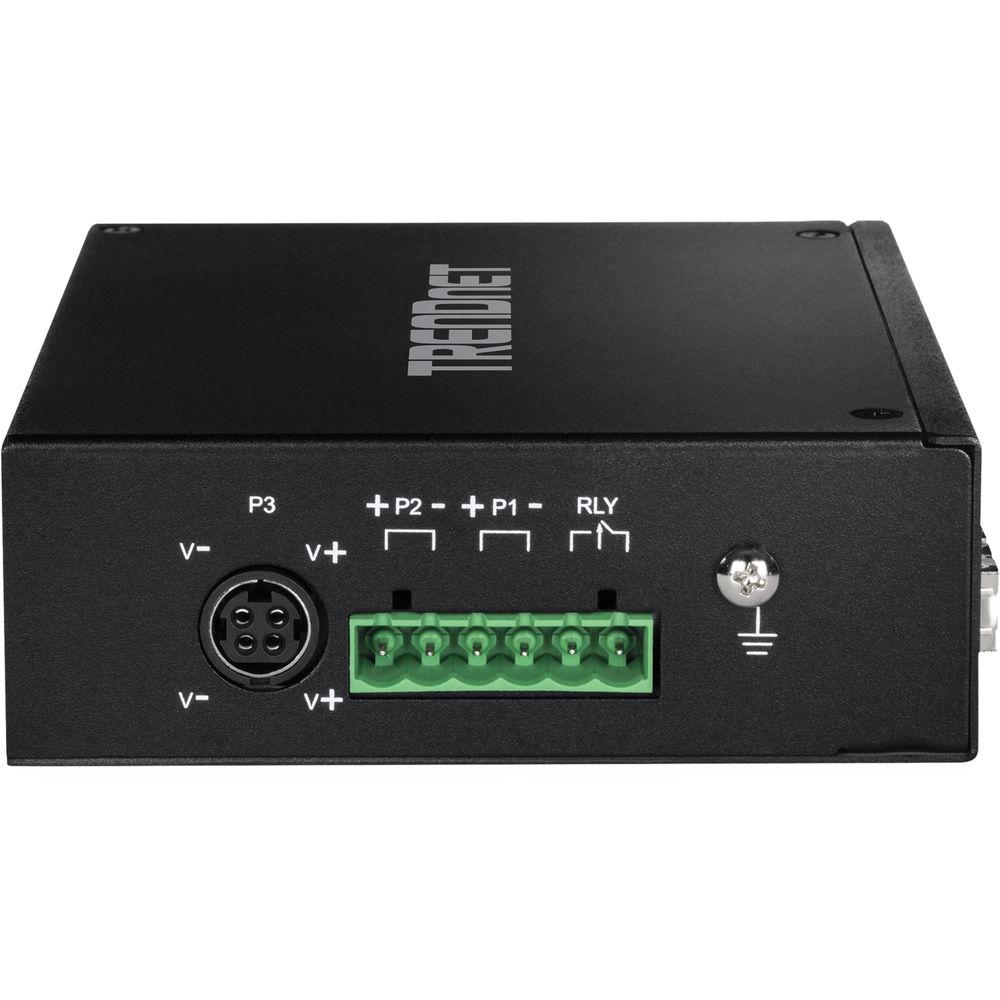

- Dual redundant power inputs with overload current protection (power supply sold separately)
- Alarm relay triggered by power failure of primary and / or redundant power
- Sends larger packets, or Jumbo Frames (up to 9 KB), for increased performance
- Hardened switch is rated for an operating temperature range of -40 to 186°F
- Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards
- Rated for information technology (ITE) equipment (EN55022 / 24); industrial, scientific, and medical (ISM) Equipment (EN55011)
- Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)
- Grounding point protects equipment from external electrical surges
- Auto store and forward architecture
- Automatic address learning and address aging

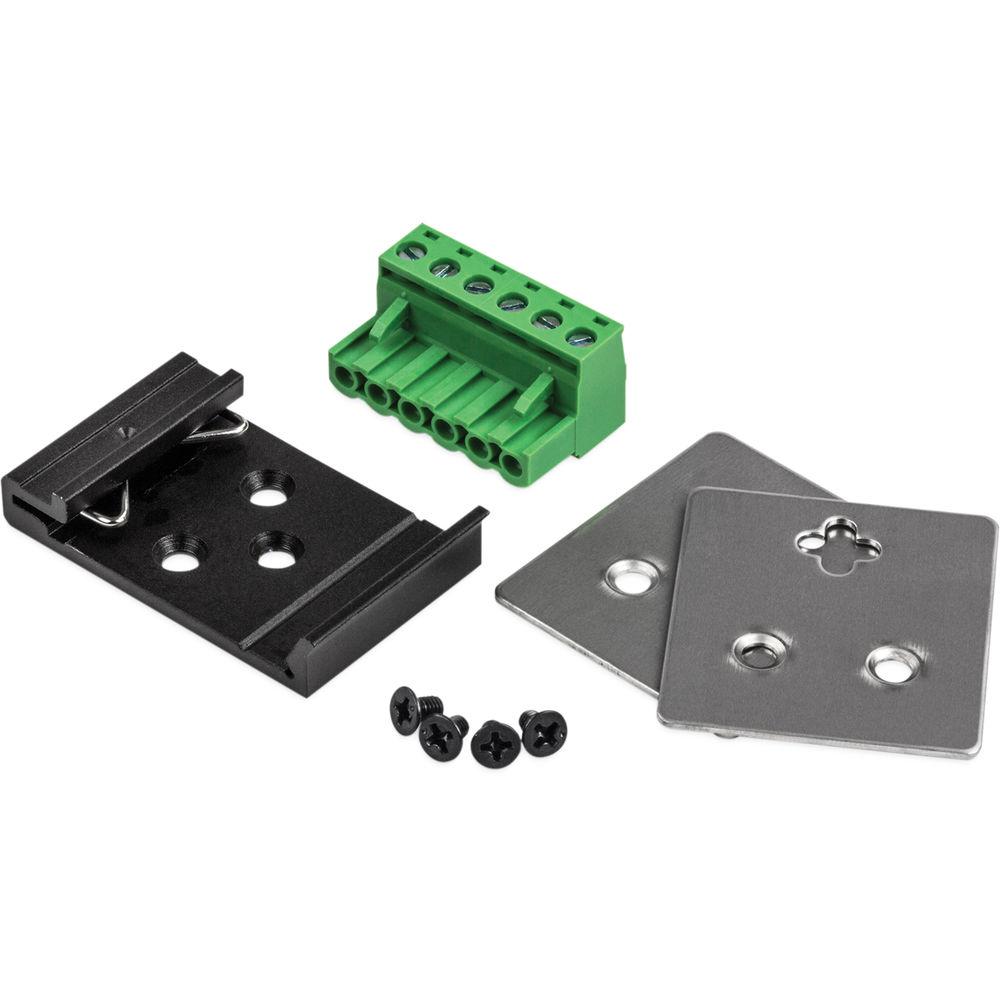

UPC: 710931160604 In the Box TRENDnet TI-PG62 6-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch Removable Terminal Block DIN-Rail and Wall Mount Kit Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TI-PG62 6-Port Hardened Industrial Gigabit PoE DIN-Rail Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TI-PG62 Specs | | | Ports | 4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ (Type 2)
1 x 10/100/1000 Mb/s Gigabit Combo (Ethernet/SFP)
1 x SFP | | | | Jumbo Frames Support | 9,000 Bytes | | MAC Address Table Size | 1K | | | | Supported IEEE Standards | 802.3, 802.3ab, 802.3af, 802.3at, 802.3u, 802.3x, 802.3z | | | | Forwarding Rate | 8.9 Mpps | | Switching Bandwidth | 12 Gb/s | | Packet Buffer | 1024 Kb | | | | Power Draw | 5.76 W (Active) | | Current | 2 A | | DC Input Power | 48 VDC at 3.34 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | PoE Power Budget | 120 W | | | | Operating Temperature | -40 to 167°F / -40 to 75°C | | Operating Humidity | 95% | | | | Mean Time Between Failures (MTBF) | 460,304 Hours | | Dimensions | 5.6 x 4.1 x 1.4" / 14.3 x 10.5 x 3.6 cm | | Weight | 1 lb / 0 kg | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 8.6 x 6.6 x 2.7" |
