User Manual for WenPod MD2 3-Axis Handheld Gimbal Stabilizer with Motion Controller Kit Click to enlarge the picture
Contents of the user manual for the WenPod MD2 3-Axis Handheld Gimbal Stabilizer
- Product category: See All Gimbal Stabilizers WenPod
- Brand: WenPod
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for WenPod See All Gimbal Stabilizers
 |
User manual for the WenPod MD2 3-Axis Handheld Gimbal Stabilizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any WenPod product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official WenPod user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a WenPod product will considerably shorten its lifespan!
|
Product description The WenPod MD2 3-Axis Handheld Gimbal Stabilizer with Motion Controller Kit includes the MD2 Studio Class Professional Gimbal Stabilizer and the Motion Controller with batteries and charger. The stabilizer uses advanced A.I. algorithms and Neuron technology, and has a load capacity up to 6.6 lb.

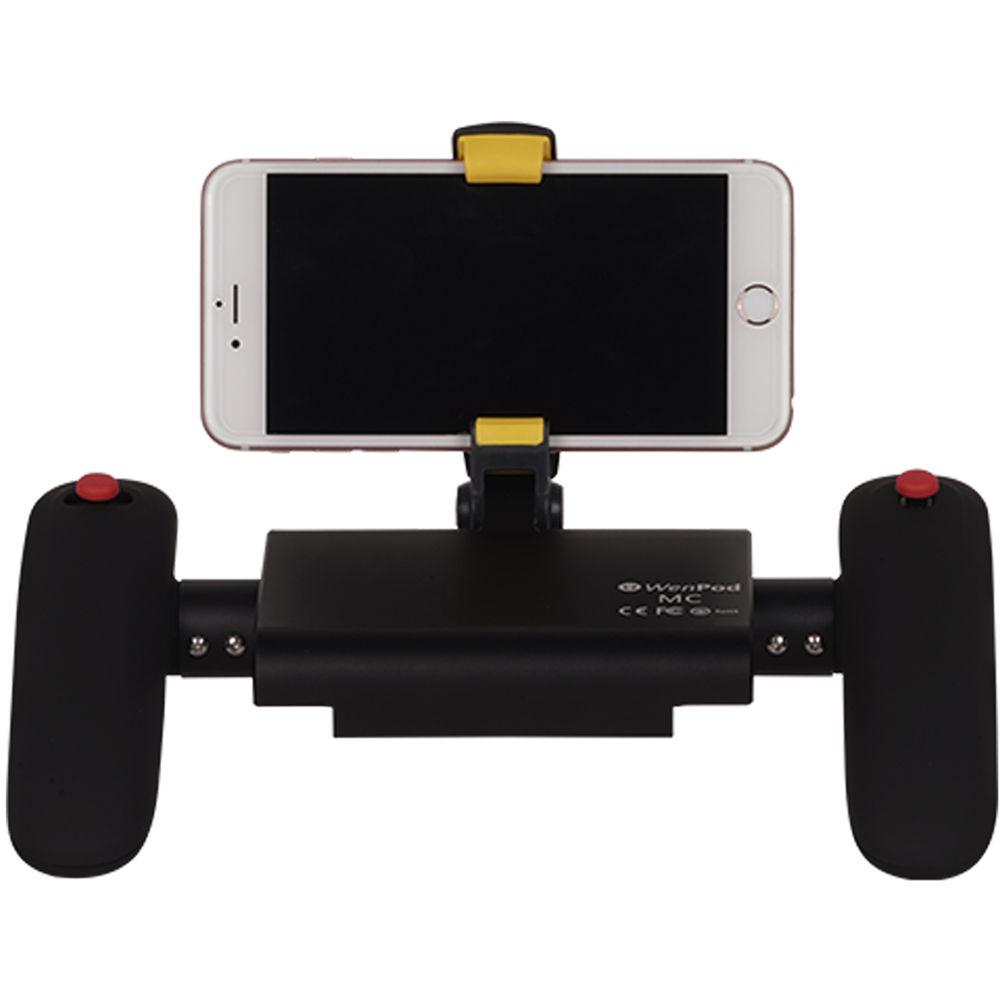

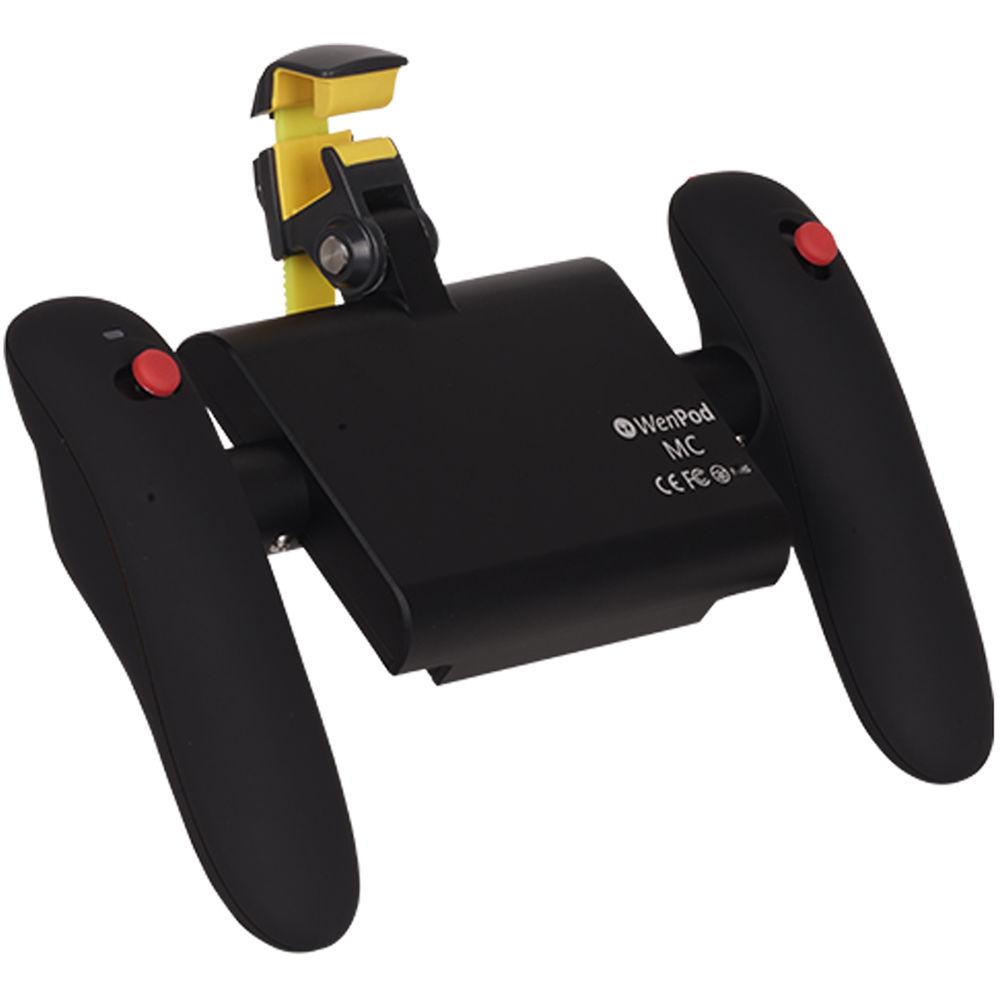

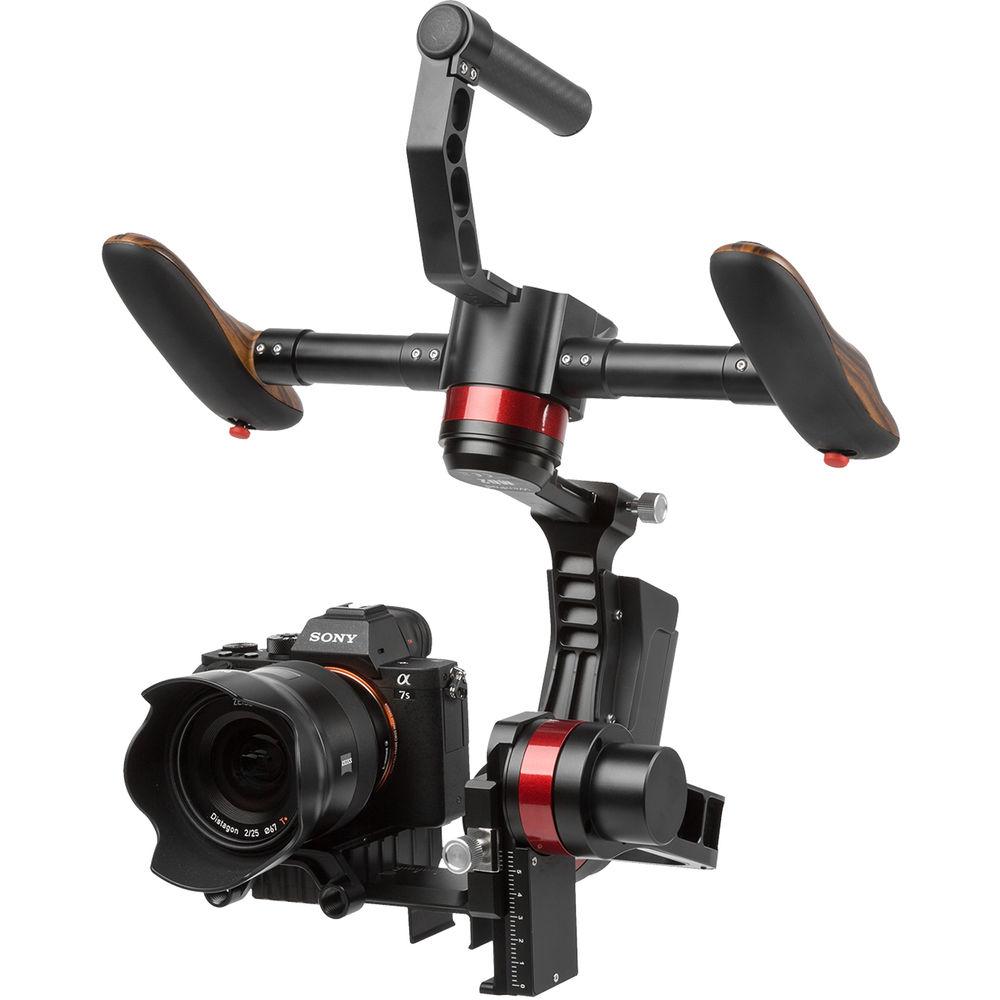

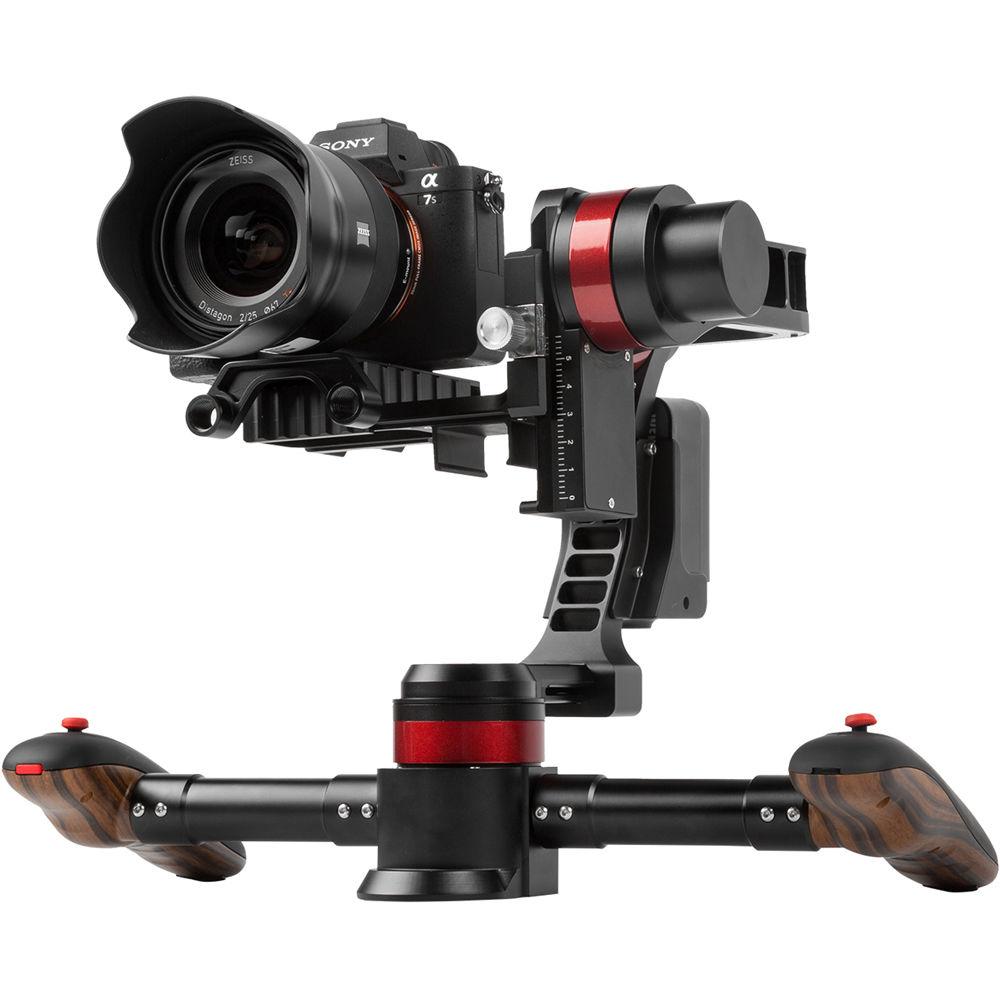

The Motion Controller allows you to remotely control your camera using gestures or joysticks. It features a built-in smartphone holder for mounting your phone and viewing live video footage from compatible cameras with Wi-Fi support. - MD2 Studio Class Professional 3-Axis Gimbal Stabilizer The lightweight MD2 Studio Class Professional 3-Axis Gimbal Stabilizer from WenPod supports a variety of cameras including DSLRs, compact size, mirrorless, and cinema cameras weighing less than 6.6 lb (including lens and accessories). The MD2 3-axis gimbal stabilizer uses the Artificial Intelligent (A.I.) algorithms and Neuron technology. It is equipped with high precision, high power, and silent brushless motor with sensor and independent CPU ensuring smooth, stabilizing motion. The gimbal stabilizer can be auto calibrated with a touch of a button without using external software. The A.I. auto-calibration automatically adjusts the parameters according to the camera weight and environmental factors. It can be operated in four different positions including normal holding, low angle, inverted, and single-handed side. It also features a built-in follow-me mode that can be automatically activated by gesture or via the left joystick. The unit is made of lightweight and durable aluminum and is suitable for both heavy- and light-duty working environments. The gimbal is powered via the included premium grade Lithium polymer battery with built-in protective circuit board, and fast charging technology. It can be charged independently on a desktop charger (not included) and can last for up to 6 hours of continuous use. The battery life can be easily accessed on an LED meter with a touch of a button.
- Compatibility
- All compact size, mirrorless, and cinema cameras weighing less than 6.6 lb (including lens and accessories)
DSLR cameras that weigh from 1.5 to 3.3 lb, like CANON 5D3 Mark III - Utilizes Artificial Intelligent (A.I.) algorithms and Neuron technology
- Artificial Intelligence software driving 64 bits ARM-MCU pro-actively cancels the movement
- Offers auto-calibration without any parameter input
- 360° rotation in roll and pitch axis allows easy low angle shots
- Allows adjustable shooting angle via the joystick
- Easy to assemble and dis-assemble the gimbal in seconds
- Offers small form factor for easy transportation
- Easily control the gimbal in all direction by simply tilting your remote via kinetic remote control (not included)
- Kinetic remote offers high speed SDI / HDMI data transmission up to 164 ft (50m) with zero lag time
UPC: 847983015177 - Motion Controller with Smartphone Clamp for MD2 Gimbal

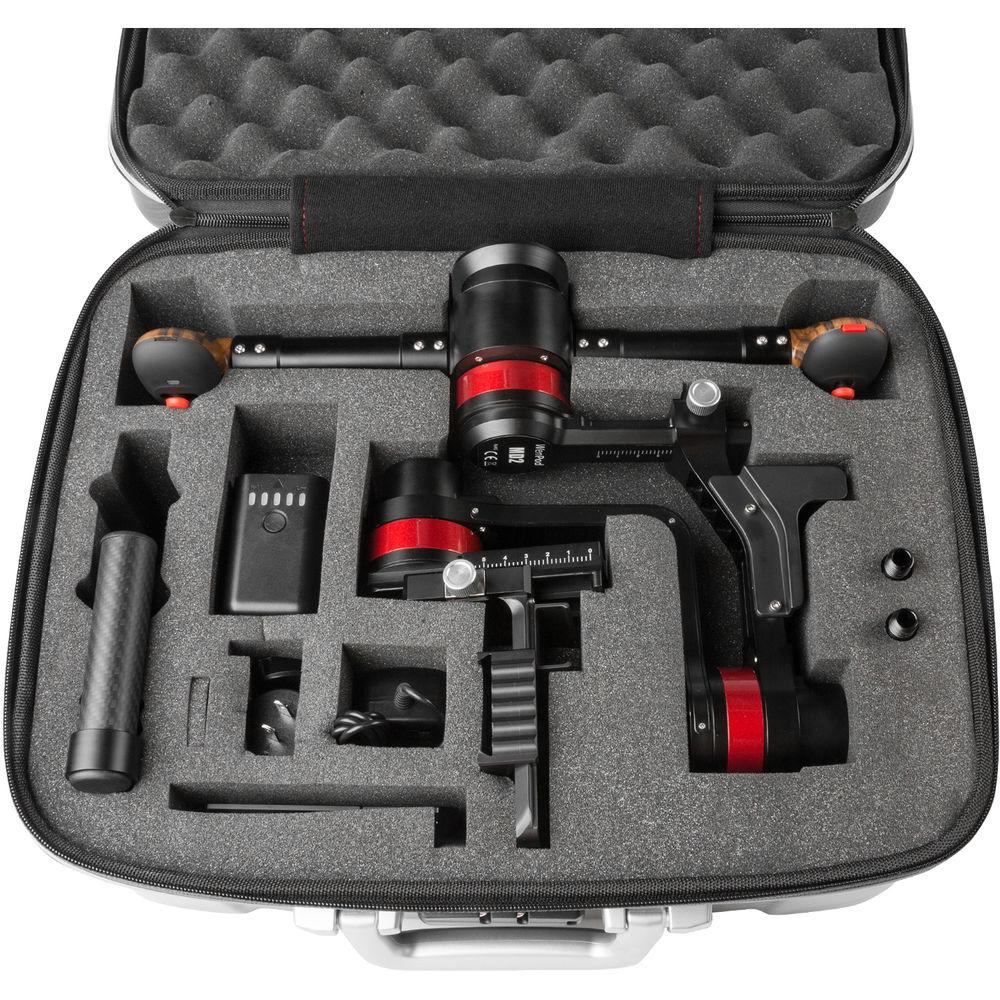

In the Box Bundle Items MD2 Studio Class Professional 3-Axis Gimbal Stabilizer dqqzbwbzrzfyyv Motion Controller with Smartphone Clamp for MD2 Gimbal Table of Contents
|
Upload User Manual
Have you got an user manual for the WenPod MD2 3-Axis Handheld Gimbal Stabilizer with Motion Controller Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - MD2 Studio Class Professional 3-Axis Gimbal Stabilizer
| Payload | 6.6 lb (3.0 kg) | | Operating Angle | 360° in roll / tilt / pan axis | | Precision Adjustment Range | Up to ±0.01° | | Operating Modes | Follow-me mode in pan direction
Follow-me mode in both pan and tilt direction
Time-lapse / panoramic mode | | Battery Type | LiPo battery with protective circuit board | | Battery Capacity | 2400 mAh, 14.8 V | | Operating Time | Up to 360 min in normal room temperature | | Charging Time | Approximately 120 min | | Operating Temperature | 14 to 104°F (-10 to 40°C) | | Operating Humidity | 20 to 90% | | Dimension (L x W x H) | 13.8 x 9.6 x 11.0" (350 x 245 x 280 mm) | | Weight | 4.0 lb (1.8 kg) including battery | | | | Box Dimensions (LxWxH) | 20.3 x 18.1 x 12.6" | - Motion Controller with Smartphone Clamp for MD2 Gimbal
