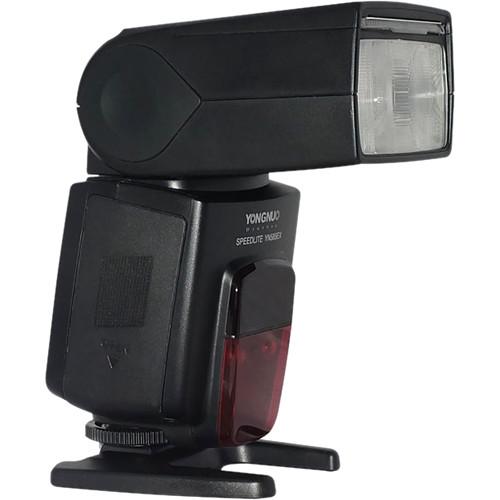

Product description A Guide to On-Camera Flash Read More Create light on the go with your Pentax camera by using this shoe-mounted YN585EX Speedlite from Yongnuo which offers full P-TTL support, including rear curtain sync and red eye reduction. The flash offers a powerful guide number of 190' at ISO 100 and 105mm as well as a zoom head with coverage for lenses of 20-105mm. Also, it has a wide-angle diffusion panel that expands the beam to work with 14mm lenses. Along with these capabilities, the YN585EX can tilt from -7 to 90° and can rotate both left and right 180°. And, it can work as a wireless TTL slave when triggered by compatible master flashes.

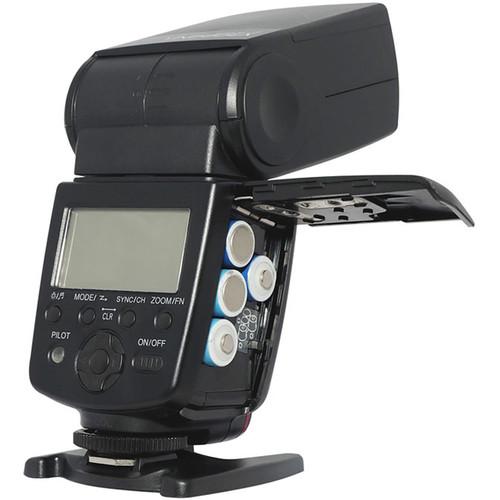

Operation is made easy with a large LCD screen on the back and it runs on four AA batteries. It will recycle in just 3-5 seconds at full power and it features a multi-mode for firing a series of flashes at once. It has a PC port for wired sync as well as a USB port for firmware updates. - Compatible with Pentax P-TTL cameras
- Guide number of 190' at ISO 100 and 105mm
- Zoom head with coverage for full-frame lenses from 20-105mm
- Manual control with power output from 1/1 to 1/128 in 1/3 or 1/2 EV steps
- Can be set as a wireless TTL slave flash or standard optical slave with instant sync and skip preflash settings
- A pull-out bounce card and wide-angle diffusion panel are available
- Recycle time of between 3-5 seconds at full power
- Multi-mode can be programmed to fire a series of flashes

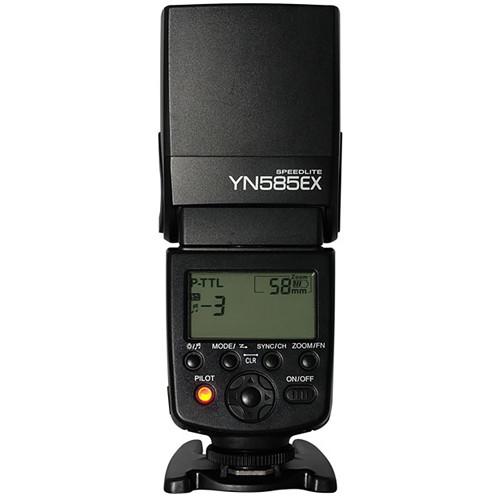

- Large LCD screen displays settings
- PC sync port for wired remote triggering
- AF assist beam for working in low light
- USB port for installing firmware updates
In the Box Yongnuo YN585EX Speedlite for Pentax Cameras Mini Stand Protecting Bag Limited 1-Year Warranty User Manual PDF 6.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Yongnuo YN585EX Speedlite for Pentax Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Yongnuo YN585EX Speedlite for Pentax Cameras can be downloaded in PDF format at the link stated below.
Technical parametersYongnuo YN585EX Specs | Mount | Shoe | | Guide No. | 190.29' / 58 m ISO 100 at 105 mm Position | | Exposure Control | Manual, P-TTL | | Vari-Power | 1/1 to 1/128 | | Bounce Head | -7 to 90° | | Swivel Head | 360° | | Coverage | 14 - 105 mm (Full Frame) | | Zoom Head | Full Frame: 20 - 105 mm | | Off-Camera Terminal | PC | | Recycle Time | Approximately 3 to 5 Seconds | | Flash Duration | 1/200 to 1/20000 sec | | Flash-Ready Indicator | Yes | | Compensation | -3 EV to +3 EV (in 1/3 EV steps) | | Slave Timing Modes | Instant Sync
Skip Preflash | | Wireless Operation | Method: Optical Pulse
Distance: Up to 82.02' / 25 m
Mode: Slave | | Wireless Communication Channels | 4 Channels | | Wireless Groups | 1 Groups | | Power Source | 4 x AA Alkaline, Rechargeable NiMH Batteries | | Dimensions (W x H x D) | 2.4 x 2.8 x 7.4" / 60.0 x 72.0 x 188.0 mm | | Weight | 13.05 oz / 370 g | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 8.3 x 3.8 x 3.4" |
