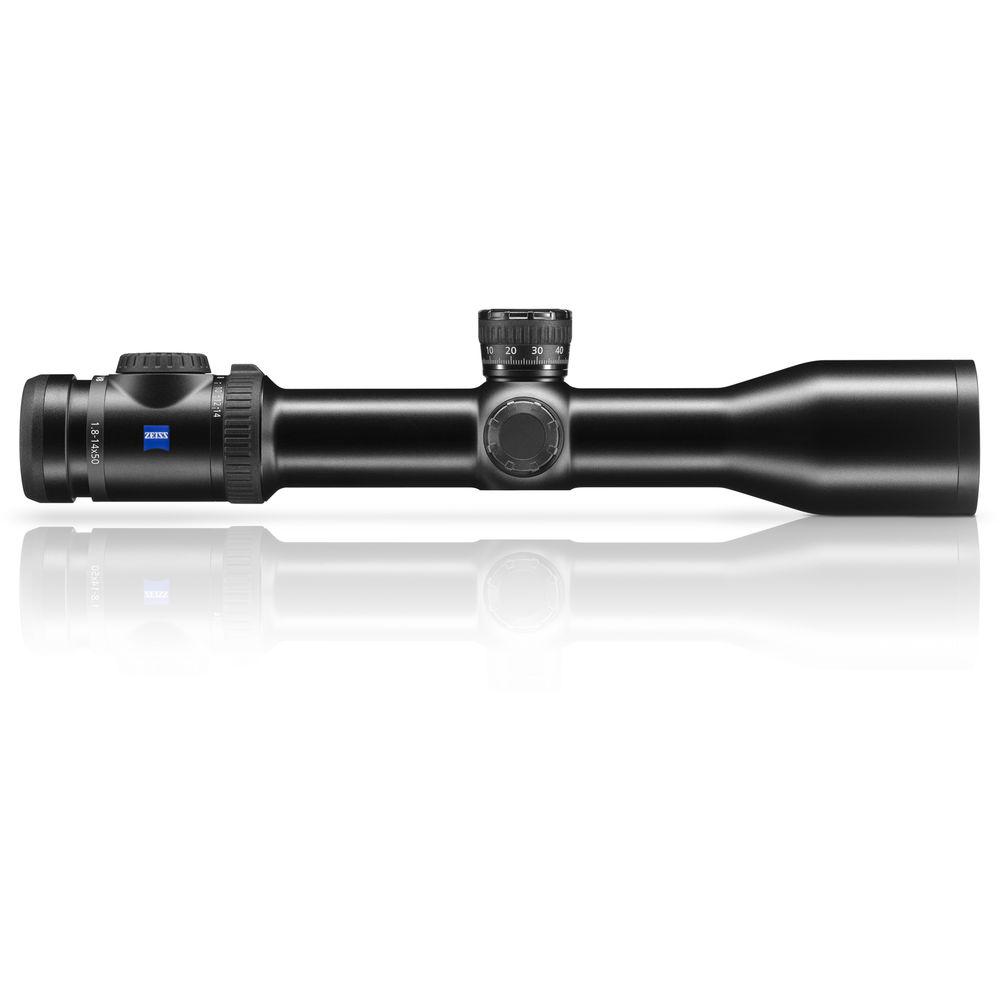

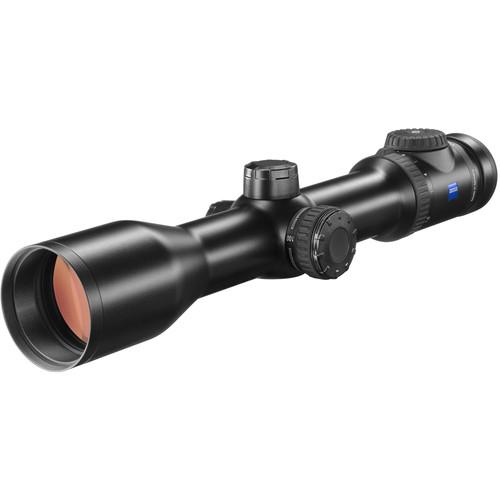

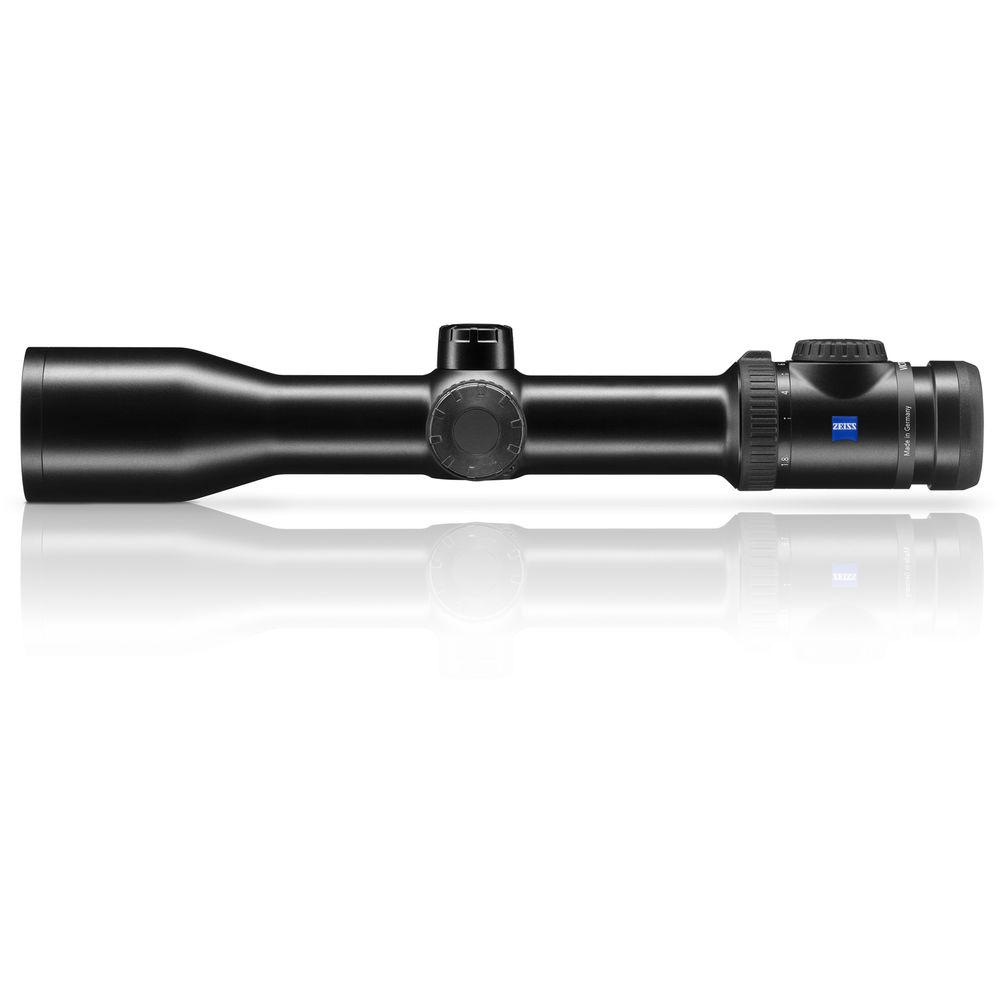

ZEISS 1.8-14x50 Victory V8 Riflescope ZEISS 1.8-14x50 Victory V8 Riflescope
User manual for the ZEISS 1.8-14x50 Victory V8 Riflescope contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any ZEISS product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!



Product description

Drawing on their illustrious tradition of impeccable optical craftsmanship, engineering excellence, and precision manufacturing, ZEISS delivered the 1.8-14x50 Victory V8 Riflescope to empower you with brilliant optical performance, uncompromising precision, and lasting durability. At the core of this riflescope is an expertly-designed optical system that features High Transmission (HT) Schott glass Fluoride lenses (FL) to provide sharp, high contrast images which also deliver superior detail, low absorption of light, and minimal chromatic aberrations. Enhancing optical performance and bringing total throughput to 92%, the optical elements are fully multi-coated with high quality ZEISS T* coatings. To protect the lenses from moisture and to ensure clear views, the optical surfaces are enhanced with LotuTec hydrophobic coatings, which allow droplets to slide down without sticking to surfaces and dirt to be wiped off without a trace. With the wide 50mm objective, this riflescope delivers bright, crisp, and clearly visible images, and can become a reliable partner for making that perfect shot-even in the most challenging lighting conditions.

Another central highlight of this scope is the Reticle 60. Inspired by German #4 outlines but possessing ultra-fine features, it casts minimal subtension and offers three thin posts, a fine crosshair, and an illuminated ultra-fine yet well-defined brilliantly red center dot. The dot's glow can be adjusted to accommodate your preferences and lighting conditions. Thanks to the side focus parallax compensator, the reticle could be used parallax-free from 55 yd to infinity.

To ensure lasting durability for years of service, the housing is made from a high quality aluminum alloy. It features a 36mm maintube and offers a water and fogproof performance. The scope is also enhanced with a built-in rail for optional Blaser Saddle Mounts or compatible devices, like the ZEISS Victory Rail Mount 490618 for Weaver rails. The rail provides for a solid mounting option that eliminates the need for re-zeroing your riflescope every time you take it off and put it on. Among other highlights are finger-adjustable turrets, knurled and easy to operate in gloves knobs and rings, a rubberized illumination wheel, and a fast precise ASV/BDS LongRange bullet drop compensator. The magnification ring also features a low-profile lever, just in case you need to bump up that zoom factor instantly.
    Illuminated Reticle 60
    • 2nd focal plane location
    • Three thin posts and a thin crosshair
    • Offers clear views with minimum subtension
    • Brilliant illuminated center dot with adjustable brightness
      Optical Performance
      • Fluoride(FL) lenses deliver sharper images with higher contrast:
        • Low-absorption optical properties
        • Significantly reduce chromatic aberrations
      • Schott High Transmission (HT) glass:
        • Yields very high optical transmission
        • Produces superior image quality and resolution
      • ZEISS T* full multi-layer coatings:
        • Enhance total transmission to 92%
        • Low reflex susceptibility
      • LotuTec water-repellent coating:
        • Allows water droplets to run-off the lenses
        • Allows dirt to be removed without a trace
      • Wide 50mm objective delivers bright images in the most challenging light conditions
        Use and Handling
        • 1/3 MOA impact point correction
        • 122 MOA total elevation range
        • 78 MOA total windage range
          Construction Details
          • 36mm diameter maintube
          • Built-in rail for Blaser Saddle Mounts allows a solid reattachment without re-zeroing
          • Can be attached to Weaver rails using an optional ZEISS Railmount 490618
          • Robust construction with enhanced operational precision
          • Designed for comfort and ergonomics:
            • Slender non-obtrusive shape
            • Rubberized non-slip touch buttons
            • Capped, finger adjustable turrets
            • Knurled and rings and adjusters
            • Easy to operate when wearing gloves
          • ASV/BDC LongRange bullet drop compensator
          • Waterproof to 400 mbar
          • Nitrogen-filled, fogproof
        UPC: 740035997776 In the Box ZEISS 1.8-14x50 Victory V8 Riflescope (Illuminated Reticle 60, Built-In Rail, Matte Black)
      • 2 x Talley Signature Rings
      • CR-2032 Battery
      • Limited 5-Year Warranty
      • Limited Lifetime Warranty
      Table of Contents




Upload User Manual

Have you got an user manual for the ZEISS 1.8-14x50 Victory V8 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

ZEISS 522118-9960-040 Specs

Magnification 1.8 to 14x
Objective Lens Diameter 50 mm
Field of View 1.8x: 63' @ 100 yd / 21 m @ 100 m
14x: 8.5' @ 100 yd / 2.8 m @ 100 m
Exit Pupil Diameter 1.8x: 10.3 mm
14x: 3.7 mm
Eye Relief 3.8" / 95.3 mm
Diopter Correction -3.5 to +2.0
Reticle Type 60 Reticle (Second Focal Plane)
Impact Point Correction 1/3 MOA per Click
Windage Adjustment 78 MOA
Elevation Adjustment 122 MOA
Parallax Correction Yes, 55 yd / 50.4 m to Infinity
Water Resistance Waterproof to 13.1' / 4 m
Fogproof Yes, Nitrogen Filled
Operating Temperature -13 to 122°F / -25 to 50°C
Maintube Diameter 34 mm
Battery 1 x CR2032
Dimensions Length: 13.5" / 343 mm
Objective Diameter: 2.2" / 56 mm
Eyepiece Diameter: 1.8" / 46 mm
Weight 25 oz / 708.8 g
