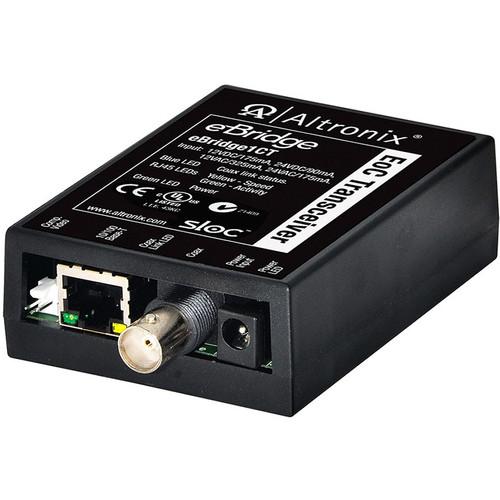

User Manual for ALTRONIX eBridge1CT IP over Coax Transceiver Click to enlarge the picture
Contents of the user manual for the ALTRONIX eBridge1CT IP over Coax Transceiver
- Product category: Signal Extenders ALTRONIX
- Brand: ALTRONIX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ALTRONIX Signal Extenders
|
User manual for the ALTRONIX eBridge1CT IP over Coax Transceiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ALTRONIX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ALTRONIX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ALTRONIX product will considerably shorten its lifespan!
|
Product description Upgrade your surveillance system by enabling network camera compatibility over coax cable with the eBridge1CT IP over Coax Transceiver from ALTRONIX. This transceiver unit enables RJ45 connection over existing coax cable when used with an eBridge receiver (available separately). It also extends the transmission distance bu up to 1500', over 5 times standard Ethernet distance limits. It has an RJ45 Ethernet port as well as a BNC coax connector and is capable of transmitting composite video signals and Ethernet data simultaneously. This unit is compatible with cameras that broadcast at resolutions up to 1080p. - Use existing coax cable with network cameras
- RJ45 Ethernet with auto-crossover
- Security Link over Coax (sloc)
- Simultaneous transmission of composite video signals and Ethernet data
UPC: 782239948437 In the Box ALTRONIX eBridge1CT IP over Coax Transceiver Composite Video Cable Power Connector Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ALTRONIX eBridge1CT IP over Coax Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersALTRONIX EBRIDGE1CT Specs | | | Input | 12-24 VDC Class 2 power supply (polarity not observed)
16-24 VAC Class 2 plug-in transformer | | Consumption | 12 VDC, 275 mA, 24 VDC, 110 mA
16 VAC, 375 mA, 24 VAC, 200 mA | | Compliance | Security Link over Coax (sloc) | | | | Ethernet Interface | RJ45 with auto-crossover | | Wire Type | 4-pair Cat5 or higher structured cable | | Distance | Up to 328' (100 m) | | Speed | 10/100Base-T, half/full duplex, auto negotiation
Throughput is rated to pass 25 Mbps of data at distances up to 1500' (457 m) | | | | Connector | BNC, RG-59/U | | Distance | Up to 1500' (457 m) | | | | BTU/h | VDC: 1.69-4.46
VAC: 2.46-3.07 | | | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Humidity | 85% ± 5%, RH non-condensing | | Operating Altitude | -1000 to 6562' (-305 to 2000 m) | | | | Certifications | UL/CUL (60950-1), CE, C-TICK (Z1409) | | LED Indicators | Blue: Coax link connection
Yellow/Green: RJ45 IP link status, 10/100Base-T active
Green: Power | | Dimensions | 2.5 x 3.8 x 1" (63.5 x 96.52 x 25.4 mm) | | Weight | 3.5 oz lb (0.1 kg) | | | | Package Weight | 0.33 lb | | Box Dimensions (LxWxH) | 5.1 x 4.3 x 2.3" |
