Product description

• EVO Quadcopter Capture steady and sharp aerial videos and photos with the foldable Autel Robotics EVO Quadcopter. The built-in gimbal camera can record 12MP raw or JPEG photos or 4K video up to 60 fps in the H.264 or H.265 format to the included microSD card. Since the camera is balanced on a motorized 3-axis gimbal, videos will have a smooth, professional look to them, and the camera can be remote controlled to point wherever you need it.The included remote controller can direct the EVO from up to 4.4 miles away and has a built-in 3.3" 720p OLED display for monitoring video. If you attach your Android or iOS smartphone running the free Autel Explorer app, you can take control of the EVO's advanced functionality and intelligence to automatically follow subjects and orchestrate flight patterns.Using dual cameras at the front and bottom plus downward-facing ultrasonic sensors and rearward IR sensors, the EVO knows to avoid obstacles and can reroute based on built-in 3D mapping technology. Take the EVO for a flight and capture dynamic footage of moving subjects or fly it over epic vistas with ease.

  General Features

  4K Gimbal Camera
  • The EVO's camera is built on a 3-axis stabilized gimbal capable of up to 4K60 video and 12MP still image capture. Glass optics provide a 94° FOV, and an Ambarella H2 image processor encodes sharp photos and videos with a wide dynamic range.
  Autel Explorer App
  • Compatible with both iOS and Android operating systems, the free Autel Explorer app provides a 1080p live view, flight telemetry access to advanced settings and intelligent flight modes. Available app functions include:
    • Dynamic Track: Using advanced algorithms, EVO can autonomously follow an object easily by drawing a box around it
    • Viewpoint: Send EVO to a new viewpoint during flight by simply tapping on the screen of your mobile device
    • Orbit: Select a point of interest and EVO will fly a perfect circle, making cinematic shots easy
    • Waypoint: Set waypoints to program autonomous flight routes; EVO can save multiple waypoint missions, making it easy for surveying
    • VR: Take a seat in the cockpit with a virtual reality heads-up display (compatible VR headset sold separately)
  Remote Controller
  • With a built-in 3.3" OLED screen, easily view critical flight information or a live 720p HD video feed without the need to connect to a mobile device. You can also access and change camera settings, turn on or off obstacle avoidance, or format the MicroSD card with the navigation wheel. Easy one-touch action buttons allow you to command EVO to return home, automatically take off or land and capture photos and video without taking your hands off the controller.

  Safety Features

  Satellite Guidance
  • EVO is equipped with dual GPS and GLONASS systems allowing for hands-free hovering. Built-in fail-safe features such as Return to Home call the aircraft back to its home point if the battery is low or the remote control signal is interrupted.
  Front Cameras
  • Utilizing two cameras on the front which give it binocular vision, EVO creates a 3D environment and reacts to obstacles in the way. Intelligent algorithms are constantly running during autonomous flight, making long-range decisions for path planning around obstacles.
  Downward Cameras and Ultrasonic Sensors
  • Two ultrasonic sensors paired with two more computer vision cameras on the bottom of EVO help protect the aircraft from landing on uneven surfaces. Using the precision landing feature, the cameras on the bottom of EVO will capture reference images and use them during the return to home providing pinpoint precision during the landing sequence.
  Rear IR Sensor
  • The rear of the EVO is equipped with a near IR sensor protecting you when flying backwards autonomously.
  UPC: 869028000207
• Hard Case for EVO Drones Provide serious protection for your EVO and accessories with this Hard Case for EVO Drones from Autel Robotics. Designed specifically for the EVO, this case is designed to not just carry your EVO and accessories, but to protect them along the way. The exterior of this military-grade SKB case meets multiple military standards, making it waterproof, dust-tight, and resistant to impacts, UV light, solvents, corrosion, and fungus.

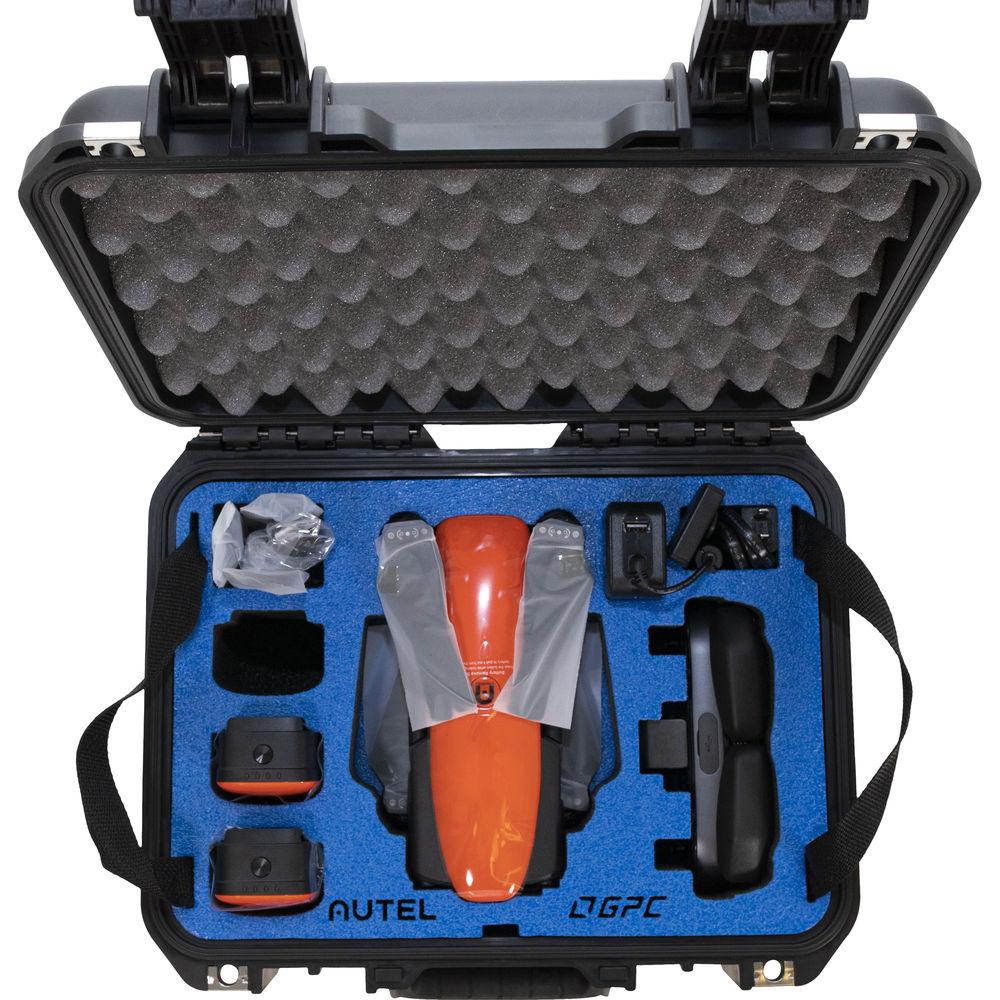

  On the inside is a 2-tier foam insert with water-jet, precision-cut compartments that are specially shaped to hold the EVO and a variety of accessories. The top layer features two built-in handles, so it can easily be removed to gain access to the lower tray, which can store a tablet and some spare propellers.
  Interior Compartments
  • The bottom tray features two precision-cut compartments for a 10.5" or smaller tablet, and spare propellers. The top tray features two built-in handles for removal, and precision-cut compartments for the following:

    1 x Autel EVO drone
    1 x EVO remote controller
    4 x Flight batteries (1 installed in the EVO)
    1 x Charger
    1 x Charging cable
    Various USB cables or small accessories
  Military Standards
  • This case meets the following military standards:

    MIL-C-4150J: Waterproof and dust tight
    MIL-STD-648C: Ambient pressure equalization valve
    MIL-STD-810F: Impact-, UV-, solvent-, corrosion-, and fungus-resistance
  Additional Features
  • Padlock holes with stainless steel protector clips
    Molded-in hinge for added
    Trigger release latch system
    Snap-down rubber over-molded cushion grip handle
  UPC: 869028000252

• Remote Controller

• Power Cable

• Micro-USB Cable

• USB-C Cable

• Remote Controller Cable

• Intelligent Battery

• 3 x Spare Propeller Pairs

• microSD Card

• Limited 1-Year Warranty

• Limited Lifetime Warranty (from GPC Cases)

Also Includes

• Limited 1-Year Warranty on Autel EVO
• Limited 90-Day Warranty on Autel EVO Accessories
• Limited Lifetime Warranty on GPC Hard Case

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• EVO Quadcopter

  Maximum Horizontal Speed	44.7 mph / 20 m/s
  Maximum Ascent Speed	16.4 ft/s / 5 m/s
  Maximum Descent Speed	9.8 ft/s / 3 m/s
  Maximum Flight Time	30 Minutes
  Hovering Accuracy	±4.92' / 1.5 m Horizontal with GPS ±0.66' / 0.2 m Vertical with GPS ±0.33' / 0.1 m Horizontal with Vision Positioning ±0.33' / 0.1 m Vertical with Vision Positioning

  GNSS Support	GPS, GLONASS

  Vision System	Downward, Forward, Backward

  Operating Frequency	2.4 GHz (902.000 - 928.000)
  Maximum Operating Distance	4.35 mi / 7000 m at 2.4 G
  Transmitter Power	26 dBm (2.4 G)
  Battery Type	1 x Built-In
  Battery Chemistry	Lithium-Ion
  Battery Capacity	6700 mAh
  Battery Configuration	1 S / 3.6 V
  App Operating System Requirements	Android iOS
  Built-In Display Size	3.3"
  Display Resolution	1280 x 720
  Display Brightness	330 cd/m²
  Storage Temperature	<3 months: -4 to 113°f >
  Operating Temperature	32 to 104°F / 0 to 40°C

  Sensor	1/2.3"
  Effective Pixels	12 MP
  Lens Field of View	94°
  Photo Format	JPEG, DNG
  Video Format	3840 x 2160 at 60 fps (MP4) 2704 x 1520 at 60 fps (MP4) 1920 x 1080p at 120 fps 1280 x 720p at 240 fps (MP4)
  Recording Media	microSD (Up to 128 GB)
  Photo Modes	Auto-Exposure Bracketing (AEB), Burst Shooting, Interval, Single Shot

  Number of Axes	3 (Pitch, Roll, Yaw)

  Battery Chemistry	Lithium-Ion Polymer (LiPo)
  Capacity	4300 mAh / 49 Wh
  Battery Configuration	3 S / 11.4 V
  Charging Temperature	50 to 113°F / 10 to 45°C
  Storage Temperature	<3 months: 14 to 104°f >

  Size	8.3"x2.9

  Number of Rotors	4
  Operating Temperature	32 to 104°F / 0 to 40°C
  Weight	1.9 lb / 862 g (Including Propellers, Battery)

  Box Dimensions (LxWxH)	10.1 x 10.0 x 5.3"

• Hard Case for EVO Drones

  Military Specification

  MIL-C-4150J MIL-STD-648C MIL-STD-810F

Rating
