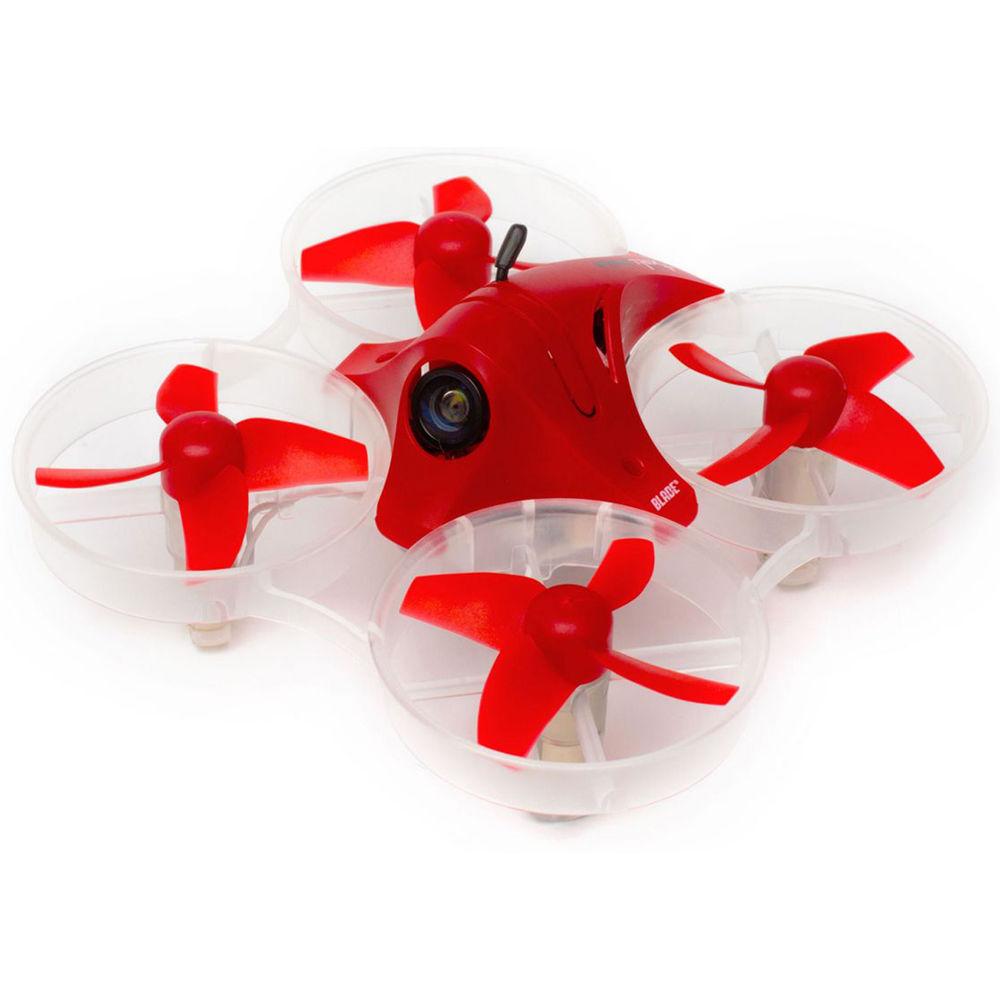

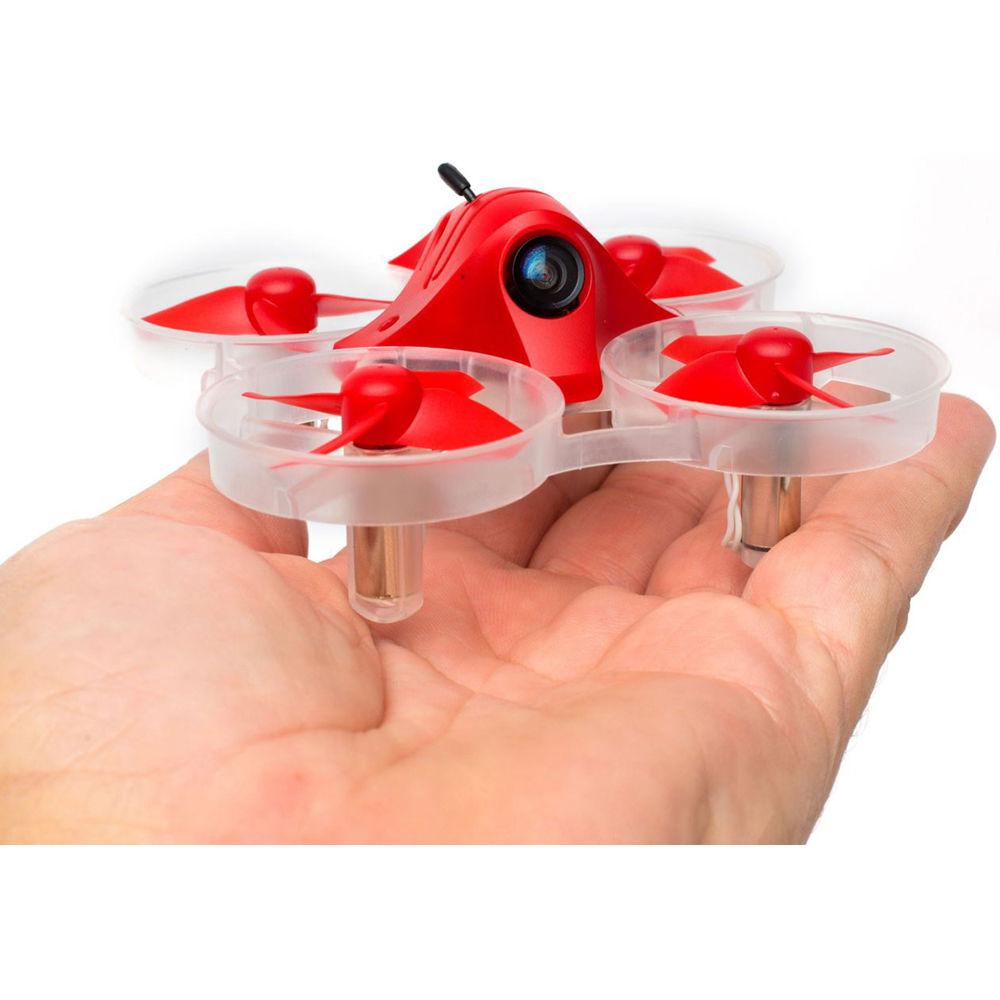

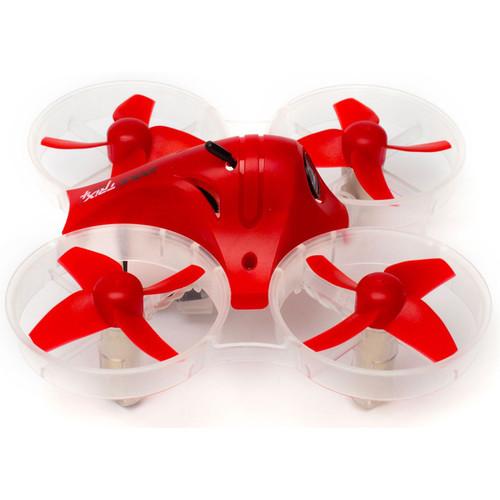

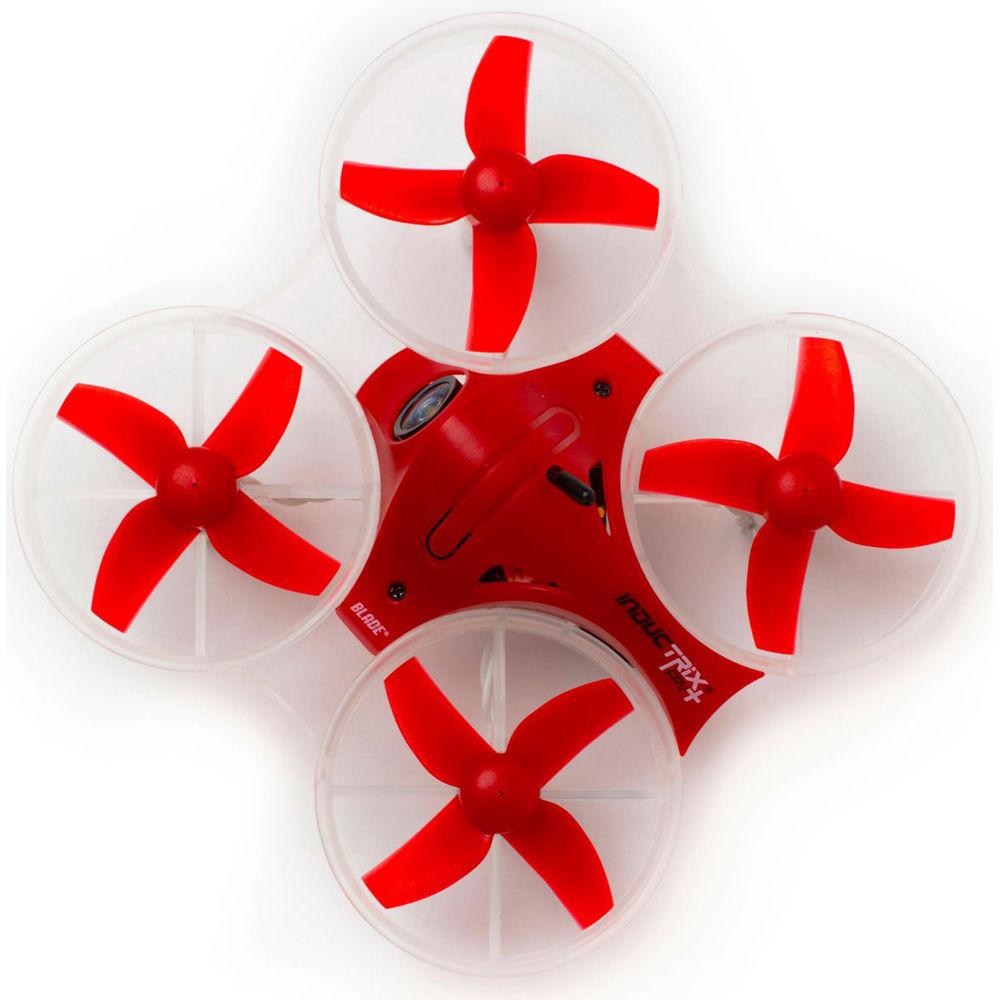

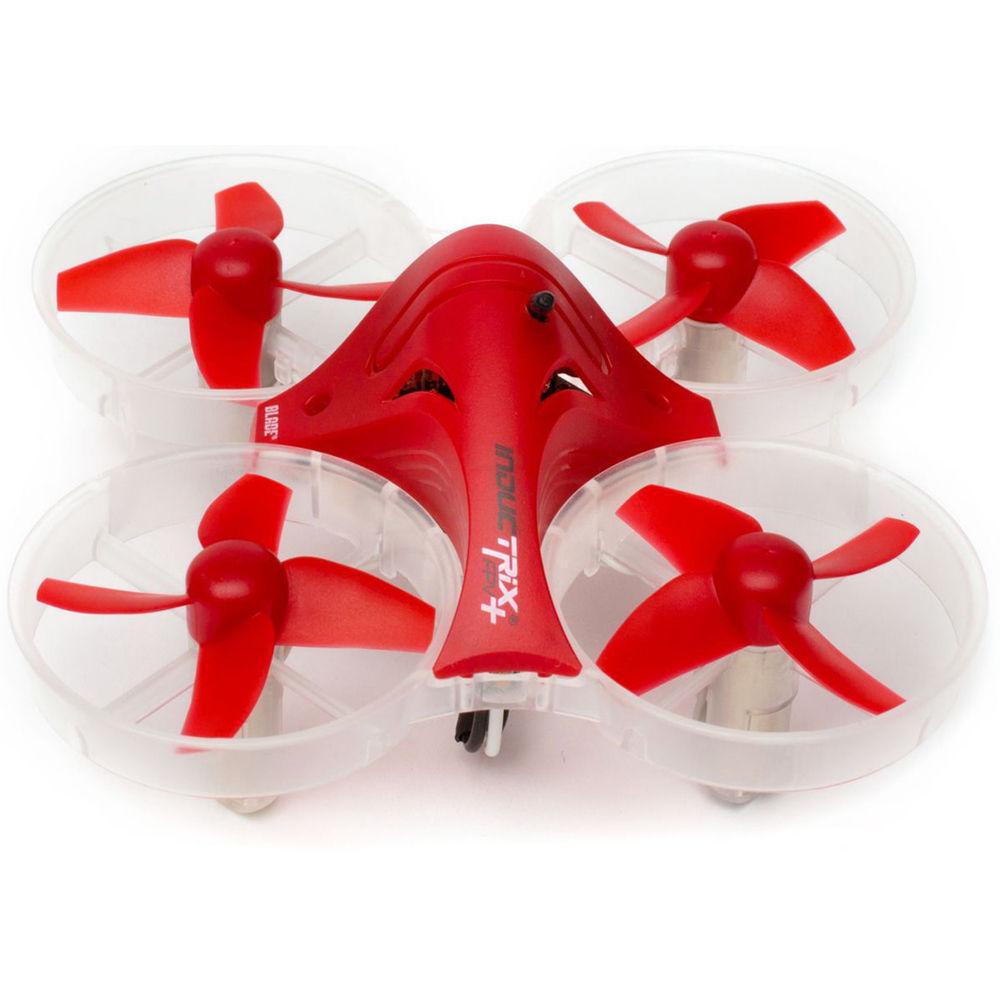

Product description Aerial Photography and Drone Glossary Read More The Blade Inductrix FPV Plus is an RTF (ready-to-fly) drone, suitable for beginners yet powerful enough for intermediate pilots. It features a preassembled package that comes with the drone, FPV camera, propellers, propeller guards, and tail light that can take to the air almost instantly with flight times up to 6 minutes. The propellers are protected from damage in the event of a crash into a wall, and the body protects the camera and electronics.
The 8mm brushed motors are powerful enough for acrobatic maneuvers, which the integrated 600 TVL camera and transmitter sends to the included Spektrum monitor. The integrated LED tail light makes for safe flying. A variety of modes enable even beginners to start piloting, and in the event of a crash that lands the craft upside down, there is Meow Mode that reverses the airflow and flips the drone upright. The monitor has a built-in DVR which records to a microSD card (not included) so you can share your flights with your friends. Flight Modes - Meow Mode
- Named so because this mode is reminiscent of how a cat lands on its feet. The Meow Mode will flip a crashed, upside-down craft to flight orientation at the push of a button.
- Angle Mode
- This self-leveling mode helps you maintain control, even at high speeds.
- Altitude Mode
- A good mode for the beginner as it maintains distance from the ground and keeps the drone level in flight.
- Agility Mode
- Allows the operator to take full advantage of the powerful 8mm motors by turning off the self-leveling feature, thus liberating the full acrobatic capabilities of the drone.
General - Power and Flight Times

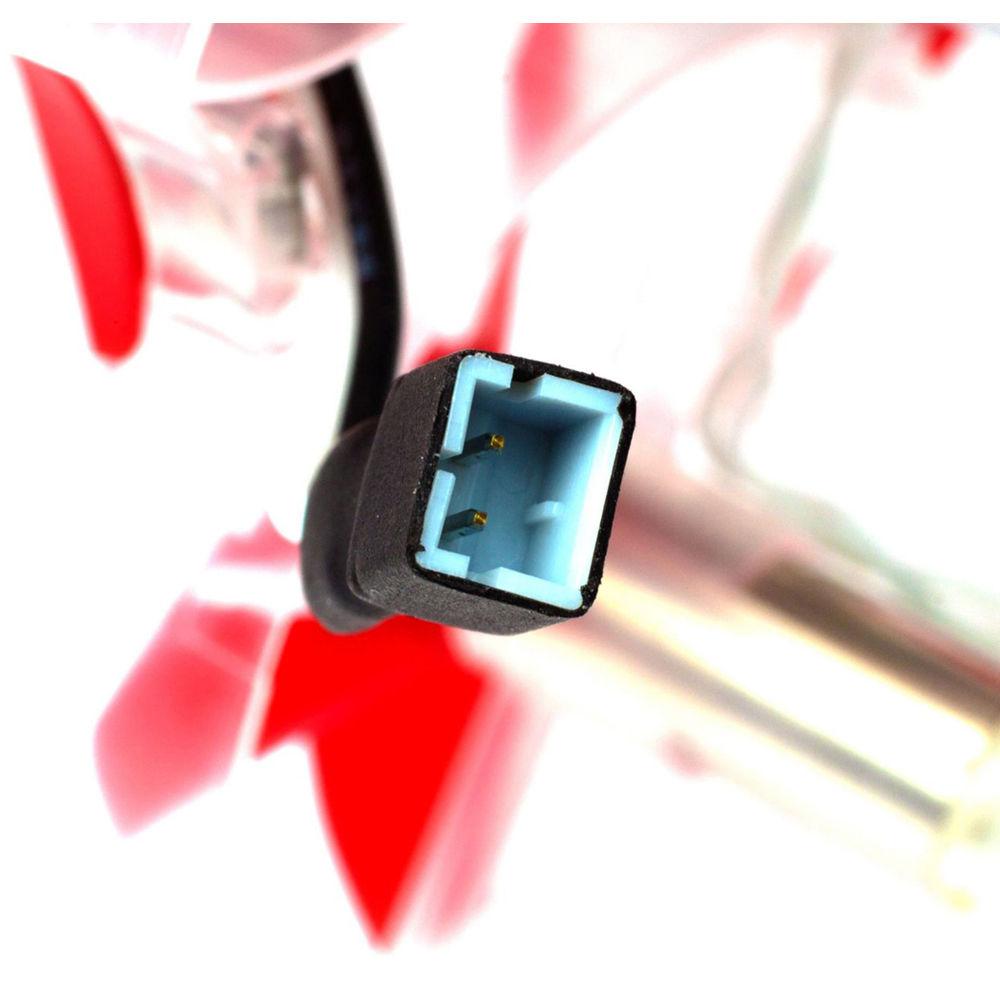

- A removable 500mAh battery drives new 8mm brushed motors and larger propellers for a powerful flight experience. The High-Current PH2.0 UM Connector delivers consistent current to motors and electronics for flight times from 4-6 minutes.
- Camera and Video Transmitter

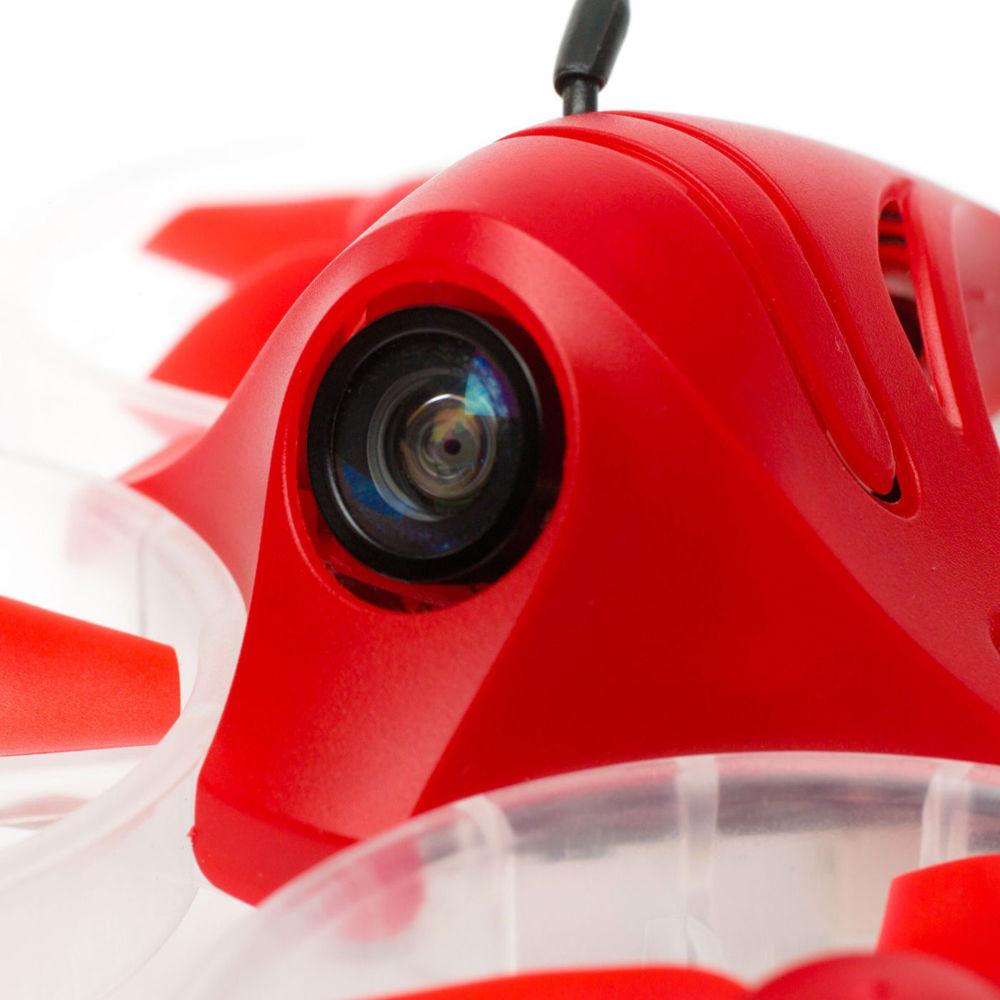

- An integrated micro FPV camera touts 600 TVL camera has a 140° field of view, and the drone features a 32 channel, 25mW video transmitter. 1
Please Note: A HAM license is required to operate the Video Transmitter in North America close - LED Tail Light
- With 5 colors to choose from, the installed LED tail light provides a vibrant indicator for line-of-sight flying. Simply select which color suits you straight from the sticks on your transmitter.
- Durability

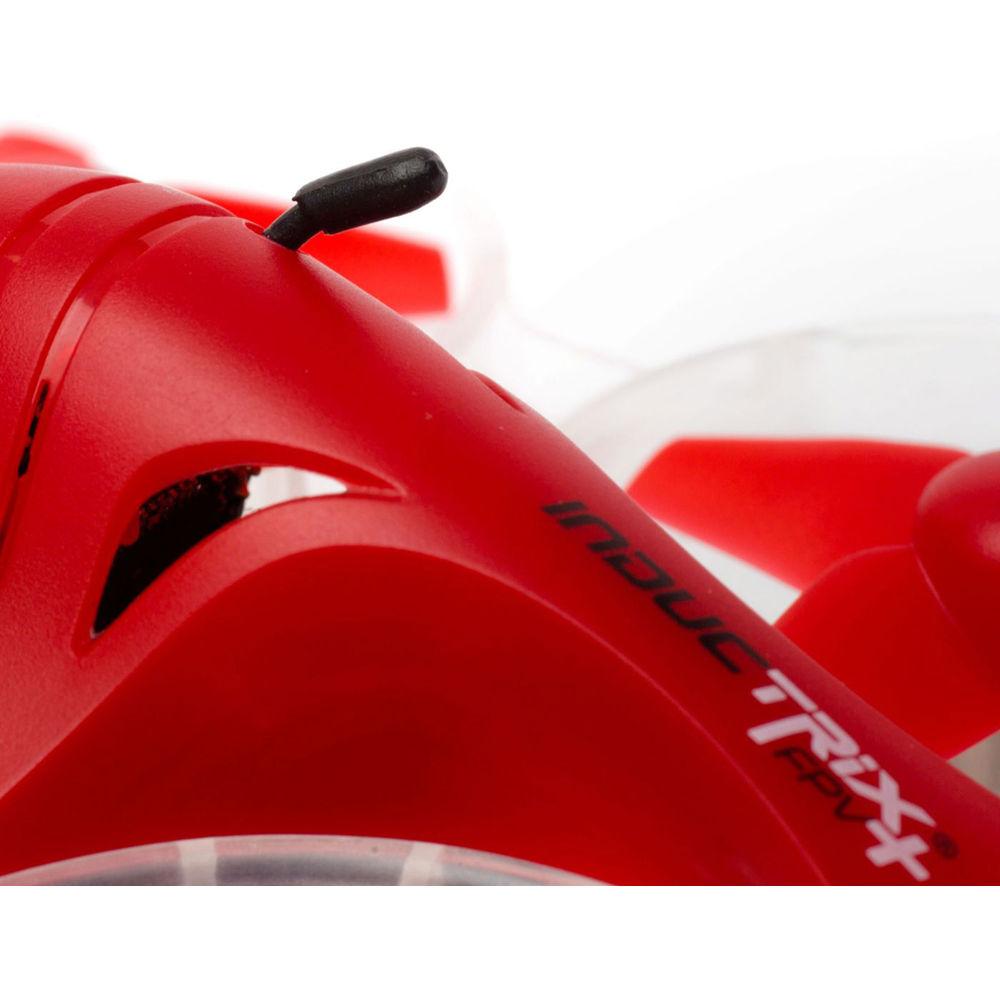

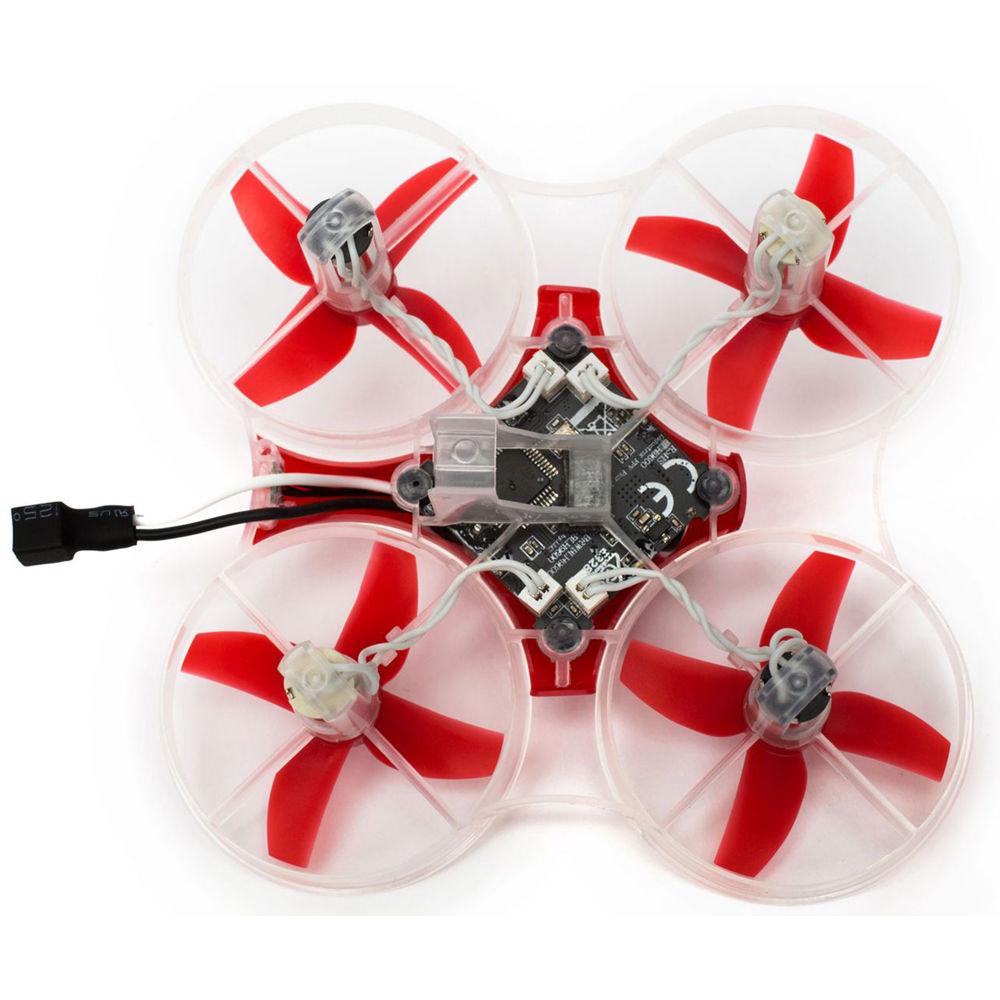

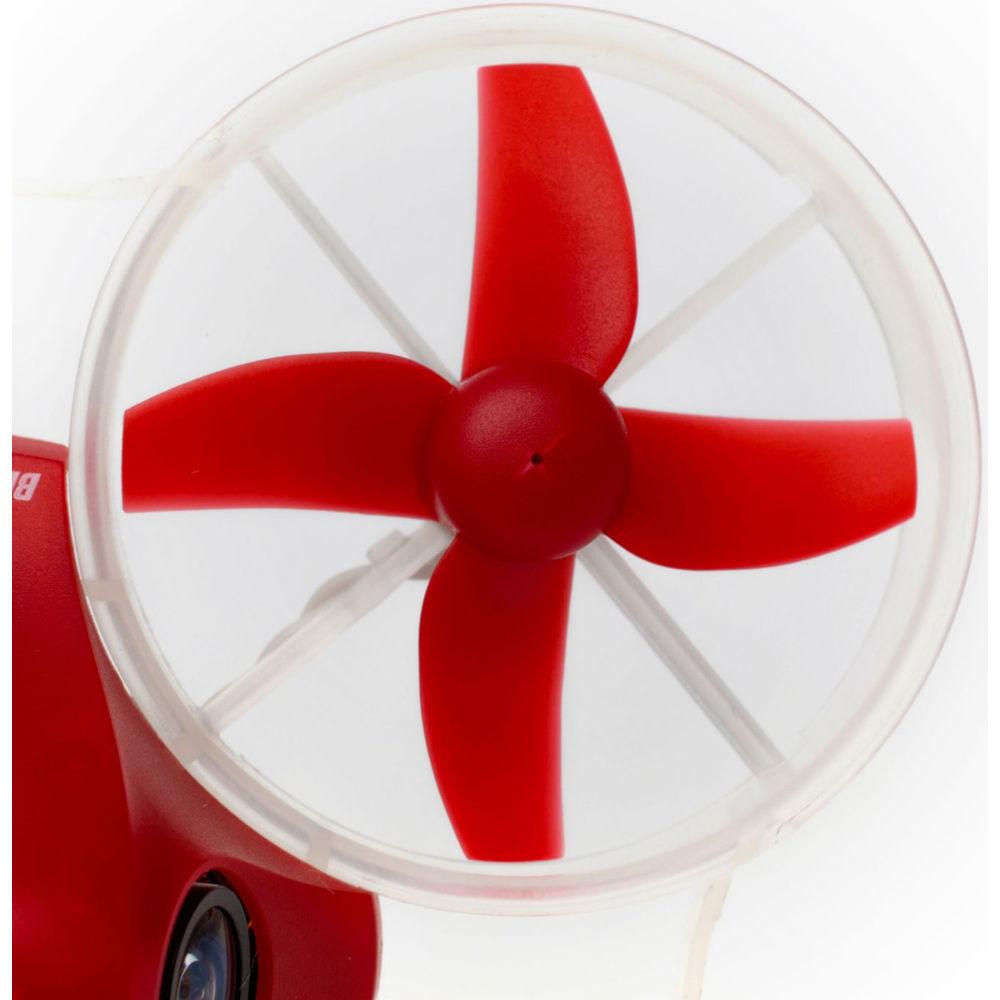

- The durable airframe and quiet ducted fans protect the motors and propellers from bumps and crashes, while the enclosed canopy fully protects the camera, video transmitter, and flight controller.
- DVR Monitor
- The included Spektrum FPV monitor features an integrated digital video recorder (DVR). Pilots can now record their inflight FPV footage straight to a microSD card (not included), making sharing video from their favorite FPV flight easy.
UPC: 605482240434 In the Box BLADE Inductrix FPV Plus (RTF) 6-Channel 2.4 GHz SAFE Transmitter for 180 QX HD EDF Power System FPV Camera/Video Transmitter 4.3" FPV Video Monitor with DVR 1S, 500mA USB LiPo Charger with JST Connector USB Charger Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 User Manual PDF 2.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the BLADE Inductrix FPV Plus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBLADE BLH9600 Specs | | | Maximum Takeoff Weight | 1.69 oz / 48 g | | Maximum Flight Time | 6 Minutes | | | | GNSS Support | None | | Vision System | None | | | | Operating Frequency | 2.4 GHz | | Battery Type | 4 x AA | | | | Lens Field of View | 140° | | Broadcast Resolution | 600 TVL | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Capacity | 500 mAh / 1.85 Wh | | Battery Configuration | 1 S / 3.7 V | | Charging Temperature | 40 to 120°F / 4 to 48°C | | | | Model | EFLC1013 | | DC Input Power | 5 VDC | | Output Voltage | 4.2 V | | | | Number of Rotors | 4 | | Overall Dimensions | 3.9 x 3.9 x 2.0" / 9.9 x 9.9 x 5.1 cm | | Weight | 1.69 oz / 48 g | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 11.5 x 8.3 x 3.6" |
