User Manual for BLADE Vortex 150 Pro Click to enlarge the picture
Contents of the user manual for the BLADE Vortex 150 Pro
- Product category: See All Drones BLADE
- Brand: BLADE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BLADE See All Drones
 |
User manual for the BLADE Vortex 150 Pro contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BLADE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BLADE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BLADE product will considerably shorten its lifespan!
|

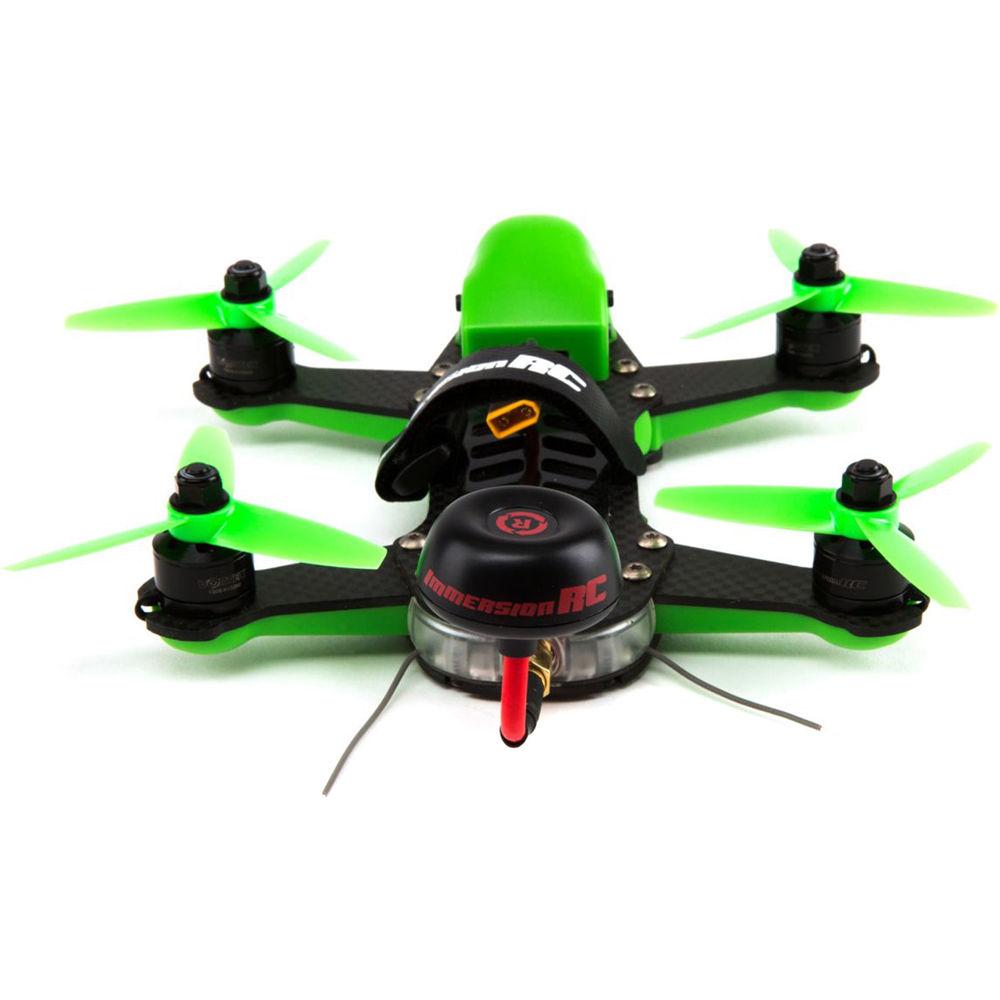

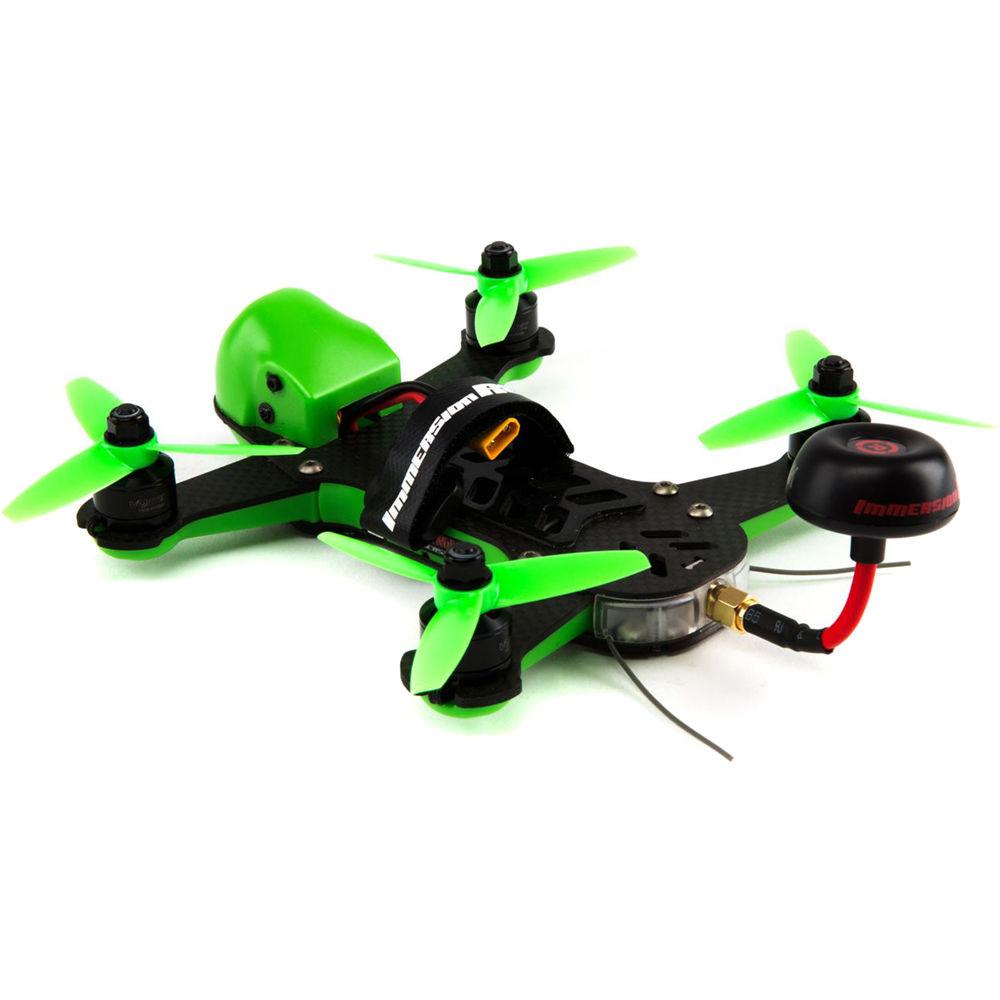

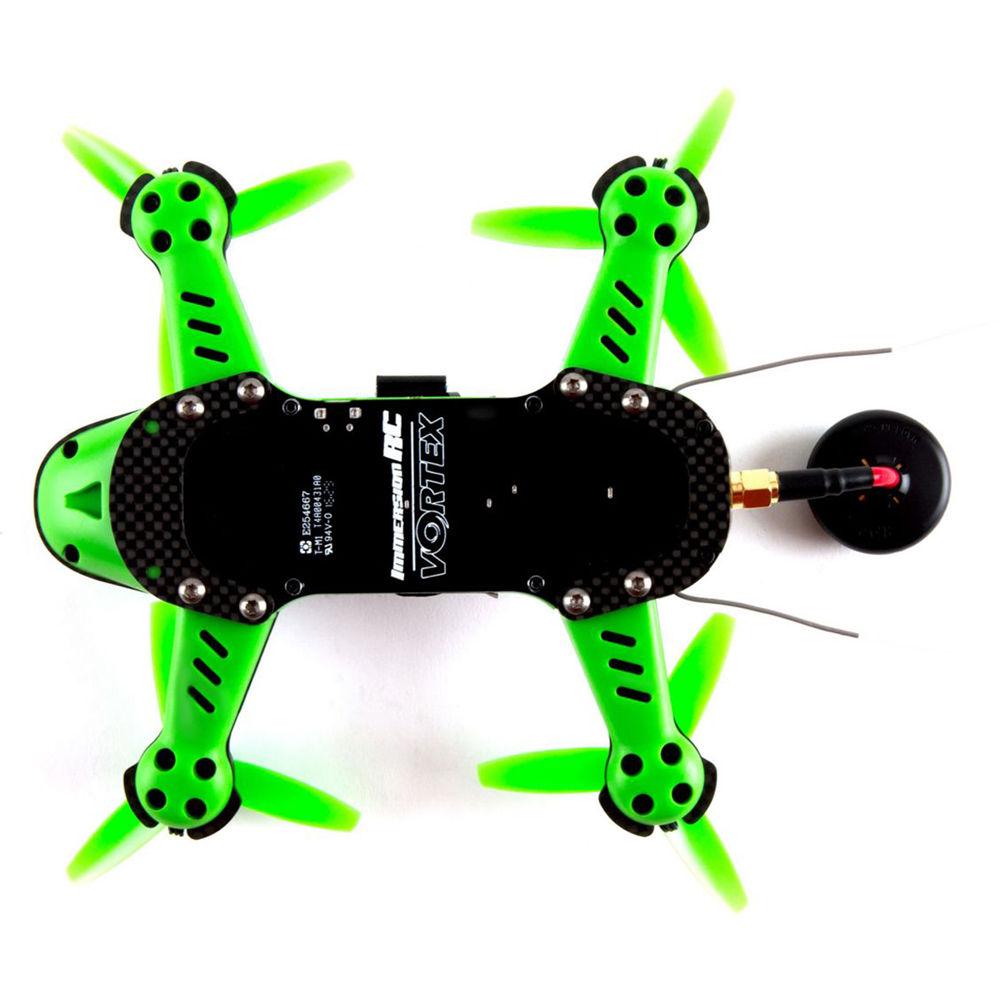

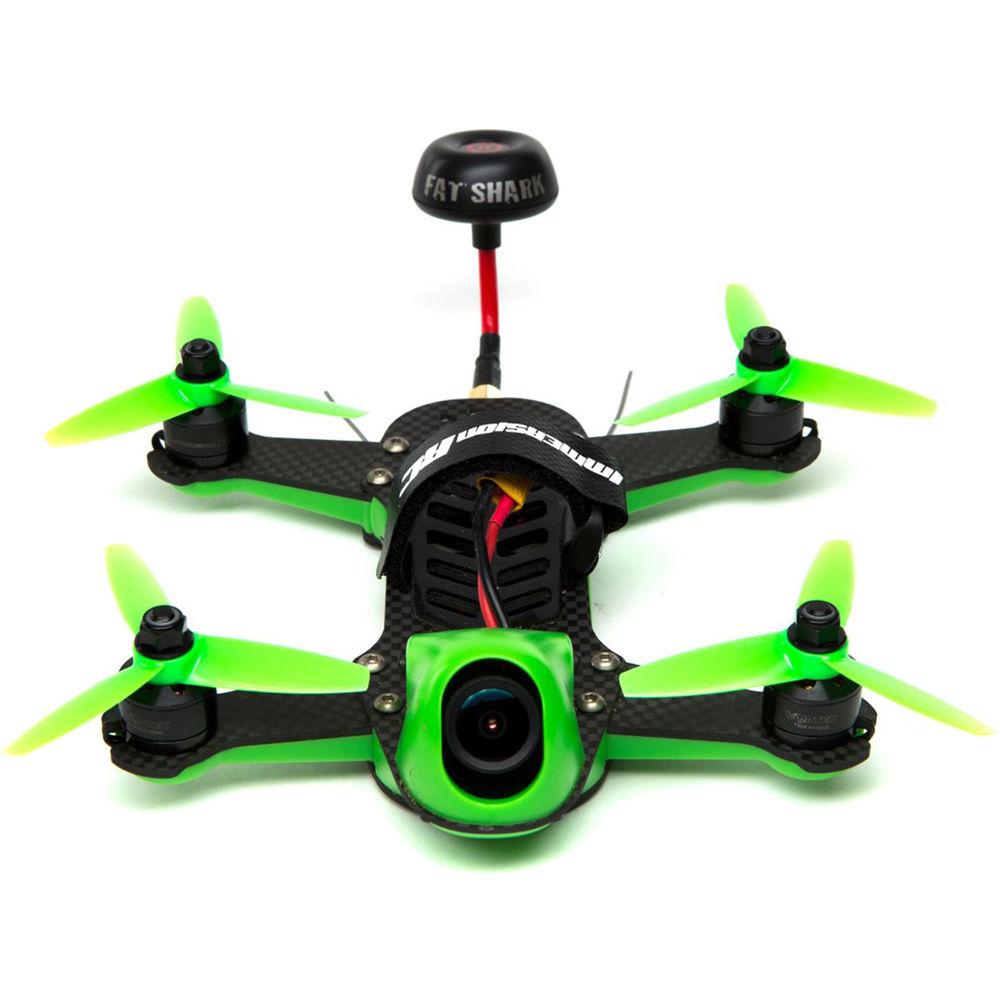

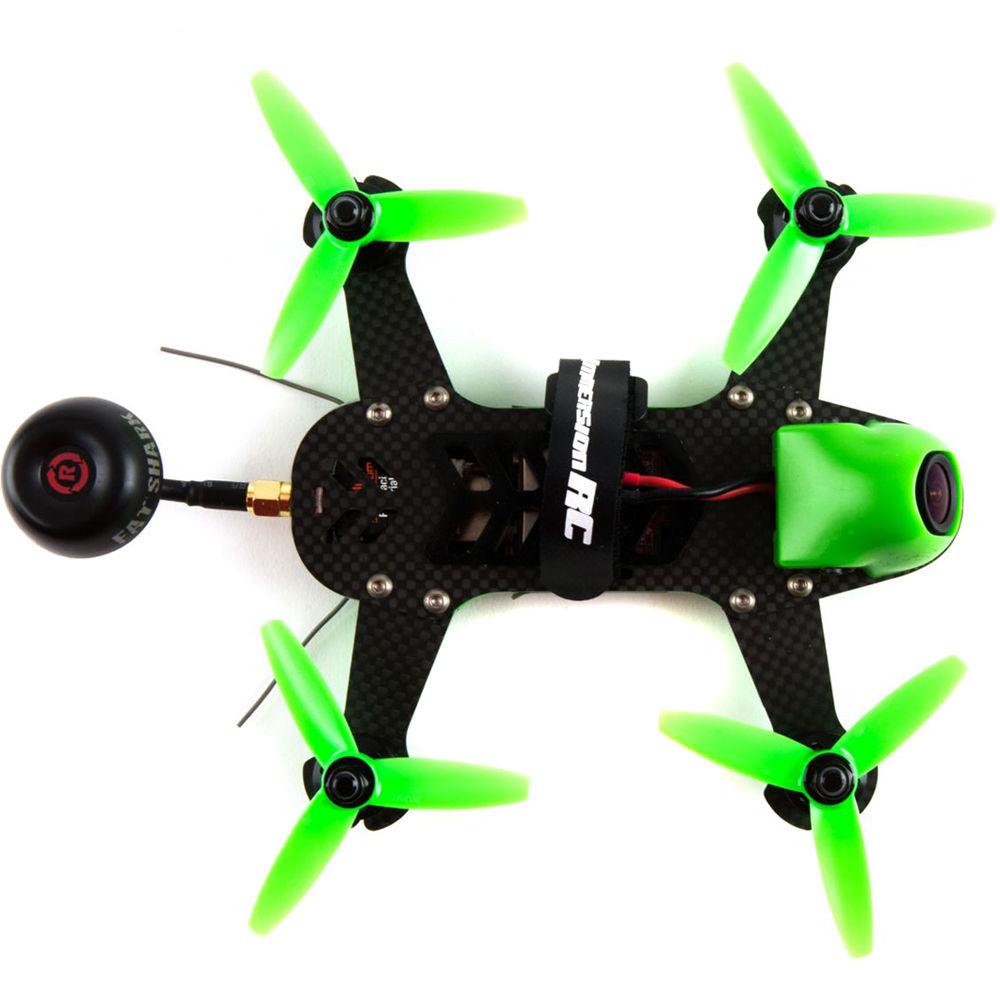

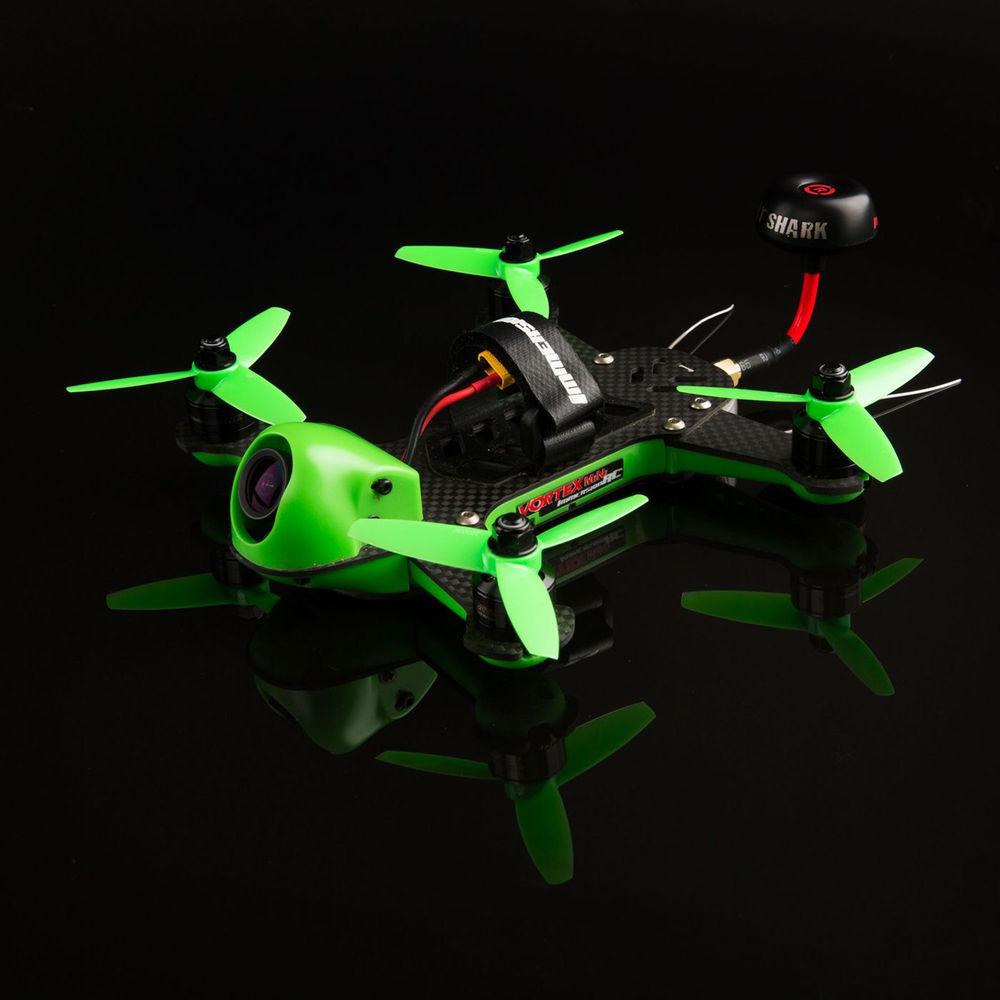

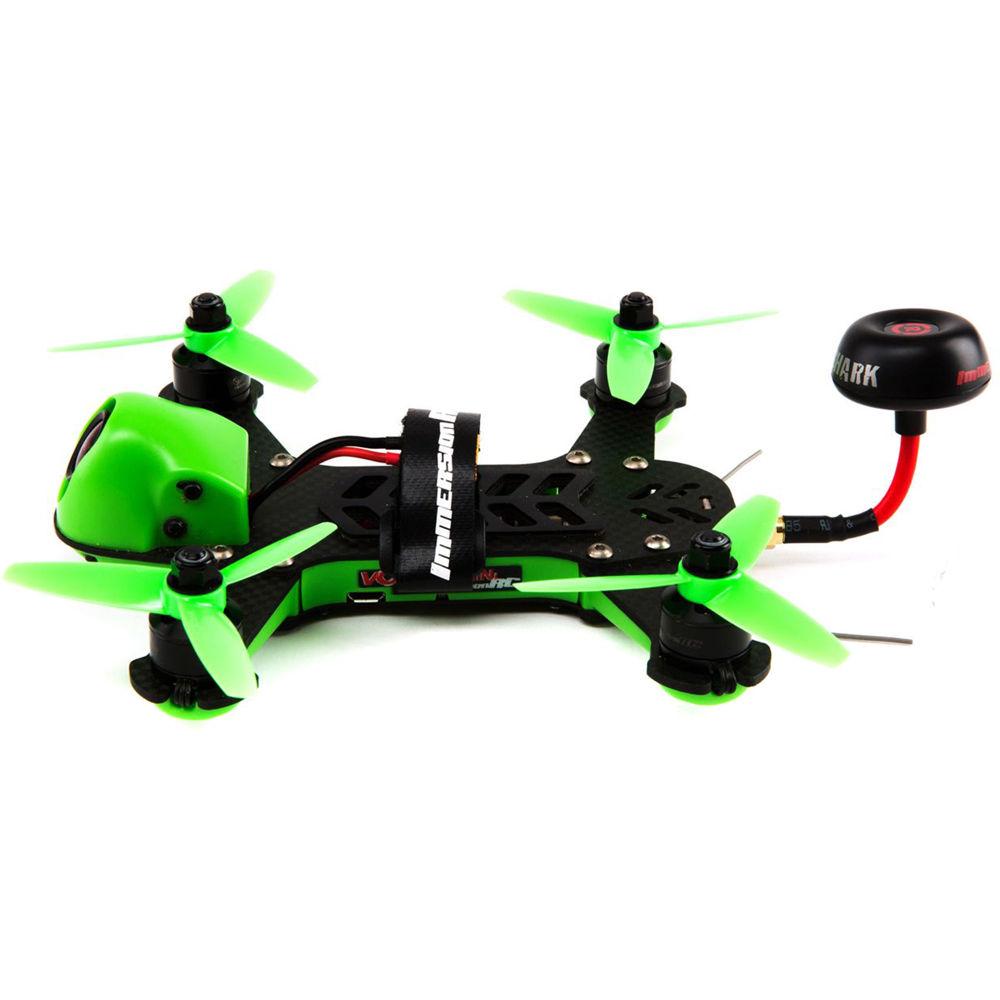

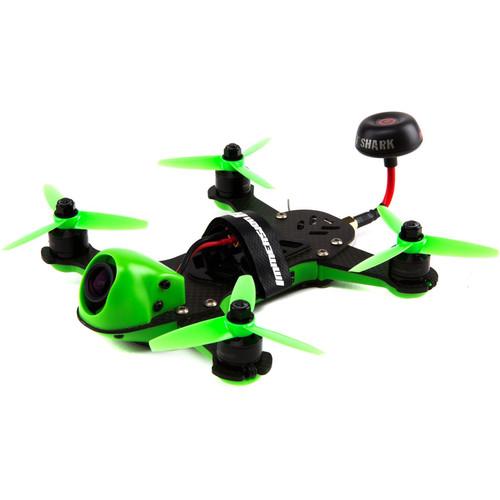

Product description Aerial Photography and Drone Glossary Read More ezszczuacacqbuzywewrwqaeazvr The BNF Vortex 150 Pro (BNF Basic) from Blade is an FPV-capable drone designed for outdoor use by intermediate-level pilots. This high-speed flyer is powered by a Fusion F3 flight controller and features four V-Spec 1306-3100 kV motors with customized ESCs. The flight controller features integrated Betaflight software, so you can fine-tune flight performance. The Vortex 150's onboard FPV system consists of a 600 TVL wide-angle CCD camera and video transmitter that broadcasts to compatible FPV headsets (sold separately). All components are housed within a light-but-durable 2mm-thick carbon fiber frame.
This is a Bind-and-Fly (BNF) bundle that comes with everything you need except a transmitter (radio controller), flight battery with charger, and optional FPV monitor and/or headset. - Fully Integrated
- The Vortex 150 comes with an integrated flight controller, full-graphic OSD, and 40-channel video transmitter. Loose wiring is virtually nonexistent for a professional look that's easy to maintain.
- Seven 32-Bit ARM Processors
- The Vortex 150 features seven fully integrated 32-bit ARM processors. There's a dedicated ARM for the flight controller, another for the full-graphic OSD, another for the programmable LED board, and one for each of the four custom ESCs.
- Tough Construction
- Built to survive serious crashes, the Vortex 150 can take a hit and keep on flying.
- Fusion F3 with BetaFlight
- The Fusion F3 flight controller is equipped with BetaFlight firmware, a 32-bit processor, and 8 kHz loop times for an intuitive control feel out of the box. Plus, the software is future-proof with supporting updates easily uploaded via USB.
- Dynamic Power Control
- The Dynamic Power Control function of the video transmitter lowers power automatically when the Vortex 150 is disarmed or ready for a race to start, so that interference from other racers is minimized.
- Integrated 5.8G Hz Video Tx
- The fully integrated video transmitter supports all standard FPV channels and power levels from sub -1 to greater than 600mW.
- Touch-n-Race
- A TNR (NFC) antenna provides full support for the ImmersionRC Personal and Race Director's wand. The latter enables additional channels for events with special spectrum use permissions.
- PitStick Mode
- When placed in PitStick Mode, the Vortex 150 will power up with the video transmitter disabled, and will only start transmitting when instructed to by the R/C transmitter.
- Bright LEDs
- A set of eight 24-bit RGB LEDs is protected between the upper and lower frames on the tail end. Through a dedicated 32-bit ARM processor, users can program a favorite color, brake lights, or turn indicators.
- Lost Model Alarm
- The Vortex features a lost model beeper that will help you locate your drone if it gets lost.
- Custom V-Spec Motors
- The custom V-Spec 1306-3100 kV brushless outrunner motors feature a high-speed rating and spin 3-inch props for the punch to accelerate quickly.
- Full Graphic Display with EzOSD
- The full-graphic On Screen Display (OSD) provides in-flight updates of critical parameters. The EzOSD menu allows all options to be programmed in the field using the RC transmitter and a headset or monitor.
UPC: 605482172469 Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 ezszczuacacqbuzywewrwqaeazvr Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the BLADE Vortex 150 Pro in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBLADE Vortex 150 Specs | | | Maximum Flight Time | 6 Minutes | | | | Model | Fusion F3 | | GNSS Support | None | | Vision System | Forward | | | | Number of Rotors | 4 | | Weight | 8.82 oz / 250 g (Including Propellers, Camera) | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 7.8 x 7.0 x 2.8" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 70 owners. Add your rating and experience with the product.
