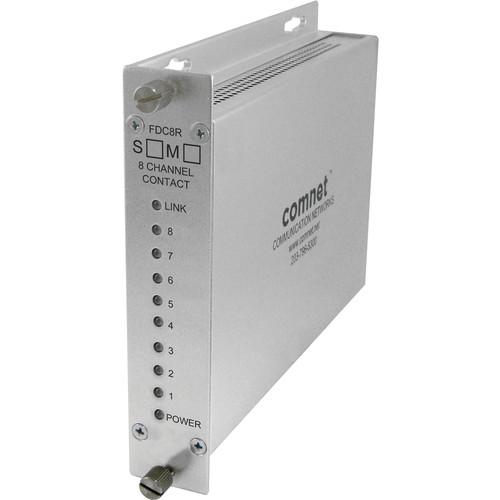

User Manual for COMNET 8-Channel Contact Closure Single Mode Receiver Click to enlarge the picture
Contents of the user manual for the COMNET 8-Channel Contact Closure Single Mode
- Product category: Signal Extenders COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Signal Extenders
|
User manual for the COMNET 8-Channel Contact Closure Single Mode contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description Provided by third party: The ComNet FDC8 Series contact closure transmitter and receiver provides transmission of up to eight independent contact closures over one RS232 link or optical fiber. Microprocessor-based logic sends the contact information in packets that are ordered and encoded, ensuring extremely robust transmission. Packets that are garbled, packets out of sequence, and transmission bit errors will not cause random changes of state on the contact relays. Also, the mechanical latching relays maintain their state even when the unit loses power. Each module incorporates power and individual status indicating LEDs for monitoring confirmation of contact closure of each of the eight channels.
- Key Features
-
- Transmits up to eight contact closures over one RS232 link, or one optical fiber
- Eight channel Point-to-Point transmission architecture
- Indicating LEDs for monitoring power and contact channels
- Microprocessor-based logic and latching relays in receiver unit eliminate random contact closure status in the event of loss of link or loss of prime operating power
- Automatic resettable solid-state current limiters
- Hot-swappable rack modules
Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET 8-Channel Contact Closure Single Mode Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET FDC8RS1 Specs | | | Device Type | Contact closure extender | | Form Factor | External | | | | Connectivity Technology | Wired | | Cabling type | Fiber optic | | Max Transfer Distance | 42.9 miles | | Status Indicators | Port status, power, contact closure | | Features | Hot swap module replacement, over-current protection | | | | Interfaces | 8 x contact closure (input) - terminal block
1 x - ST single-mode female | | | | MTBF | 100,000 hours | | Compliant Standards | FCC Part 15, RoHS, cULus, NEMA TS-2, NEMA TS-1, EN 12464 | | | | Voltage Required | DC 8 - 15 V | | Power Consumption Operational | 3 Watt | | | | Width | 5.3 in | | Depth | 6.1 in | | Height | 1.1 in | | | | Service & Support | Limited warranty - lifetime | | | | Min Operating Temperature | -40
