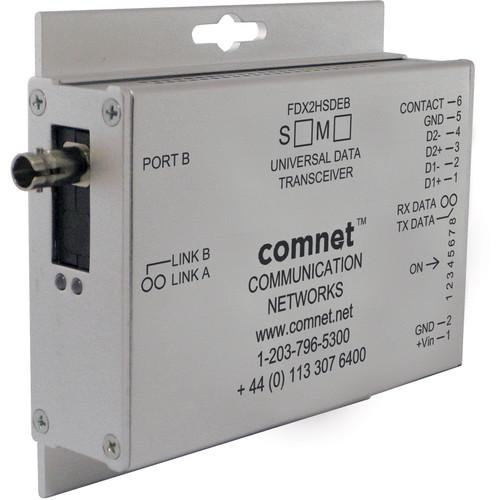

Product description The Dual High-Speed RS485 “B” End Point Data Transceiver from ComNet provides point-to-point or drop-and-repeat transmission of two independent simplex or duplex high-speed RS485 (2W) data signals over one optical fiber. It is transparent to data encoding allowing for broad-range compatibility. A medium-sized surface mount module, this transceiver can be used with single-mode optical fiber and features built-in DIP switch-selectable bias and termination resistors for each data channel. Plug-and-play design ensures ease of installation, requiring no electrical or optical adjustments. Each transceiver incorporates bi-color (red/green) indicating LEDs for monitoring proper system operation, including the location of fiber breaks. - General
-
- Data rates up to 1 Mbps
- Meets RS485 (2W) specifications
- Tested and certified for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
- Design assures high reliability in unconditioned out-of-plant/roadside environments
- NTCIP compatible
- Built-in fiber link tester allows for the testing of the fiber
- Remote fault indication allows the user to determine when a fiber break or loss of prime operating power has occurred, or a transceiver in the field has failed
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events
- Wide optical dynamic range without the need for optical attenuators
- Bi-color (red/green) LED status indicators provide rapid indication of critical operating parameters
- Made in the USA
- Applications
-
- Access control systems
- Building automation and environmental control systems
- Computer/data equipment
- Fire and alarm systems
- Traffic signal control equipment
In the Box COMNET Dual High-Speed RS485 2W "B" End Point Data Transceiver (Single-Mode) DC Plug-In Power Supply Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET Dual High-Speed RS485 2W "B" End Point Data Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET FDX2HSDS1B/M Specs | Data Channels | 2 | | Data Format | 2-wire RS485 w/ Tri-State, Manchester, Bi-Phase, Sensornet | | Data Rate | DC-1 Mbps | | Operating Mode | Asynchronous, simplex, or full-duplex | | Bit Error Rate | <10-9 @ maximum optical loss budget | | Wavelength | 1310/1550 nm | | Number of Fibers | 1 or 1 In/1 Out | | LED Indicators | Receive Data Active, Transmit Data Active, Port A Fiber Link Status, Port B Fiber Link Status | | Dip Switches | 1 to 3: Ring Length (SHR only)
4: Master / Remote (SHR only)
5 & 6: 680 Ohms Pull Up/Pull Down for Bias on RS485 bus
7 & 8: 120 Ohms Termination across RS485 bus | | Connectors | Optical: ST
Power: Terminal Block
Data: Terminal Block
Contact: Terminal Block | | Communication Method | RS485 (2 W) "B" End Point | | Fiber | Singlemode 9/125 μm | | Optical Power Budget | 23 dB | | Maximum Distance | 43 mi (69 km) | | Operating Voltage | 8 to 36 VDC | | Power Consumption | 4 W | | Current Protection | Automatic Resettable Solid-State Current Limiters | | Circuit Board | Meets IPC Standard | | MTBF | >100,000 hours | | Operating Temperature | -40 to 167°F (-40 to 75°C) | | Storage Temperature | -40 to 185°F (-40 to 85°C) | | Relative Humidity | 0 to 95% (non-condensing) | | Dimensions (L x W x H) | 4.1 x 3.7 x 1.1" (10.4 x 9.4 x 2.8 cm) | | Weight | 1.0 lb (0.4 kg) |
