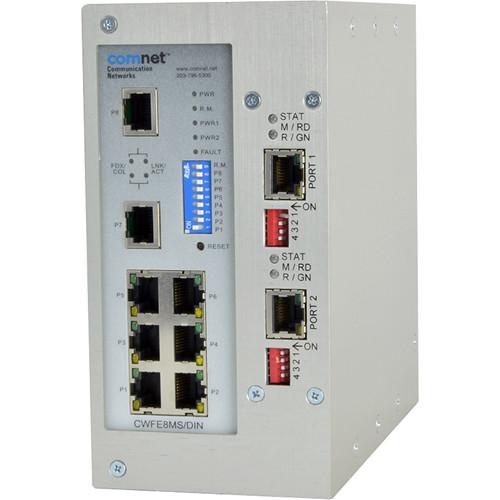

Product description The EoVDSL Drop-and-Repeat/Point-to-Multipoint over Copper Cable Transmission System from COMNET includes one 10/100TX 8-port managed switch, one 2-channel EoVDSL uplink modem, and a mounting chassis. The system can be used to aggregate Ethernet-enabled equipment at remote field locations back to a central or head-end location over existing copper infrastructure. The ComNet CWFE8MS/DIN Managed Ethernet Switch provides transmission of 10/100Base-T Ethernet data via conventional Cat 5e copper cable. It comes equipped with eight electrical ports for easily implementing point-to-point, linear add-drop, drop-and-repeat, and more. The electrical ports support the 10/100 Mb/s (10/100Base-TX) Ethernet IEEE 802.3 protocol, and auto-negotiating and auto-MDI/MDIX features are provided for simplicity and ease of installation. EoVDSL modems provide a 100 Mb/s Ethernet electrical input and output, and they can be used with virtually all other Ethernet-compatible equipment, regardless of manufacturer, including media converters, managed or unmanaged switches, terminal servers, and wireless transmission equipment. This compatibility provides the user with the ability to configure a network using a combination of fiber optic, copper-based, and wireless communications equipment. Features - Designed for drop-and-repeat Ethernet-over-copper transmission circuits
- VDSL2 technology for fastest data rate and longer transmission distance
- Supports more than one EoVDSL channel by adding additional 2-channel EoVDSL uplink modems
- Uses telephone-grade twisted copper pair, legacy serial cabling, or standard 75 Ohms coaxial cable circuits to create a drop-and-repeat/point-to-multipoint Ethernet-based network
- Automatically selects fastest usable data rate, depending upon the copper circuit transmission distance and cable quality
- Designed for installation in harsh out-of-plant/unconditioned industrial or roadside operating environments
- Fully compliant with the environmental requirements of NEMA TS-2 for traffic signal control equipment
- Natural convection cooling; no fans or air filters
- 120/240 VAC power supply included
- Can be powered via 12 to 27 VDC external power supply (not included)
Applications - Ethernet-compatible access control systems, intercom systems, and IP-compatible CCTV camera surveillance networks
- VoIP (Voice over IP) telephony network
- Connecting Ethernet-based traffic signal controller units onto an existing twisted copper pair or coaxial cable circuit
- Video Detection Systems (VDS) for analyzing traffic flow patterns and disturbances
UPC: 845770009682 In the Box COMNET EoVDSL Drop-and-Repeat/Point-to-Multipoint over Copper Cable Transmission System 8-Port Managed Ethernet Switch 2-Port Ethernet over Twisted Pair or Coax VDSL Modem Plugin Power Supply Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET EoVDSL Drop-and-Repeat Point-to-Multipoint over Copper Cable Transmission System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET VDSL3 Specs | | | Connector | 8 x RJ45 for 10/100 Mb/s | | Technology | Architecture: Store-and-forward switching with 1.6 Gb/s
Switch fabric | | Transfer Rate | 14,880 packets per second for 10/100 Mb/s | | Cable Distance | UTP/STP Cable: 328' / 100 m | | MAC Address | 8K MAC address Table | | Data Buffer | 2 Mb | | LED | Per Unit: Power
Per RJ45 Port: Link/Activity, 100 Mb/s, full duplex/collision | | Management | Web management (IE)
RS-232 console management
Telnet | | EMI | FCC class A, CE, UL, cUL | | IEEE Standards | IEEE 802.3, 802.3u
IEEE 802.3x Flow control and Back Pressure
IEEE 802.1D Spanning Tree protocol (Rapid Spanning Tree not supported)
IEEE 802.1Q VLAN Tagging
IEEE 802.1p Class of Service
IEEE 802.3ad Link Aggregation | | Voltage Regulation | Solid state | | Circuit Board | Meets IPC standard | | MTBF | 100,000 hours | | Operating Temperature | -40 to 167°F / -40 to 75°C | | Storage Temperature | -40 to 185°F / -40 to 85°C | | Relative Humidity | 0 to 95% (non-condensing) | | | | Ethernet Port | Ethernet Connector: 2 x RJ45 | | Cable | Ethernet Port: Cat 5, Cat 5e, Cat 6
Line Side Port 1 (Twisted Pair): Telephone-grade 19 to 26 AWG (one twisted pair | | Data Rate | 10/100 Mb/s | | Distance | 328' / 100 m | | Connector | UTP: 2 x screw terminal blocks | | Throughput | Twisted Pair:
1000' / 305 m: 68 Mb/s upstream; 70 Mb/s downstream
2500' / 762 m: 17 Mb/s upstream; 26 Mb/s downstream
5000' / 1524 m: 1 Mb/s upstream; 16 Mb/s downstream
7500' / 2286 m: 0.5 Mb/s upstream; 5 Mb/s downstream
10,000' / 3048 m: 0.25 Mb/s upstream; 1 Mb/s downstream
75 ohms Coax:
200' / 61 m: 95 Mb/s upstream; 88 Mb/s downstream
500' / 152 m: 93 Mb/s upstream; 85 Mb/s downstream
1000' / 305 m: 89 Mb/s upstream; 83 Mb/s downstream
1500' / 500 m: 83 Mb/s upstream; 76 Mb/s downstream | | Selection | User-Configurable Selection of:
Master/remote operation
Symmetrical/asymmetrical data
Forward error correction
Long or short range operation for optimal BER (Bit Error Rate) performance | | Overload Protection | Automatic resettable solid-state current limiters | | Circuit Board | Meets IPC standard | | MTBF | 100,000 hours | | Operating Temperature | -40 to 167°F / -40 to 75°C | | Storage Temperature | -40 to 185°F / -40 to 85°C | | Relative Humidity | 0 to 95% (non-condensing) | | Power | 100 to 264 VAC wall-mount power supply (included) | | Operating Power | 12 to 27 VDC at 1 A for operation of switch and uplink modem from external low-voltage DC source | | Dimensions | 6.97 x 3.3 x 6.5" / 17.7 x 8.4 x 16.5 cm | | Weight | 1 lb / 0.45 kg |
