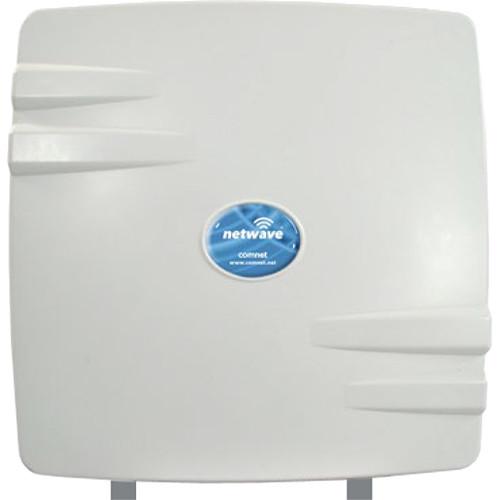

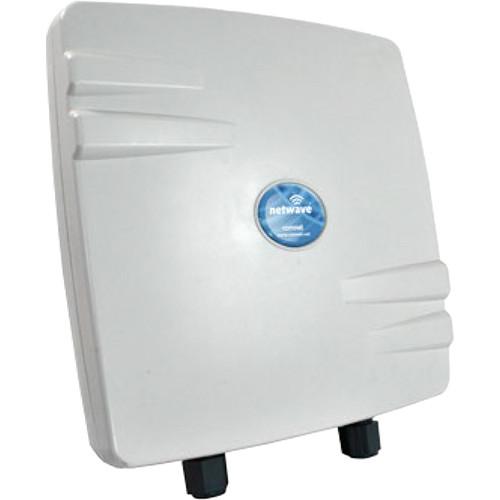

Product description The Industrially Hardened Point-to-Multipoint Wireless Ethernet Link from ComNet can be configured through the embedded user interface as a client or as an access point. This point-to-multipoint unit allows multiple Ethernet endpoints to be connected to a central access point. Up to 15 endpoints can be linked to a central access point. The unit supports up to 95 Mb/s throughput using MIMO technology and can be powered by an IEEE 802.3af PoE compliant device or through the supplied power injection module. -
- Up to 95 Mb/s throughput
- 802.11a/n
- Distances up to 2 mi (FCC) or 2km (ETSI)
- Powered by the included power injection module or by an IEEE 802.3af PoE compliant device
- Meets class IP67 dust and water immersion protection standards
- WPA2 – AES or TKIP encryption for secure transmission
- ComNet Antenna alignment feature eases installation and setup
- RF spectrum survey tools
- Antenna alignment tools

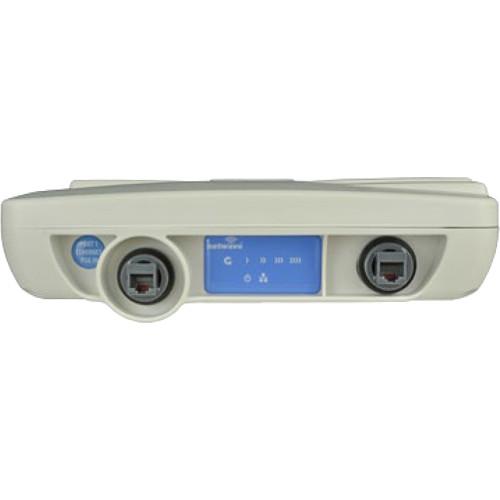

- LED array displays unit operational status along with received signal strength

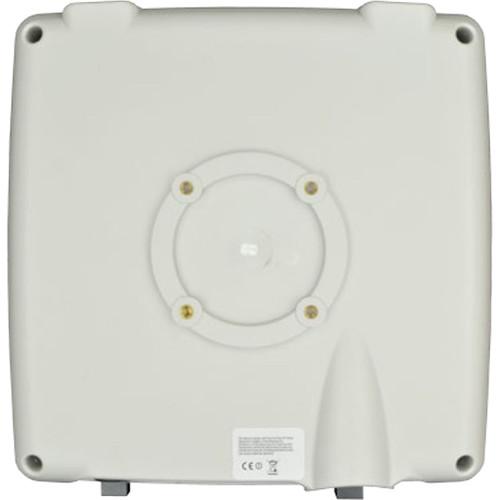

In the Box COMNET Industrially Hardened Point-to-Multipoint Wireless Ethernet Link Power Kit Pole Mounting Hardware Kit Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET Industrially Hardened Point-to-Multipoint Wireless Ethernet Link in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET NW1 Specs | EIRP | Up to +36 dBm for point to multipoint deployments, +45 dBm for point-to-point deployments with MAC-lock feature enabled | | RF Output | +26 dBm | | Operation Frequency Range | 5180 to 5825 MHz | | Bandwidth | 20 and 40 MHz | | Antenna | Internal 19 dBi dual polarized directional | | Gain | 19 dBi | | Azimuth | 17° horizontal/vertical | | Elevation | 17° horizontal/vertical | | Ethernet | 2 x RJ45, Sealed Cable Gland | | Software | Addressing: Static IP / DHCP Client / DHCP Server
SNMP: V3
Telnet Server: Syslog
Dynamic DNS: 802.1q VLAN support
Embedded Firewall: QoS support
Ability to Assign Static Routes: NTP Client
Spanning Tree Protocol support
802.1 x port-based network access control
User-configurable watchdog and auto-reboot mechanism
Multi-level configuration and monitoring login accounts
User configurable long-range parameters | | Operating Voltage | 42 to 57 VDC | | Power Consumption | 5.5 W maximum
IEEE 802.3af PD compliant | | Indicator LEDs | Power On
Ethernet Link
Signal Strength | | MTBF | >100,000 hours | | Operating Temperature | -40 to 167°F / -40 to 75°C | | Storage Temperature | -40 to 185°F / -40 to 85°C | | Humidity | 5 to 95%, non-condensing | | Dimensions (L x W x H) | 10.6 x 10.6 x 2.9" / 27 x 27 x 7.5 cm | | Weight | 1.0 lb / 0.4 kg |
