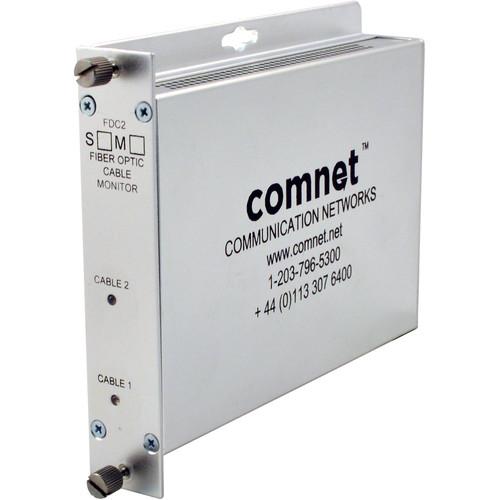

User Manual for COMNET Single Mode Dual-Channel Fiber Optic Cable Break Detector Click to enlarge the picture
Contents of the user manual for the COMNET Single Mode Dual-Channel Fiber Optic
- Product category: Signal Extenders COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Signal Extenders
|
User manual for the COMNET Single Mode Dual-Channel Fiber Optic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description Provided by third party: The ComNet FDC2 dual-channel modems are designed to detect and report a breakage or the loss of optical signal in either multimode or singlemode fiber plants. Featuring a self-contained transmitter and receiver, these units provide an optical output that is transmitted continuously through a customer-furnished fiber loop, where it returns to the internal receiver section. Should the optical path be lost through a deliberate or unintentional breakage of the fiber, relay contacts in the modem immediately change their state and report the loss of optical signal. These contacts are user-configurable as either normally open (NO) or normally closed (NC), and may be utilized for either a local or remote indication of cable plant tampering, damage, or failure. The dual-channel contains two independent transmitter and receiver units in one compact package, and is ideal for continuously monitoring the optical status of two separate fiber loops.
- Key Features
-
- Instantaneously reports optical fiber breakage or damage locally or remotely
- Dry relay contacts may be configured for NO or NC operation
- Automatic resettable solid state current limiters for modem protection
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events
- Ambient operating temperature range: -40
|
Upload User Manual
Have you got an user manual for the COMNET Single Mode Dual-Channel Fiber Optic Cable Break Detector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET FDC2S Specs | | | Device Type | Network tester | | Media | Fiber | | Features | Status LED, normally open (NO) mode, normally closed (NC) mode, automatic resettable solid state current limiters, voltage transient protection, up to 36km distance | | Tests, Tools and Measurements | Optical loss, fiber breaks detection | | Included Accessories | Power adapter | | Connectors | ST single-mode x 4 | | Compliant Standards | RoHS, FCC, cULus | | Warranty | Lifetime warranty | | | | Width | 6.1 in | | Depth | 1.1 in | | Height | 5.3 in | | Weight | 31.74 oz | | | | Min Operating Temperature | -40
