User Manual for DJI D-RTK 2 GNSS Mobile Station for Phantom 4 RTK Drones Click to enlarge the picture
Contents of the user manual for the DJI D-RTK 2 GNSS Mobile Station
- Product category: DJI Accessories DJI
- Brand: DJI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DJI DJI Accessories
 |
User manual for the DJI D-RTK 2 GNSS Mobile Station contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DJI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DJI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DJI product will considerably shorten its lifespan!
|

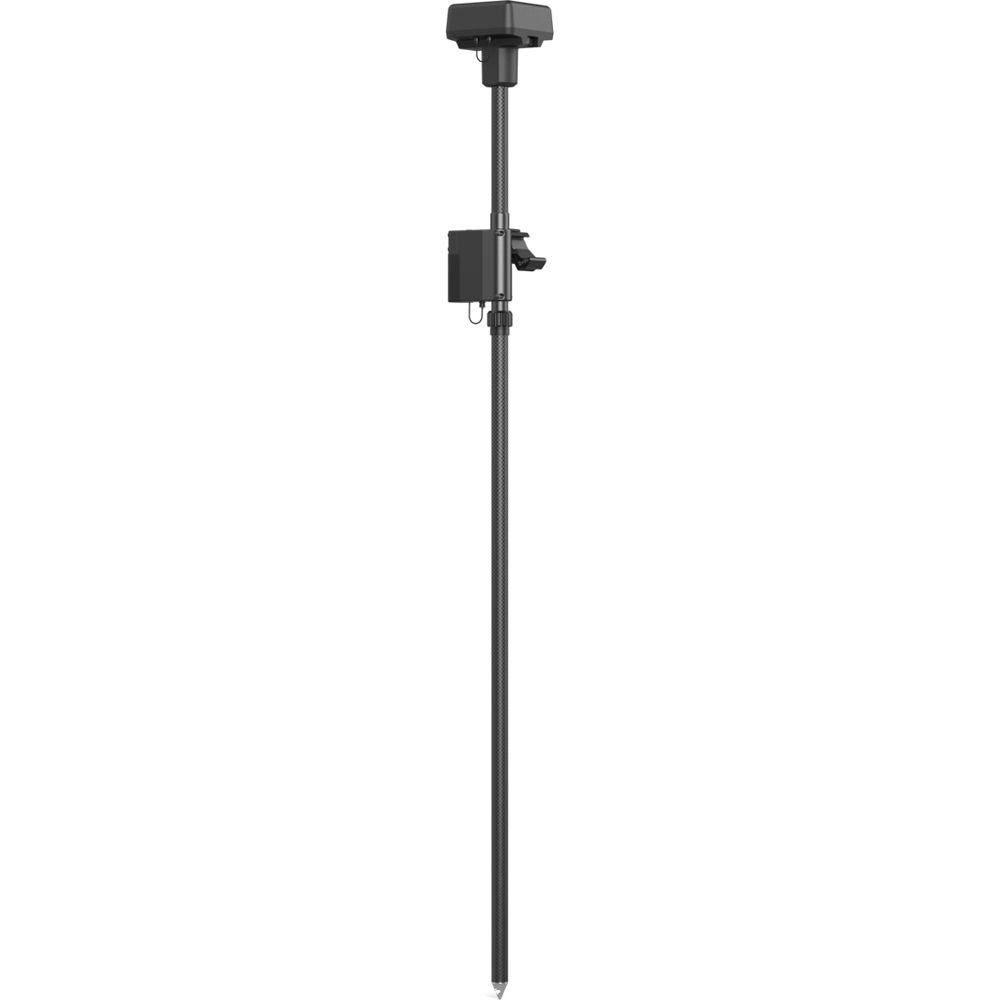

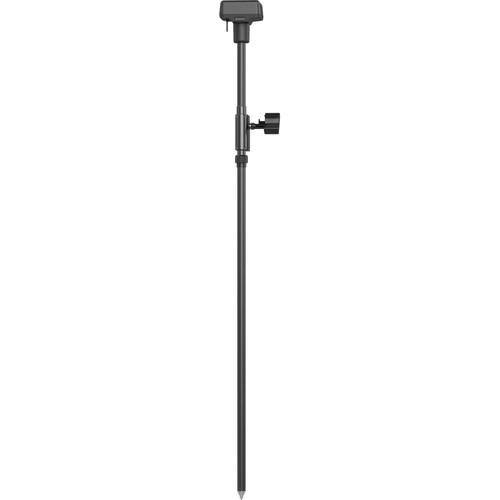

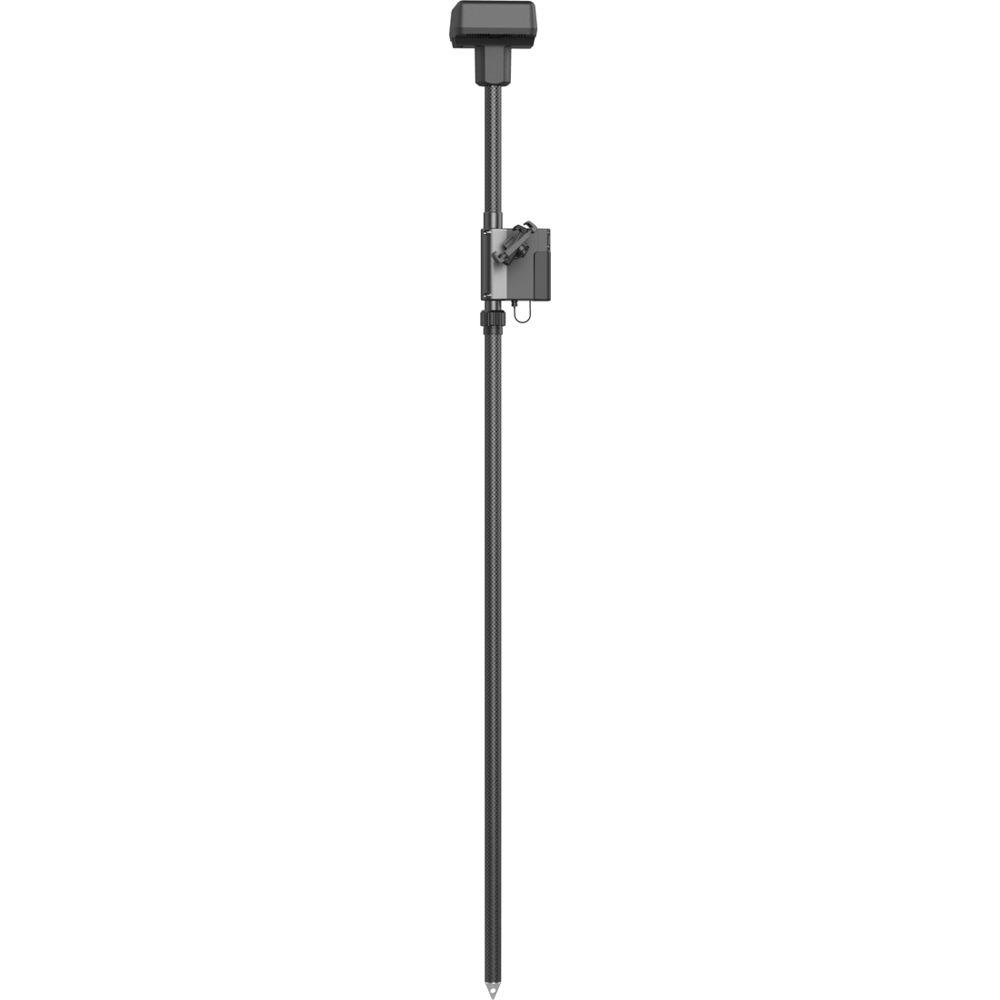

Product description Accuracy is key when drone mapping in industries such as construction, surveying, inspection, and real estate. The D-RTK 2 GNSS Mobile Station for Phantom 4 RTK Drones from DJI is designed to allow Phantom 4 RTK or MG-1P RTK drones the ability to access GNSS signals for centimeter-level mapping accuracy. The mobile station's high-gain antenna is capable of accessing all four of the major GNSS satellite constellations: GPS, GLONASS, Beidou, and GALILEO. - Additional Features
- Connect controllers via 4G, OcuSync, Wi-Fi, or LAN
Connect up to 5 controllers for multi-drone operations
Supports Phantom 4 RTK and MG-1P controllers
Carbon fiber body and IP67-level weather protection
Built-in IMUs monitor movement and alerts operators of abnormalities
Can also be used as a CORS (Continuously Operating Reference Station) UPC: 190021325098 In the Box DJI D-RTK 2 GNSS Mobile Station for Phantom 4 RTK Drones Extension Rod Mobile Phone Holder Charging Hub 2 x LiPo Battery Pack for DJI CrystalSky & Cendence (7.6V, 4920mAh) Battery Cover AC Power Adapter AC Power Cable MG Power Cable LAN Cable USB Type-C Cable USB Type-C OTG Cable Hex Key Battery Strap Carabiner MG-12000P XT90 Shorting Plug Limited 1-Year Warranty (Body and Charging Hub) Limited 6-Month Warranty (Battery, AC Power Adapter, and Power Adapter II) Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI D-RTK 2 GNSS Mobile Station for Phantom 4 RTK Drones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDJI D-RTK 2 Specs | | | GNSS | Simultaneously receive
GPS: L1 C/A, L2, L5
Beidou: B1, B2, B3
GLONASS: F1, F2
GALILEO: E1, E5A, E5B | | Positioning Accuracy | Single Point
Horizontal: 4.9' / 1.5 m (RMS)
Vertical: 9.8' / 3.0 m (RMS)
RTK
Horizontal: 0.4" / 1 cm+ 1 ppm (RMS)
Vertical: 0.8" / 2 cm+ 1 ppm (RMS)
1 ppm: For every 0.62 mi / 1 km increase in distance, the accuracy will be 0.04" / 1 mm less. For example, the horizontal accuracy is 0.43" / 1.1 cm when the receiving end is 0.62 mi / 1 km away from the base station. | | Positioning | Update Rate: 1 Hz, 2 Hz, 5 Hz, 10 Hz, and 20 Hz | | Cold Start | < 45 seconds | | Hot Start | < 10 seconds | | Differential | Data Format: RTCM 2.x/3.x | | | | Data Link Protocol | OcuSync, Wi-Fi, LAN, and 4G | | Operating Frequencies | 2.4 GHz: 2.400 to 2.483 GHz (China, United States, Australia, Europe, Japan, Korea)
5.8 GHz: 5.725 to 5.850 GHz (China, United States, Australia) | | EIRP | OcuSync
2.4 GHz SRRC (Mainland China) / CE (Europe) / MIC (Japan) / KCC (Korea): < 20 dBm
2.4 GHz FCC (United States, Australia) / NCC (Taiwan, China): < 26 dBm 5.8 GHz FCC (United States, Australia) / SRRC (Mainland China) / NCC (Taiwan, China): < 26 dBm
Wi-Fi
2.4 GHz SRRC (Mainland China) / CE (Europe) / MIC (Japan) / KCC (Korea): < 20 dBm
2.4 GHz FCC (United States, Australia) / NCC (Taiwan, China): < 22 dBm
5.8 GHz FCC (United States, Australia) / SRRC (Mainland China) / NCC (Taiwan, China): < 22 dBm | | Communication Distance | OcuSync: 1.2 mi / 2 km (unobstructed and free of interference when the distance from the D-RTK 2 antenna to the ground is 5.9' / 1.8 m, when the difference in height between the remote controller and D-RTK 2 is < 6.6' / 2 m, and when the remote controller is 3.9' / 1.2 m from ground level) | | Memory Capacity | 16 GB | | | | Power Consumption | 12 W | | Power Supply | 16.5 to 58.8 VDC | | Battery Type | Lithium-ion | | Battery Capacity | 4920 mAh | | Battery Energy | 37.3 Wh | | Run Time | WB37 Battery: > 2 hours
MG-12000P Battery: > 50 hours | | | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Dimensions | D-RTK 2 Body with Extension Rod: 2.7 x 6.6 x 67.2" / 6.8 x 16.8 x 170.8 cm | | IP Rating | IP67 | | | | Package Weight | 12.15 lb | | Box Dimensions (LxWxH) | 55.0 x 9.0 x 8.0" |
