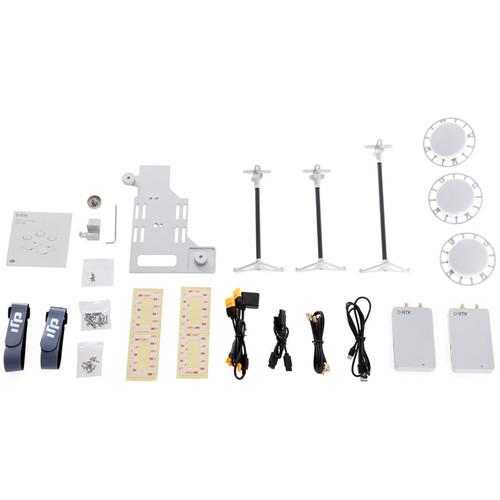

- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DJI DJI Accessories
|
User manual for the DJI D-RTK GNSS-G Navigation and Positioning contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DJI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DJI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DJI product will considerably shorten its lifespan!
|
Product description The D-RTK GNSS from DJI is a high-precision navigation and positioning system specially designed for use with DJI A3-series flight controllers. Using dynamic differential technology, it provides accurate, centimeter-level 3D positioning. This enhanced accuracy over typical barometer, compass, and GPS systems makes D-RTK useful for commercial, industrial and scientific applications where accuracy is imperative. - Precision Positioning
- Precise positioning of less than one inch vertically and horizontally is made possible through dynamic differential technology. This extreme accuracy allows for the creation of repeatable flight routes that provides reliable and valuable visual data essential for commercial and industrial scenarios.
- Altitude Accuracy
- Barometers commonly found in UAS systems may suffer from altitude discrepancies when faced with fluctuations in airflow, such as during takeoff, under braking, or after extended flying. This affects an aircraft's flight and introduces unwanted data variation that complicates workflows. D-RTK's precision altitudinal calculations reduce variation to less than an inch, effectively eliminating variations, giving professionals data they can rely on.
- True Heading
- Dual antennas create heading references that are significantly more accurate than is possible with a single-compass sensor. By removing compass dependence, the system is also resistant to magnetic interference, such as those generated by metal structures and high-voltage power lines, allowing for accurate flight in environments where other aircraft cannot function.
- Comprehensive Solution
- Specifically designed to work with the A3 series flight controllers over DATALINK PRO wireless transmission links, D-RTK provides a comprehensive solution for a variety of industries. Support for DJI GO and DJI Assistant 2 allows seamless connection to a Ground Station for accurate, repeatable flight paths ideal for surveying, agriculture, and aerial inspections.
UPC: 190021014275 Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI D-RTK GNSS-G Navigation and Positioning System for A3 Flight Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDJI CP.WK.000077 Specs | Positioning Accuracy | Horizontal: 0.4" / 1 cm + 1 ppm
Vertical: 0.8" / 2 cm + 1 ppm | | Orientation Accuracy | (0.2/R)°
Note: R is the baseline distance (distance between the two Air System antennas) in meters. | | Root Mean Square (RMS) | 1.2 ft/s (0.03 m/s) | | Frequency Used | GPS L1 & L2
GLONASS F1 & F2 | | Interface | CAN
UART
USB | | Input Voltage | 3S to 12S (12 to 52 V) | | Power Consumption | 5.2 W | | Current | 0.45 A at 12 V | | Dimensions | 4.4 x 2.5 x 0.7" / 112.3 x 63 x 18.6 mm | | Weight | 4.9 oz / 139.5 g | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Storage Temperature | -40 to 185°F / -40 to 85°C | | | | Package Weight | 6.2 lb | | Box Dimensions (LxWxH) | 13.7 x 7.4 x 5.1" |
