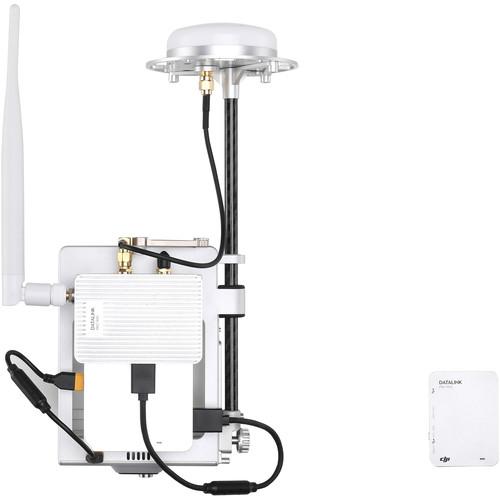

Product description If you're utilizing a drone for commercial, industrial, or scientific purposes, and precision is a top priority, then you may need the D-RTK GNSS with DATALINK PRO 900 from DJI. Designed for drones that use A3 flight controllers, such as the Matrice 600, this navigation and positioning system comprises three D-RTK antennas, a DATALINK PRO 900 base station, a mobile station, and all of the hardware needed to mount the D-RTK antennas and mobile station to your UAV.
The system passes signals between the base and mobile stations via the A3 flight controller during flight, and utilize the D-RTK antennas to access GPS + GLONASS via a dual-positioning module for centimeter-level, precision 3D positioning, enhanced altitude accuracy, and a true heading that is resistant to magnetic interference. For additional flight management, drone calibration, and more, D-RTK supports both the DJI GO and Assistant 2 apps. - DATALINK PRO
- This wireless datalink supports the A3 flight controller and D-RTK antennas to provide Full Duplex or Broadcast transmission modes to your UAV. In Full Duplex Mode, the base and mobile station conduct two-way communication, but in Broadcast Mode, data is only sent from base station to mobile station, with the ability to transmit to up to 32 different UAVs with mobile stations attached to them. If your craft is highly customized, DATALINK PRO supports a range of ports if needed, such as USB, CAN, and UART. Ports can be individually selected by toggling a switch, and data is automatically transmitted from one to another
- Precision Positioning
- Precise positioning of one centimeter vertically and horizontally is made possible through dynamic differential technology. This extreme accuracy allows for the creation of repeatable flight routes that provide reliable and valuable visual data that can be essential for commercial and industrial scenarios.
- Altitude Accuracy
- Barometers commonly found in UAS systems may suffer from altitude discrepancies when faced with fluctuations in airflow, such as during takeoff, under braking, or after extended flying. This affects an aircraft's flight, and introduces unwanted data variation that complicates workflows. D-RTK's precision altitudinal calculations reduce variation to one centimeter, effectively eliminating variations, giving you data that you can rely on.
- True Heading
- Dual antennas create heading references that are significantly more accurate than possible with a single compass sensor. By removing compass dependence, the system is also resistant to magnetic interference, such as those generated by metal structures and high voltage power lines, allowing for accurate flight in environments where other aircraft cannot function.
UPC: 190021300484 In the Box DJI D-RTK GNSS with DATALINK PRO 900 (GPS + GLONASS) 2 x D-RTK Processors 3 x GNSS Antennas 3 x Antenna Cables Antenna Bracket I 2 x Antenna Brackets II Base Board 8-Pin Cable 4-Pin CAN Cable Micro-USB Cable Ground System Power Cable Air System Power Cable I Air System Power Cable II DATALINK PRO Bracket Installation/Mounting Hardware DATALINK PRO 900 Antenna (Base Station) 3 x DATALINK PRO 900 Antennas (Mobile Station) 2 x 8-Pin Cables (Mobile Station) Micro-USB Cable (Mobile Station) 4-Pin Cable (Mobile Station) Double-Sided Tape (Mobile Station) Limited 3-Month Warranty (DATALINK Antenna) Limited 6-Month Warranty (D-RTK Antenna) Limited 1-Year Warranty (D-RTK Processor, DATALINK Transmitter, and DATALINK Receiver) Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI D-RTK GNSS with DATALINK PRO 900 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDJI CP.HY.000088 Specs | Compatibility | Drones with DJI A3 flight controllers | | Transmission Mode | Full Duplex
Broadcast | | Navigation System | GPS + GLONASS | | Precision | 0.4" / 1.0 cm (vertically and horizontally) | | Ports | Base and Mobile Station
Antenna Interface
Micro-USB
CAN/UART (CAN and UART can be used simultaneously) | | Dimensions | 8.1 x 13.9 x 6.1" / 20.7 x 35.2 x 15.5 cm | | Weight | 3.3 lb / 1.5 kg | | | | Package Weight | 3.3 lb | | Box Dimensions (LxWxH) | 14.0 x 8.0 x 6.0" |
