User Manual for DJI Goggles Racing Edition Click to enlarge the picture
Contents of the user manual for the DJI Goggles Racing Edition
- Product category: DJI Accessories DJI
- Brand: DJI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DJI DJI Accessories
 |
User manual for the DJI Goggles Racing Edition contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DJI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DJI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DJI product will considerably shorten its lifespan!
|

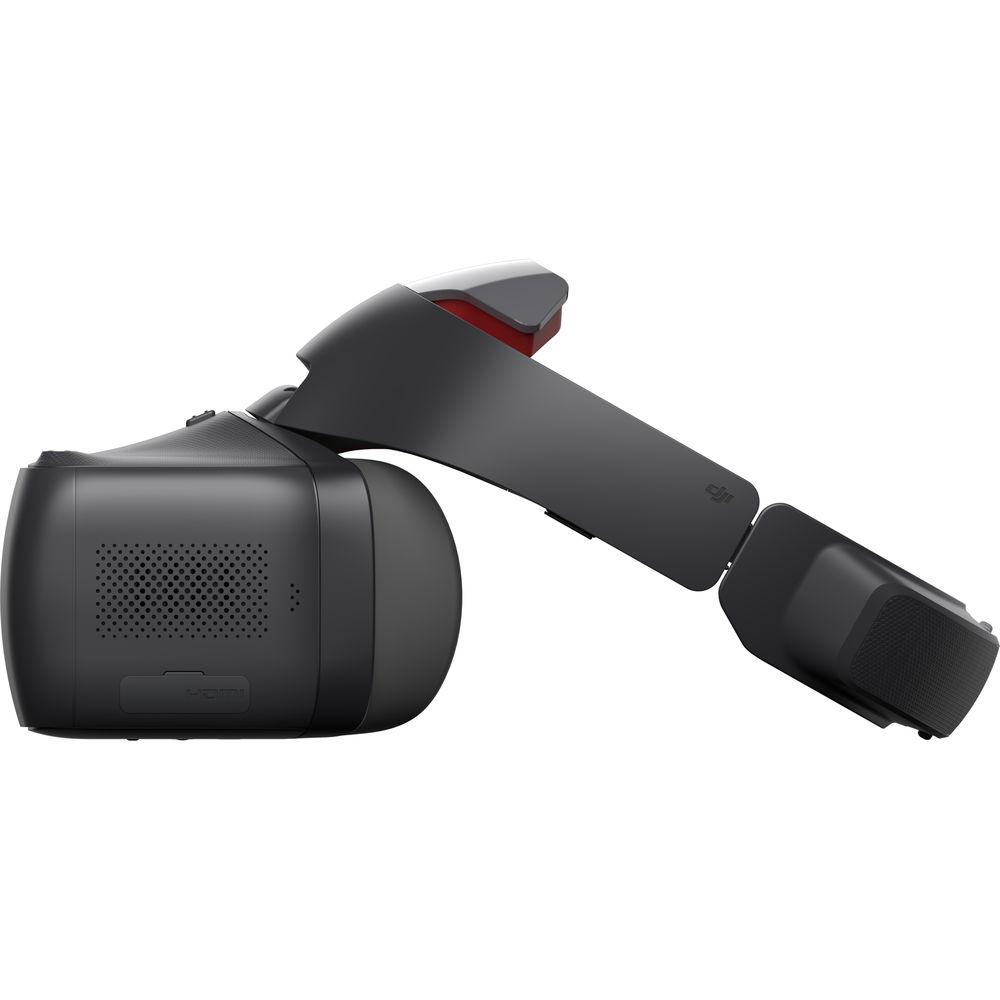

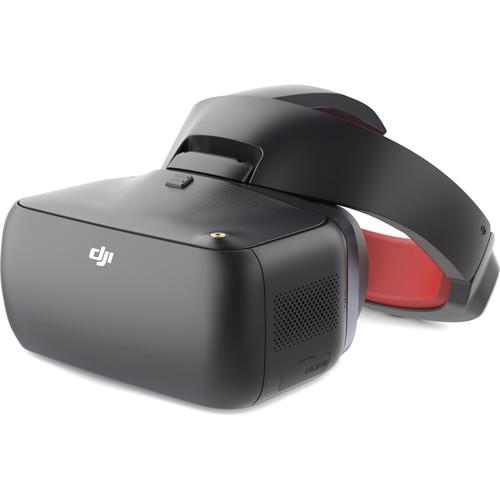

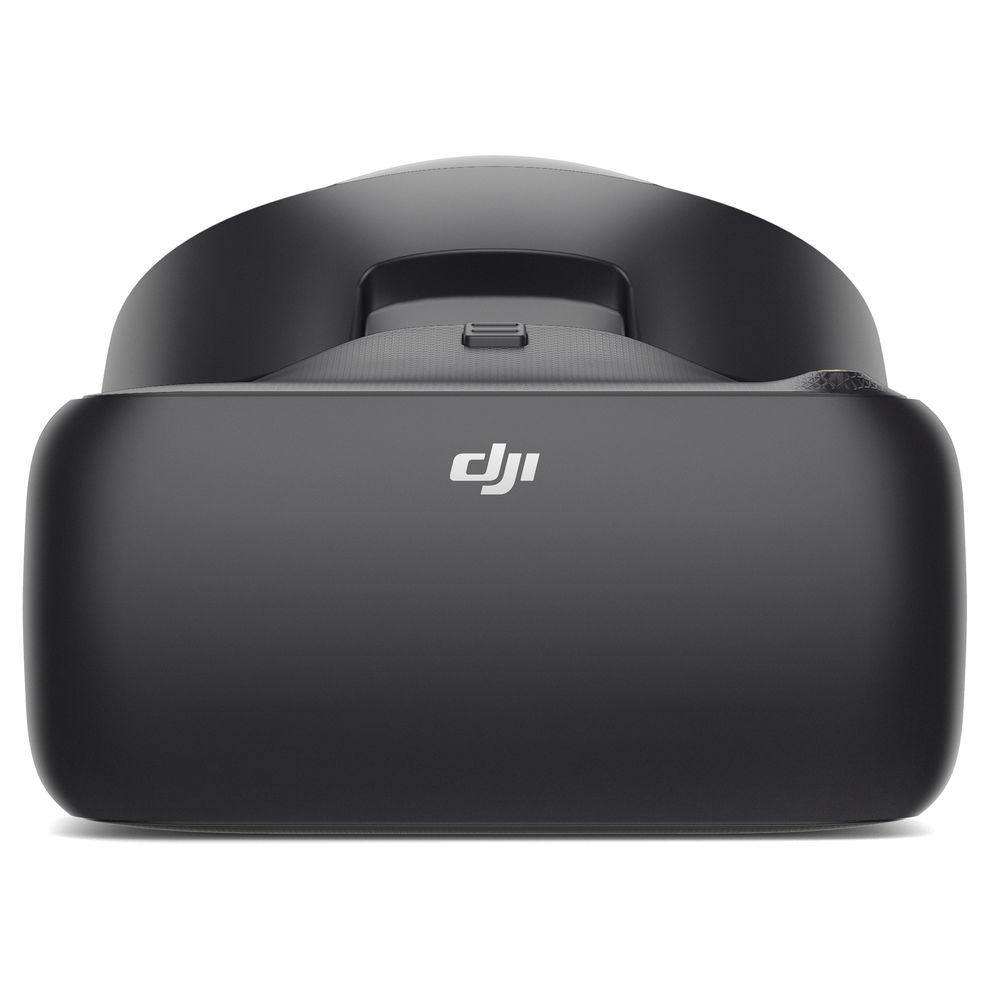

Product description The DJI Goggles Racing Edition are equipped with high-performance displays and an ultra-low latency video downlink for use with the Mavic Pro, Spark, Phantom 4 series, and Inspire 2 aircrafts, giving you a real-time aerial FPV (first person view) experience. The Goggles can also be used to play HD videos, bringing you an immersive high-definition viewing experience.
Precisely engineered for racing, DJI Goggles RE are compatible with an OcuSync video transmission module and a high-performance camera module (both sold separately), which work together to transmit digital video signal from up to 4.3 miles away with latency as low as 50 ms. The Goggles feature full flight setting control, two high-resolution screens, and Head Tracking. In addition, a redesigned metallic matte black visor and headband along with padding covered by high-quality red leather offer comfort and better light blockage. - Flight Control
- DJI Goggles RE use bottom-up processing, which means a signal reception module isn't required. By connecting a third-party controller to the Goggles, users can directly control racing drones with an F3, F4, KISS, Naze, or any other supported flight controller.
- On-Screen Display
- Essential flight information including transmission resolution, battery level, and signal quality, is easily visible on screen.
- Gimbal Control
- In Head Tracking Gimbal mode, a user can control the gimbal camera just by putting on the Goggles and turning their head.
- Digital & Analog Transmission
- In addition to HD digital transmission, DJI Goggles RE offer analog transmission via their SMA port.
- Video Options
- The Goggles play videos in a variety of different formats including MP4, MOV, and MKV, so users have even more ways to experience immersive media. Users can also view 6K 360° panoramas.
- Wide-Ranging Applications
- Apart from compatibility with racing quads and fixed-wing model aircraft, the Goggles RE can be used with vehicles, robots, and industrial drones to provide clear FPV during cargo transportation, search and rescue operations, and even structural inspections.
UPC: 190021302198 In the Box DJI Goggles Racing Edition Headband 2 x Pagoda Antenna Reversed SMA Connector Charger Wire Clip Micro-USB Cable HDMI Cable Cleaning Cloth Limited 1-Year Warranty on MC Limited 6-Month Warranty on Optical Module, Battery, and Battery Charger Limited 1-Month Warranty on Air Unit and Camera User Manual PDF 5.3mbzqfqdyfu Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI Goggles Racing Edition in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDJI CP.VL.00000013.01 Specs | Compatibility | Mavic Pro, Spark, Phantom 4 series, and Inspire 2 aircrafts | | Screen Size | 2 x 5" / 12.7 cm | | Screen Resolution | 3840 x 1080 (single screen: 1920 x 1080) | | Refresh Rate | 60 Hz | | FOV | 85° (single screen) | | Interpupillary Distance | 58 to 70 mm | | Frequency | 2.4 GHz / 5.8 GHz | | Transmitter Power (EIRP) | 2.4 GHz: 25.5 dBm (FCC); 18.5 dBm (CE); 19 dBm (SRRC)
5.8 GHz: 25.5 dBm (FCC); 12.5 dBm (CE); 18.5 dBm (SRRC) | | Live View | 1080p30, 720p60, 720p30 | | Video Latency | 110 ms (Mavic Pro, 720p60, video format: 720p120)
150 ms (Spark, 720p30, video format: 1080p30)
150 ms (Phantom 4 Pro/Advanced Series, 720p60, video format: 720p60/720p120)
167 ms (Phantom 4, 720p30, video format: 720p60)
140 ms (Inspire 2+X5S, 720p60, video format: 1080p120)
190 ms (Inspire 2+X4S, 720p60, video format: 1080p60) | | Video Format | MP4 (H.264) | | Supported Video Format | MP4, MOV, MKV (Video format: H264; Audio format: AAC-LC, AAC-HE, AC-3, DTS, MP3) | | I/O Interface | 1 x SMA port
1 x Micro-USB port
1 x 3.5 mm audio port
1 x HDMI Type-D port
1 x microSD card slot | | HDMI Support | HDMI 1.4b, HDCP 1.4 | | Sensor | Gyroscope, Accelerometer, Proximity sensor | | Battery Capacity | 9440 mAh | | Battery Energy | 35.44 Wh | | Battery Operating Time | 6 hours | | Charger | Input: 100 to 240 VAC, 50/60 Hz, 0.5 A
Output: 5 V = 3 A, 9 V = 2 A, 12 V = 1.5 A | | Dimensions | DJI Goggles RE Body: 7.7 x 6.1 x 4.3" / 19.5
