User Manual for DJI Lightbridge 2 Full HD Video Downlink with OSD and Control Click to enlarge the picture
Contents of the user manual for the DJI Lightbridge 2 Full HD Video
- Product category: DJI Accessories DJI
- Brand: DJI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DJI DJI Accessories
 |
User manual for the DJI Lightbridge 2 Full HD Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DJI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DJI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DJI product will considerably shorten its lifespan!
|

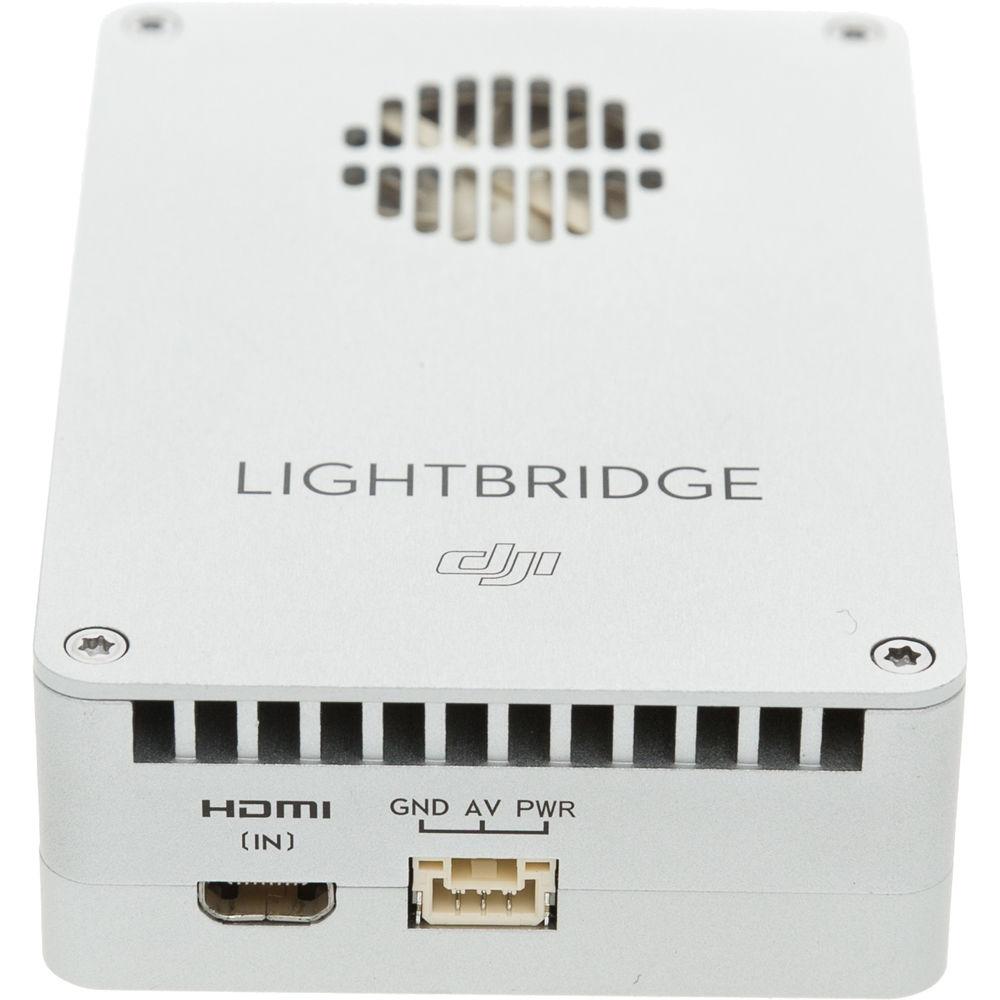

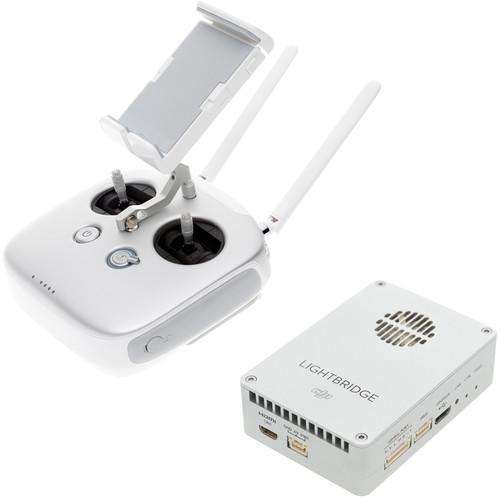

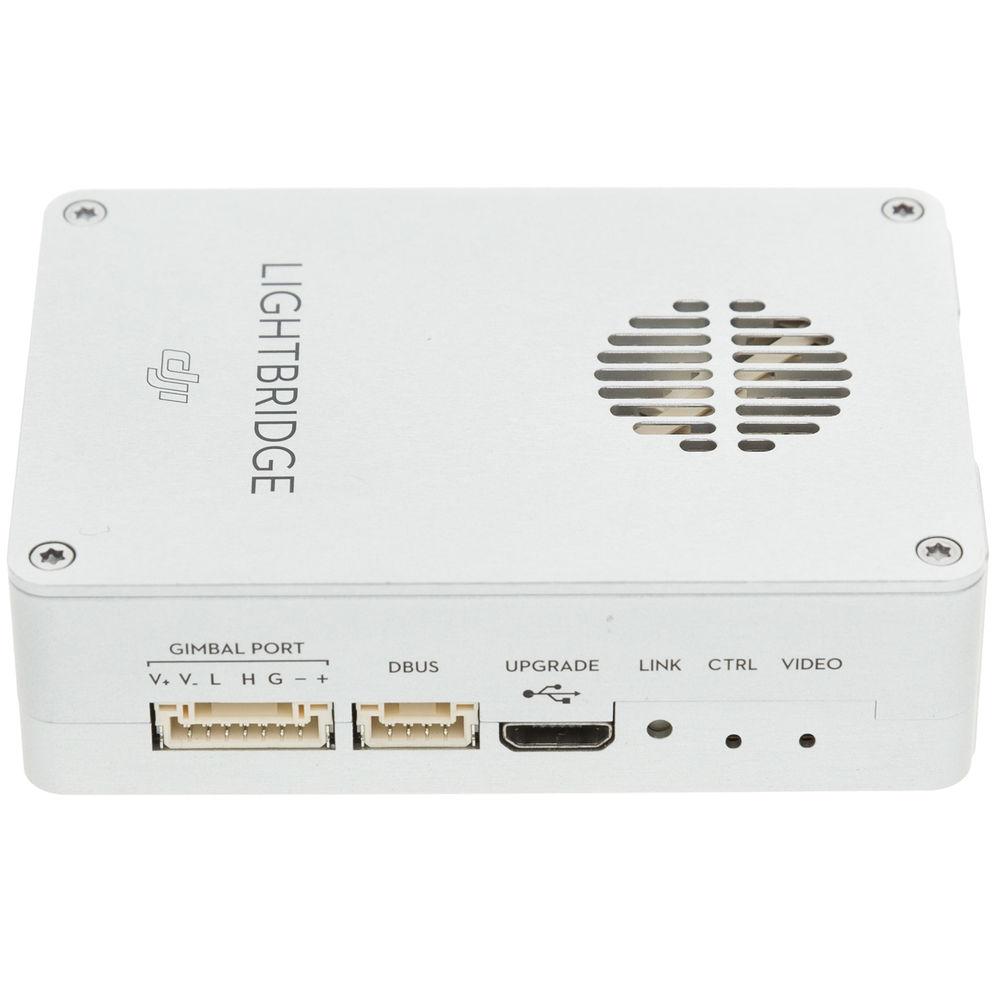

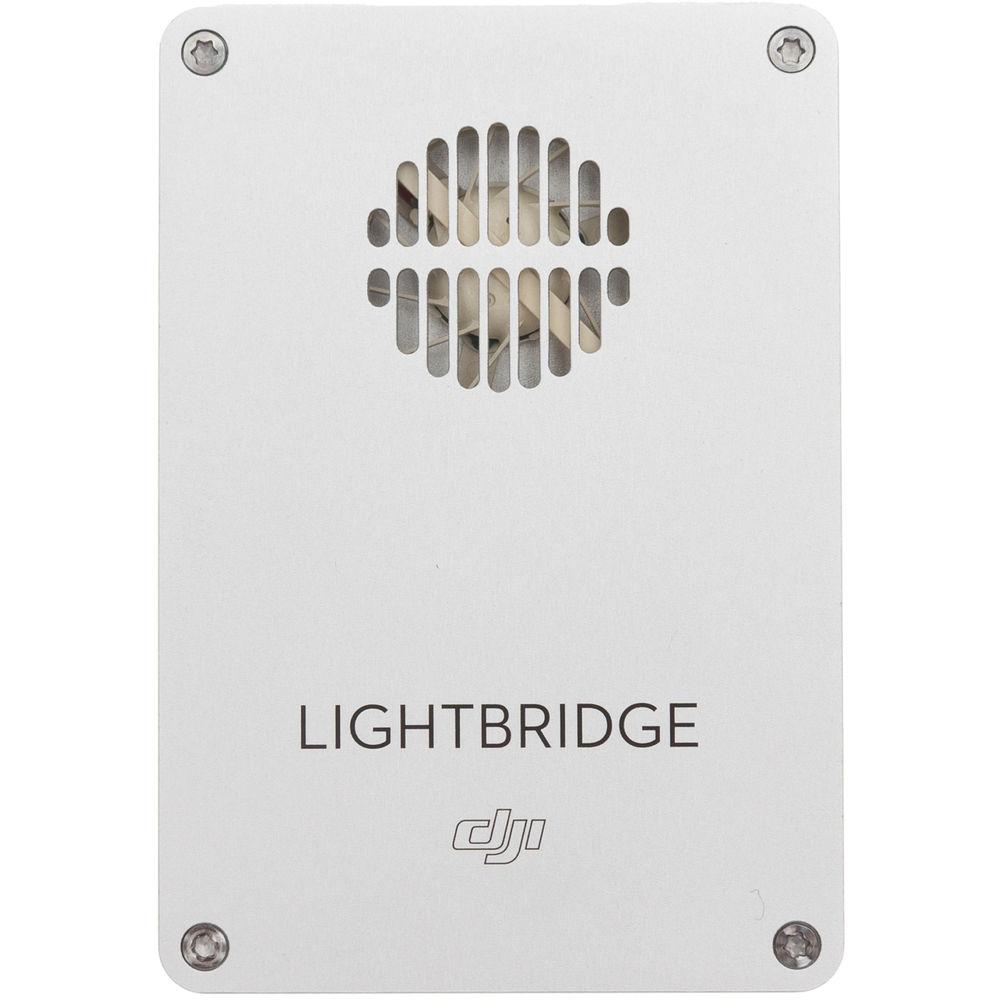

Product description DJI's Lightbridge 2 is an all-in-one solution that combines video downlink (complete with OSD), aircraft control, gimbal control, and video monitoring in a unified system. It breaks into two key components: the first, an air unit that includes connections for select Zenmuse Z15 gimbals as well as connection for an A2 or a WooKong-M flight controller; the second, a special transmitter (radio controller) that incorporates the Lightbridge ground unit (a separate module on previous systems). The controller features mini-HDMI and 3G-SDI video outputs for connecting an HD display and a USB port for connecting a mobile device such as a smartphone or tablet. The controller provides dedicated camera and gimbal controls for convenient operation, while more advanced features can be accessed via the DJI GO mobile app. - Integrated Design
- To simplify both installation and setup, Lightbridge 2 features just two key components: an air unit and a special transmitter (radio controller) that features the ground unit built in
- Dedicated Controls
- In addition to standard control sticks for piloting, the remote provides direct access to key functions. It has dedicated hardware controls for photo and video capture, gimbal pitch control, Return To Home, as well as customizable buttons
- App-Based Control and Monitoring
- Use the DJI GO app to control your camera, access intelligent navigation settings, and receive a live HD view of what the camera sees, all on your paired mobile device. Flight information including current status, full telemetry, location, heading, and more is displayed and updated live
- Multiple Output Options

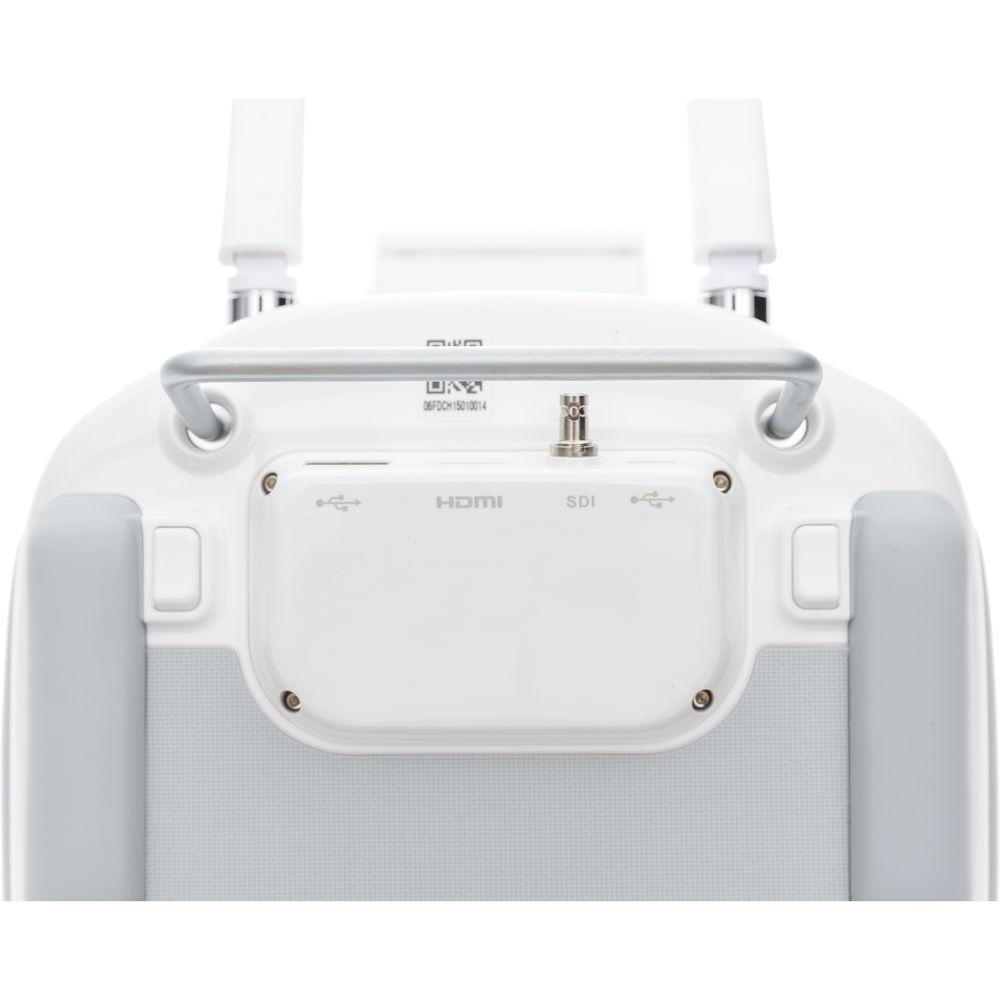

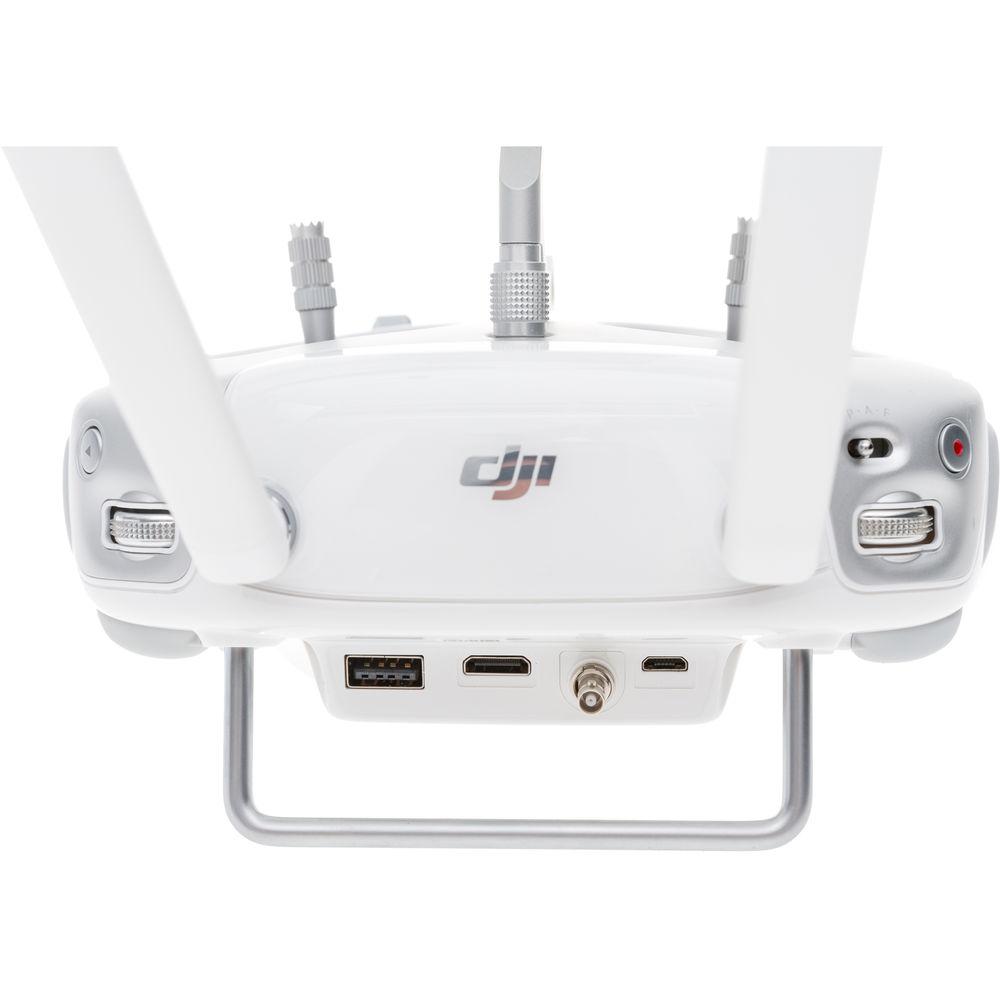

- A combination of 3G-SDI, USB, and mini-HDMI ports enables the controller to be connected to a variety of display devices – TVs, field monitors, FPV goggles, mobile devices, and more. You can even output video to several devices simultaneously by using a combination of ports
- Dual Video Stream
- Lightbridge 2 can transmit video from two cameras simultaneously: the main camera used to capture video and photographs, and a second camera showing the First Person View (FPV). Output a picture-in-picture view via mini-HDMI or 3G-SDI to a TV or other external display, where the FPV is layered with the main camera view. The views and controls are completely independent so that the gimbal control will not affect the pilot view or the aircraft's navigation, and vice versa
- Built-In Battery
- An internal, rechargeable 6,000 mAh LiPo battery lets you fly longer than AA-powered alternatives and simplifies charging
- Dynamic Radio System
- To help ensure uninterrupted transmission, a high-speed processor chooses the best channel and bandwidth based on current distance and presence of any sources of potential interference. Additionally, when using the DJI GO app, you can choose to maximize video quality or focus on lower latency as well as manually change to your desired transmission channel

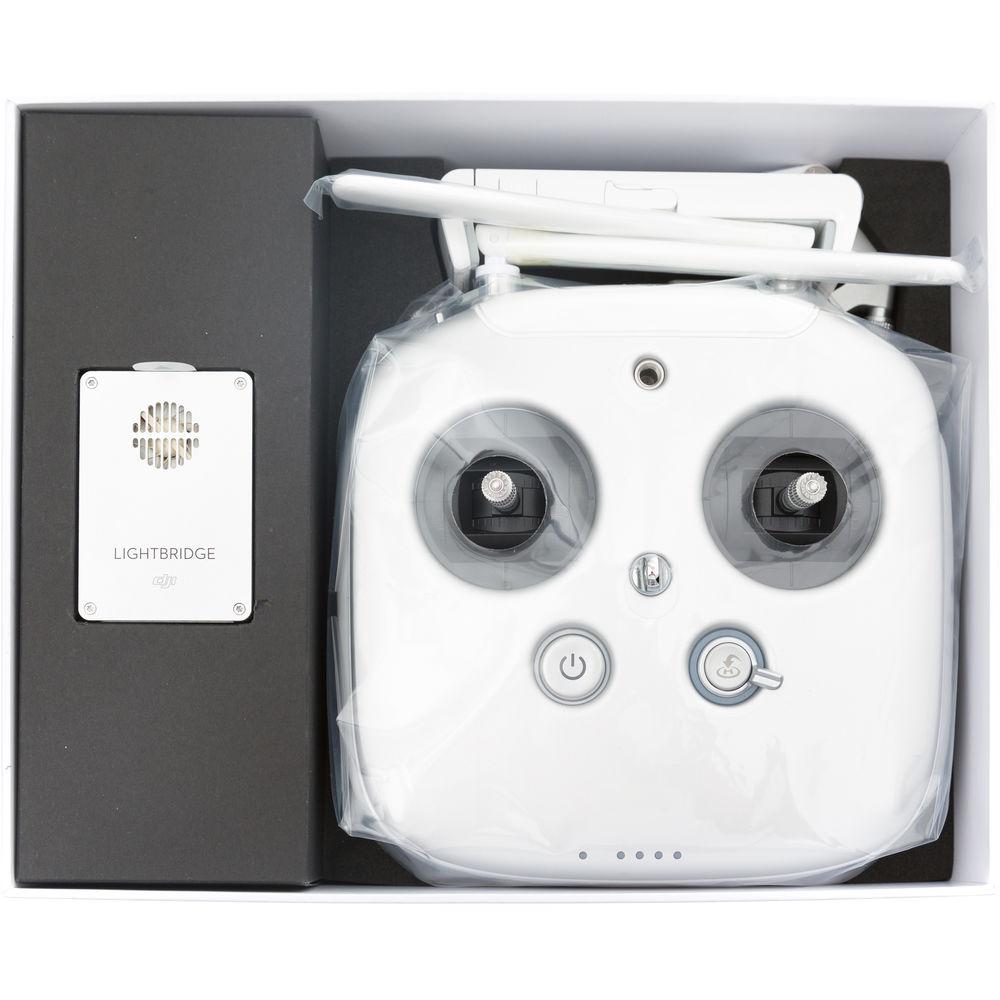

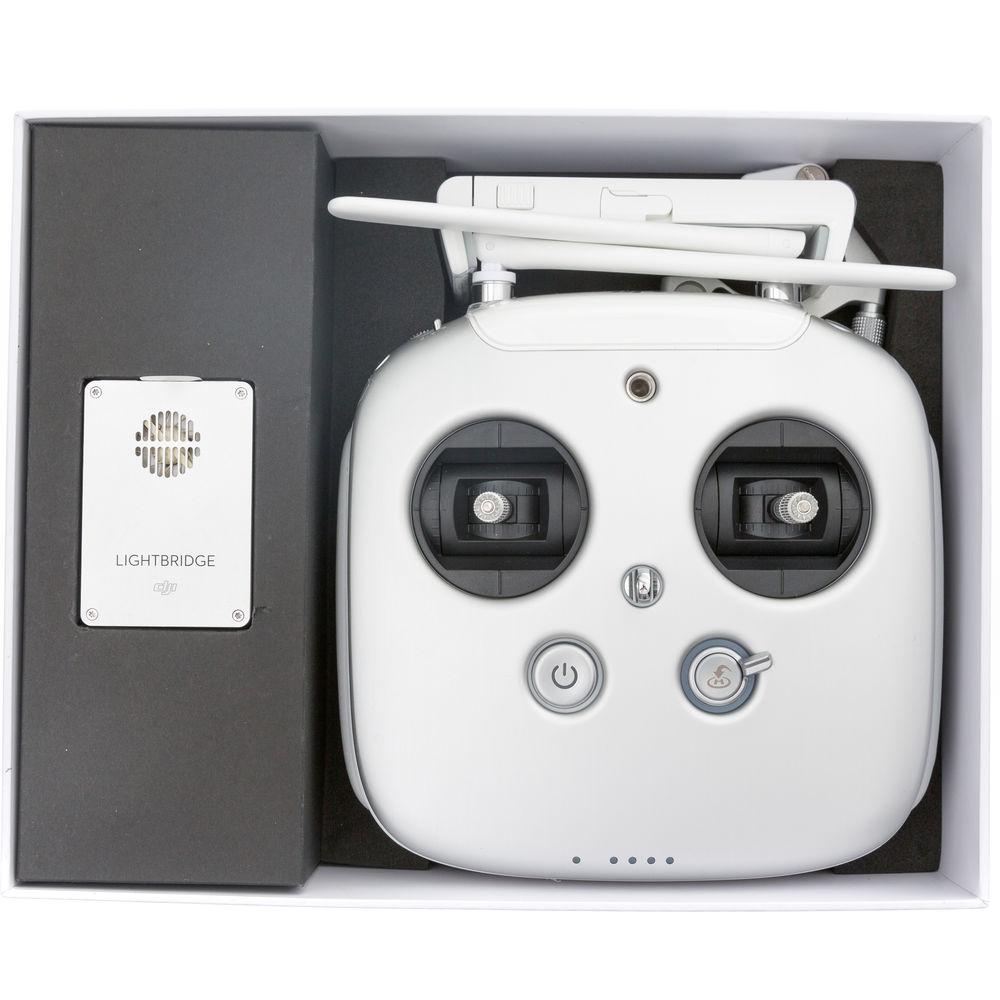

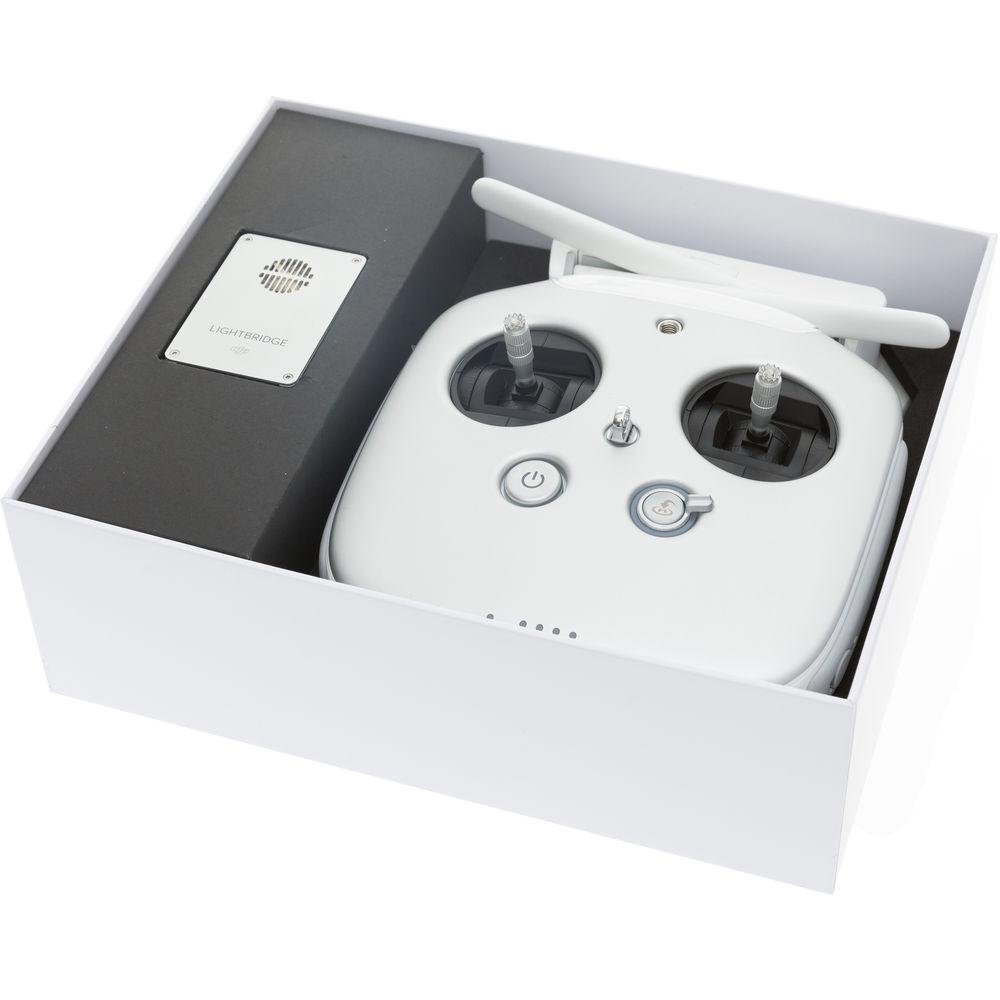

UPC: 190021001404 In the Box DJI Lightbridge 2 Full HD Video Downlink with OSD and Control Ground Unit / Controller Air Unit Mobile Device Holder Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI Lightbridge 2 Full HD Video Downlink with OSD and Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDJI CP.AL.000027.02 Specs | | | Antenna Gain | 2 dBi at 2450 MHz | | Antenna Connector | MMCX male | | Supported Input Resolutions | AV: PAL, NTSC
HDMI: 720p50, 720p60, 1080i50, 1080i60, 1080p25, 1080p30, 1080p50, 1080p60 | | Power Consumption | 650 mA at 12 VDC | | Power Requirements | 9 to 12 VDC | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Dimensions (L x W x H) | Without Antenna: 2.7 x 1.9 x 0.8" / 68 x 48 x 21 mm | | Weight | 2.5 oz / 70 g | | | | Antenna Gain | 3.5 dBi at 2450 MHz | | Connectivity | 1 x USB Type-A female (for mobile device connection)
1 x mini-HDMI
1 x 3G-SDI on BNC female
1 x micro-USB (for service) | | Supported Output Resolutions | SDI/HDMI: 720p50, 720p60, 1080i50, 1080i60, 1080p24, 1080p30, 1080p50, 1080p60 | | Power Consumption | 900 mA | | Built-In Battery | Voltage: 7.4 VDC
Capacity: 6000 mAh | | Operating Temperature | 14 to 104°F / -10 to 40° C | | Charging Temperature | 32 to 104°F / 0 to 40°C | | Dimensions (L x W x H) | 7.2 x 6.6 x 4.1" / 182 x 167 x 104 mm | | Weight | 1.8 lb / 810 g | | | | Output Voltage | 17.4 VDC | | Rated Power | 57 W | | | | Compatibility | Gimbals: Z15-GH4, Z15-5D III, Z15-A7
Flight Controllers: A2, WooKong-M
Aerial Systems: S1000+, S1000, S900, S800 EVO, F550, F450 | | Operating Frequency | 5.725 to 5.825 GHz
2.400 to 2.483 GHz | | Transmission Distance | 1.2 miles / 2 km (line-of-sight) | | EIRP | 100 mW at 2.4 GHz | | | | Package Weight | 4.75 lb | | Box Dimensions (LxWxH) | 10.5 x 8.6 x 4.4" |
