Product description

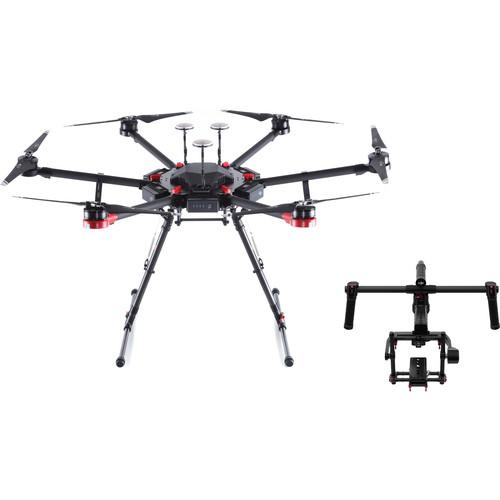

• DJI Matrice 600 Pro Hexacopter
  • DJI Introducing the Matrice 600
  Supporting a total takeoff weight of 34 pounds, the Matrice 600 Pro (M600 Pro) is a hexacopter from DJI designed for professional video and industrial imaging applications. Updated from the original Matrice 600, it features improved flight performance and a higher loading capacity. Pre-installed arms and antennas reduce time required for setup, and the system's modular design makes it easy to mount additional modules.

  The Matrice 600 Pro centers around DJI's advanced A3 Pro flight control controller with triple redundancy. It incorporates the Lightbridge 2 system for HD resolution, low-latency monitoring via SDI, HDMI, and USB outputs on the controller. For camera support, the Matrice 600 works with Zenmuse Z15 series gimbals, the Ronin-MX gimbal, and Zenmuse X Series gimbal/camera hybrids.

  This version of Matrice 600 Pro comes almost-ready-to-fly (ATF) and includes a controller (transmitter), flight batteries, six-bay charger, flight controller, and sundries. It also features a durable, customizable case that absorbs impact from shakes or falls, providing all-round protection for your hexacopter when carried or transported. Additional hardware needed may include a gimbal, camera, as well as any flight controller add-ons. Some assembly is required.

  Performance

  Intelligent Drive System
  • The Matrice 600 Pro uses sine-wave-driven, intelligent ESCs to ensure it performs accurately, safely, and efficiently, while the A3 Pro flight controller's self-adaptive systems adjust flight parameters automatically based on different payloads.

  Air System Design

  • Updated from the Matrice 600, the Matrice 600 Pro is designed to be simple to set up and ready to fly in a matter of minutes. Its airframe has been optimized for easier transportation with a quick release landing gear design and folding frame arms. Under the new upper cover, the positions of GNSS modules and sensors have been revamped, and a new dampening system for the IMU units increases reliability during flight.
  Modular Design
  • The modular design makes the Matrice 600 Pro easy to set up and ready to use.
  Gimbal Compatibility
  • All Zenmuse cameras and gimbals are natively compatible, and a maximum payload of 13.2 lb allows it to fly the Ronin-MX gimbal and a range of cameras, from Micro Four Thirds systems to the RED EPIC.
  Built to Last
  • A dust-proof propulsion system simplifies maintenance, while actively cooled motors make for reliable operation for extended periods of time.

  A3 Pro Flight Controller

  • The A3 Pro system is optimized for professional and cinematography applications, providing navigation and stabilization to the aircraft. The system features GNSS, which means it can use satellite systems, such as GPS or GLONASS, in combination with a compass to provide precise positional data. The A3 Pro can be used in combination with DJI's Lightbridge 2 system to provide a high-quality video downlink from a gimbal-mounted camera. Ground station software enables features, such as telemetry monitoring and route planning, and provides a flight simulator.

    The system features three IMUs and three GNSS units, with additional analytical redundancies for a total of six redundancies. Working together with advanced diagnostic algorithms, if the A3 Pro detects GNSS or IMU unit failure during flight, it seamlessly switches to another unit to maintain reliability and precision.
  DJI GO App for iOS and Android
  • The Matrice 600 Pro supports the DJI GO app as well as the DJI Assistant 2. Get a live HD view, battery status, redundancy status, transmission strength, and much more straight from the DJI GO app. DJI GO is also the control center for the camera, giving access to shutter speed, ISO, and photo or video capture on any Zenmuse X Series camera as well as remote focus and aperture on the Zenmuse X5 and X5R cameras. The DJI Assistant 2 supports firmware updates and the new Ground Station, and comes with a built-in flight simulator.
  Extended Range
  • The Matrice 600 Pro's radio range extents to 3.1 miles with a clean signal.
  D-RTK GNSS Upgrade
  • The A3 GNSS system can be upgraded with separately available Real-Time Kinematic technology (RTK) for even greater navigational accuracy. Using dual antennas, RTK provides greater precision than a compass and is not susceptible to magnetic interference from metal structures.

  Lightbridge 2

  Professional HD Transmission
  • DJI Lightbridge 2 has been designed from the ground up to meet the requirements of professional broadcasting, offering high frame rates and HD live streaming. USB, mini-HDMI, and 3G-SDI ports on the controller support video output at up to 1080p/60 fps or a broadcast standard output of 720p/59.94 fps and 1080i/50 fps.

  DJI SDK

  • The Matrice 600 Pro's is fully compatible with the DJI Onboard SDK and Mobile SDK to meet the requirements of those building software for industrial applications. It has a dual parallel CAN and API ports for connecting DJI devices, including the Guidance sensor system, the RTK GNSS units, or third party components of your choice.

  Batteries and Power

  Intelligent Battery System
  • The battery management system monitors every battery during flight, ensuring safe landing in the event of single battery failure. Compared to traditional non-intelligent batteries, the Matrice 600 Pro's battery management system simplifies maintenance while enhancing security.
  6-Bay Charger
  • The Matrice 600 Pro charger has six charging hubs, enabling it to charge six Intelligent Batteries simultaneously. It charges a TB47S battery in about 92 minutes and a TB48S battery in about 110 minutes.
  UPC: 190021286139
• DJI Ronin-MX 3-Axis Gimbal Stabilizer
  • DJI Introducing the Matrice 600
  The Ronin-MX from DJI is dual-use gimbal suitable both for mounting on the Matrice 600 aerial platform as well as deployment closer to the ground. Improving over the Ronin-M, it features magnesium construction to yield high rigidity while keeping the weight down. The gimbal is suitable for cinema cameras, mirrorless cameras, and DSLRs weighing up to 10 pounds. Out of the box it supports two-operator operation, and includes a radio controller (transmitter) for the camera operator. There is also an optional Thumb Controller (available separately) for solo operation. When installed on the Matrice 600 aircraft, the gimbal can be controlled via the DJI GO app. An included universal mounting adapter allows it to be adapted for use with jibs, car mounts, and various other types of camera support equipment. There is also a handlebar for handheld use.
  Built to Perform
  • Designed to resist high G-forces using powerful motors and IMUs, the Ronin-MX is engineered to maintain stability and hold horizon when mounted to an aircraft or a vehicle. When mounted to the Matrice 600 aerial system, it communicates directly with DJI's flight controller. When attached to vehicles, it connects to an optional GPS module that allows it to stabilize actively for a smoother shot
  360° Freedom of Movement
  • A slip ring allows the Ronin-MX to rotate 360° continuously when mounted to aircraft or vehicles, opening up more creative options. This is further enhanced by an increase in tilt-axis range (compared to the Ronin-M) from 90° straight down and beyond to 135°. Popular features of the Ronin series, such as the three modes of operation and SmoothTrack, are also present, giving film makers a range of creative angles and movements
  Wireless Control and Transmission
  • The Ronin-MX is compatible with Lightbridge 2, providing long-range HD video transmission from the air to the ground from up to 3.1 miles away. If combined with the separately available DJI Focus and Focus Expansion Module, focus or aperture can also be pulled remotely with a twist of the wrist. An optional Remote Start/Stop add-on provides the ability to control shooting on a range of airborne cameras
  App Control
  • Using DJI Assistant and the dedicated Assistant app for iOS and Android allows complete customization of the Ronin-MX and its behavior. If connected to Lightbridge 2, the DJI GO app can be used to control the gimbal and see an HD live feed from the camera

  System Design

  Refined Balance
  • A redesigned structure moves the Ronin-MX battery from the back to the front. This centers the weight of the camera, minimizing instability when flying directly forwards. It also dramatically increases the Ronin's agility and ability to handle rapid movements or high-G situations
  Magnesium Construction
  • Built extensively of lightweight magnesium, the Ronin-MX weighs just 6.1 lb. This lightness allows it to be mounted to the Matrice 600, even when equipped with cameras as advanced as the RED EPIC, and to vehicles, with a minimum impact on vehicle handling

  Power

  Strengthened Motors and ESCs
  • A combination of stronger motors and ESCs makes the Ronin-MX 50% more powerful than the Ronin-M. This additional stiffness and power allows the system to better withstand wind resistance, when mounted to moving vehicles and aircraft, as well as more rapid movements
  External Camera Battery
  • Cameras such as the RED EPIC need an external battery for power. A dedicated position designed for an optional battery plate provides an easy, cable-free mounting point for a second DJI Intelligent Battery. This provides two 12V D-Tap power sources for powering cameras and accessories
  Intelligent Batteries
  • Ronin-MX batteries offer a battery life of up to three hours. Over-charge and over-depletion protection are built in, as is individual cell charge balancing. Remaining power is shown by clear LEDs and in the DJI GO app
  Built-In Power Distribution
  • A dedicated power distribution box keeps wiring to a minimum while providing power to essential accessories. Two regulated 12V D-Taps, one 500mAh full-size USB connector, and a DJI Lightbridge connector enable connectivity and power to nearly everything a filmmaker might need

  Control

  Solo Mode with Optional Thumb Controller
  • The separately available Ronin Wireless Thumb Controller makes controlling the Ronin-MX easy and intuitive, enabling the capture of shots that would otherwise be impossible for a single operator
  Second Operator Control
  • A wireless 2.4 GHz remote controller is included with the Ronin-MX enabling a second operator to remotely control pan, tilt, roll, and other functions
  Three Operation Modes
  • Upright Operation Mode
    Upright Mode allows the gimbal to be flipped over so the camera can be operated closer to eye level without straining to lift the gimbal. This can be used in various situations, such mounting on the top of the vehicle

    Underslung (Suspended) Operation Mode
    Suspended Operation Mode is the standard operation mode for Ronin-M. Low slung, close to the ground, or simply holding the gimbal in front of you offers stabilized handheld footage. This mode would also be used when mounted the gimbal on a flying platform such as a multirotor RC helicopter

    Briefcase Mode
    When a slimmer gimbal profile is needed – such as when moving through doorways or narrow paths – Briefcase Mode is ideal. It allows the gimbal to be held to the side and close to the legs, much like a briefcase

  Additional Features

  SmoothTrack Technology
  • Even with only one operator, SmoothTrack technology is designed to ensure the Ronin-MX translates movements into smooth camera angle changes. SmoothTrack settings, from speed to deadband to acceleration, are fully customizable. A "Single Axis Follow Mode" enables two axes to be locked while SmoothTrack guides the camera along only one axis of motion
  Universal Mounting
  • Mount the Ronin-MX to aircraft using a specially designed mounting plate. A separate universal Quick Release system that doubles as a vibration-dampening system allows the Ronin-MX to be connected to everything from jib to tripod and anything in between. This plate isolates the Ronin-MX from unwanted vibrations coming from the platforms it is mounted to
  Short Range Wireless Transmission
  • On the ground, the separately available SRW-60G allows film makers to see the image from the camera without running cables up the Ronin-MX

    Note: The SRW-60G is not permitted for use on aerial platforms
  UPC: 190021010246

• Matrice 600 Pro Hexacopter rsecurxywdufzyvysarftx
• Aircraft Body (With Arm Sleeves)
• 2 x Landing Gear Leg
• 2 x Landing Skid
• 2 x Spring
• Remote Controller
• 6 x Matrice 600 TB47S Intelligent Flight Battery
• Hex Charger
• Inner Foam Case
• Power Cable
• 2 x RC Charging Cable
• Micro-USB Cable
• 6 x Knob (With Gasket)
• Tape
• Battery Stickers
• Screws

• Ronin-MX 3-Axis Gimbal Stabilizer rsecurxywdufzyvysarftx

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• DJI Matrice 600 Pro Hexacopter

  Maximum Speed	Horizontal (No Wind): 40 mph / 65 km/h Ascent: 16.4 ft/s (5 m/s) Descent: 9.8 ft/s (3 m/s)
  Maximum Wind Resistance	26.2 ft/s (8 m/s)
  Maximum Altitude	Above Sea Level: 8202.1' / 2500 m
  Hovering Accuracy	P-Mode with GPS: Vertical: ±1.6' / 0.5 m Horizontal: ±4.9' / 1.5 m
  Maximum Angular Velocity	Pitch: 300°/s Yaw: 150°/s
  Maximum Pitch Angle	25°
  Hovering Time	Six TB47S Batteries: No payload: 32 minutes 13.2 lb / 6 kg Payload: 16 minutes Six TB48S Batteries: No payload: 38 minutes 12.1 lb / 5.5 kg payload: 18 minutes Note: Hovering time is based on flying at 32.8' / 10 m above sea level in a no-wind environment and landing with 10% battery level.
  Takeoff Weight	34.1 lb / 15.5 kg
  Flight Ceiling	8202.1' / 2500 m above sea level

  Model	A3 Pro

  Frequency	5.725 to 5.825 GHz 2.400 to 2.483 GHz
  Communication Distance	3.1 miles / 5 km
  Transmitter Power	13 dBm at 5.8 G 20 dBm at 2.4 G
  Connectivity	1 x HDMI 1 x SDI 1 x USB
  Dual User Capability	Master-and-slave control
  Output Power	9 W
  Operating Temperature	14 to 104°F / -10 to 40°C
  Battery	Type: Built-in Chemistry: Lithium-ion polymer (LiPo) Capacity: 6000 mAh Configuration: 2S
  Storage Temperature	< 3 Months: -4 to 113°F / -20 to 45°C > 3 Months: 72 to 82°F / 22 to 28°C
  Charging Temperature	32 to 104°F / 0 to 40°C
  Mobile Device Holder	Supports smartphones and tablets Maximum Device Width: 6.7" / 170 mm

  Supported Gimbals	Zenmuse X Series: X3, X5 & X5R, XT Ronin Series: Ronin-MX Zenmuse Z30 Zenmuse Z15 HD Series: Z15-A7, Z15-BMPCC, Z15-5D III, Z15-GH4

  Model	TB47S
  Chemistry	Lithium-ion polymer (LiPo)
  Capacity	4500 mAh / 99.9 Wh
  Configuration	6 S
  Weight	1.3 lb / 595 g
  Maximum Charging Power	180 W
  Operating Temperature	14 to 104°F / -10 to 40°C
  Charging Temperature	41 to 104°F / 5 to 40°C
  Storage Temperature	< 3 Months: -4 to 113°F / -20 to 45°C > 3 Months: 72 to 82°F / 22 to 28°C
  Charger	Model: MC6S600 Voltage Output: 26.1 V Power Rating (Total): 600 W Power Rating (Per Battery): 100 W

  Model	DJI 6010

  Model	DJI 2170

  Operating Temperature	14 to 104°F / -10 to 40°C
  Diagonal Wheelbase	44.6" / 1133 mm
  Dimensions	Propellers, Frame Arms, and GPS Mount Unfolded: 65.7 x 59.8 x 28.6" / 1668 x 1518 x 727 mm (including landing gear) Frame Arms and GPS Mount Folded: 17.2 x 15.8 x 21.8" / 437 x 402 x 553 mm (excluding landing gear)
  Weight	Six TB47S Batteries: 20.9 lb / 9.5 kg Six TB48S Batteries: 22 lb / 10 kg

  Box Dimensions (LxWxH)	26.614 x 20.709 x 19.291"

• DJI Ronin-MX 3-Axis Gimbal Stabilizer

  Number of Axes	3-Axis
  Rotation Range	Yaw (Pan): 360 Rating 60% users recommend this product to others. And what about you? This product has already been rated by 79 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
