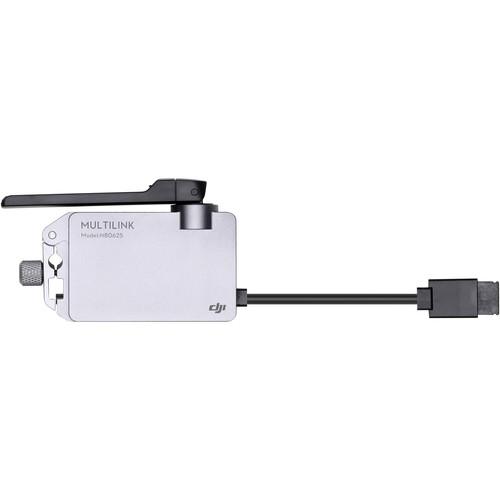

User Manual for DJI Multilink for Inspire 2 and Cendence Controllers Click to enlarge the picture
Contents of the user manual for the DJI Multilink for Inspire 2 and
- Product category: DJI Accessories DJI
- Brand: DJI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DJI DJI Accessories
 |
User manual for the DJI Multilink for Inspire 2 and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DJI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DJI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DJI product will considerably shorten its lifespan!
|
Product description More easily perform complex multi-operator shots and maneuvers with the Multilink from DJI. Designed specifically for Inspire 2 and Cendence remote controllers, the Multilink allows for multiple remotes to control different aspects of a drone, as well as share incoming video signals. Multilink allows for one master remote and up to three slave remotes. The slave remotes send commands to the aircraft via the master remote, and the drone's image/video signal is received by the slave remotes directly from the aircraft.
Once set up, the master remote is designated as the pilot and the first slave remote is the gimbal operator. The pilot can control the gimbal as well, but not simultaneously. The second and third operators cannot control the gimbal but can control the camera itself, as can all remote operators. It's designed to connect to your Inspire 2 or Cendence controller, or an optional patch antenna module, directly via the included CAN cable. Simply use the DJI GO 4 app to complete setup and assign each remote's role. UPC: 190021320925 In the Box DJI Multilink for Inspire 2 and Cendence Controllers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI Multilink for Inspire 2 and Cendence Controllers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDJI CP.IN.00000001.01 Specs | Compatibility | DJI Inspire 2 Remote
DJI Cendence Remote
DJI Focus
DJI Inspire 2 GPS Module
DJI Patch Antenna | | LED Status Indicators | Yes | | Operating Frequency | 2400 to 2483.5 MHz
5725 to 5850 MHz | | EIRP | 2.4 GHz (FCC): <25 dBm
2.4 GHz (CE): <20 dBm
2.4 GHz (SRRC): <20 dBm
5.8 GHz (FCC): <29 dBm
5.8 GHz (CE): <14 dBm
5.8 GHz (SRRC): <19 dBm | | Maximum Communication Distance | 2.4 GHz: 492' / 150.0 m
5.8 GHz: 328' / 100.0 m | | Input | 4.2 to 5.5 VDC, 1 A (Max.) | | Maximum Delay Time | 2.4 GHz: 11.1 ms (From Master to Slave 3)
5.8 GHz: 7.5 ms (From Master to Slave 3) | | Minimum Delay Time | 2.4 GHz: 3.7 ms (From Master to Slave 1)
5.8 GHz: 2.5 ms (From Master to Slave 1) | | Operation Temperature | -4 to 104°F / -20 to 40°C | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 4.8 x 3.7 x 1.7" |
