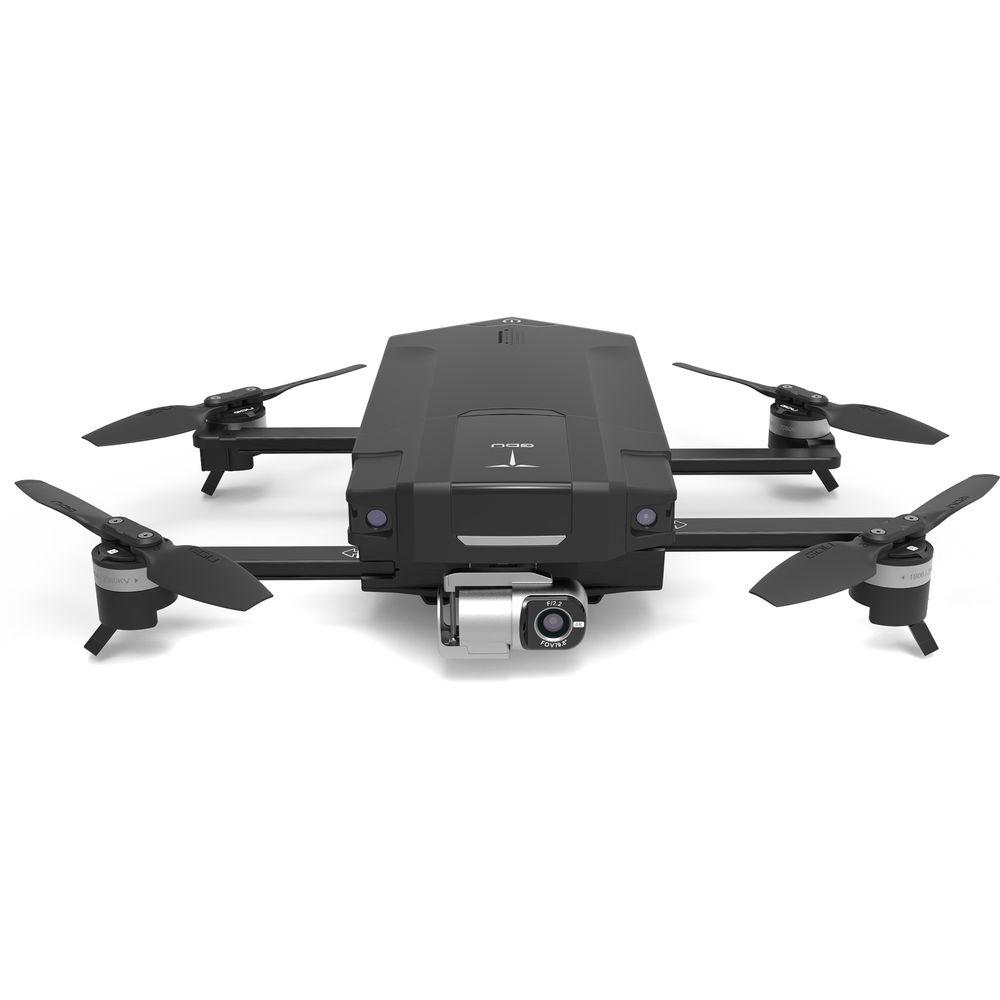

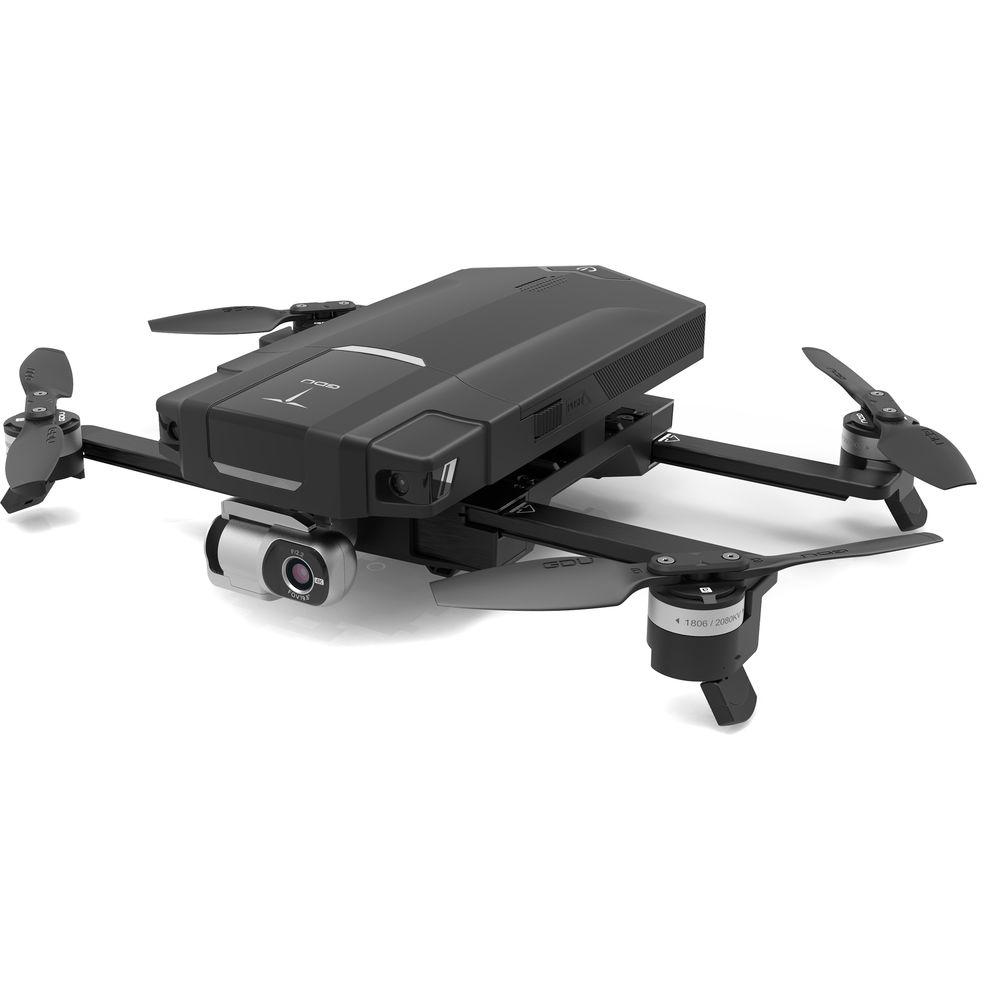

Product description Aerial Photography and Drone Glossary Read More The GDU O2 is a compact, travel-friendly quadcopter that showcases several features typically reserved for larger, pro-level vehicles. Its gimbal-stabilized camera shoots 4K video and can capture 13MP stills. The camera is supported by numerous unique photo-video modes, including burst shooting, slow motion, time-lapse, and much more. The O2's flight system is bolstered by forward and downward-facing vision systems, which allows for stable flight and facilitates the O2's advanced obstacle avoidance technology.
In terms of flight, the O2 boasts top speeds of 33.6 mph, a line-of-sight control range of 3168', and flight times up to 27 minutes. The O2's compact, sliding-arm design makes it travel friendly, and, thanks to multiple control options, it can be flown using the included controller using the free companion app or even through hand gestures. - 4K Camera & 3-Axis Stabilized Camera Gimbal

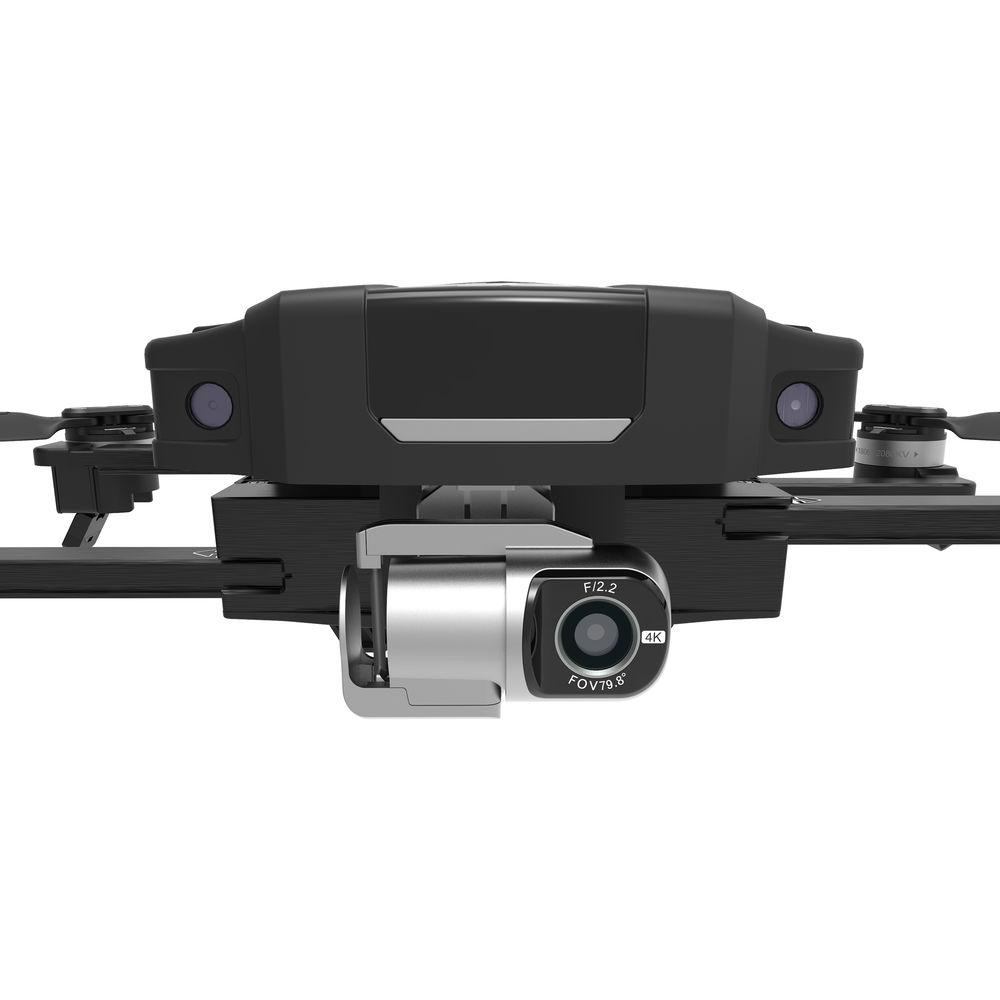

- The O2 quad features a 3-axis stabilized camera gimbal that can shoot 4K video and capture 13MP stills.

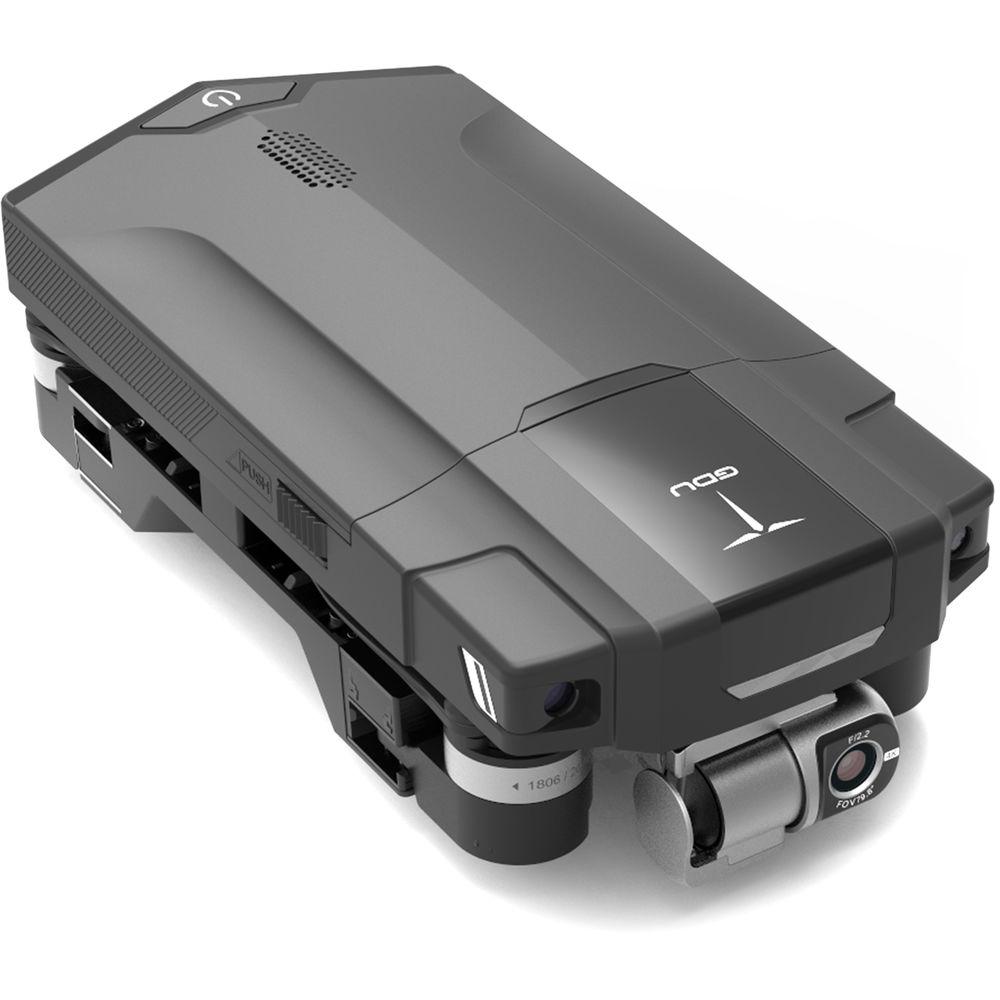

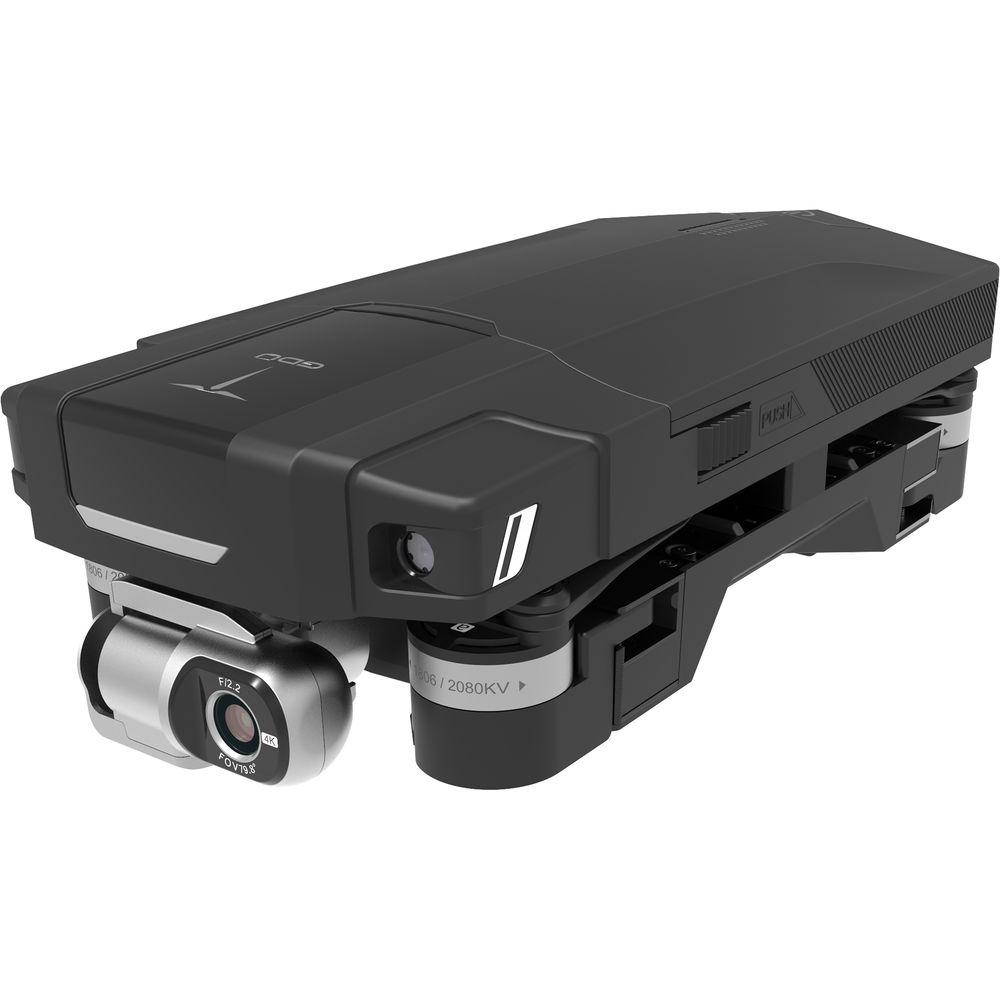

- Sliding Arm Technology
- The O2's sliding-arms design allows the props to hid inside the drone body during transit, making it less prone to damage and easier to carry.
- Vision Positioning
- The vision positioning system allows the O2 to fly stable indoors and outside, and helps it recognize objects below to facilitate safe landings.
- Fly Smart
- The O2 comes packed with multiple smart features for flying safe and expressing your creativity, including gesture recognition controls for shooting photos and video.
- GDU Mini App
- The GDU Mini App allows you to fly the O2 drone without the remote, and its built-in editing and share functions lets you post your aerial content quickly via social media.

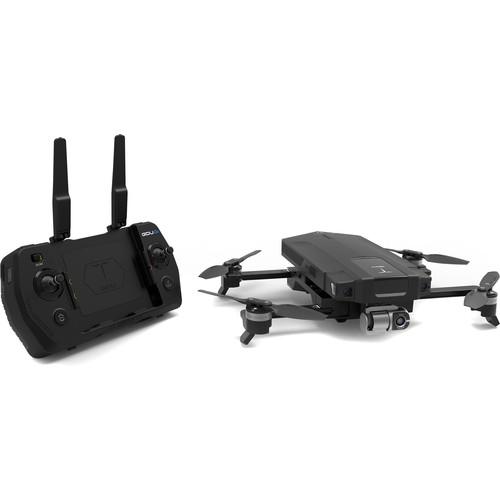

In the Box GDU TECHNOLOGY GDU O2 Quadcopter Remote Controller Flight Battery Charge Set of Extra Props Limited 3-Month Warranty for Batteries and Motors Limited 6-Month Warranty for Gimbal and Charger Limited 1-Year Warranty for Controller and Electronic Components Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 xvzbswazzsyy Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 User Manual PDF 3.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the GDU TECHNOLOGY GDU O2 Quadcopter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGDU TECHNOLOGY GDU-O2 Specs | | | Maximum Horizontal Speed | 33.6 mph / 54.1 km/h | | Maximum Ascent Speed | 11.2 mph / 18.0 km/h | | Maximum Wind Resistance | 12 mph / 19.3 km/h | | Flight Ceiling | 11,482' / 3499 m | | Maximum Flight Time | 20 Minutes | | | | GNSS Support | GPS, GLONASS | | | | Vision System | Downward, Forward | | Maximum Altitude | 11,482' / 3499 m | | Obstacle Sensory Range | 2.0 to 50.0' / 0.6 to 15.2 m | | Operating Environment | Surface with Clear Patterns at >15 lux | | | | Operating Frequency | 5.8 GHz | | Maximum Operating Distance | 3168' / 965.61 m | | Connectivity | 1 x Micro-USB
1 x USB Type-C | | Battery Type | 1 x Built-In | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Battery Capacity | 1200 mAh | | App Operating System Requirements | Android
iOS | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Sensor | 1/3" CMOS | | Effective Pixels | 13 MP | | Focal Length | 25.5mm / 25.5mm (35mm Equivalent) | | Lens Field of View | Diagonal: 79.8° | | Aperture | f/2.2 - 2.2 | | Photo ISO Range | 100 - 1600 (Auto) | | Video ISO Range | 100 - 1600 (Auto) | | Photo Resolution | 16:9: 4208 x 3120 | | Photo Format | JPEG | | Video Format | 3840 x 2160p at 30 fps (MPEG-4)
1920 x 1080p at 30 fps (MPEG-4)
1280 x 720p at 30 fps (M-JPEG) | | Photo Modes | Burst Shooting, Single Shot | | | | Number of Axes | 3 (Pitch, Roll, Yaw) | | Control Range | Pitch: -90 to 0° | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Capacity | 4000 mAh / 52.2 Wh | | | | Number of Rotors | 4 | | Overall Dimensions | 7.3 x 2.0 x 3.7" / 18.5 x 5.1 x 9.4 cm | | Weight | 1.6 lb / 0.73 kg | | | | Package Weight | 5.1 lb | | Box Dimensions (LxWxH) | 12.0 x 11.5 x 6.8" |
