Product description

Building on the success of their previous systems, the iOptron SkyGuider Pro EQ Camera Mount increases the precision and payload capacity while reducing the form factor to produce an imaging support system to track celestial bodies and capture images of the sun and moon, or for wide-field astrophotography star-scapes shooting techniques. This versatile tracking system can be configured in multiple ways including single or double-camera mounting, or even mounting smaller telescope optical tubes.The system functions as an equatorial mount, with a Right Ascension (RA) tracking motor to compensate for the apparent movement of celestial objects across the sky. An integrated polar axis alignment scope aids in accurate set up to improve tracking accuracy for long-exposure photography. A Declination mounting bracket allows the use of the counterweight kit to balance heavier imaging rigs, and limit vibration and strain on the motor and gears — or for double-mounting cameras, or OTAs. The tracking head runs on a factory-installed rechargeable battery with a 20-hour runtime. iOptron offers the SkyGuider here with just the tracking head and alt-az base for users with a reliable support system. The tracking head can be mounted on a tripod by itself using a conventional 1/4"-20 photo ball-head, or the head/base can be mounted together on most astronomical, photo, video, or field tripod using the 3/8"-16 or 1/4"-20 mount on the bottom of the base.
    Tracking Head
    • 11-pound max payload capacity when properly balanced
    • Tracking rates: Solar, Lunar, Celestial, and Half-celestial (for sky-scape photography)
    • 144x forward/reverse fast slew speed helps to find and frame shots
    • Integrated AutoAlign illuminated polar axis scope allows for precise alignment to improve tracking accuracy; 6° field of view for easier alignment; adjustable illumination intensity
    • Counterweight shaft and 3-pound weight are included to properly balance heavier cameras and lenses
    • Ports: ST-4 Autoguider; Shutter release; Micro-USB charging; Optional Go2Nova hand controller
    • Runs on one internal rechargeable LiPo battery; up to 20-hour runtime
      Mounting:
    • Mounts to alt-az base via Vixen-style dovetail
    • 1/4"-20 socket enables mounting to a photo, video, field tripod using an optional ball-head
      Motor and Gears:
    • Right Ascension DC servo provides smooth tracking with limited vibration, and optical encoder improves tracking accuracy
    • Right Ascension clutch disk enables manual movement
    • 35mm steel Right Ascension shaft
    • 88mm, 144-tooth aluminum alloy worm wheel
    • 15.2mm, brass worm gear
    • Four-piece roller bearing provides smooth movement with reduced vibration
    Alt-Az Base
    • Vixen-style dovetail saddle accepts the tracking head without tools for attachment
    • -30° to 65° latitude adjustment range
    • ±5° azimuth adjustment range
    • "Bull's eye" bubble level
    • 3/8"-16 and 1/4"20 socket for attachment onto most astronomical, photo, video, or field tripods
    Camera Attachment
    • 3/8"-16 camera mounting block to mounts camera directly onto tracking head or dual-mount on Declination bracket
    • Mount a camera onto head using a ball-head for smaller cameras
    • Use included Declination bracket for heavier rigs with included counterweight assembly, for dual-camera mounting, or smaller telescope OTAs
    • Dual camera mount payload of 11-pound + 7.7-pounds

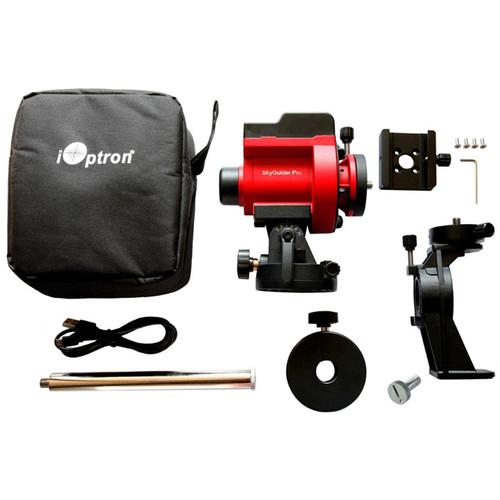

In the Box iOptron SkyGuider Pro EQ Camera Mount
  • Alt-Az Base
  • Padded Carrying Bag
  • Counterweight Shaft
  • 3-pound Counterweight
  • Vixen-Style Dovetail Saddle
  • Declination Mounting Bracket
  • Micro-USB Battery Charging Cable
  • Limited 1-Year Warranty
  • Limited 90-Day Warranty on Battery
  • User Manual PDF 1.7mbtcsqqxbfwqyrsc Table of Contents




    Upload User Manual

    Have you got an user manual for the iOptron SkyGuider Pro EQ Camera Mount in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    iOptron 3550 Specs

    Payload Capacity 11.0 lb / 5.0 kg
    Motor Drive DC servo with optical encoder
    Polar Axis Scope AutoAlign dark field illuminated, installed
    GoTo System None
    Mount Head to base: Vixen-style dovetail plate
    Base to tripod: 3/8"-16 socket
    Counterweight 3.0 lb / 1.4 kg
    Battery Internal rechargeable Li-Poly, 3.7V, 2000mAh battery
    Runtime 20 h, max at 68°F / 20°C
    Charge Time 80% in 5 h
    Operating Temperature 14 to 104°F / -10 to 40°C
    Dimensions 5.2 x 4.5 x 3.7" / 13.3 x 11.5 x 9.5 cm, without alt-az base
    Weight 2.2 lb / 1.0 kg, with battery
    3.2 lb / 1.5 kg, with battery and alt-az base
    Package Weight 10.09 lb
    Box Dimensions (LxWxH) 12.6 x 11.5 x 5.85"
