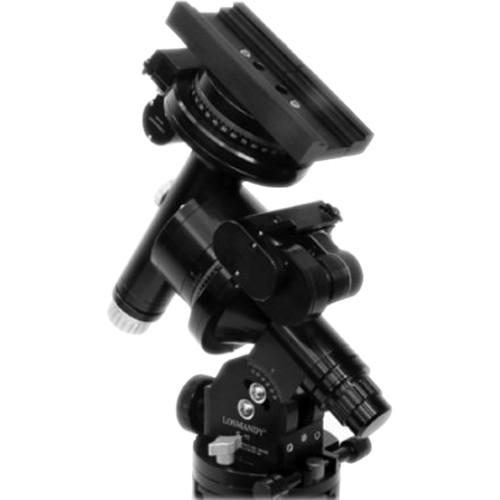

User Manual for Losmandy G-11 GFT Motorized EQ GoTo Mount with Tripod Click to enlarge the picture
Contents of the user manual for the Losmandy G-11 GFT Motorized EQ GoTo
- Product category: Mounts Losmandy
- Brand: Losmandy
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Losmandy Mounts
|
User manual for the Losmandy G-11 GFT Motorized EQ GoTo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Losmandy product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Losmandy user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Losmandy product will considerably shorten its lifespan!
|
Product description Outfitted with their Gemini 2 GoTo system, Losmandy's G11 GFT Motorized EQ GoTo Mount provides users with a powerful platform built to support and move larger optical tube assemblies (OTAs). All hardware is made of stainless steel to handle the weight as well as resist wear over years of use, while a dual dovetail saddle will accept the common Vixen-style plates and the larger Losmandy D-style plates. A dual-axis DC servo motor is reversible for use in the Northern and Southern Hemispheres and is powered by the included 12-18 VDC car/vehicle power adapter. Supporting the head and OTA is an aluminum tripod with an adjustable height to accommodate a wide variety of users.The brain of the G11 G system is Losmandy's Gemini 2 computer hand controller. Equipped with a 40,000+ object database and updatable via the Internet, it sports a full-color display, an intuitive user interface, and an Ethernet 10/100 port for remote PC control. It features Periodic Error Correction (PEC) and declination-axis backlash correction to provide accurate, precise, and smooth tracking over long periods of time. Multiple guide, slew, and tracking rates allow it to be easily aligned and manually controlled and to accurately track near- and deep-sky objects. A non-volatile memory and real-time clock preserve settings, including backlash correction and PEC, when the system is turned off and power disconnected. - Mount
-
- Machined aluminum and stainless steel
- Scratch-resistant and reflection-limiting black anodized finish
- All stainless steel hardware resists wear
- 60-pound payload capacity to handle large OTAs and accessories
- Altitude adjustment range: 0-68° with locking tangent arm
- Laser-engraved latitude scale in 2° increments
- Single knob azimuth control with ±8.5° travel
- Dual dovetail saddle accepts large Losmandy D-style or smaller Vixen-style plates
- Removable 1.25"-diameter stainless steel counterweight shaft with 21-pound counterweight
- Tiltable control panel for easy access
- Distance from the top of the tripod to the dec/RA junction, at 34°, is 10"
- Distance from the dec/RA junction to the top of the saddle is 7"
- Head weight: 33 pounds
- 12-18 VDC, 500mA power requirement
- Motors and Gears
-
- Motors:
- Dual-axis DC servo motor
- 0.5 arcsec per step
- Reversible motors for use in Northern and Southern Hemispheres
- Gears:
- Stainless steel hardware
- Clutch-release levers for manual use
- 3.75"-diameter needle thrust bearing
- 2"-diameter needle thrust bearing
- Two 1.5"-diameter needle bearings
- 360-tooth, 5.625"-diameter, 7075 aluminum worm gear
- Dual supported, ball bearing housed ground brass worm
- Gemini 2 Hand Controller
-
- 40,000+ object database
- Full-color touch screen clearly displays all functions
- Easy-to-use four-button pattern for guiding, centering, moving, and slewing
- Three guiding rates: 30%, 50%, and 2x sidereal rate
- Three setting rates: 4x, 8x, 16x sidereal rate
- Six guide rates: 0.3x, 0.5x, 2x, 4x, 8x, and 16x sidereal rate
- Tracking rates: Sidereal, Solar, Lunar, King's
- Periodic Error Correction (PEC) improves tracking precision over time
- Declination backlash compensation allows users to program out intrinsic play between gears for smoother and more precise tracking
- Northern and Southern Hemisphere modes
- Auto-guider port
- Control panel dimmer
- Non-volatile memory and real-time clock preserve settings when turned off and power disconnected
- Ethernet 10/100 with full IP function permits operation from anywhere using a browser, ASCOM, or app over the web or serial port
- Supported languages: English, German, French, and Spanish
- Firmware upgrade via Internet
- Dual 12-18 VDC input/output (3.0A) for accessories
- Tripod
-
- Lightweight and durable machined aluminum alloy
- Scratch-resistant and reflection-limiting black anodized finish
- Adjustable height from 33 to 48"
- Folding leg design for easy transporting
- Weight: 35 pounds
UPC: 851868007492 In the Box Losmandy G-11 GFT Motorized EQ GoTo Mount with Tripod Gemini 2 Hand Controller 12 VDC Power Supply Adjustable Aluminum Tripod Counterweight Shaft 21-lb Counterweight for GM-8, G-9, G-11 and Titan Mounts Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Losmandy G-11 GFT Motorized EQ GoTo Mount with Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLosmandy G11GFT Specs | Mount Type | Motorized German equatorial | | Load Capacity | 60.0 lb / 27.2 kg | | Motor | Dual-axis servo motor
0.5 arcsec/step | | Counterweight | 1 x 21 lb / 9.5 kg | | Mount | Dual saddle, accepts Losmandy D- and Vixen-style plates | | GoTo Capability | Gemini 2 computer hand controller | | Altitude / Latitude Adjustment | Altitude: 14 - 64°
Latitude: 2° incremental scale | | Polar Axis Scope | None
Available separately | | Includes Tripod/Pier | Black anodized aluminum tripod
Adjustable height of 33.0 - 48.0" / 83.8 - 121.9 cm | | Power Source | 12 VDC, 500 mA power supply | | Weight | Head: 33.0 lb / 15.0 kg
Tripod: 35.0 lb / 15.9 kg | | | | Package Weight | 111.2 lb | | Box Dimensions (LxWxH) | 18.8 x 18.8 x 13.4" |
