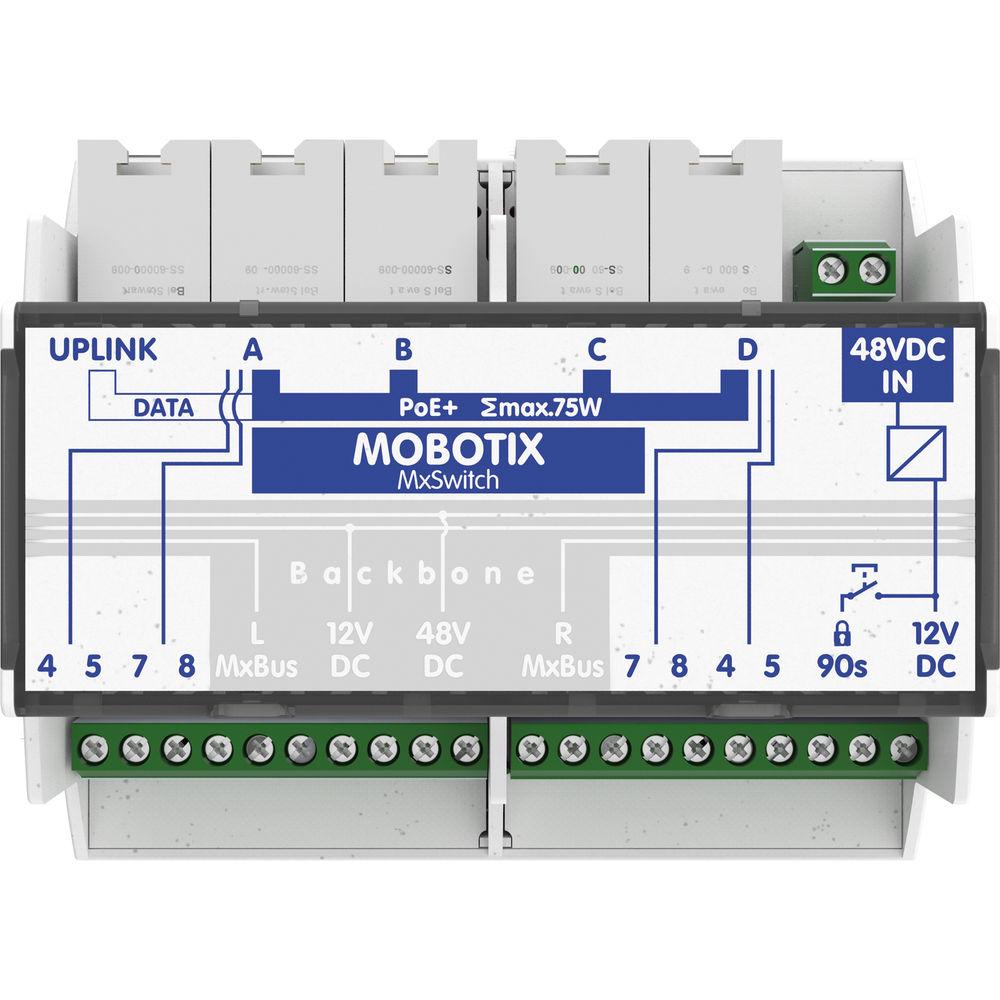

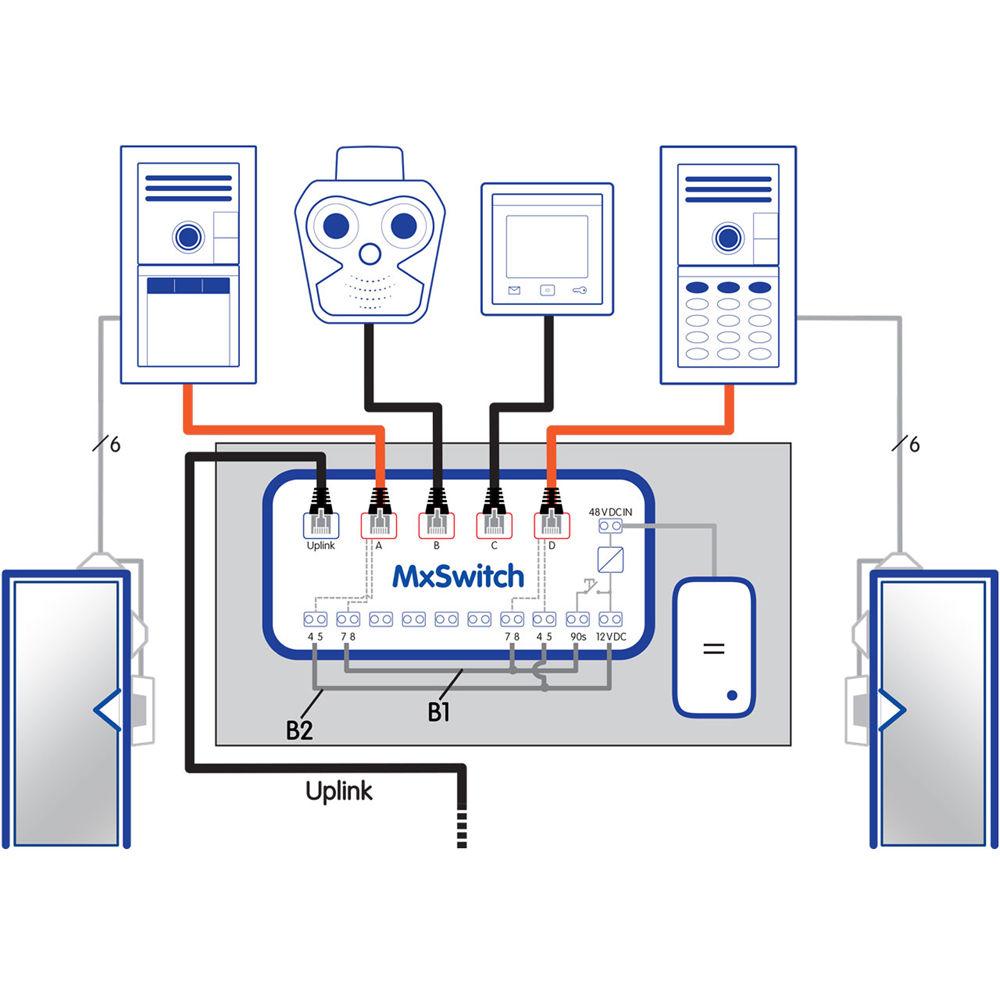

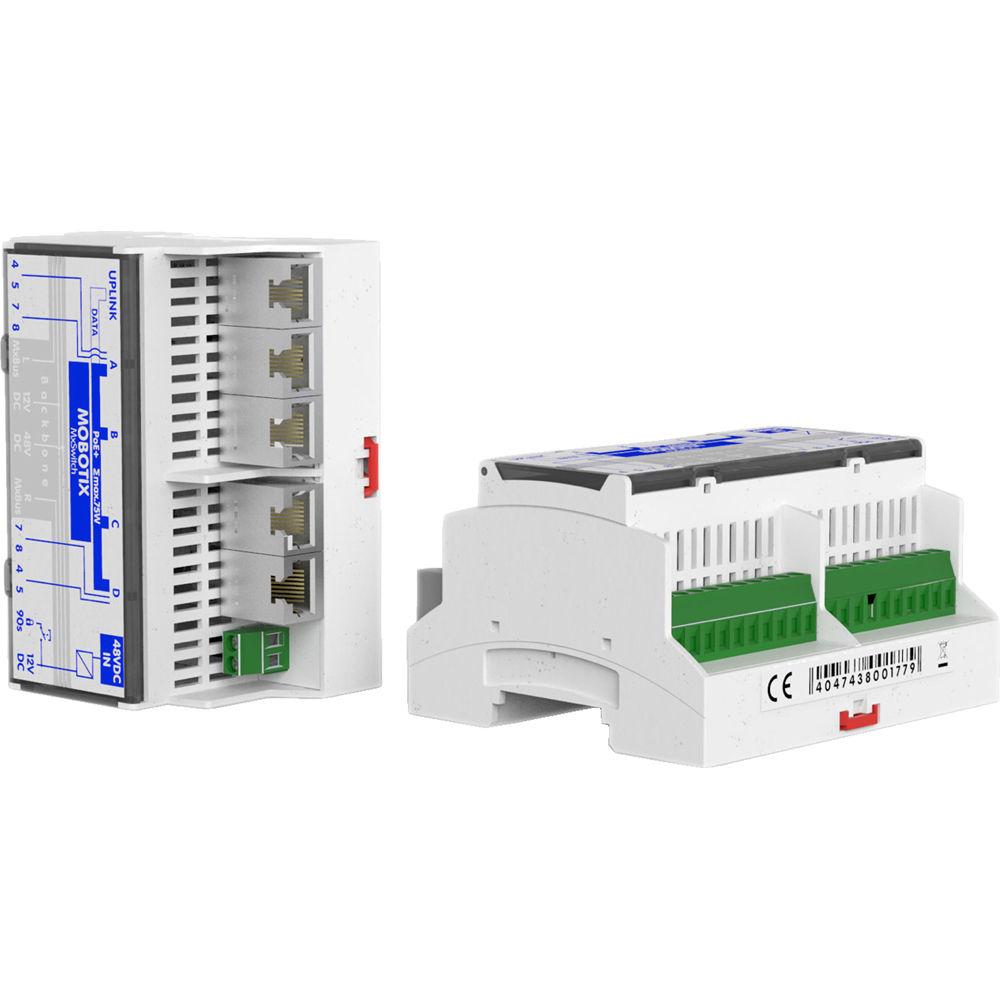

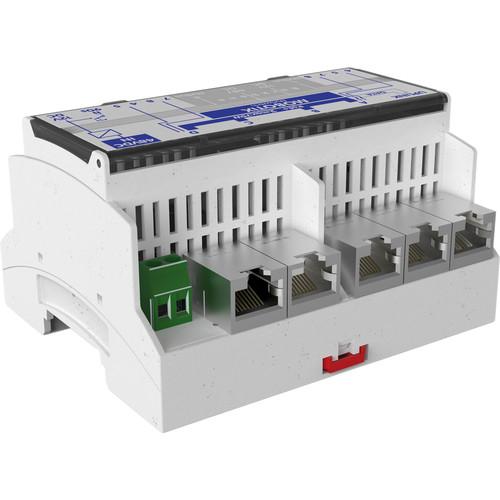

Product description Mount the MxSwitch from MOBOTIX to a standard DIN rail to gain convenient access to four additional PoE/PoE+ ports to connect and power compatible MOBOTIX devices. Connect cameras, door stations, and other PoE/PoE+ devices (all available separately) to the MxSwitch to expand your current surveillance system or to gain additional functionality. The MxSwitch features four PoE/PoE+ ports and one uplink port to connect to your network. There is a push-button switch that activates a 12 VDC power supply and disables theft protection of door stations and MxDisplay units for 90 seconds. - Four PoE/PoE+ ports connect and power up to four devices
- Mounts to standard DIN rail
- MxSplit technology allows four of the eight wires (or two of the four wire pairs) of the Ethernet connection cable to be used
- Push-button to override theft protection for 90 seconds
- 75W maximum total output power
In the Box MOBOTIX MxSwitch DIN Rail Module Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MOBOTIX MxSwitch DIN Rail Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMOBOTIX MX-SWITCH1 Specs | Controls | Push-button switch puts 12 VDC for 90 seconds on terminals 17/18 | | Wire Gauge | Cross-Sectional Area of Terminal Wires: 24 to 14 AWG, 0.03-0.4 in² (0.2-2.5 mm²) | | Connections | 2 x terminals for 48 VDC external power supply
4 x RJ45 Ethernet ports with PoE/PoE+
1 x RJ45 Ethernet port (uplink) | | Terminals | 1-4 (Port A) and 13-16 (Port D): Loop through wire pairs 4-5 and 7-8 of network cables
8 x terminals for backbone pins (extension connector, reverse)
2 x terminals for power supply 12 VDC, 1 A
2 x terminals with 12 VDC, controlled by push-button switch | | Output Power | Per Port: 25.5 W maximum Total: 75 W maximum | | Power Supply | Requires 48 VDC, 2 A minimum external power supply (available separately) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Dimensions | 4.25 x 2.4 x 3.5" (108 x 61 x 90 mm) |
