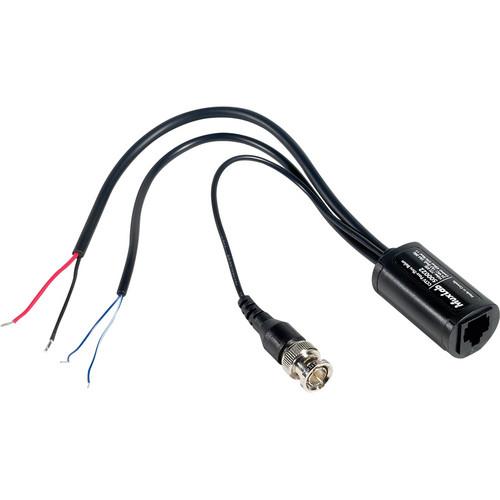

Product description The MuxLab 500022 CCTV Pass-Thru Balun allows transmission of video, remote power, and 2-wire PTZ Control via 1 Cat5/5E/6 UTP (Unshielded Twisted Pair) cable, eliminating the need for multiple cable installations. When used in conjunction with MuxLab's passive CCTV hub (500130), the modular balun transmits standard composite video and supports transmission of color signals up to 1200' (365m) via Cat3; it can be extended to 2200' (670m) via Cat5. For black and white signals, the maximum transmission distance is up to 1500' (457m) via Cat3 and can be extended up to 2500' (762m) via Cat5.. Made of ABS fire retardant plastic, the modular balun securely fits between the CCTV dome camera and the back box, and features port configuration switch to set port as Pass-thru (500022) that transmits remote power up to 350' (107m) via 2 twisted pair cables at 24VAC/5VA. The 2-wire PTZ control transmits up to 4000' (1.2km) via 1 UTP cable. Providing a hassle-free cabling solution, the Pass-Thru Balun connects to the CCTV security / surveillance equipment that includes cameras, IP camera encoders, video switchers, DVRs, and other CCTV equipments. The balun can also be used with other composite baseband video equipments such as DVD players, cable boxes, media servers, and audio-video monitors. - Transmits video, remote power, and PTZ Control via 1 4-pair Cat5/5E/6 UTP cable
- Transmits color signals up to 1200' via Cat3; distance can be extended up to 2200' via Cat5
- Transmits b&w signals up to 1500' via Cat3; distance can be extended up to 2500' via Cat5
- Transmits remote power up to 350' via 2 twisted pair cables at 24VAC/5VA
- Made of ABS fire retardant plastic
- Fits between the CCTV dome camera and back box
- Supports baseband video; NTSC, PAL, and SECAM
UPC: 627699000229 In the Box MuxLab 500022 CCTV Pass-Thru Balun Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500022 CCTV Pass-Thru Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500022 Specs | Environment | Baseband video; NTSC, PAL, SECAM | | Devices | Close-circuit TV (CCTV) cameras, monitors, switchers, IP encoders, digital video recorders (DVRs) and other CCTV equipment | | Transmission | Transparent to the user | | | | Bandwidth | DC to 8 MHz | | Maximum Input | 1.1Vp-p | | Insertion Loss | Less than 2 dB per pair over the frequency range from DC to 8 MHz | | Return Loss | Greater than 15 dB over the frequency range from DC to 8 MHz | | Common Mode Rejection | Greater than 40 dB @ 8 MHz | | Maximum Distance | Color: Cat 3 - 1200' (365m); Cat 5 - 2200' (670m)
Shorter distances may be achieved when used with DVRs, typical 1000' (305m) to 1500' (457m)
B/W: Cat 3 - 1500' (457m); Cat 5 - 2500' (762m) | | | | Wiring | Remote low voltage power supported via two (2) twisted pairs. A Class II power supply is recommended | | Maximum Distance | (at 24VAC via two twisted pairs)
5 vA: 350' (107m)
10 vA: 175' (53m)
20 vA: 90' (30m)
30 vA: 60' (20m) Based on 10% voltage drop at camera. Longer distances may be achieved @ 28 VAC. | | | | Wiring | 2-Wire PTZ Control (i.e. RS-422, Manchester/Bi-Phase, half duplex RS485)
Wiring: Remote 2-wire PTZ control supported via one (1) twisted pair | | Maximum Distance | Up to 4,000' (1.2 km) depending on the PTZ camera vendor | | Maximum Power | Maximum Power Rating: 50 Volts (AC RMS/DC); 3A (AC RMS/DC) | | Maximum Input Voltage | 50 Volts (AC RMS/DC) | | Maximum Current | 3A (AC RMS/DC) | | | | Cable Requirements | UTP: 24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz. Maximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1000' (305m) at 1 MHz
BNC: Impedance: 75 ohms at 1 MHz (RG59/U mini coax). Max. 25' (7.6m) of coax allowed end to end | | Connectors | Combined signals: RJ45
Video: BNC-male 8" (203mm) mini-coax lead
Power: 2-wire 18AWG lead
Control: 2-wire 24AWG twisted pair lead | | Temperature | Operating: 32 - 131°F (0 - 55°C)
Storage: -4 ~ +185°F (-20 ~ +85°C)
Humidity: up to 95% | | Enclosure | ABS fire retardant plastic | | Dimensions | 1.875" (4.7cm) x 1.0" (2.54cm) diameter plus cable leads; 8" (20cm) for video; 10" (25.4cm) for power and control leads | | Weight | 1.95 oz (55 gms) | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 7.0 x 1.5 x 0.75" |
