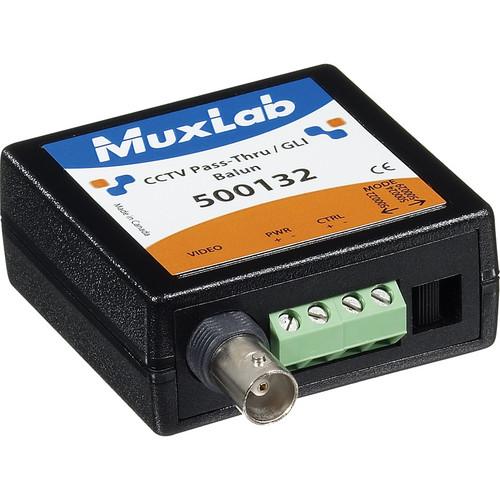

User Manual for MuxLab 500132 CCTV Pass-Thru GLI Balun Click to enlarge the picture
Contents of the user manual for the MuxLab 500132 CCTV Pass-Thru GLI Balun
- Product category: Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Signal Extenders
|
User manual for the MuxLab 500132 CCTV Pass-Thru GLI Balun contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The 500132 CCTV Pass-Thru/GLI Balun allows transmission of video, remote power, and PTZ control via one Cat5E/6 UTP (Unshielded Twisted Pair) cable. Providing a hassle-free cabling solution, the balun connects directly to CCTV cameras, monitors, switchers, sequencers, multiplexers, IP encoders, DVRs, and other CCTV equipments. The Pass-Thru/GLI Balun features GLI (Ground Loop Isolation) on each port up to 50VDC for CCTV systems. It supports transmission of color signals up to 1200' (365m) via Cat3, which can be extended to 2200' (670m) via Cat5E/6. Made of ABS fire retardant plastic, the balun fits securely between camera and DVR side, and features port configuration switch to set port as Pass-Thru (500022) mode that transmits remote power up to 350' (107m) via 2 twisted pair cables at 24VAC/5VA. The 2-wire PTZ control transmits up to 4000' (1.2km) via one UTP cable. The CCTV/GLI Hub works in conjunction with other MuxLab CCTV baluns (500009, 500022, 500024/29, and 500130). The balun is ideal for use in campus, high rise buildings, and manufacturing, retail and distribution centers. - Allows transmission of video, remote power, and PTZ Control via one Cat5E/6 UTP cable
- Ground Loop Isolation on each port up to 50VDC
- Transmits color signals up to 1200' via Cat3; distance can be extended up to 2200' via Cat5E/6
- Features port switch to set unit to Pass-Thru mode (500022) or Power-Thru mode (500024/500029)
- Transmits Pass-thru remote power up to 350' via 2 UTP cables at 24VAC/5VA
- 2-wire PTZ control transmits up to 4000' via one UTP cable
- Made of ABS fire retardant plastic
- Fits between camera and DVR side
- Works in conjunction with other MuxLab CCTV baluns (500009, 500022, 500024/29, and 500130)
- Ideal for use in campus, high rise buildings, and manufacturing, retail and distribution centers
- Supports baseband video; NTSC, PAL, and SECAM
UPC: 627699001325 In the Box MuxLab 500132 CCTV Pass-Thru/GLI Balun Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500132 CCTV Pass-Thru GLI Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500132 Specs | Environment | Baseband video; NTSC, PAL, SECAM | | Devices | CCTV cameras, monitors, DVRs, IP Encoders and other CCTV equipment | | Transmission | Transparent to the user | | | | Bandwidth | 20 Hz to 8 MHz | | Impedance | Input: 75 ohms (BNC); Output: 100 ohms (RJ45) | | Maximum Input | 1.1Vp-p | | Insertion Loss | Less than 4 dB per pair from 20Hz to 8 MHz | | Return Loss | Less than -15 dB | | Common Mode Rejection | Greater than 20 dB | | Ground Loop Isolation | Up to 50VDC | | Maximum Distance | Color: Cat 3 - 1200' (365m); Cat 5E/6 - 2200' (670m)
Shorter distances may be achieved when used with DVRs, typical 1000' (305m) to 1500' (457m) | | | | Wiring | Remote low voltage power supported via two (2) twisted pairs. A Class II power supply is recommended | | Maximum Distance | (at 24VAC via two twisted pairs)
5 vA: 350' (107m)
10 vA: 175' (53m)
20 vA: 90' (30m)
30 vA: 60' (20m) Based on 10% voltage drop at camera. | | | | Wiring | 2-Wire PTZ Control (i.e. RS-422, Manchester/Bi-Phase, half duplex RS485)
Wiring: Remote 2-wire PTZ control supported via one (1) twisted pair | | Maximum Distance | Up to 4,000' (1.2 km) depending on the PTZ camera vendor | | Maximum Input Voltage | 50 Volts (AC RMS/DC) | | Maximum Current | 3A (AC RMS/DC) | | | | Cable Requirements | UTP: 24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz. Maximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1000' (305m) at 1 MHz
BNC: Impedance: 75 ohms at 1 MHz (RG59/U mini coax). Max. 25' (7.6m) of coax allowed end to end | | Connectors | Combined signals: RJ45
Video: BNC-F
Power: 2-pole terminal block
Control: 2-pole terminal block | | Switch | Select between Power-Thru (500024/500029) and Pass-Thru (500022) Modes | | Temperature | Operating: 32 - 131°F (0 - 55°C)
Storage: -4 ~ +185°F (-20 ~ +85°C)
Humidity: up to 95% | | Enclosure | ABS fire retardant plastic | | Dimensions | 2.4 x 2.25 x 1" (6.1 x 5.7 x 2.54cm) | | Weight | 1.95 oz (55g) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 6.0 x 4.3 x 1.1" |
