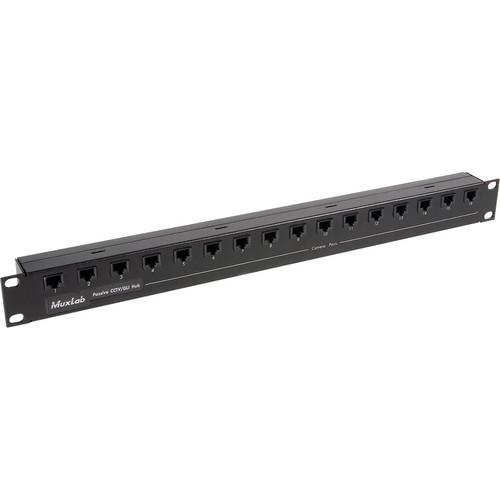

User Manual for MuxLab 500133 Passive CCTV GLI Hub Click to enlarge the picture
Contents of the user manual for the MuxLab 500133 Passive CCTV GLI Hub
- Product category: Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Signal Extenders
|
User manual for the MuxLab 500133 Passive CCTV GLI Hub contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The MuxLab 500133 Passive CCTV/GLI Hub with 16 ports allows transmission of video, remote power, and PTZ Control via 1 Cat5 UTP (Unshielded Twisted Pair) cable, eliminating the need for multiple cable installations. Providing a hassle-free cabling solution, it connects directly to CCTV security / surveillance equipment that includes cameras, monitors, switchers, multiplexers, DVRs, and other CCTV equipments. The rack-mountable CCTV/GLI Hub features Ground Loop Isolation (GLI) on each port up to 50VDC for CCTV systems. It supports transmission of color signals up to 1200' (365m) via Cat3, which can be extended to 2200' (670m) via Cat5. For b&w signals, the maximum transmission distance is up to 1500' (457m) via Cat3 and can be extended up to 2500' (762m) via Cat5. Made of black anodized aluminum, the modular hub measures 19 x 1.75 x 1.5 " (48.26 x 4.4 x 5.1 cm), and features port configuration switch to set each port as Pass-thru (500022) or Power-thru mode (500024/500029). The Pass-thru hub transmits remote power up to 350' (107m) via 2 twisted pair cables while the Power-thru transmits up to 518' (170m) via 3 twisted pair cables at 24VAC/5VA. The 2-wire PTZ control transmits up to 4000' (1.2km) via 1 UTP cable. The Passive CCTV/GLI Hub works in conjunction with other MuxLab CCTV baluns (50000R, 500009, 500022, 500024, 500100, and 500101). - Allows transmission of video, remote power, and PTZ Control via 1 Cat5 UTP cable
- Transmits color signals up to 1200' via Cat3; distance can be extended up to 2200' via Cat5
- Transmits b&w signals up to 1500' via Cat3; distance can be extended up to 2500' via Cat5
- Features port switch to set unit to Pass-Thru Mode (500022) or Power-Thru Mode (500024/500029)
- Transmits Pass-thru remote power up to 350' via 2 UTP cables and Power-thru remote power up to 518' via 3 UTP cables at 24VAC/5VA
- 2-wire PTZ control transmits up to 4000' via 1 UTP cable
- Ground Loop Isolation on each port up to 50VDC
- Made of black anodized aluminum
- Compact design - 19 x 1.75 x 1.5 " (48.26 x 4.4 x 5.1 cm)
- Works in conjunction with other MuxLab CCTV baluns (50000R, 500009, 500022, 500024, 500100 and 500101)
- Supports composite video; NTSC, PAL, and SECAM
UPC: 627699001332 In the Box MuxLab 500133 Passive CCTV/GLI Hub Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500133 Passive CCTV GLI Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500133 Specs | Environment | Composite video; NTSC, PAL, SECAM | | Devices | CCTV cameras, DVRs, monitors, switchers, multiplexers and other CCTV equipment | | Transmission | Transparent to the user | | | | Bandwidth | 20Hz to 8 MHz. (DC isolation) | | Maximum Input | 1.1Vp-p | | Insertion Loss | Less than 2 dB per pair over the frequency range from 20Hz to 8 MHz | | Return Loss | Greater than 15 dB over the frequency range from 20Hz to 8 MHz | | Common Mode Rejection | Greater than 40 dB @ 8 MHz | | Ground Loop Isolation | Up to 50VDC | | Maximum Distance | Color: Cat 3 - 1200' (365m); Cat 5 - 2200' (670m)
(Shorter distances may be achieved when used with DVRs, typical 1000' (305m) to 1500' (457m))
B/W: Cat 3 - 1500' (457m); Cat 5 - 2500' (762m) | | | | Switch Mode | Pass-Thru Mode (500022): 2 twisted pairs
Power-Thru Mode (500024/500029): 3 twisted pairs | | Maximum Distance | (at 24VAC)
Pass-Thru Mode (500022):
5 VA: 350' (107m). 10 VA: 175' (53m)
20 VA: 90' (30m). 30 VA: 60' (20m)
Power-Thru Mode (500024/500029):
5 VA: 518' (170m). 10 VA: 259' (85m)
20 VA: 130' (43m). 30 VA: 86' (28m) Based on 10% voltage drop at camera. Longer distances may be achieved @ 28 VAC. | | Maximum Input Voltage | 50 Volts (AC RMS/DC). Recommended Class II PSU with fuse protection per port | | Maximum Current | 4.5A (AC RMS/DC) | | | | PTZ Control | (2-Wire PTZ Control [i.e. RS-422, Manchester/Bi-Phase, half duplex RS485] - Pass-Thru Mode [500022])
Wiring: Remote 2-wire PTZ control supported via one (1) twisted pair | | Maximum Distance | Up to 4,000' (1.2 km) depending on the PTZ camera vendor | | Maximum Power | Maximum Power Rating: 50 Volts (AC RMS/DC); 3A (AC RMS/DC) | | | | Cable Requirements | UTP: 24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz. Maximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1000' (305 m) at 1 MHz
BNC: Impedance: 75 ohms at 1 MHz (RG59/U mini coax). Max. 25' (7.6m) of coax allowed end to end | | Connectors | Video: Sixteen (16) BNC-F
Power: Sixteen (16) 2-pole screw terminals. Control: Sixteen (16) 2-pole screw terminals
Combined signals: Sixteen (16) RJ45 jacks | | Configuration | Port Configuration Switch: Sets each port as Pass-Thru (500022) or as Power-Thru (500024/500029) | | Temperature | Operating: 32 - 131°F (0 - 55°C)
Storage: -4 ~ +185°F (-20 ~ +85°C)
Humidity: up to 95% | | Enclosure | Black, anodized aluminum | | Dimensions (WxHxD) | 19 x 1.75 x 1.5" (48.26 x 4.4 x 5.1cm) | | Weight | 2.3 lbs (1.1kg) |
