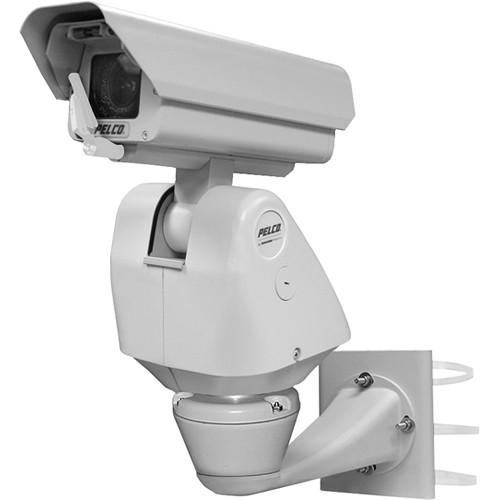

User Manual for Pelco ES40 Esprit SE Standard Positioning System with IOP Click to enlarge the picture
Contents of the user manual for the Pelco ES40 Esprit SE Standard Positioning
- Product category: Wired Analog & HD Cameras Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Wired Analog & HD Cameras
|
User manual for the Pelco ES40 Esprit SE Standard Positioning contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The Pelco ES40 Esprit SE Standard Positioning System with IOP features a high-resolution, day & night camera (540TVL) with an infrared cut filter, 432x zoom (36x optical, 12x digital), Electronic Image Stabilization, and Wide Dynamic Range. It includes a receiver, an enclosure, an IOP (Integrated Optics Cartridge), and comes with a wall mount. The powder-coated, aluminum housing makes the camera suitable for both indoor and outdoor applications. The system has an absolute operating temperature range of -50 to 122°F (-45 to 50°C). Within 2 hours after power-up, the entire unit can de-ice and be operational from a temperature of -13°F (-25°C). The ES40 system features variable pan and tilt, with speeds ranging from 0.1 to 40°/sec in manual pan mode and from 0.1 to 20°/sec in manual tilt mode. Pan preset and turbo speeds are 100°/sec in wind speeds of 80 kmph (50 mph) and 50°/sec in the 145 kmph (90 mph) wind speed profile. Tilt preset speed is 30°/sec. This system is capable of 360° of continuous pan rotation. The tilt range allows for horizontal viewing of 36 to -85°. There are 256 configurable preset positions with a preset accuracy of 0.1°. A built-in heater, window defroster / defogger, sun shroud, and insulation blanket are standard features on the ES40 system, which also include open collector auxiliary outputs that function for 2 seconds before deactivating. This system accepts a selectable power source of 120/230 VAC and it also features a power-up recovery mode that allows the user to specify what operation the system will resume whenever the power is cycled. - Integral multiprotocol (Coaxitron, RS-422 Pelco D, and Pelco P protocols) receiver / driver
- Integrated camera enclosure with IOP (Integrated Optics Cartridge)
- Enclosure: Meets NEMA Type 4X/IP66 standards
- Camera: Day & Night, 540 TVL, autofocus, 128X WDR (Wide Dynamic Range), Motion Detection
- Preset positioning accuracy of ±0.1
- Variable speed pan: 0.1 to 100°/sec with proportional pan
- Internal scheduling clock
- On-screen compass, tilt, and zoom display
- Tilt range of 36 to -85° from horizontal
- Digital position and zoom control and feedback using Pelco D protocol
- Operational in 145 kmph (90 mph) winds, and can withstand wind velocity up to 209 kmph (130 mph)
- Pan preset speed of 100°/sec in 80 kmph (50 mph) winds and 50°/sec in 145 kmph (90 mph) winds
- Variable scan speeds (1 to 40°/sec)
- Translator boards for selected competitive protocols
- Easy to Install: Quick and simple electrical connections
- 850 and 950 nm active IR illumination focus algorithms
- 256 configurable presets with labels
- Auto, frame, and random scan
- Configurable power-up mode, park, manual limit stops (pan), and scan limit stops (pan)
- Patterns: Up to 8, on-screen, user-defined configurable patterns; includes pan, tilt, zoom, and preset functions
- Proportional Pan / Tilt: Continually decreases pan/tilt speeds in proportion to depth of zoom
- 8 zones (configurable in size) can be labeled with up to 20 characters each
- Window Blanking: Up to eight, 4-sided, user-defined shapes
- Sun shroud, heater / window defroster, and insulation
- Electronic Image Stabilization
- Multilingual menus (English, Spanish, Portuguese, Italian, French, German, Russian, Polish, Turkish, Czech, and Asian language package: Chinese, Japanese, and Korean)
- Software update and setup
- Configurable locations of labels and on-screen displays
- Low lux noise reduction (reduces noise in low light)
- Autosensing protocol (Coaxitron, RS-422 Pelco P and Pelco D, Sensormatic, Vicon); accepts other control protocols with optional translator card
- Gray polyester powder coat finish
UPC: 700880297209 In the Box Pelco ES40 Esprit SE Standard Positioning System with IOP (120/230VAC, NTSC) Esprit EWM Wall Mount Limited 1-Year Warranty on Camera System Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco ES40 Esprit SE Standard Positioning System with IOP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco ES4036-5W Specs | | | Signal Format | NTSC | | Scanning System | Progressive or 2:1 interlace | | Image Sensor | 1/4" CCD | | Effective Pixels | H x V: 768 x 494 | | Horizontal Resolution | >540 TVL | | Lens | f/1.4 (focal length, 3.3 to 119 mm optical) | | Zoom | 36x optical, 12x digital | | Zoom Speed | Optical Range: 3.2 / 4.6 / 6.6 seconds | | Angle of View | Horizontal: 57.2° at 3.3 mm wide zoom; 1.7° at 119 mm telephoto zoom | | Focus | Automatic with manual override | | Sensitivity | Maximum: @ 35 IRE 0.02 lux at 1/2 sec shutter
0.55 lux at 1/60 sec shutter (color)
0.018 lux at 1/2 sec shutter (color)
0.00018 lux at 1/2 sec shutter (B&W) | | Sync System | AC line lock, phase adjustable using remote control, V-sync | | White Balance | Automatic with manual override | | Shutter Speed | Automatic Manual: 1/2 to 1/30,000 | | Iris Control | Automatic with manual override | | Gain Control | Automatic / off | | Video Output | 1 Vpp, 75 Ω | | Signal-to-Noise Ratio | Video: >50 dB | | Image Stabilization | Electronic: Integrated | | Wide Dynamic Range | 128x | | | | Input Voltage | 120/230 VAC | | Input Voltage Range | ±10% | | Power Consumption | Maximum 70 VA per system | | Heater | Thermostatically controlled (heater and defroster) | | Connections | Electrical: 2 power source connections made at mount location with wire splices and 1 ground wire splice
1 BNC receptacle and 4 wire splices at mount location for RS-422 Pelco D and Pelco P protocols
2 wire splices for open collector auxiliary output | | AUX 2 | Open collector output with 2-second activation Connected relay must require no more than 32 VDC and 40 mA to energize relay coil; wire length between Esprit SE and relay must be less than 100' (30 m). | | Distance | Video Coaxial Cable Wiring RG59/U: 750' (229 m)
RG6/U: 1,000' (305 m)
RG11/U: 1,500' (457 m) Minimum cable requirements: 75 Ω impedance; all-copper center conductor; all-copper braided shield with 95% braid coverage. | | | | Pan Movement | 360° continuous pan rotation | | Vertical Tilt | Unobstructed +36 to -85° | | Variable Speed | Pan: 0.1 to 40°/sec variable-speed operation, 100°/sec turbo
Tilt: 0.1 to 30°/sec variable-speed operation | | Preset Speeds | Pan: 100°/sec
Tilt: 30°/sec | | Camera Mounting | Integrated camera sled assembly | | Latches | 1 link-lock, number 3 stainless-steel latch; can be secured with padlock (sold separately) | | | | Construction | Die-cast, extruded and sheet aluminum, stainless steel hardware | | Viewing Window | 0.23" (5.84 mm) thick, optically clear, polycarbonate with proprietary impact-resistant UV rated coating | | Operating Temperature | -50° to 122°F (-45° to 50°C) for sustained system operation or 140°F (60°C) absolute maximum; within 2 hours after power-up, the entire unit can de-ice and be operational from a temperature of -13°F (-25°C) | | Operating Environment | Will remain operational in 145 kph (90 mph) wind conditions; withstands 209 kph (130 mph) | | Certifications | CE, Class B, FCC, Class B, , C-Tick, meets NEMA Type 4X and IP66 standards, U.S. Patent 340,940 and 5,224,675 | | Dimensions (L x W x H) | 13.30 x 7.70 x 17.50" (337.82 x 195.58 x 444.5 mm) | | Weight | 22.0 lb (9.9 kg) | | | | Package Weight | 32.15 lb | | Box Dimensions (LxWxH) | 22.7 x 21.3 x 11.6" |
