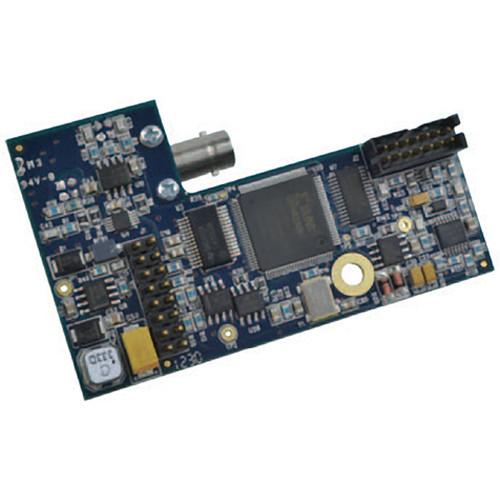

User Manual for Pelco FSV10D1M1ST Fiber Transmitter Click to enlarge the picture
Contents of the user manual for the Pelco FSV10D1M1ST Fiber Transmitter
- Product category: Signal Extenders Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Signal Extenders
|
User manual for the Pelco FSV10D1M1ST Fiber Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The Pelco FSV10D1M1ST Fiber Transmitter is designed for quick and easy installation into the back box of Spectra IV domes. The FSV10D1 Transmitter allows transmission of 1 uni-directional composite video channel and 1 bi-directional RS-422 data channel over 1 optical fiber. In addition, the up-the-coax technology allows Coaxitron PTZ (Pan / Tilt / Zoom) control data to be transmitted the full distance of the fiber. It is a multimode version where the FSV10D1 Transmitter is compatible with the FRV10D1 Receiver.The FSV10D1 Transmitter allows the user to choose bi-directional data or up-the-coax through use of a dip switch on the compatible FRV10D1 receiver unit. The selection of RS-422 data communication allows PTZ control of the Spectra IV dome. With Coaxitron control, PTZ control signals are transmitted over the video coaxial cable from the controller to the FRV10D1 receiver. The receiver then transmits the Coaxitron data onto the fiber to the FSV10D1 transmitter. The Coaxitron data is transmitted from the controller to the Spectra IV dome during the vertical blanking interval of the video signal. - Single-channel digitally encoded video with bi-directional data
- Includes a corresponding 13" (330.2mm) fiber cable for easier pre-wiring installation and operates using power supplied from the Spectra IV dome
- Designed for use in Spectra IV Domes
- 10-bit digitally encoded video for high-quality video transmission over a single fiber
- Bi-directional RS-422 data channel or Coaxitron communication
- Supports Pelco Coaxitron up-the-coax control signals for a distance up to 30mi (48km)
- Multimode fiber support for distances up to 2.5mi (4km)
- Meets all requirements for RS-250C short-haul transmission
- Laser diode for transmission of optical signals
- Compatible with NTSC, PAL, and SECAM video standards
- Designed to meet NEMA TS-1/TS-2 and Caltrans traffic signal control equipment environmental standards
- Stand-alone and rack-mountable modular design
- LED status indicators for monitoring all critical operating parameters
- Certifications: UL/cUL Listed
UPC: 700880297711 In the Box Pelco FSV10D1M1ST Fiber Transmitter Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco FSV10D1M1ST Fiber Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco FSV10D1M1ST Specs | | | Video Input | 1.0 Vpp, 75 Ω | | Overload | >1.5 Vpp | | Bandwidth | 5 Hz to 10 MHz | | Differential Gain | <2% | | Differential Phase | <0.7° | | Tilt | <1% | | Signal-to-Noise Ratio | 67 dB at maximum optical loss budget | | Coaxial Cable Capability | Maximum (RG59): 300' (100 m) camera to fiber optic module to maintain 6 MHz bandwidth | | | | Interface | RS-232, RS-422, RS-485 (2- or 4-wire), and UTC (up-the-coax) | | Rate | DC-115 Kb/s (NRZ) | | | | Wavelength | 1310 / 1550 nm, multimode | | Power | Surface Mount: 8 to 15 VDC at 2 W
Rack Mount: Provided by rack | | Number of Fibers | 1 | | Optical Emitter | Laser diode | | Indicators | LED: Link | | | | Connector | Optical: ST | | Number of Rack Slots | 1 | | Certifications & Ratings | CE, Class A
FCC, Class A
C-Tick
Designed to meet NEMA TS 1/TS 2 and Caltrans traffic signal control equipment environmental standards | | | | Compatible With | FRV10D1M1ST Receiver | | Mode | Multimode: 62.5/125 μm | | Connector Type | Fiber Optical: ST | | Optical Power Budget | 16 dB | | Maximum Transmission Distance | 2.5 mi (4 km) Distance may be limited by optical dispersion. | | MTBF | >100,000 hours | | Operating Temperature | -40 to 167°F (-40 to 75°C) | | Storage Temperature | -40 to 185°F (-40 to 85°C) | | Relative Humidity | 0 to 95%, non-condensing | | Dimensions (WxL) | 4.0 × 2.5" (10.16 × 6.4 cm) | | Weight | 0.46 lb (0.21 kg) | | | | Package Weight | 0.415 lb | | Box Dimensions (LxWxH) | 10.7 x 6.4 x 3.2" |
