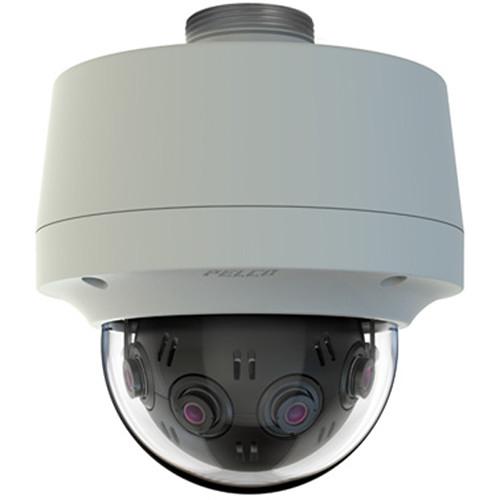

User Manual for Pelco Optera IMM Series 12MP 360° Outdoor Panoramic Network Dome Camera with Clear Bubble Click to enlarge the picture
Contents of the user manual for the Pelco Optera IMM Series 12MP 360°
- Product category: Wired IP Cameras Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Wired IP Cameras
|
User manual for the Pelco Optera IMM Series 12MP 360° contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The gray OOptera IMM Series 12MP 360° Outdoor Panoramic Network Dome Camera from Pelco is a multi-imager solution that combines four 3MP imagers to provide a 360° panoramic view. It integrates video across all sensors in the camera, presenting a seamless user experience from setup to viewing. It also enables you to zoom in for detail within multiple views from a VMS (Video Management System). The camera comes in a pendant enclosure with a clear bubble lower dome. It features a robust metal tamper-resistant design with an IK10 impact rating for vandal-resistance. The camera uses SureVision 2.0 technology to simultaneously deliver low-light true WDR (Wide Dynamic Range). With WDR, anti-bloom technologies, 3D noise filtering, and advanced tone mapping, SureVision 2.0 enables the camera to capture images in challenging lighting conditions. The camera supports multiple streaming in H.264 and MJPEG compression formats and CVBR (Constrained Variable Bit Recording) for encoding to conserve video storage space and bandwidth. It provides video footage with a frame rate of up to 12.5 fps at full resolution. This IP camera complies with PoE+ (Power over Ethernet plus) to eliminate the need for separate power supplies and cabling, increasing camera availability through an uninterrupted power supply (UPS). The camera comes with eight Pelco video analytics behaviors that can be applied across a wide field of view. Pelco behaviors include Abandoned Object, Adaptive Motion Detection, Camera Sabotage, Directional Motion, Loitering Detection, Object Counting, Object Removal, and Stopped Vehicle. These behaviors enable operators to focus quickly on events and areas of interest. The IMM Series IP dome camera connects to the Pelco VideoXpert and Digital Sentry VMSs. It can be integrated with third-party video management systems through the open Pelco API, Panomersive SDK, and through the ONVIF standard. UPC: 700880335130 In the Box Pelco Optera IMM Series 12MP 360° Outdoor Panoramic Network Dome Camera with Clear Bubble IMMBB0-EP Back Box IMM12036-E-BASE Camera Base Module IMMLD0-1E Lower Dome Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco Optera IMM Series 12MP 360° Outdoor Panoramic Network Dome Camera with Clear Bubble in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco IMM12036-1EP Specs | | | Imaging Device | 1/3.2" progressive scan CMOS | | Maximum Resolution | 12 MP (4x): 2048 x 1536 each sensor | | Signal-to-Noise Ratio | >50 dB | | Sensitivity | Color (33 ms): 0.3 lux at f/2.5
Mono (33 ms): 0.2 lux at f/2.5 | | Day/Night Operation | Supported | | Mechanical IR Cut Filter | On / Off / Auto selectable with different set points | | Wide Dynamic Range | >120 dB | | Range | Detection 130' (36 m)
Classification 70' (21 m)
Recognition 45' (13 m)
Identification 19' (5 m) | | | | Focal Length | 2.7mm | | Aperture | f/2.5 | | Field of View | Horizontal: 360°
Vertical: 73° | | | | Streaming | Bidirectional: Full or half duplex | | Input/Output | 600 Ohms differential, 1 V p-p maximum signal level | | Compression | G.711 PCM 8-bit, 8 kHz mono at 64 kb/s | | | | Dome Attenuation | f/0.0 light loss | | Pan Adjustment | 370° | | Tilt Adjustment | 0 to 180° | | | | Users | Unicast: Up to 20 simultaneous users depending on the resolution settings, and frame rate
Multicast: Unlimited users H.264 | | Security Access | Password protected | | Software Interface | Web browser view and setup | | Supported Protocols | TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6, SNMP v2c/v3, QoS, HTTP, HTTPS, SSH, SSL, SMTP, FTP, ARP, ICMP, and 802.1x (EAP) IPv6 supports mixed IPv4 and IPv6 installations, but not IPv6-only deployments. | | | | Video Streams | Set of streams to deliver full resolution views; secondary stream that comprises a lower resolution mosaic of above streams | | Frame Rate | User selectable up to 15 fps | | Video Encoding | H.264 High, Main, or Base profiles; MJPEG (mosaic stream only) | | Bit Rate | 25 Mbps
Default maximum for CVBR (Constrained Variable Bit Rate) at maximum resolution and frame rate | | | | Client | Processor: Intel Core i3 processor, 2.4 GHz
Operating System: Microsoft Windows 10, 7 (32-and 64-bit), or Vista; or Mac OS X 10.9 or later
Memory: 4 GB RAM
Network Interface: 100 Mbps (or greater)
Monitor: Minimum of 1024 x 768 resolution, 16- or 32-bit pixel color resolution
Web Browser: Internet Explorer 8.0 or later or Mozilla Firefox 35 or later, Google Chrome 40 or later, WebGL 2.0 or later | | VMS Software | Operating System: Windows 7 64-bit or later
Video Memory: 2 GB
System Memory: 8 GB
Processor: Intel Core i7 2.0 GHz or better | | | | Open API | Pelco API can transmit behavior alarm data to third-party applications | | | | Pelco System Integration | Pelco VideoXpert, Digital Sentry | | Open API | Pelco API, Panomersive SDK, ONVIF Profile S and G | | | | Network Port | RJ45 connector for 1000Base-T
1 Gbps auto MDI/MDI-X PoE+; Class 4 | | Cable Type | Cat5 or better | | Input Power | PoE+ (IEEE 802.3at, Class 4) | | Power Consumption | Without Heater: 17 W
With Heater: 23 W | | Local Storage | microSD/SDHC card | | Alarm | Unsupervised: Detects open or closed alarm state
Supervised: Detects open and short alarm state with external 1 kOhm resistor to detect alarm tampering | | Relay Output | Maximum: ±32 VDC, 150 mA | | Alarm Input | Maximum: 3.5 VDC, 3.5 mA | | | | Operating Temperature | -40 to 122°F (-40 to 50°C) Thermostatically controlled via active heating and cooling. | | Operating Humidity | 10 to 95%, RH condensing | | Impact Resistance | IK10 (20J) | | Shock and Vibration | EN50155 Category 1, Class B
IEC 60068:2-6 and 2-27
ISTA-2A, Sequence 5, MIL810G | | Storage Temperature | -40 to 140°F (-40 to 60°C) | | Storage Humidity | 15% to 85%, noncondensing | | | | Dimensions | 7 x 6.2" (17.8 x 15.75 cm) | | Weight | 3.9 lb (1.7 kg) | | | | Package Weight | 6.65 lb | | Box Dimensions (LxWxH) | 17.7 x 8.6 x 8.1" |
