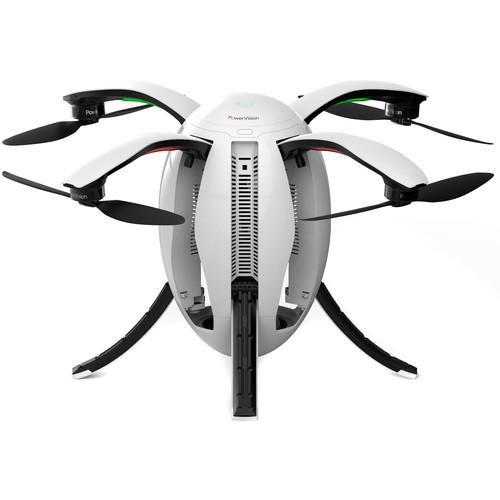

User Manual for Power Vision PowerEgg Drone Click to enlarge the picture
Contents of the user manual for the Power Vision PowerEgg Drone
- Product category: See All Drones Power Vision
- Brand: Power Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Power Vision See All Drones
 |
User manual for the Power Vision PowerEgg Drone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Power Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Power Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Power Vision product will considerably shorten its lifespan!
|
Product description Aerial Photography and Drone Glossary Read More The PowerEgg from Power Vision is more than just a drone: It is a centerpiece. When not in flight, the craft transforms into a nearly seamless egg shape that rests in an included stand for prominent display. It features the Maestro, a gesture-based controller designed to give users an intuitive, easy-to-learn flying experience. As an alternative, it also comes with a traditional "transmitter"-style controller with dual sticks for conventional RC piloting. However you choose to fly, you will be able to record the experience with a built-in 14MP photo / UHD 4K video camera with 3-axis gimbal. - Folding Design

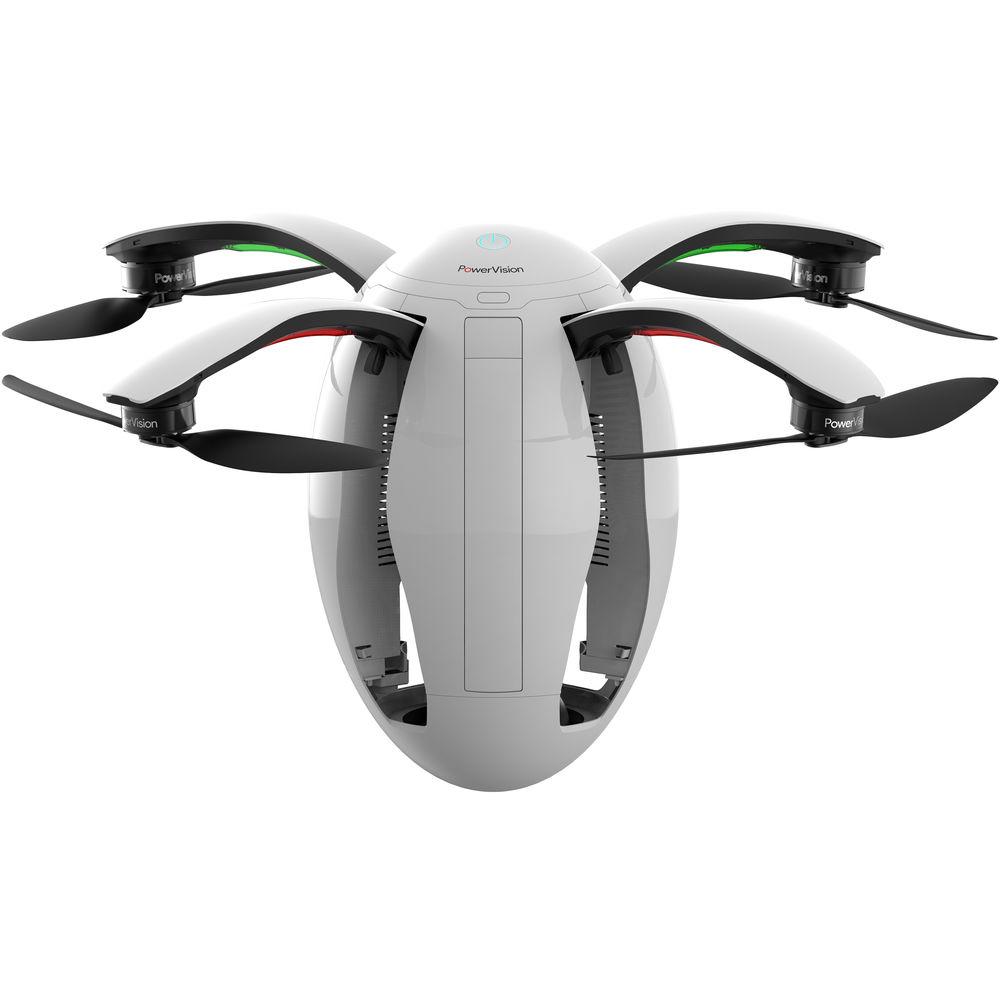

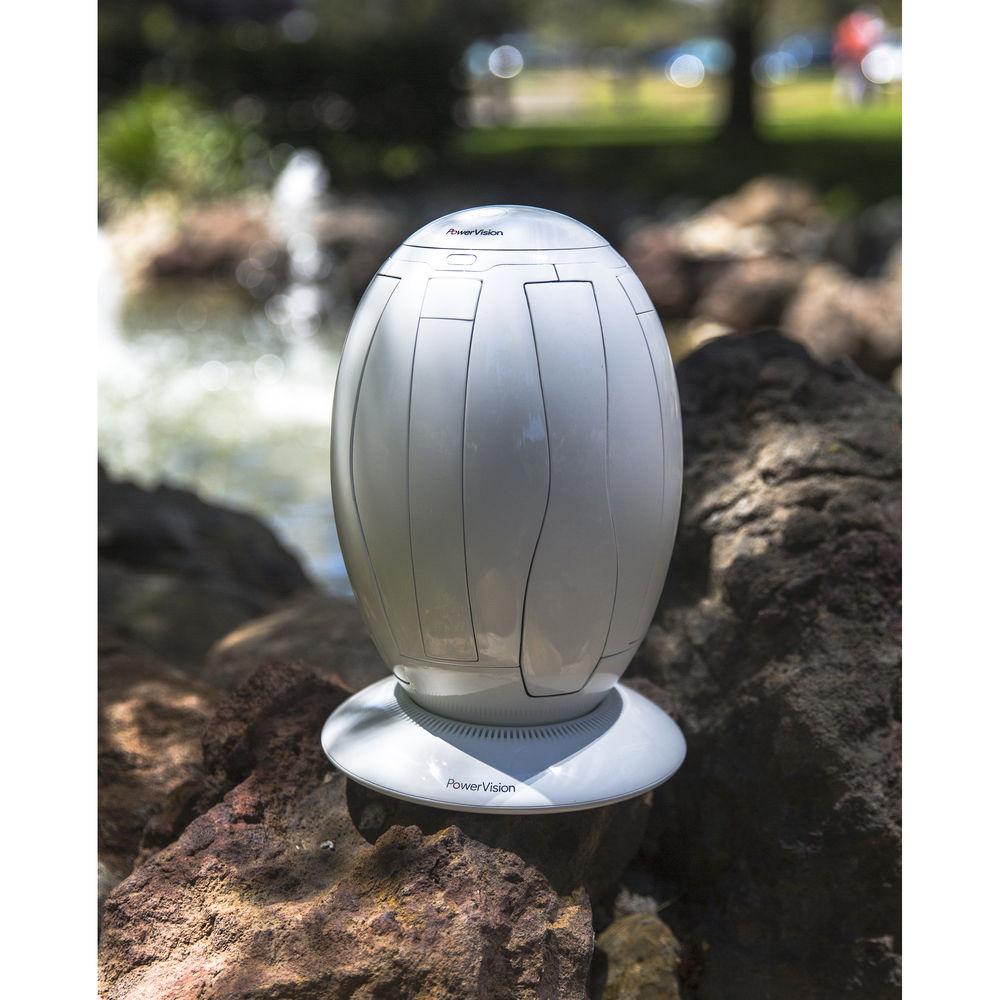

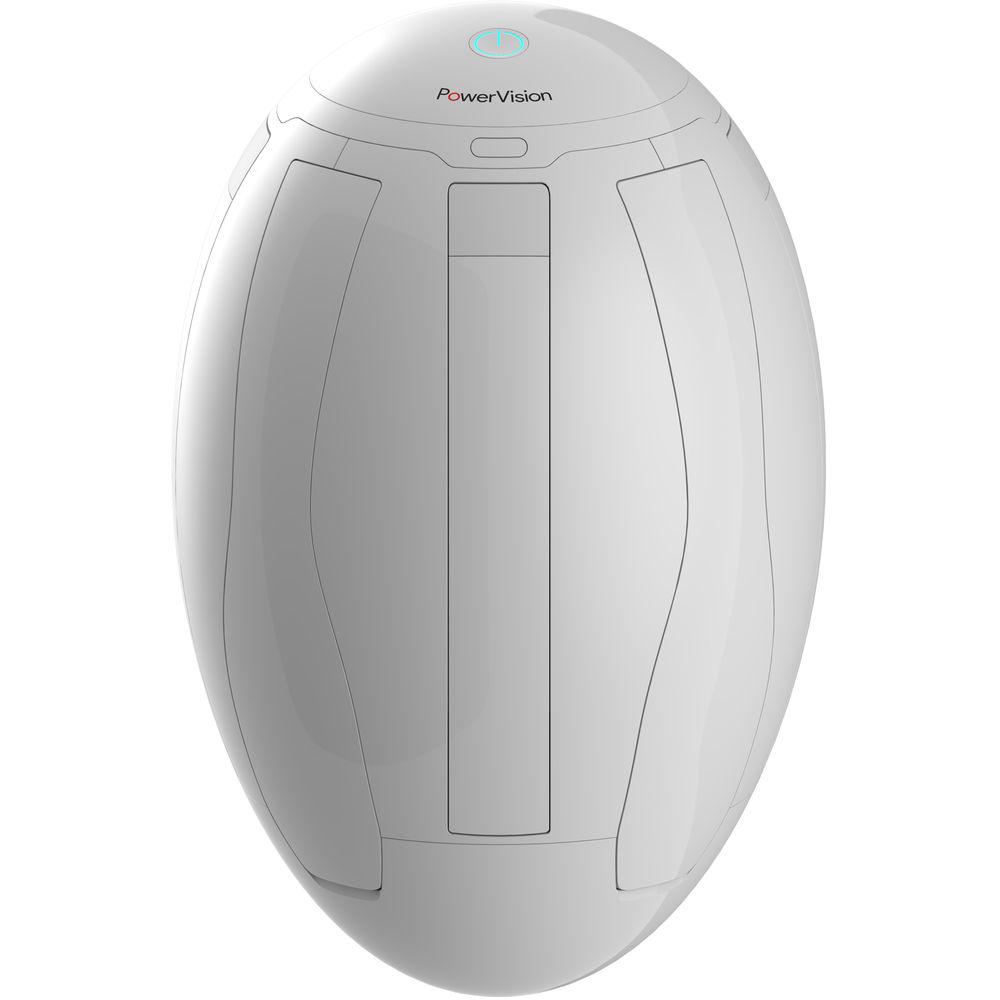

- The PowerEgg's prop arms fold flush against the body for a sleek appearance that is an excellent complement to modern decor. With the included stand, you can put the PowerEgg proudly on display

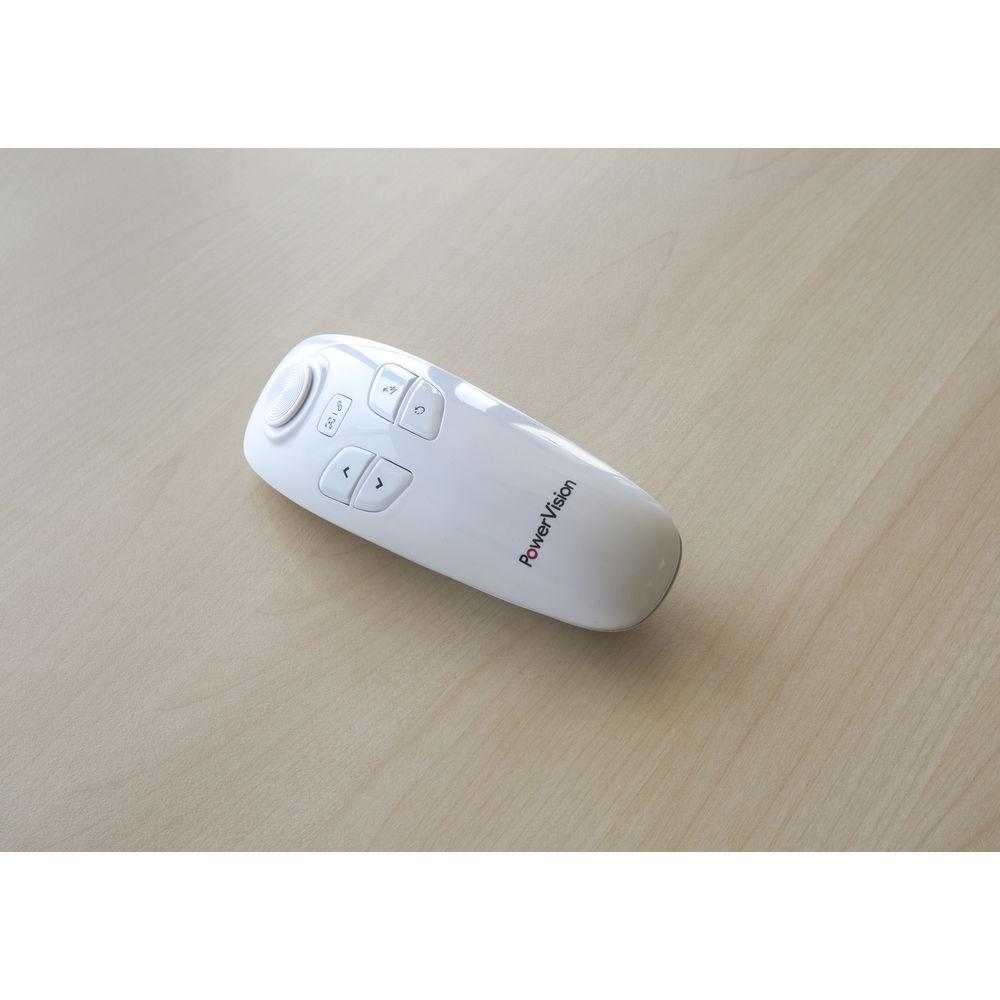

- Maestro Controller
- Fly with gestures using the included Maestro controller. For a more traditionally RC flying experience, a joystick-style transmitter also comes in the box. It can be controlled from distances of up to 3.1 miles (line-of-sight)
- Gimbal Camera
- The PowerEgg features a 14MP, 3-axis gimbal stabilized camera that is revealed underneath. The camera can take DNG or JPEG still photos with burst and time-lapse settings available. It will also record video at up to UHD 4K (3840 x 2160) resolution and a 60 Mbps bitrate. Stills and video are recorded to a separately available microSD card
Flight Control System - PowerModes
- These modes provide auto-pilot assistance, which is great for beginners and also allows flyers to concentrate on camera work
- One-Button Takeoffs and Landings
- Simply press one button and the PowerEgg will launch itself and hover at a pre-defined altitude. The Return to Home function means once the flight is over you can bring the drone back to terra firma just as easily
- Pause Function
- If you need to take a break or encounter a problem, press pause. The drone will stop on the spot and hover until you are ready to start flying again
- Safe Distance Settings
- A safe minimum distance keeps the drone from flying too close to the pilot. You can also define a maximum distance to help avoid flyaways or losing contact with the drone
- GPS and Optical Positioning
- Outdoors, the PowerEgg finds its way via GPS. It also features an optical positioning system to enable navigation while indoors and close to the ground
Flight Modes - Orbit Mode
- In this mode, the drone will fly a circular radius around a fixed point
- Cable Cam
- This is a "waypoint" flying flight pattering following a predefined path. Heading, altitude and other parameters can be separately set at each waypoint
- Follow Me
- In this mode, the drone will lock onto the controller and automatically track it (GPS availability required)
Additional Features - Mobile App
- With an iOS or Android mobile device you can access additional features, such as viewable training tutorials, advanced settings, and the ability to capture camera images on your mobile device
- 6400mAh Flight Battery
- The included battery gives the PowerEgg its power and lasts up to 23 minutes, depending on flying conditions
- Customizable
- Customize the PowerEgg with separately available designer skins

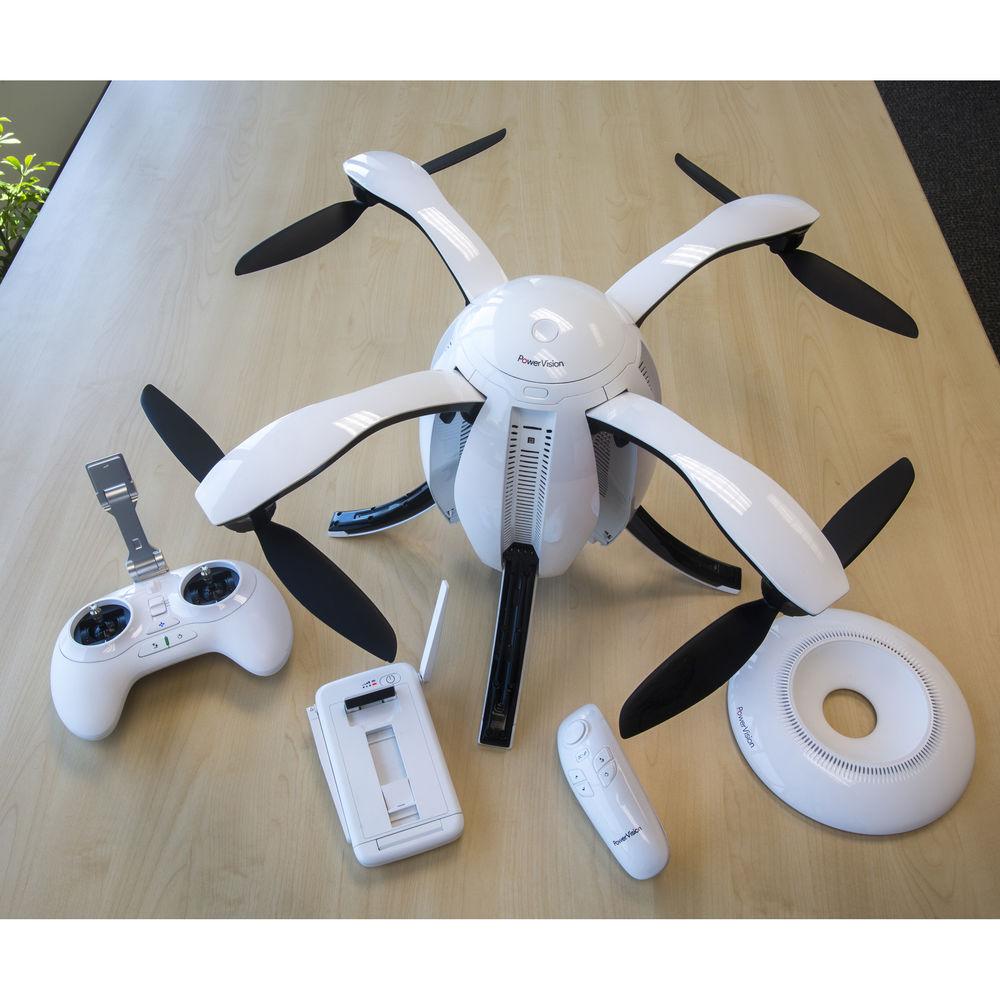

UPC: 852123007240 In the Box Power Vision PowerEgg Drone Stand Base Station Remote Control Maestro Control Charger Smart Battery Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Power Vision PowerEgg Drone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPower Vision PowerEgg Specs | | | Flight Ceiling | 13,123' / 4000 m above sea level | | Vertical Speed | Professional Mode: Up to 42.7 ft/second / 13 m/second | | Ascent Speed | Professional Mode: 16.4 ft/second / 5 m/second | | Descent Speed | Professional Mode: 6.6 ft/second / 2 m/second | | Vertical Hover Accuracy | GPS: ±0.3' / 0.1 m
Optical Positioning: ±3.3' / 1 m | | Horizontal Hover Accuracy | GPS: ±0.7' / 0.2 m
Optical Positioning: ±4.9' / 1.5 m | | Wind Resistance | < Level 5 | | Flight Time | Up to 23 minutes | | Attitude | Up to 30° | | | | Sensor | 1/2.3" CMOS | | Lens | FOV: 95° Focal Length: Not specified by manufacturer
Aperture: f/2.8 | | Shutter Speeds | 1/8000 to 8 seconds | | Photo Resolutions | 4254 x 3264
2840 x 2160
2560 x 1920 | | Video Resolutions | UHD 4K: 3840 x 2160 at 30p
FHD: 1920 x 1080 at 30/60/120p
HD: 1280 x 720 at 60/120/240p | | Recording Formats | Photo: JPEG, DNG
Video: MP4, MOV (MPEG-4 AVC/H.264) | | Video Bit Rate | Up to 60 Mbps | | Recording Media | microSD/SDHC up to 64 GB (Class 10 or UHS-1 rating or better required)
Note: FAT32 or exFAT supported | | ISO | Video: 100 to 3200
Photo: 100 to 1600 | | Photo Modes | Single Shot
Burst Shooting: 3 / 5 / 10 frames
Auto-Exposure Bracketing (AEB): 3 / 5 / 7 bracketed frames at 0.3 EV bias
Self-Timer: 5 / 10 / 30 seconds
Time-Lapse: 1/30, 1, 2, 5, 10, 20, 30, 60 second | | Operating Temperature | 14 to 104°F / -10 to 40°C | | | | Number of Axes | 3-axis (Pitch, roll, yaw) | | Controllable Range | Pitch: 0 to 90°
Roll: -120 to +170° | | Control Accuracy | 0.05° | | | | Receiver | Frequency: 2.4 GHz | | GNSS | GPS, BeiDou | | | | Altitude Range | 0.66 - 13.12' / 0.2 to 4 m (above ground level) | | Velocity Range | 0 to 13.1 ft/second / 4 m/second (at 6.6' / 2 m above ground) | | Operating Environment | Surface with clear pattern and adequate lighting (lux > 15) | | | | Power Consumption | 120 mA / 3.7 V | | Battery | Capacity: 2800 mAh
Chemistry: Lithium-ion polymer (LiPo)
Configuration: 1S
Charge Time: 3 hours
Battery Life: 20 hours | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Frequency | To Aircraft: 2.400 to 2.483 GHz
To Other Devices: 5.725 to 5.875 GHz | | Range | Up to 3.1 miles / 5 km line-of-sight | | Latency | 300 ms | | Transmit Power | 28 dBm | | Battery | Capacity: 2300 mAh
Life: 1.5 hours
Chemistry: Lithium-ion polymer (LiPo)
Configuration: 1S
Charge Time: 3 hours | | Power Requirements | 800 mA / 3.7 V | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Battery | Capacity: 1400 mAh
Life: 10 hours
Chemistry: Lithium-ion polymer (LiPo)
Configuration: 1S
Charge Time: 2 hours | | Power Requirements | 120 mA / 3.7 V | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Chemistry | Lithium-ion polymer (LiPo) | | Capacity | 6400 mAh / 94.8 Wh | | Charging Current | 2 C | | Voltage | 14.8 V | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Weight | 1.3 lb / 580 g | | | | Rated Power | 114 W | | Output Power | Port 1: 16.8 V ±0.1 V; < 5 A
Port 2: 5 V ±0.1 V; < 6 A | | Power Requirements | 100 to 240 VAC at 50/60 Hz | | Operating Temperature | 14 to 113°F / -10 to 45°C | | | | Mobile App | iOS: 8.0 or later
Android: 4.2 or later | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Power Consumption | Hover: 265 W
Max: 450 W | | Diagonal Size | 17.6" / 448 mm | | Dimensions | Closed: 10.7 x 6.9" / 272 x 176 mm
Flight Mode: 10.7 x 18.7" / 272 x 476 mm | | Weight | With Battery and Propellers: 4.6 lb / 2.1 kg | | | | Package Weight | 16.2 lb | | Box Dimensions (LxWxH) | 15.0 x 14.5 x 8.7" |
