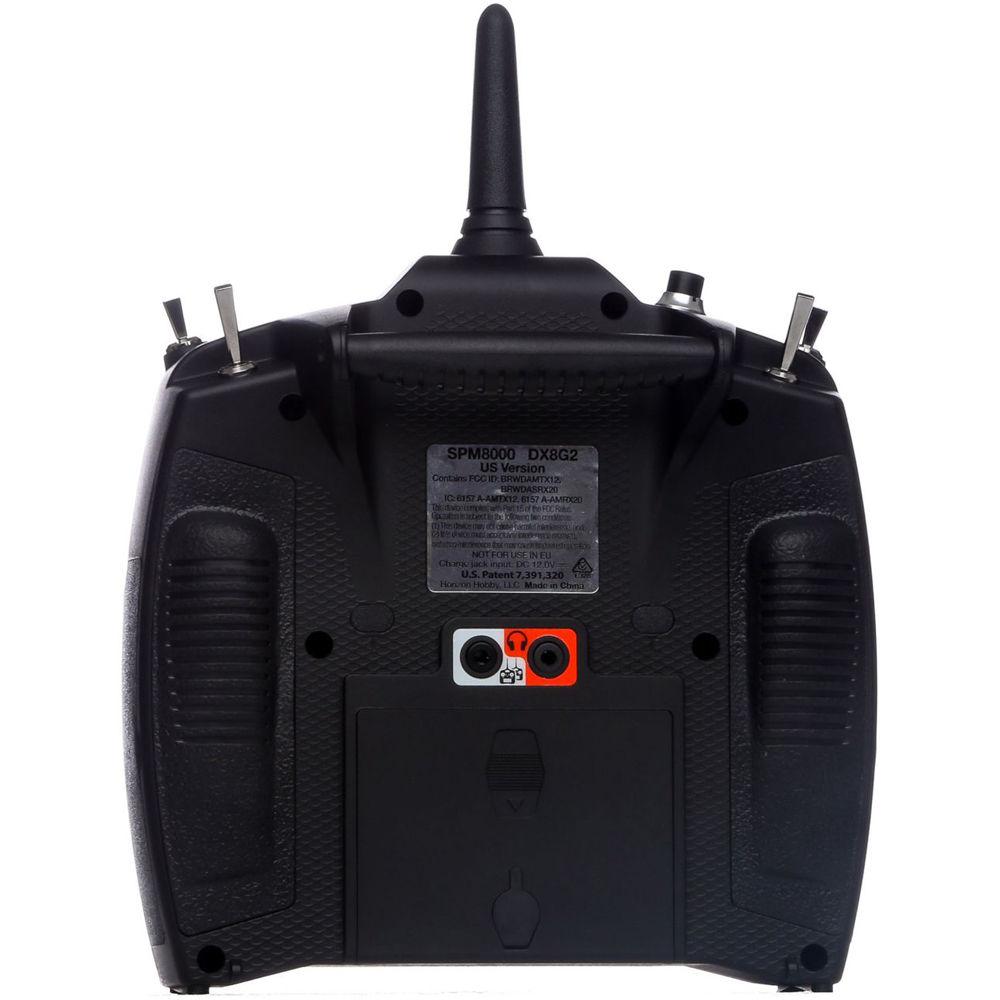

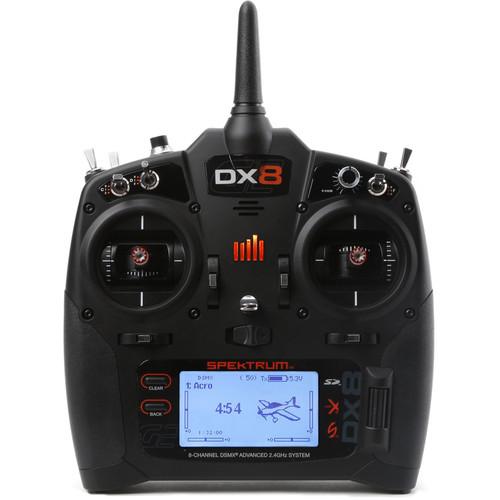

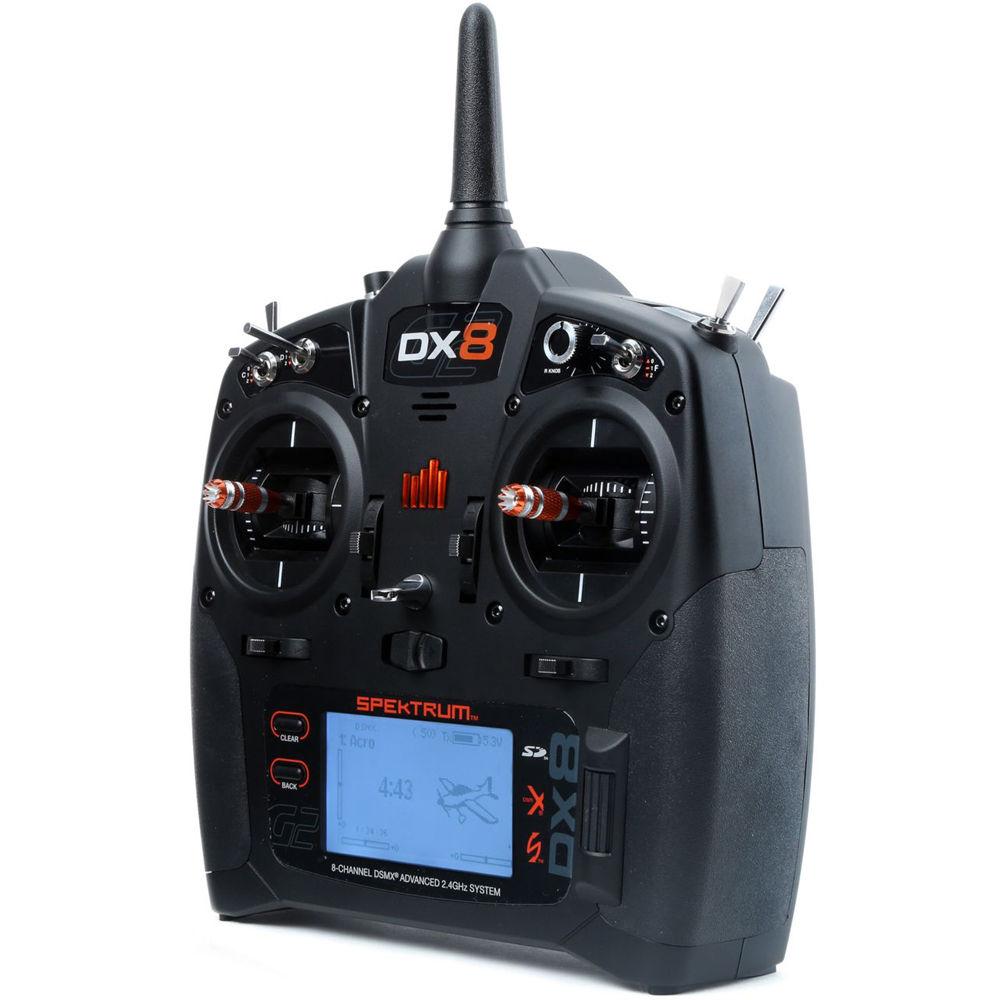

Product description The DX8 G2 System from Spektrum includes an 8-channel transmitter and a AR8010T receiver.
The DX8 Gen 2 is a full-range 8-channel transmitter suitable for use with a wide range of model types, including airplanes, helis, multi-rotors, and more. It features DSMX protocol with legacy DSM2 support for pairing with the AR8010T receiver. It supports control modes 1, 2, 3, and 4.
The AR8010T 8-channel receiver with integrated full-range telemetry features built-in connection ports for RPM, flight pack voltage, and temperature sensors, as well as an X-Bus port for additional telemetry options. No sensor is required to receive flight log or receiver pack voltage telemetry data. With a DSMX transmitter capable of 11 ms frame rates, the AR8010T receiver will deliver input-to-output response that is suitable for high-performance applications like 3D helis and airplanes. The receiver includes one DSMX remote receiver with MultiLink technology. The MultiLink technology eliminates the reflected signal fading and antenna blind spots that can affect all 2.4 GHz systems. Transmitter - Programmable Voice Alerts
- You can program voice alerts to call out what flight mode you've chosen or report telemetry information on demand. If an alarm goes off, you won't have to look at the transmitter display to see what's happening.
- Wireless Trainer Link
- Allows users to wirelessly link the DX8 up with other compatible Spektrum transmitters and specially-equipped Spektrum FPV headsets. Once bound to another transmitter or component, ModelMatch technology will allow the DX8 to re-link without having to go through the bind process again.
With Wireless Trainer Link, you could:- Wirelessly "buddy box" with another DSMX/DSM2 transmitter when teaching someone to fly
- Assign gimbal functions to a second "camera" transmitter when flying a camera drone, so you can focus on avoiding obstacles and maintaining visual contact while someone else lines up the shot
- Link with specially-equipped Spektrum FPV headsets to wirelessly control head tracking and remotely change video frequencies
- 250-Model Memory
- The model-memory menu is designed to be easier to navigate, too. Only memory slots with model settings saved to them will appear; unlike other systems where you will have to scroll through empty slots or move models around if one is deleted. Because the DX8 uses the same AirWare software as many other Spektrum transmitters, you can share model setups across platforms with almost any Spektrum pilot.
- Built-In Telemetry Readout
- The built-in telemetry feature gives you real-time information on things like your model's battery voltage, signal quality, engine or motor temperature, airspeed, altitude and more. Using the voice alert system, you can program the DX8 to tell you when specific telemetry values reach or exceed limits you define. You can also have it call out a sequence of telemetry values on demand with the flip of a switch. If you want to review telemetry after a flight, the DX8 can be set up to record the data to its SD card. 1
Please Note: Requires a separately available Spektrum telemetry module and telemetry sensors. close Programming Features Airplane - 10 Wing Types: Normal, Dual Aileron, Flaperon, 1 Aileron 1 Flap, 1 Aileron 2 Flap, 2 Aileron 1 Flap, 2 Aileron 2 Flap, Elevon A, Elevon B, and 4 Aileron
- 6 Tail Types: Normal, V-Tail A, V-Tail B, Dual Elevator, Dual Rudder, and Dual Rudder/Elevator
- Aileron, Flaperon, Elevon, and V-Tail differential
- Flap system with elevator compensation
- Preset Mixes: Elevator-to-Flap, Aileron-to-Rudder, and Rudder-to-Aileron/Elevon
- 10 Programmable Mixes: Select Normal or Curve for each
Helicopter - 7 Swash Plate Types: Normal, 3 Servo 120°, 3 Servo 135°, 3 Servo 140°, 3 Servo 90°, 4 Servo 90°, and 2 Servo 180°
- 5 Flight Modes, including Hold
- Cyclic-to-Throttle and swashplate timing mixes
- 10 Programmable Mixes: Select Normal or Curve for each
Sailplane - 5 Wing Types: Single Aileron, Dual Aileron, 2 Aileron 1 Flap, 2 Aileron 2 Flap, and 4 Aileron 2 Flap
- 3 Tail Types: Normal, V-Tail A, and V-Tail B
- Motor throttle switch assignment
- Dual Aileron and V-tail differential
- Preset Mixes: Flap-to-Aileron Curve, Aileron-to-Flap, Aileron-to-Rudder, and Elevator-to-Flap
Multi-Rotor - Multi-rotor Channel Inputs: ALT (Altitude), ROL (Roll), PIT (Pitch), and YAW
- Multi-rotor Channel Inputs: ALT (Altitude), ROL (Roll), PIT (Pitch), and YAW
- Simplified multi-rotor flight mode setup and switch assignment
Receiver -
- Compact design fits most parkflyer size and larger aircraft
- Capable of 11 ms frame rates
- Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors and X-bus for telemetry sensor expansion
- Receiver pack voltage and flight log data available without the need for additional sensors
- Dual antenna’s for optimal RF performance
UPC: 605482045213 In the Box Spektrum DX8 G2 System with Transmitter and AR8010T Receiver - Mode 2 8-Channel Air Integrated Telemetry Receiver Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Spektrum DX8 G2 System with Transmitter and AR8010T Receiver - Mode 2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpektrum DX8 G2 Specs | | | Band | 2.4 GHz | | Channels | 8 | | Frame Rate | 11 ms | | Model Memory | 250 | | Model Type | Multi-rotor
Sailplane
Helicopter
Airplane | | Modulation | DSMX | | Modes | Mode 1
Mode 2
Mode 3
Mode 4 | | Range | Full | | Compatibility | SD card (not included)/AirWare software | | Telemetry | Yes | | Battery | Chemistry: Lithium-ion
Capacity: 2000 mAh | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer | | | | Band | 2.4 GHz | | Channels | 8 | | Modulation | DSMX | | Voltage Range | 3.5 to 9 V | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer | | | | Package Weight | 4.5 lb | | Box Dimensions (LxWxH) | 12.3 x 9.5 x 5.5" |
